Pioneer®
Pioneer® Triple Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt
$2,812.00$3,374.40
Call for best pricing before large-system orders.
Pioneer® Triple Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt
Summary

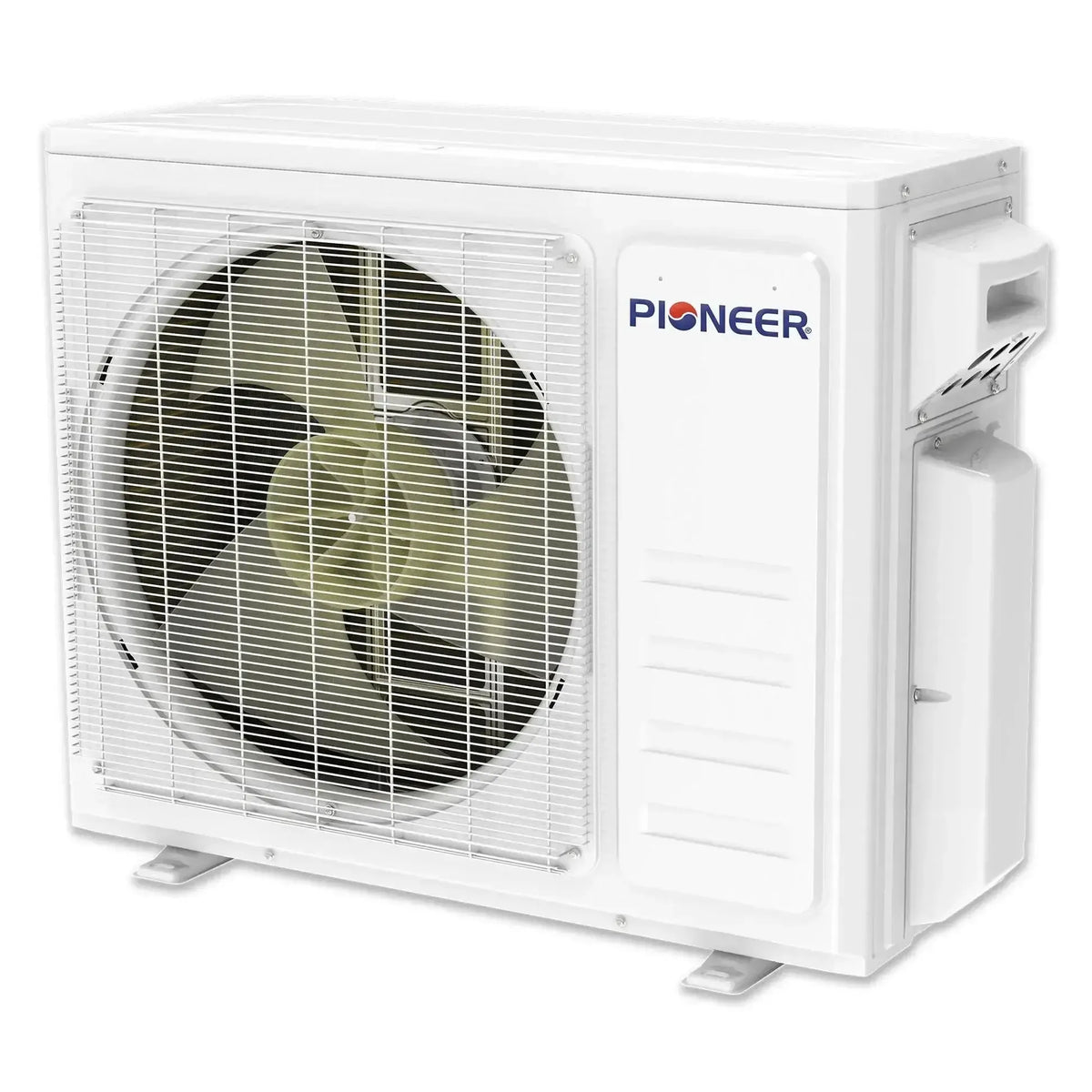

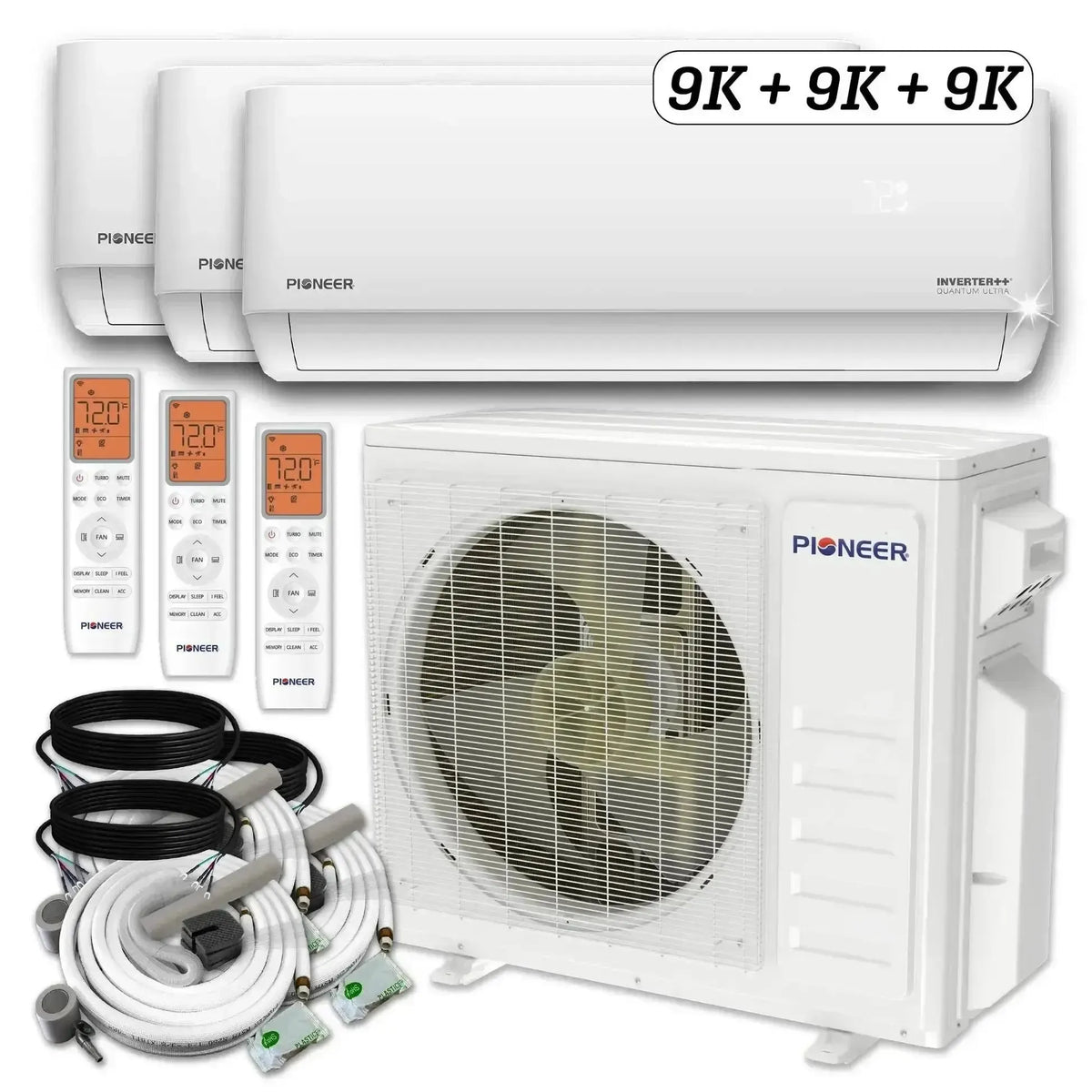

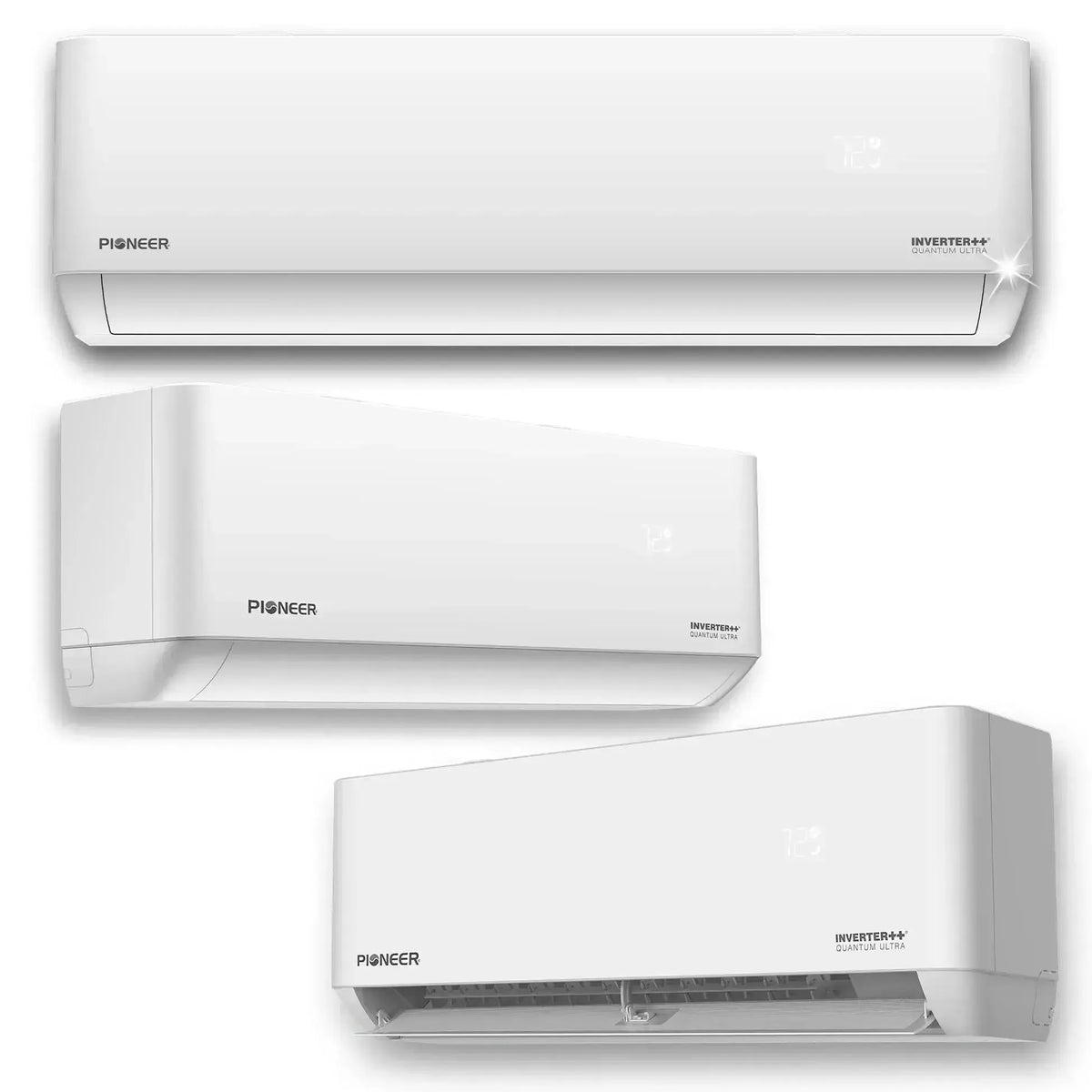

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
- Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system
- (x3) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 27,000 BTU/H (Range: 4,500 minimum - 31,000 maximum) with 24 SEER/12.0 EER efficiency
- Heating capacity: 28,000 BTU/H nominal (range 4,500 minimum - 33,000 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

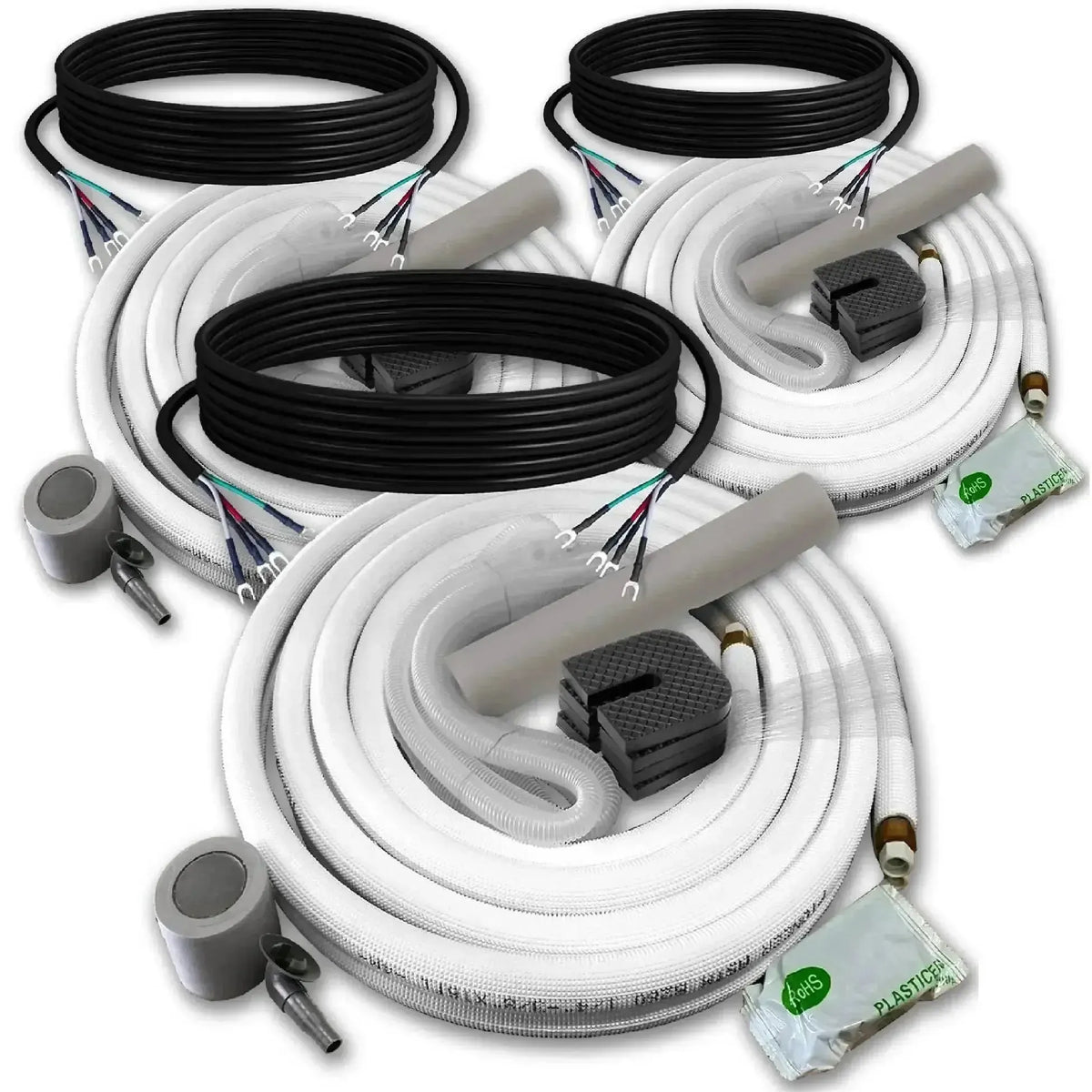

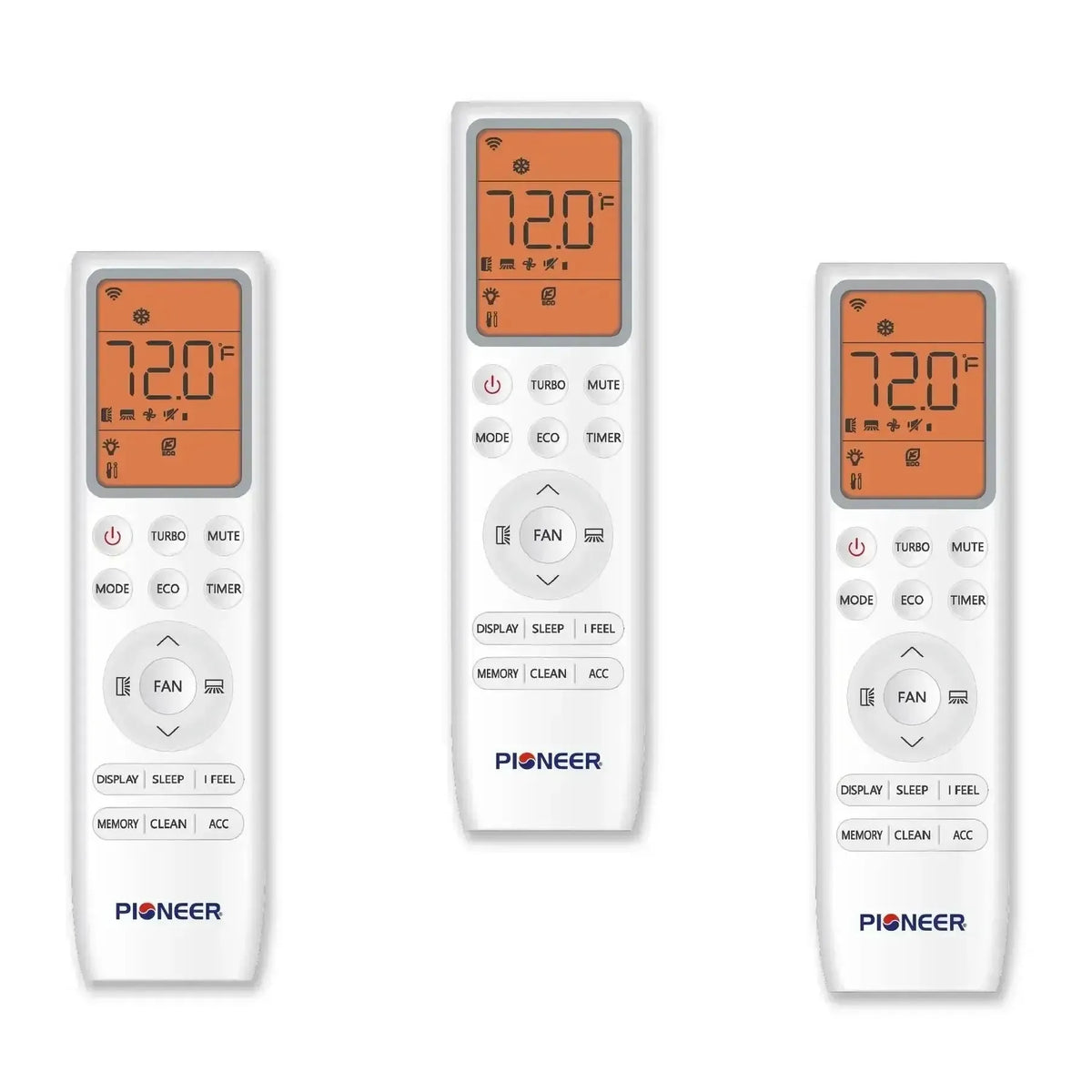

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 75 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
System Manuals
- Technical Brochure
- Submittal Sheet
- Installation Manual (Multi-Split Addendum)
- Service Manual
- AHRI Certificate
- Energy Guide
Need sizing help?
Call before you order and we can help confirm capacity, zones, line sets, electrical needs, and accessories.
Shipping, liftgate, and delivery
Use this block for freight delivery expectations, liftgate details, inspection steps, and tracking support.
AI-ready product facts
Connect product metafields for BTU, SEER2, zones, voltage, refrigerant, line-set compatibility, warranty, and install notes so an assistant can recommend complete bundles.
Before checkout
Confirm the right system package for your installation.
Review capacity, electrical requirements, indoor unit placement, line set length, and accessories before ordering.
