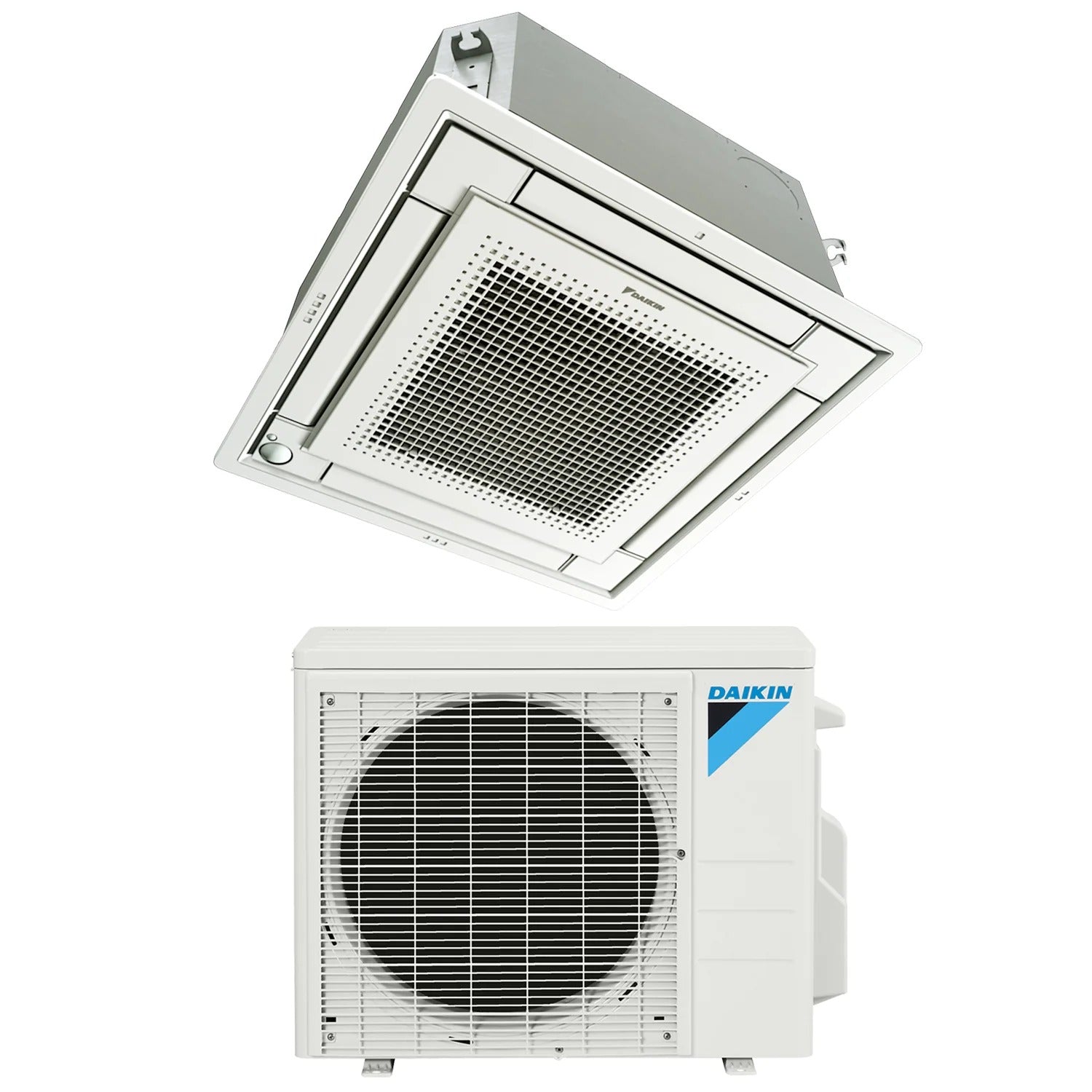

Daikin VISTA 18,000 BTU 18.2 SEER2 Ceiling Cassette Mini Split Air Conditioner Heat Pump System 208/230V

Daikin VISTA 18,000 BTU 18.2 SEER2 Ceiling Cassette Mini Split Air Conditioner Heat Pump System 208/230V

The Daikin VISTA is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, Daikin VISTA is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.

System Features:

• Seamless integration in standard architectural ceiling tiles, leaving only 5/16”

• High efficiencies with 18,2 SEER2, 8.4 HSPF2, and 11.5 EER2.

• Cooling Range: 50° - 115°F (Extended operation to -4° - 115°F with facility setting and air adjustment grille)

• Heating Range: 5° - 65°F

• Reduce energy consumption thanks to specially developed small tube heat exchanger, DC fan motor, and two optional intelligent sensors.

• No optional adaptor needed for DIII-connection, link your unit into the wider building management system.

• Fresh air integration possible.

• 12-Year Parts Limited Warranty

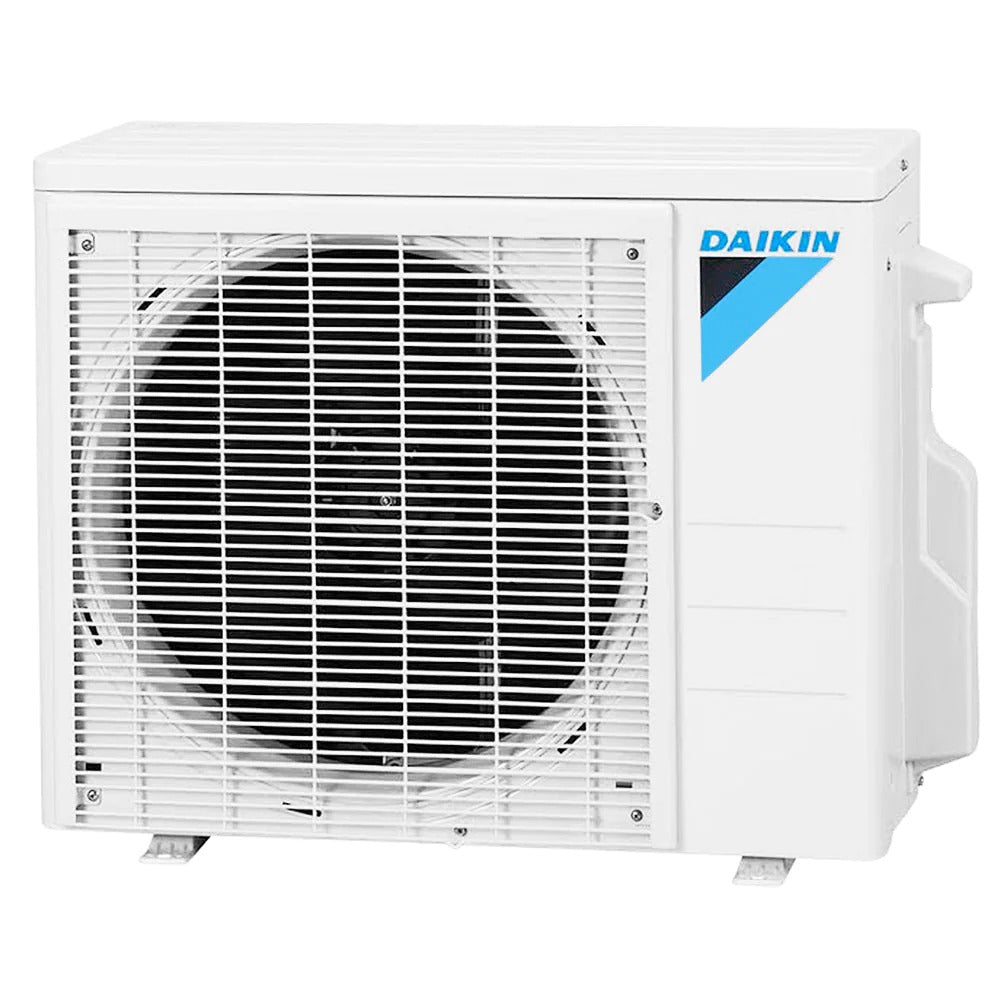

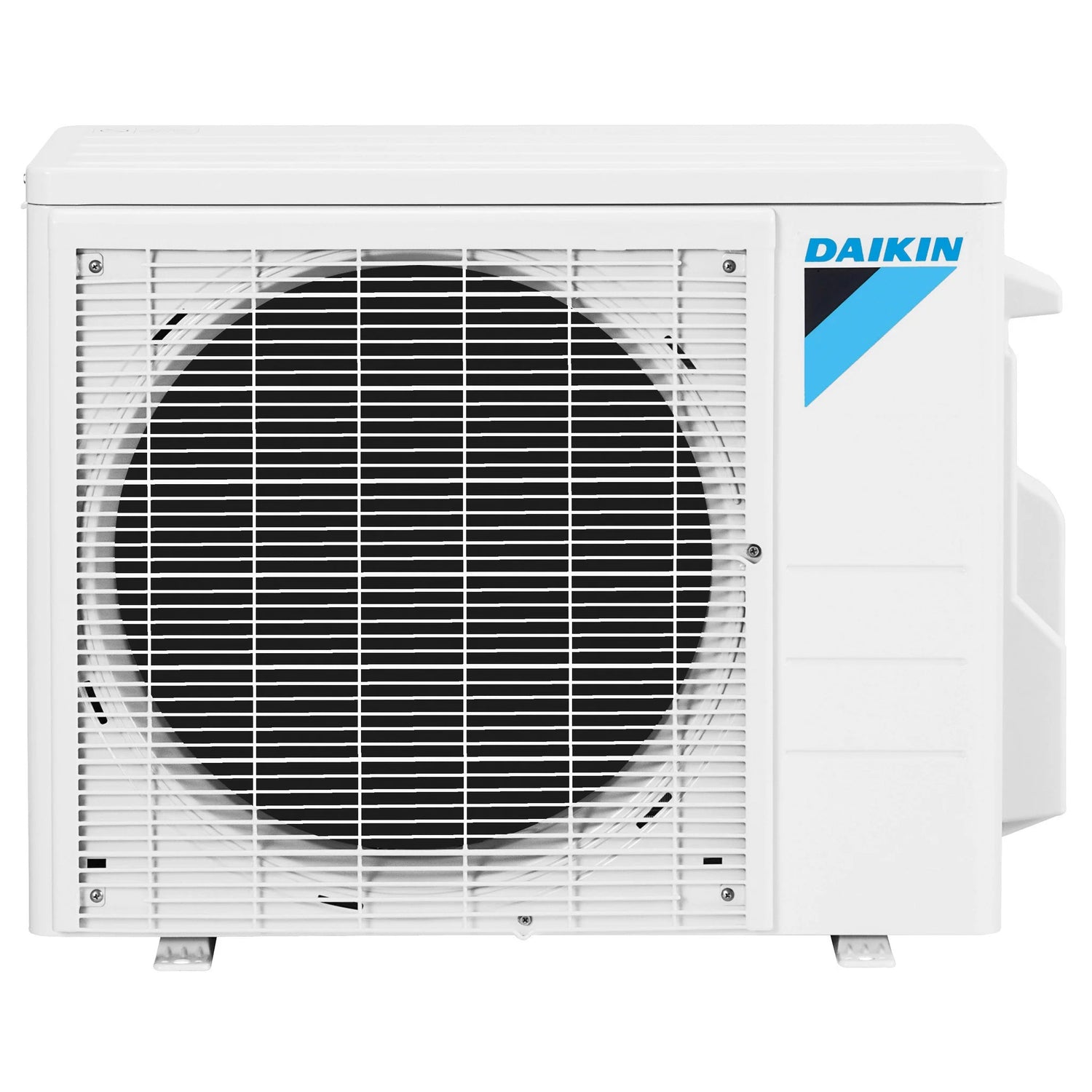

Outdoor Unit Features:

• Anti-Corrosion Treatment on Heat Exchanger

• Quick Warming Function: Preheats the compressor to shorten the time required to discharge warm air.

• Automatic Defrosting: Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.

• Outdoor Unit Quiet Operation: Outdoor unit sound levels can be reduced by 3dB for times when quieter operation is needed.

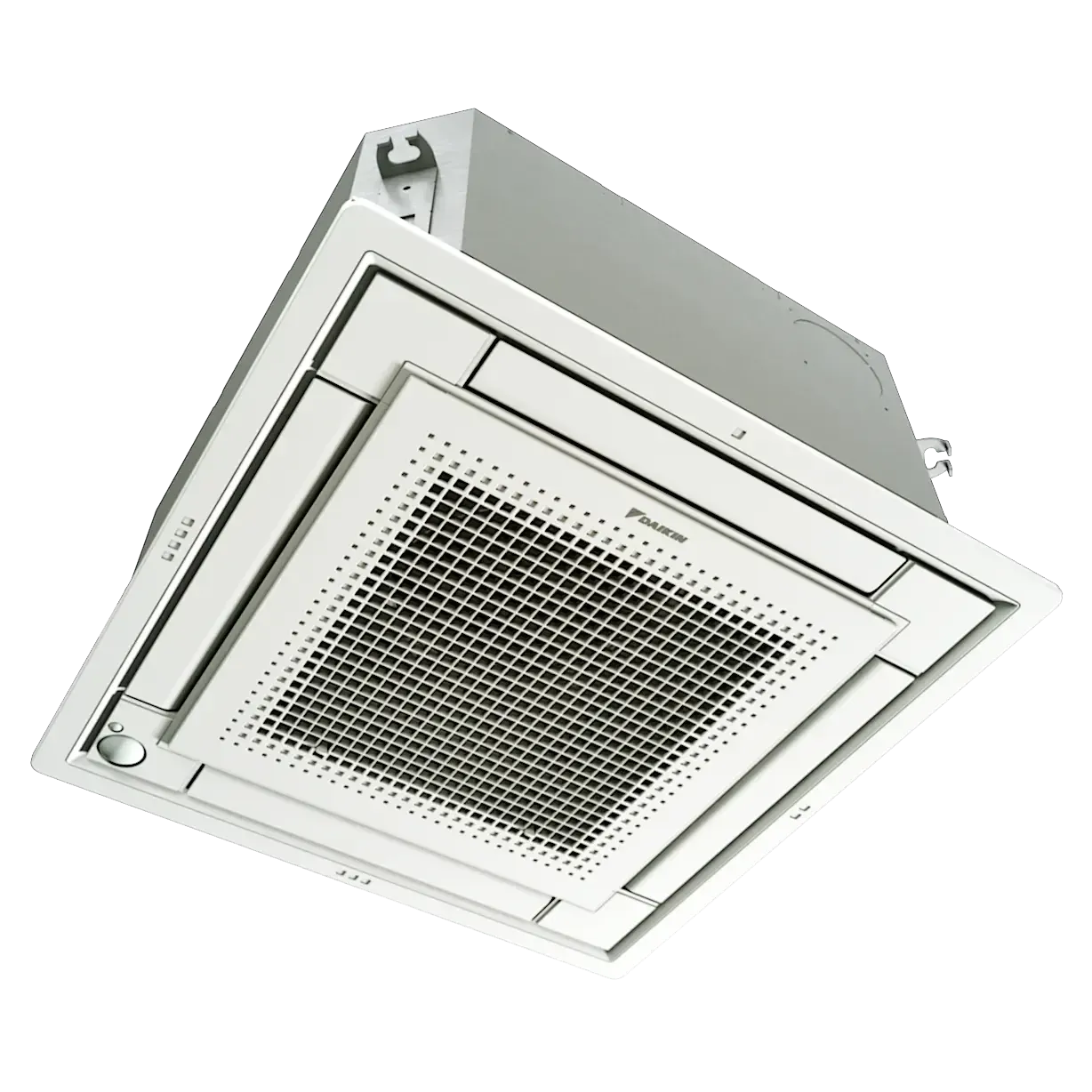

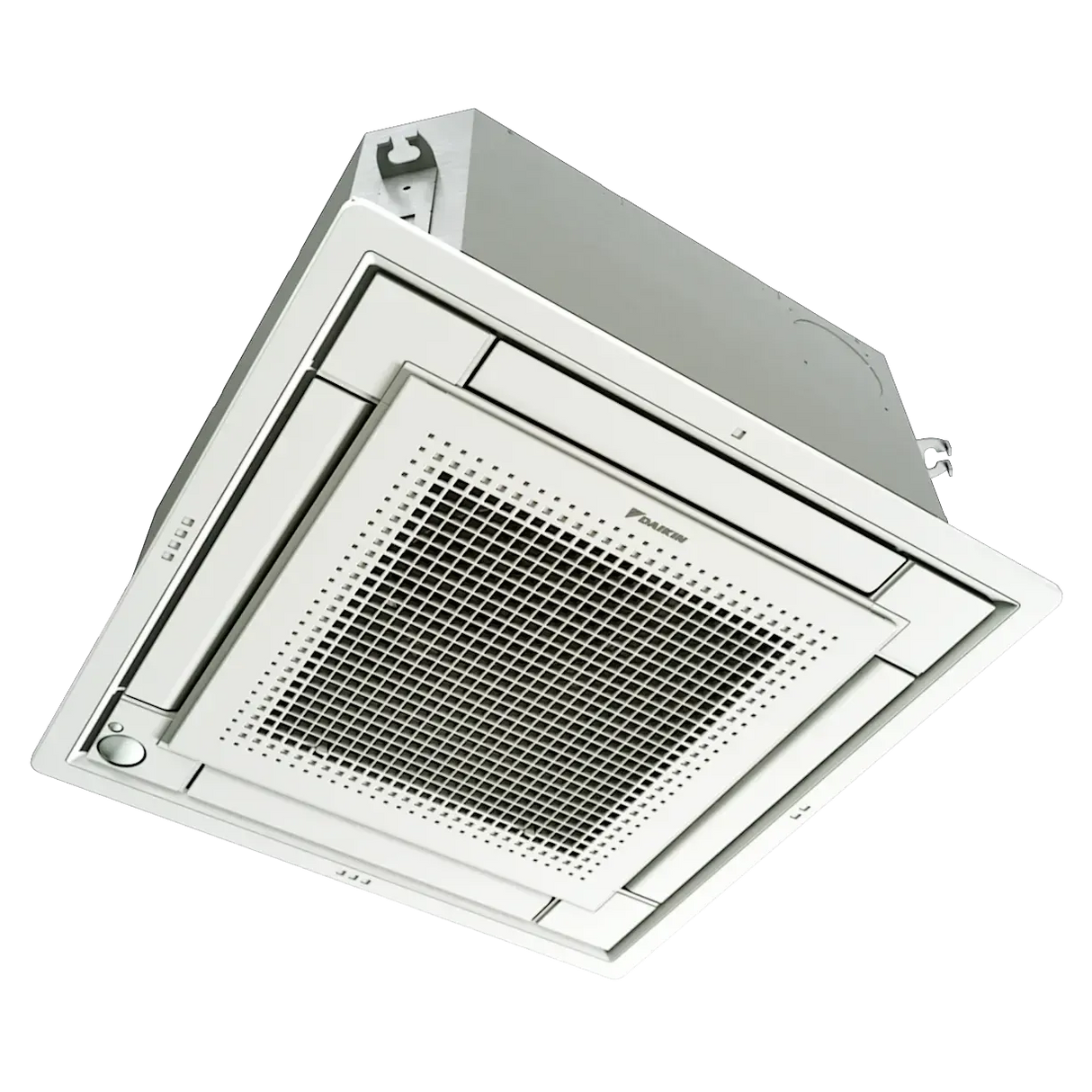

Indoor Unit Features:

• Draft Reduction: This system directs warm air to the floor in winter and cool air across the room in summer for optimal efficiency and comfort. The large flap governs airflow direction while the small flap (or diffuser) swings, producing fine air currents that help circulate the air around the room.

• Individual Louver Control: The new louver changes the delivery angle to horizontal for cooling and vertical for heating operation, to keep cold or warm air from blowing directly onto your body.

• Included in the optional sensor kit: Presence and Floor Sensor (optional part #BRYQ60A2W or BRYQ60A2S) – The presence and floor sensors are infrared sensors with the ability to sense movement in the room. When you are in the room, the system operates normally. If you leave the room for more than 20 minutes the system automatically changes to an energy-saving operation. Using the intelligent eye, savings of up to 20% in cooling and up to 30% in heating can be achieved. The floor sensor detects the average floor temperature and ensures even temperature distribution between ceiling and floor.

Optional Features:

• Wired Controller

• Fresh Air Integration Possible

• Presence and Floor Sensors

• Compatible with Daikin One+ Smart Thermostat, DKN Cloud Wi-Fi adaptor or Daikin DKN Plus Interface

What's Included:

• Indoor Unit

• Outdoor Unit

• Refrigerant Line Set with 1/4" and 1/2" Line Ends

• 14/4 Mini-Split Control Wire

• Free Condenser Wall Mouning Bracket ($119.99 Value)

System Specifications:

Indoor Unit Specifications:

Outdoor Unit Specifiications:

Product Information and Guides:

• Brochure
• Submittal
• Daikin Vista Specifications
• Daikin Vista Engineering Data Manual
• Daikin Vista Service Manual
• Operation Manual
• Indoor Unit Installation Manual
• Outdoor Unit Installation Manual
• Warranty
