18,000 BTU 21.4 SEER2 ACiQ Extreme Series Single Zone Wall Mount Mini Split System - WiFi Enabled - R454B
$2,296.99$2,959.19
Call for best pricing before large-system orders.
18,000 BTU 21.4 SEER2 ACiQ Extreme Series Single Zone Wall Mount Mini Split System - WiFi Enabled - R454B
The ACiQ Platinum series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER2 as high as 21.4 and HSPF2-4 as high as 11.0 you can experience the high performance and maximum efficiency that usually costs much more.
- Maximum Performance at an Affordable Cost
- Heating & Cooling
- Ductless Solution for a 600-1,000 sq ft Room
- Efficient Cooling from -22°F - 122°F Outdoor Temperatures
- Efficient Heating from -22°F - 75°F Outdoor Temperatures
- Single Zone/Room Compatible
- See Submittal here

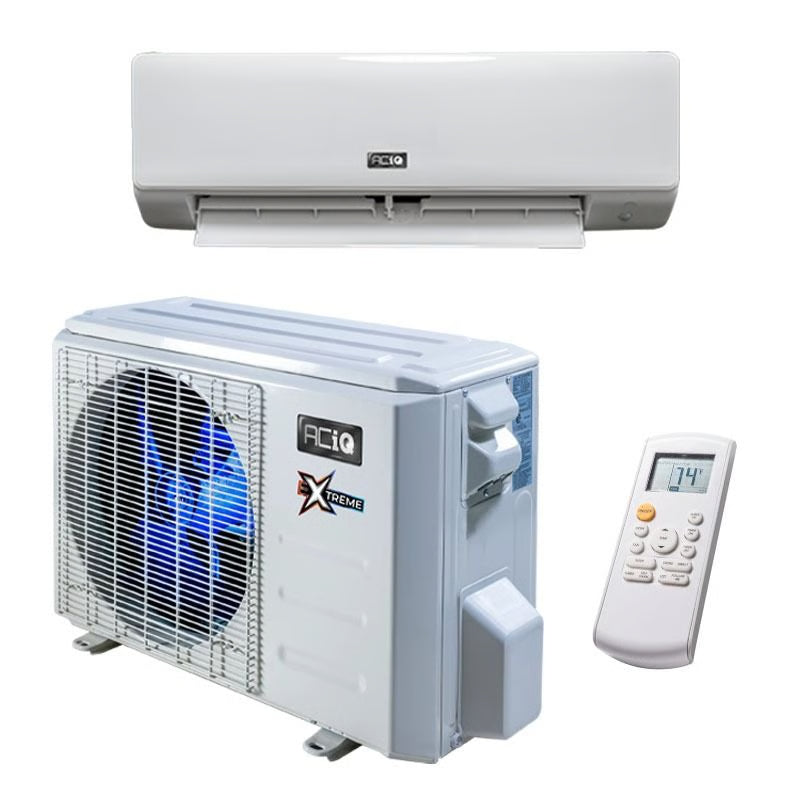

What's Included:

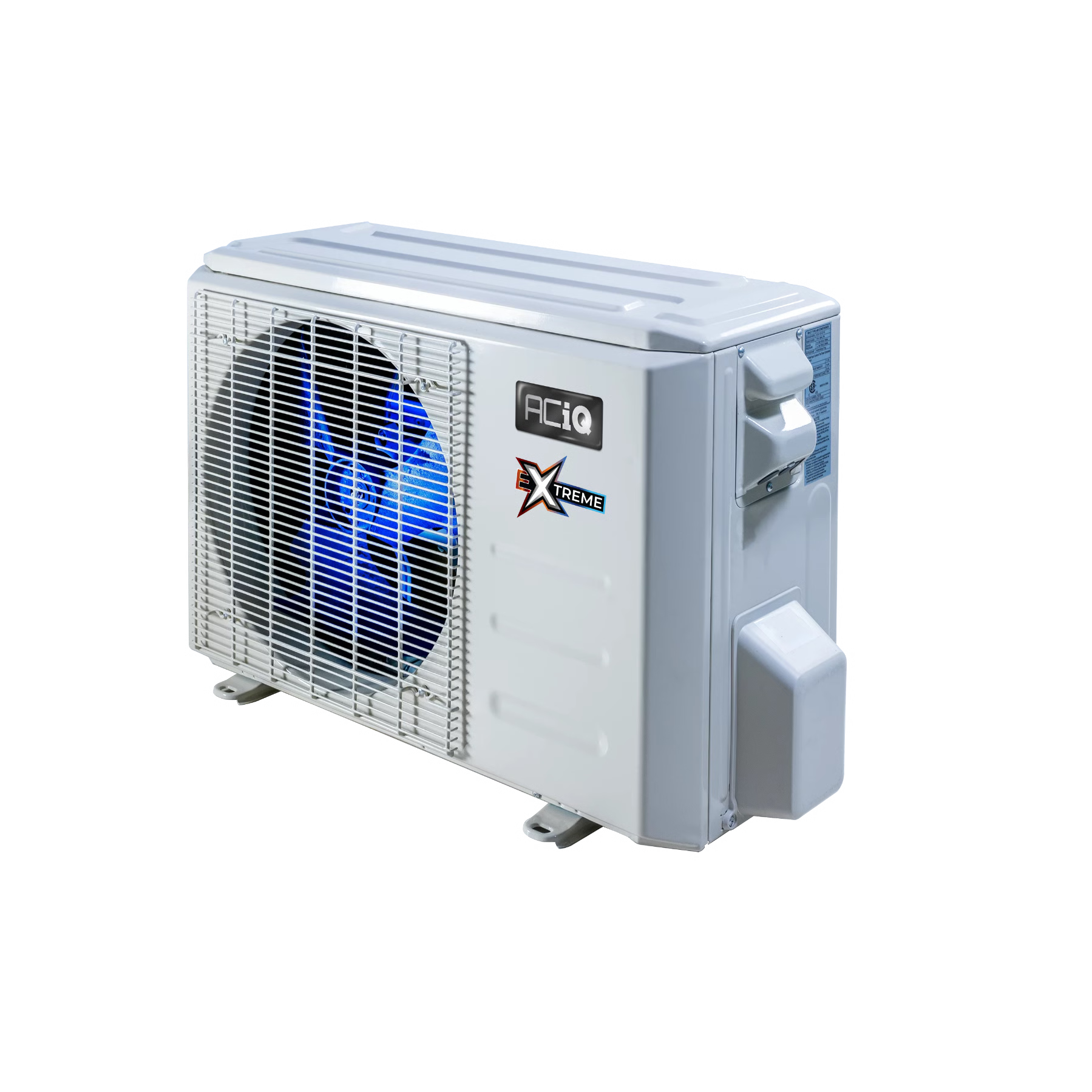

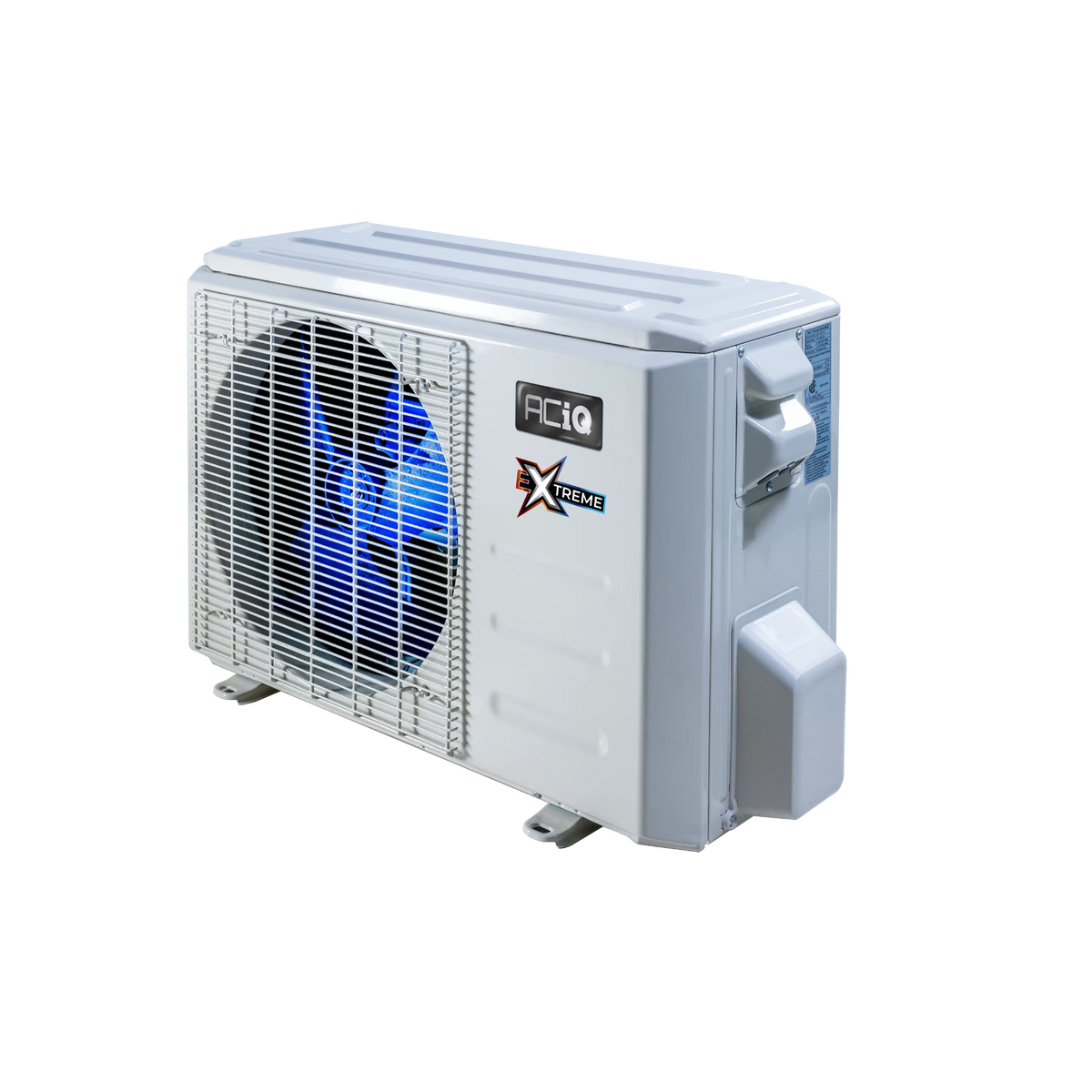

- 1x 18,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

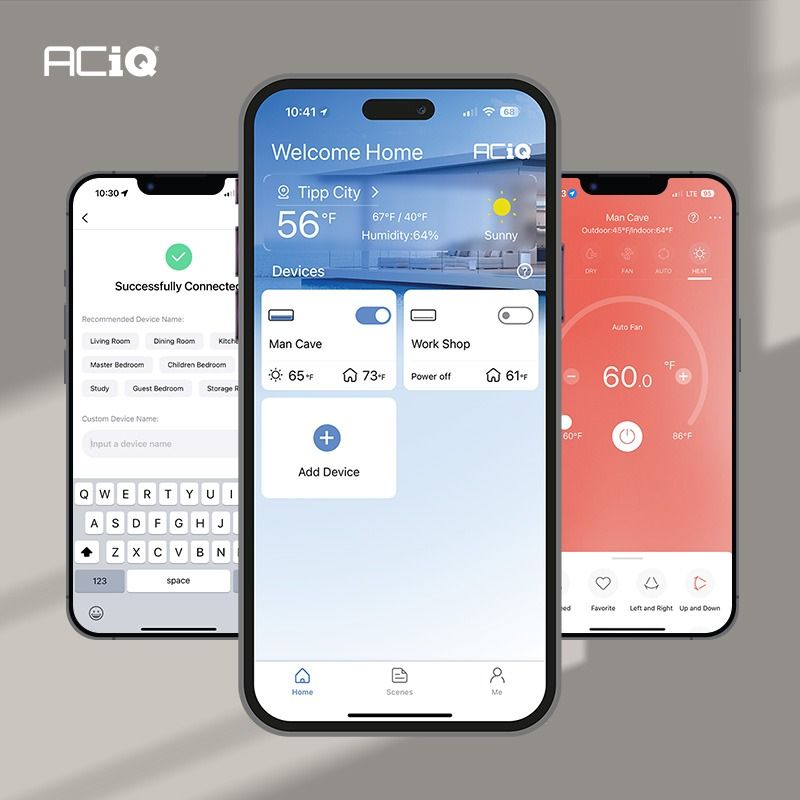

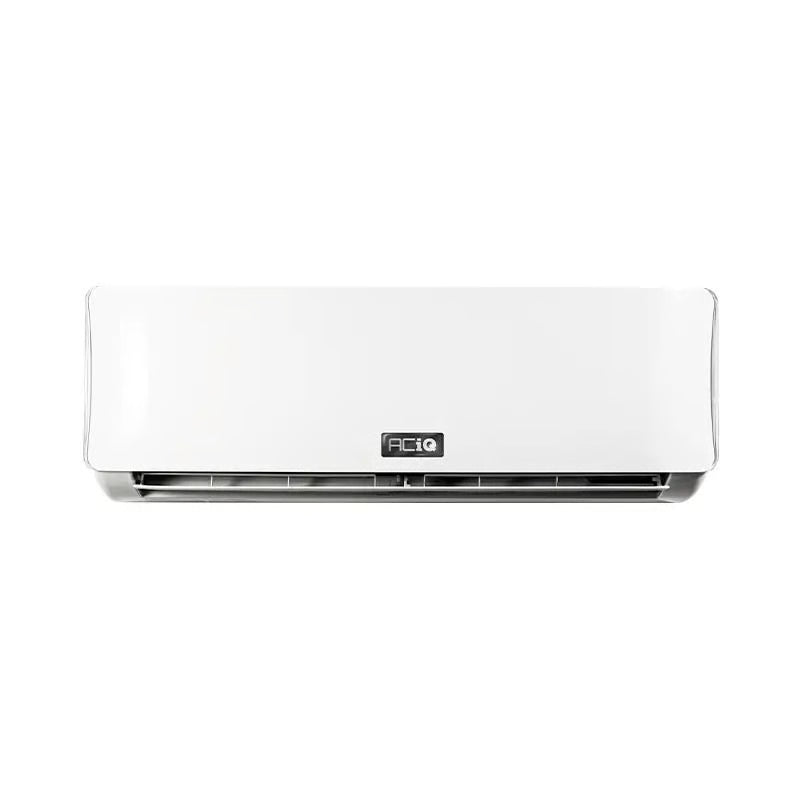

- 1x 18,000 BTU ACiQ Platinum Multi Zone Air Handler w/ WiFi
Condenser Specifications:
| SKU | ACIQ-18ZPL-HP230C |
| Weight | 107.080000 |
| AHRI Certificate Number | 216032336 |
| Manufacturer | ACiQ |
| Product Features | Low Ambient Heating |
| HSPF2 | 11.0 |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 1764.7 |
| Decibel Level (dBA) | 59 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 21.4 |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Max Breaker Size | 25 |
| Min. Breaker Size | 20 |
| Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Min/Max Outdoor Temp for Heating | -22~75 F / -30~24 C |
| Min/Max Outdoor Temp for Cooling | -22~122 F / -30~50 C |
| Zone Compatibility | Single Zone |
| Operating Mode | Heating/Cooling |
| Certification | Energy Star, NEEP, UL AHRI |
| Height | 26.5" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU | ACiQ-18W-HH-MD |
| Weight | 35.710000 |
| Manufacturer | ACiQ |
| Product Features | Low Ambient Heating, WiFi |
| Cooling BTU | 18000 BTU |
| Heating BTU | 18000 BTU |
| Maximum CFM | 523.53 |
| Decibel Level (dBA) | 46.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER | 18-20 |
| SEER2 | 22.3 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60 Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Length | 40.06" |
| Height | 12.60" |
| Depth | 9.72" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
