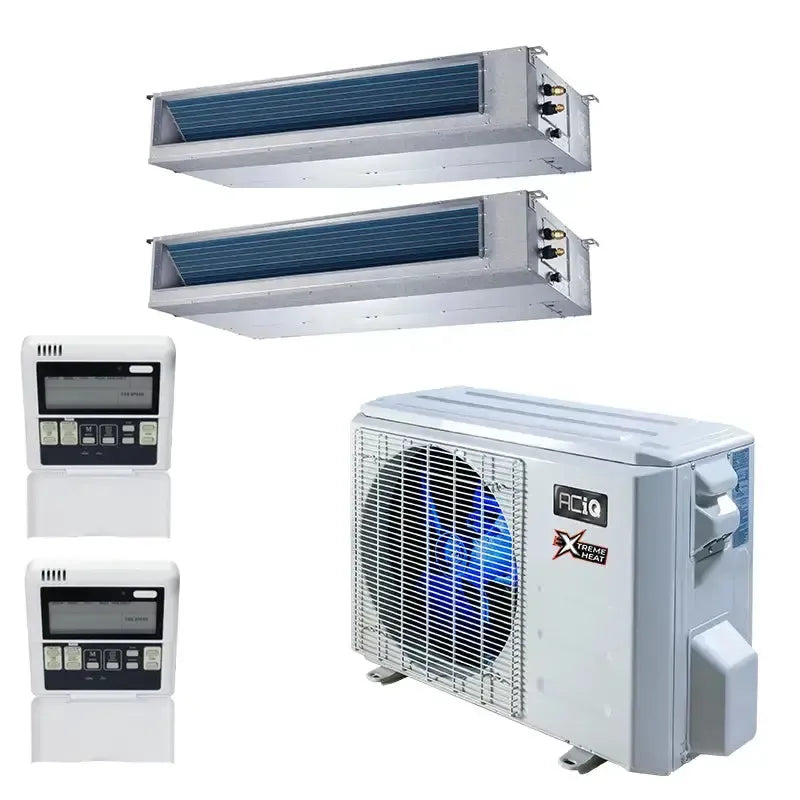

18,000 BTU 22.3 SEER2 ACiQ 2-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+9
$3,040.00$4,676.78
Call for best pricing before large-system orders.
18,000 BTU 22.3 SEER2 ACiQ 2-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+9
ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series 18,000 BTU 22.3 SEER2 2-Zone Concealed Duct Mini Split System, you get higher SEER and better low ambient (hyper heat) performance than the competition.
Benefits & Features
- Intelligent comfort at an affordable cost
- Ideal for two spaces up to 450 square feet (depending on climate)
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
- Included Smart Remote
- WiFi compatibility through free app, Amazon Alexa or Google Assistant
- Enhanced Dry mode, intelligent sleep mode, power save mode.

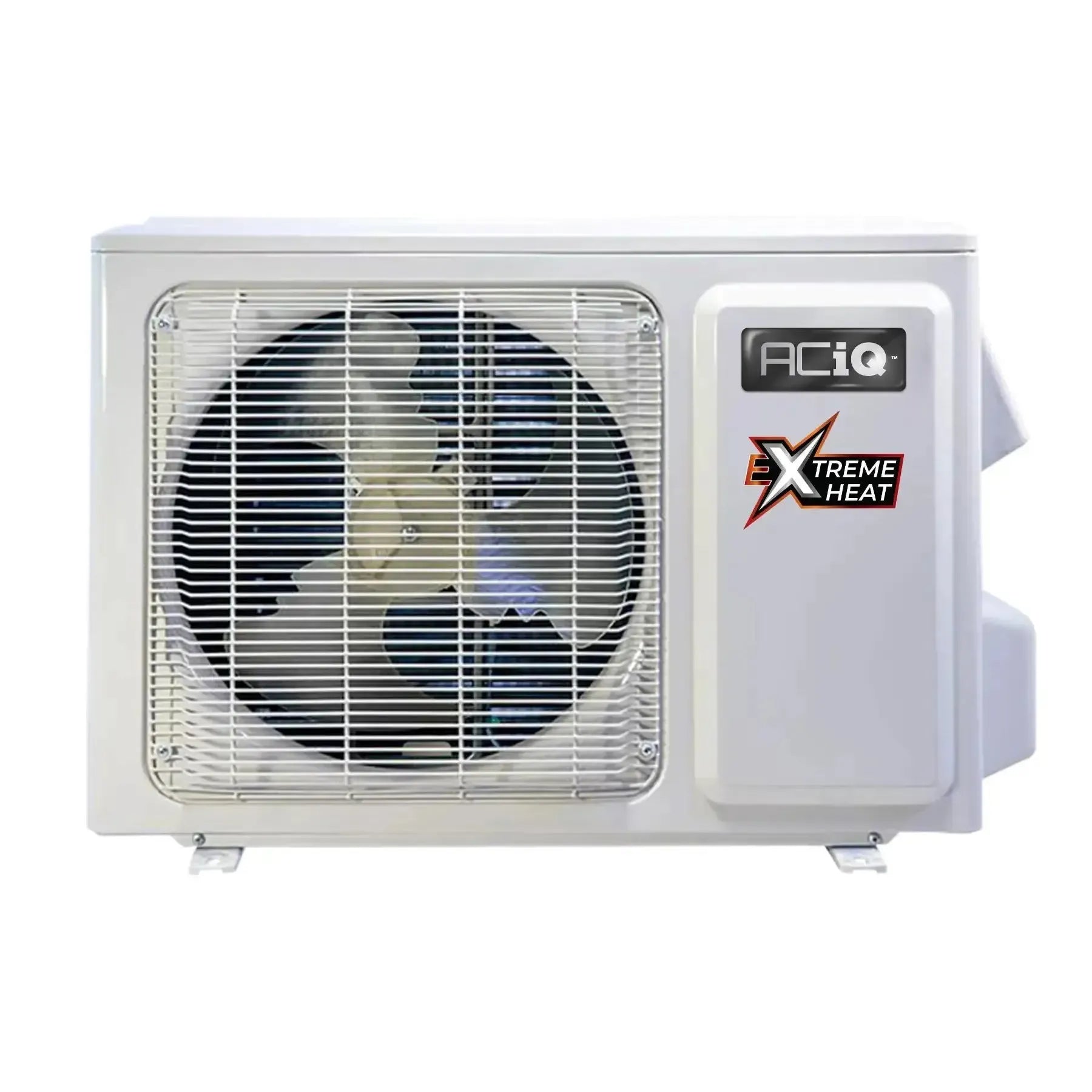

Condenser Specifications:
| Brand | ACIQ |
| SKU | ACIQ-18Z-HH-M2B |
| Refrigerant Charge | 50' |
| Weight (in lbs) | 160.940000 |
| AHRI Certificate Number | 207825576 |
| HSPF | 9.8 |
| Cooling BTU | 19000 BTU |
| Heating BTU | 20000 BTU |
| Decibel Level (dBA) | 63.4 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 21-22 |
| SEER2 (Efficiency) | 22.3 |
| EER | 12.5 |
| Compressor Type | Rotary |

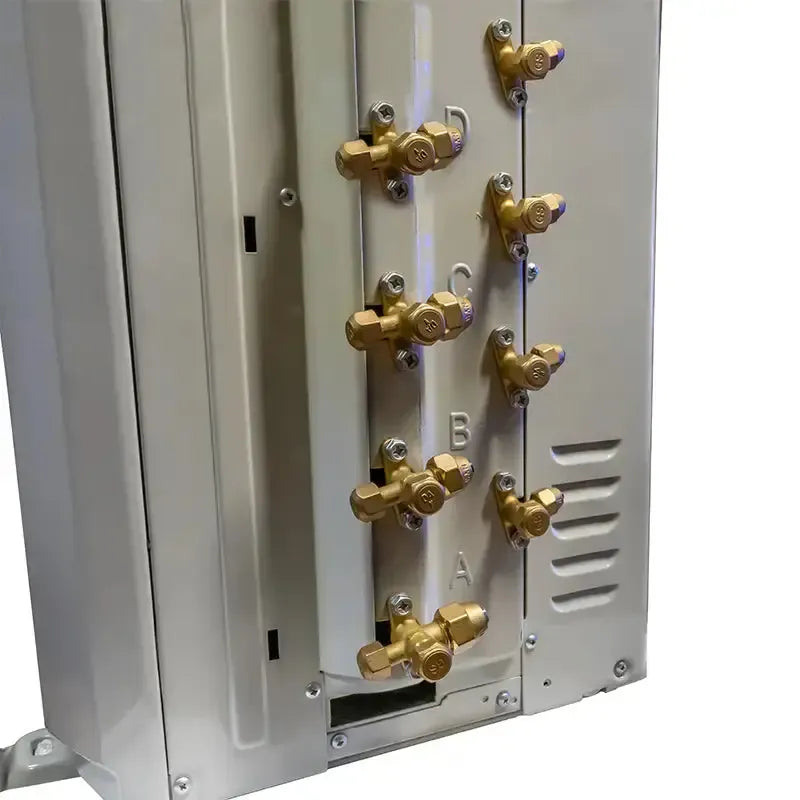

| Liquid Line | 1/4" (2) |
| Suction Line | 3/8" (2) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 20 Amps |
| Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -22 ~ 122 |
| Height | 31-9/10" |
| Width | 37-1/4" |
| Depth | 16-1/5" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |

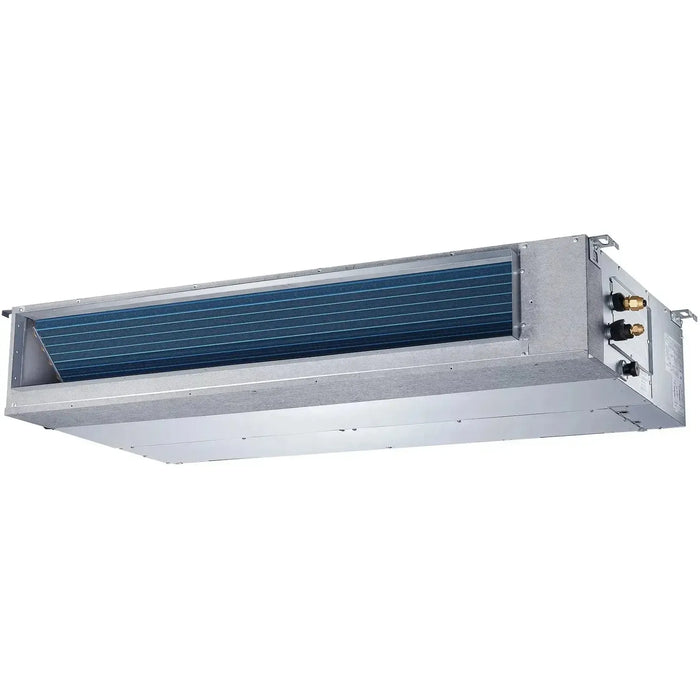

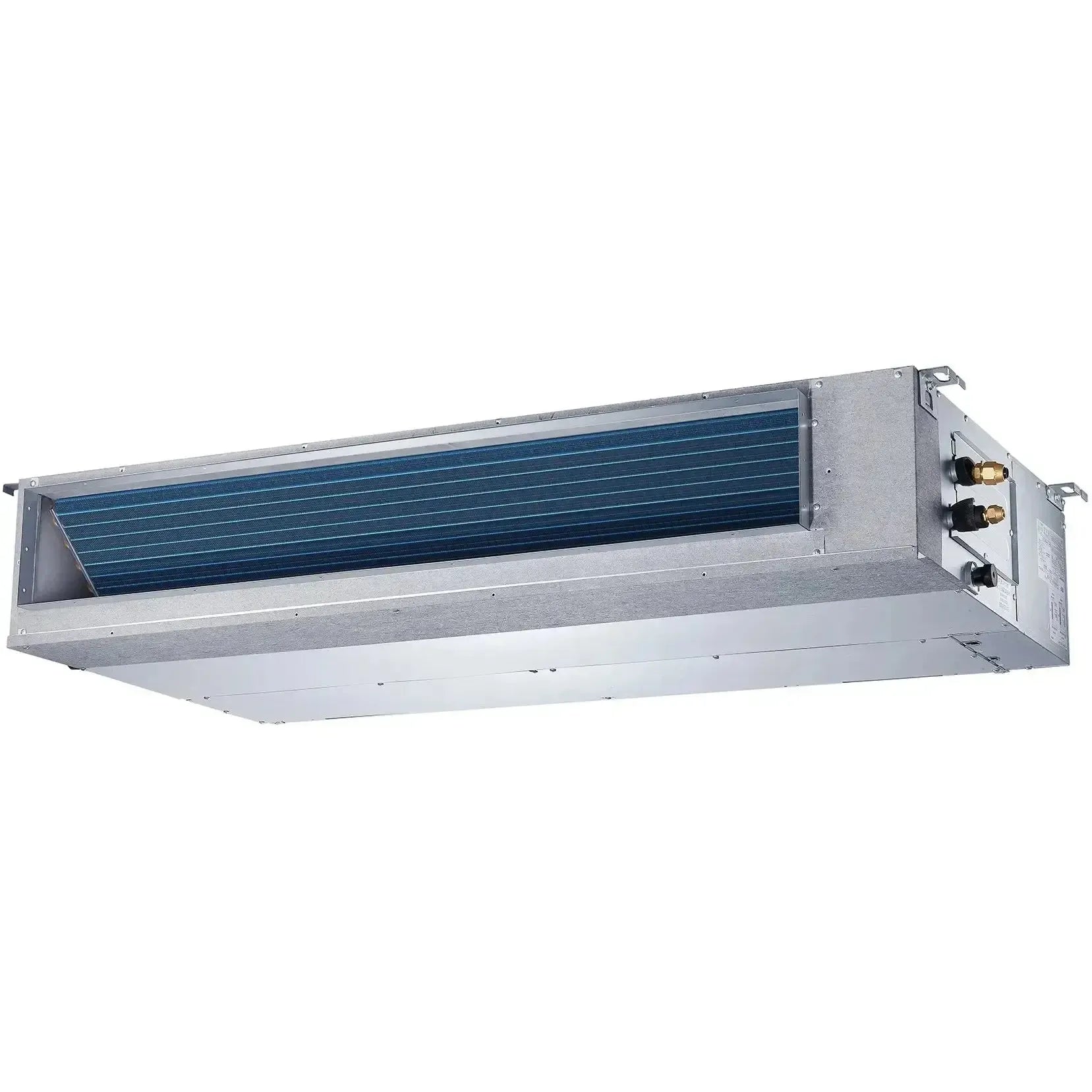

9K BTU Air Handler Specifications:
| Brand | ACIQ |
| SKU | ACIQ-09CD-HH-MB |
| Weight (in lbs) | 21.900000 |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | 352.94 |
| Decibel Level (dBA) | As low as 27 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini-Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Height | 7.87" |
| Width | 27.56" |
| Depth | 19.92" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
Product Information and Guides:
Condenser
- Submittal
- Brochure
- Owner's and Install Manual
- Wi-Fi Manual
- Condenser Amperage Chart
- Heat Performance Chart
- AHRI Certificate
- Energy Guide
- Warranty
9K BTU Air Handler
Need sizing help?
Call before you order and we can help confirm capacity, zones, line sets, electrical needs, and accessories.
Shipping, liftgate, and delivery
Use this block for freight delivery expectations, liftgate details, inspection steps, and tracking support.
AI-ready product facts
Connect product metafields for BTU, SEER2, zones, voltage, refrigerant, line-set compatibility, warranty, and install notes so an assistant can recommend complete bundles.
Before checkout
Confirm the right system package for your installation.
Review capacity, electrical requirements, indoor unit placement, line set length, and accessories before ordering.
