18,000 BTU ACiQ Standard 25.1 SEER2 Dual Zone Floor Mount Mini Split Heat Pump System - R454B | 230V - 9 + 12
This ACiQ 2-Zone Standard Series System combines high efficiency with advanced climate control. ES-18Z-M3C / ACIQ-09FM-HH-MD / ACIQ-12FM-HH-MD is the perfect solution for year-round heating and cooling in up to 2 spaces.
18,000 BTU ACiQ Standard Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
Overview
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-18Z-M3C, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
Quick Facts
- 18,000 BTU, 25.1 SEER2 multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
18,000 BTU, 25.1 SEER
The 18,000 BTU, ES-18Z-M3C is designed to easily support up to 3 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25.1 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
9,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V

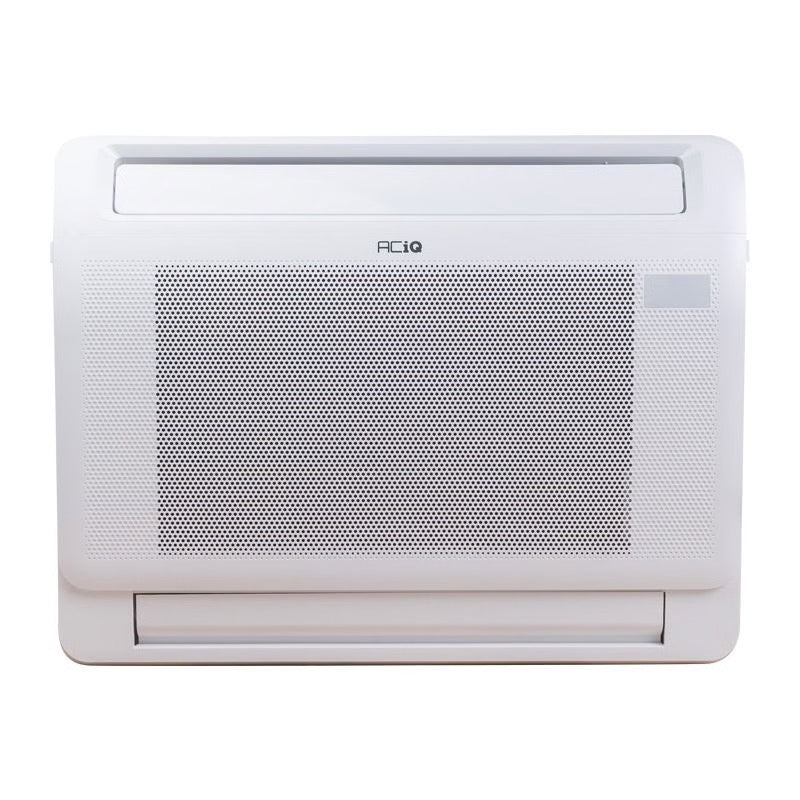

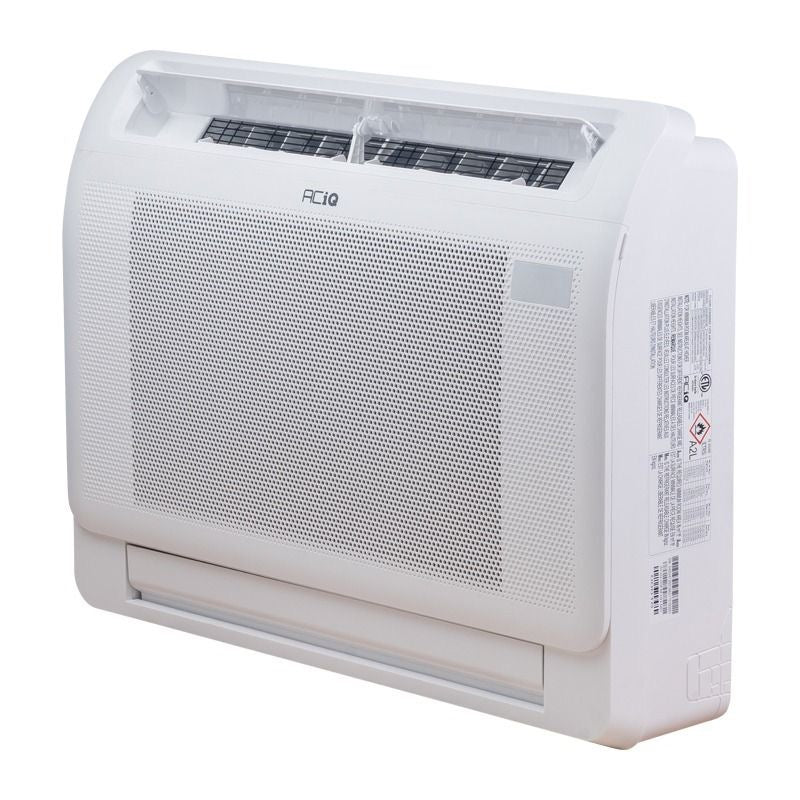

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
Features
- 12,000 BTU of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- Remote control thermostat included
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
12,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
Features
- 12,000 BTU of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- Remote control thermostat included
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
Condenser Specifications:
| SKU |
ES-18Z-M3C |
| Refrigerant Charge | 61.73 oz. |
| Weight (in lbs) |
109.350000 |
| AHRI Certificate Number |
216032376 |
| Brand/Manufacturer | ACiQ |
| Replaces |
ES-18Z-M2B |
| HSPF2 | 9.8 |
| Cooling BTU | 18000 BTU |
| Heating BTU | 19000 BTU |
| Maximum CFM | 1766 |
| Decibel Level (dBA) |
59.5 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 (Efficiency) |
25.1 |
| Compressor Type | Twin Rotary |
| Liquid Line |
1/4" (3) |
| Suction Line |
3/8" (3) |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 20A |
| Min. Breaker Size |
16A |
| Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Zone Compatibility |
Multi Zone |
| Ambient Temperature Range |
-13 ~ 122 |
| Height |
26.50" |
| Width |
35.04" |
| Depth |
13.46" |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
9,000 BTU Air Handler Specifications:
| SKU |
ACIQ-09FM-HH-MD |
| Weight (in lbs) |
41.890000 |
| Brand/Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU |
9,000 BTU |
| Heating BTU |
9,000 BTU |
| Maximum CFM |
Up to 441.4 CFM |
| Decibel Level (dBA) |
As low as 22.00 Decibels |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line |
3/8" |
| Electrical |
208/230V, 1 Phase, 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage |
9,000 BTU/0.75 Ton |
| Mini-Split Type | Floor Mounted |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height | 24.45 |
| Width | 31.26 |
| Depth | 7.87 |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
12,000 BTU Air Handler Specifications:
| SKU |
ACIQ-12FM-HH-MD |
| Weight (in lbs) |
41.890000 |
| Brand/Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU |
12,000 BTU |
| Heating BTU |
12,000 BTU |
| Maximum CFM |
Up to 441.4 CFM |
| Decibel Level (dBA) |
As low as 24.00 Decibels |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line |
1/2" |
| Electrical |
208/230V, 1 Phase, 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage |
12,000 BTU/1 Ton |
| Mini-Split Type | Floor Mounted |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height | 24.45 |
| Width | 31.26 |
| Depth | 7.87 |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
