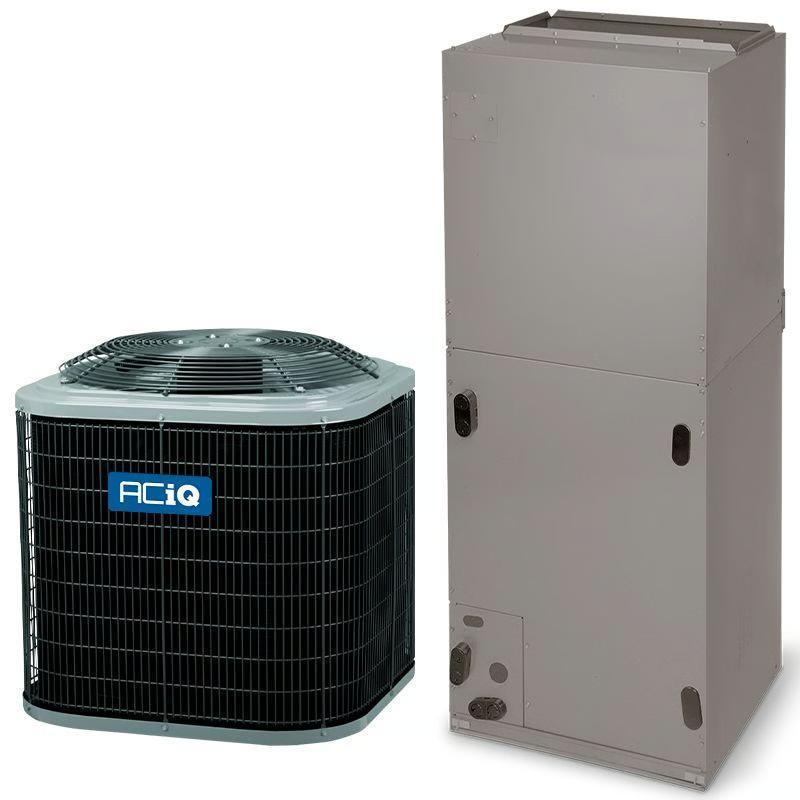

2.5 Ton 13.4 SEER2 ACIQ Variable Speed Air Conditioner Split System - Multi-Positional - R454B
With tons of extra features and a great price, an ACiQ air conditioning system is the perfect choice for all of your cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.
Product Features
- Complete air conditioning system
- Can be installed in upflow, downflow, or horizontal applications
- Well-suited for small to medium-size homes in various climates
- Certified for use with R454B refrigerant
- Optional electric heat kits up to 20kW available

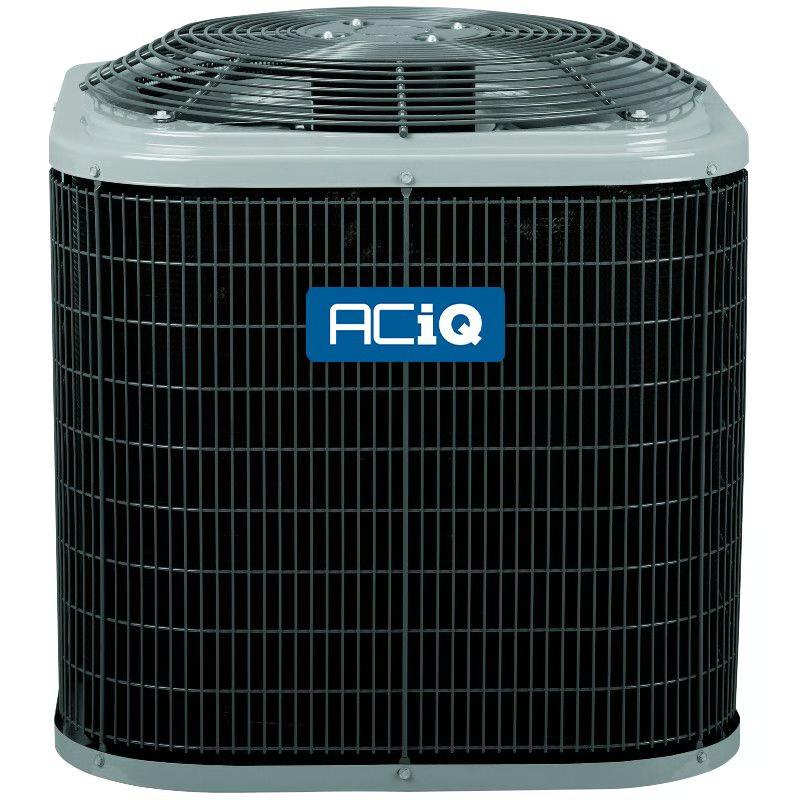

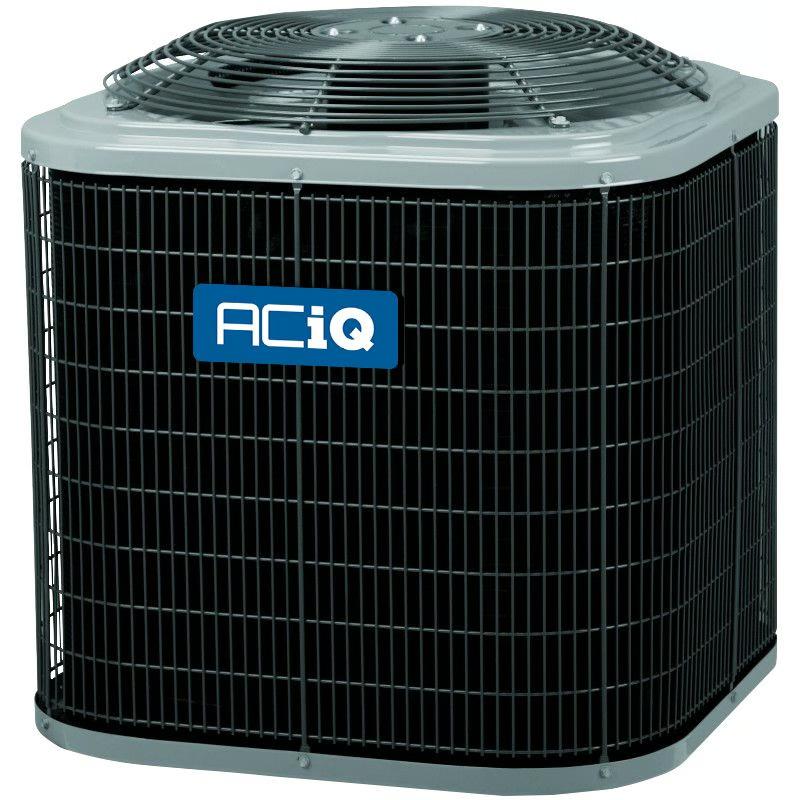

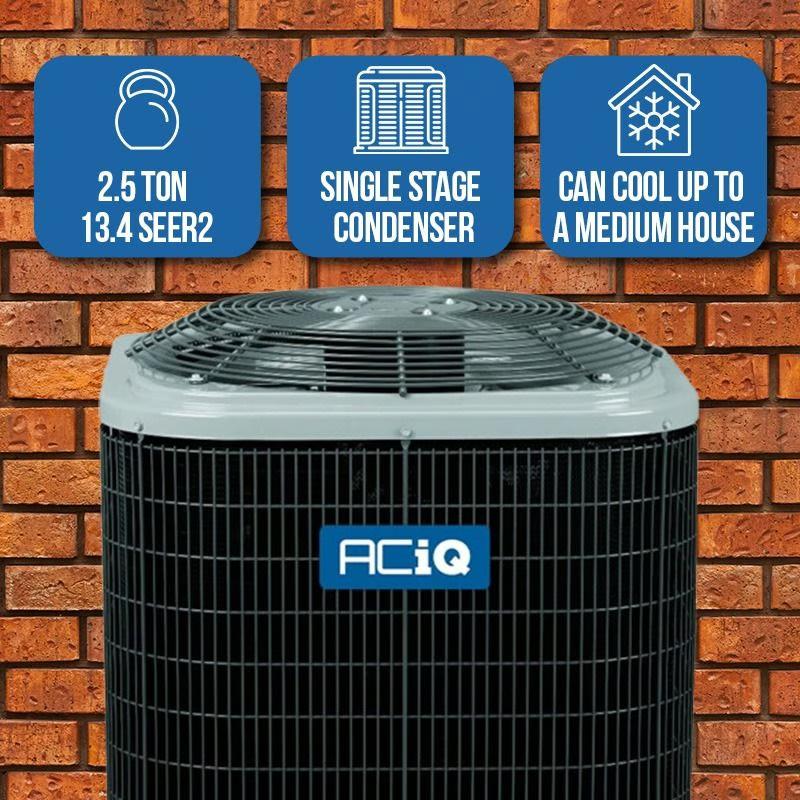

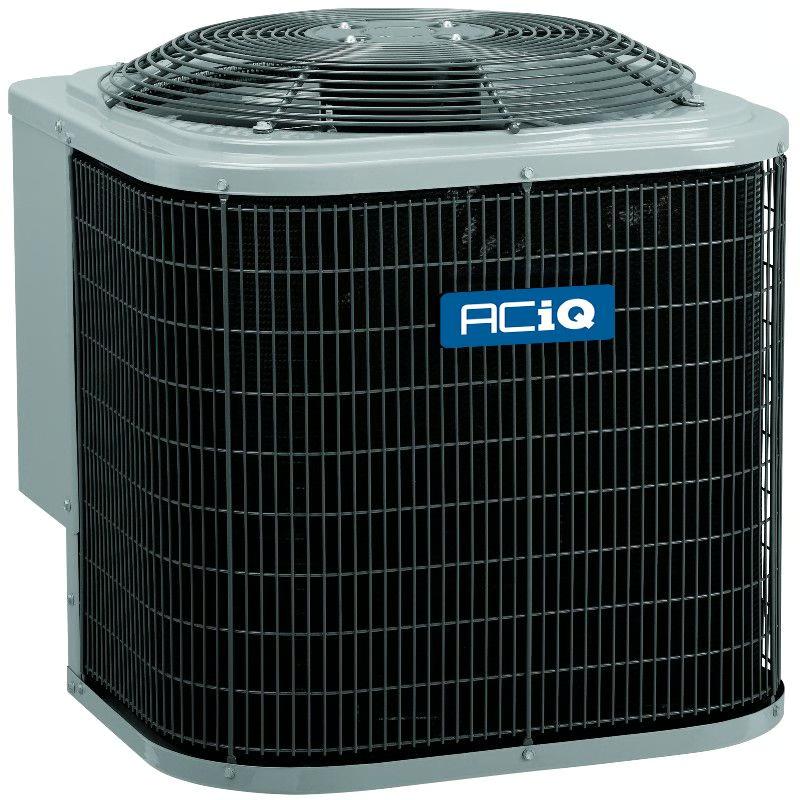

ACIQ 2.5 Ton 13.4 SEER2 Central Air Conditioner Condenser - R454B Single Stage
Overview
The ACiQ R5A4S30AKANA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
Quick Facts
- 2 ton, 13.4 SEER2 AC-only condenser
- Can cool a small to medium-sized house in average conditions
- Single stage compressor
- Filter drier included to be field-installed
2.5 Tons
The ACiQ R5A4S30AKANA air conditioner condenser has an output of 2.5 tons, generally enough to cool a small to medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.4 SEER2
The ACiQ R5A4S30AKANA air conditioner condenser is rated at 13.4 SEER2, making it between 5-7% more efficient than standard 13 SEER1 units, saving you money in electric bills over the entire lifetime of your unit.
This unit (and all 13.4 SEER2 units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A4S30AKANA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
3 Ton Multi-Positional Variable Speed ACiQ Air Handler - R454B
Overview
This air handler includes factory-installed refrigerant leak dissipation, a quiet variable-speed blower, and an efficiency-optimizing TXV. It features a corrosion-resistant aluminum coil, washable filter, and compatibility with standard size filters, air purifiers, and dehumidifiers. The fully insulated cabinet and corrosion-free sloped drain pan enhance durability and hygiene.
Quick Facts
- Factory-installed refrigerant leak dissipation systems to meet new UL requirements, demonstrating our commitment to safety.
- Variable-speed blower for quiet operation, delivering more even temperature levels and enhanced humidity control.
- Efficiency-optimizing Thermostatic Expansion Valve (TXV).
- Compatible with two-stage outdoor units.
- Corrosion-resistant all-aluminum coil.
- Convenient washable filter.
- Standard size filter compatibility.
- Compatible with air purifiers and dehumidifiers.
- Fully insulated cabinet.
- Corrosion-free sloped drain pan design to help reduce mold and bacteria buildup.
- 10-year parts limited warranty.
Condenser Specifications:
| SKU |
R5A4S30AKANA |
| Weight (in lbs) |
166.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces |
R4A4S30AKANA |
| Equivalent |
|
| Product Features | New Refrigerant Compliant |
| Cooling BTU |
30000 |
| Maximum CFM |
2700 |
| Decibel Level (dBA) | 72 Decibels |
| Motor RPM | 825 |
| Horsepower | 1/10 HP |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical |
208/230v 1 Phase 60 Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 16.2 Amps |
| Tonnage |
2.5 Ton |
| Connection | Sweat |
| Certification | UL Listed |
| Height |
31 11/16" |
| Width | 31 3/16" |
| Depth | 31 3/16" |
| Warranty |
10 Years Parts Warranty with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU |
FTMA5B36L0CA |
| Weight (in lbs) | 146.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces |
FTMA4X36L0CA |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical |
208/230v 1ph 60hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.0 Amps |
| Tonnage | 3 Ton |
| Certification | UL Listed |
| Height | 53 7/16" |
| Width | 21 1/8" |
| Depth | 22 1/16" |
| Warranty |
10 Year No Hassle Replacement and 5 Year Parts with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
