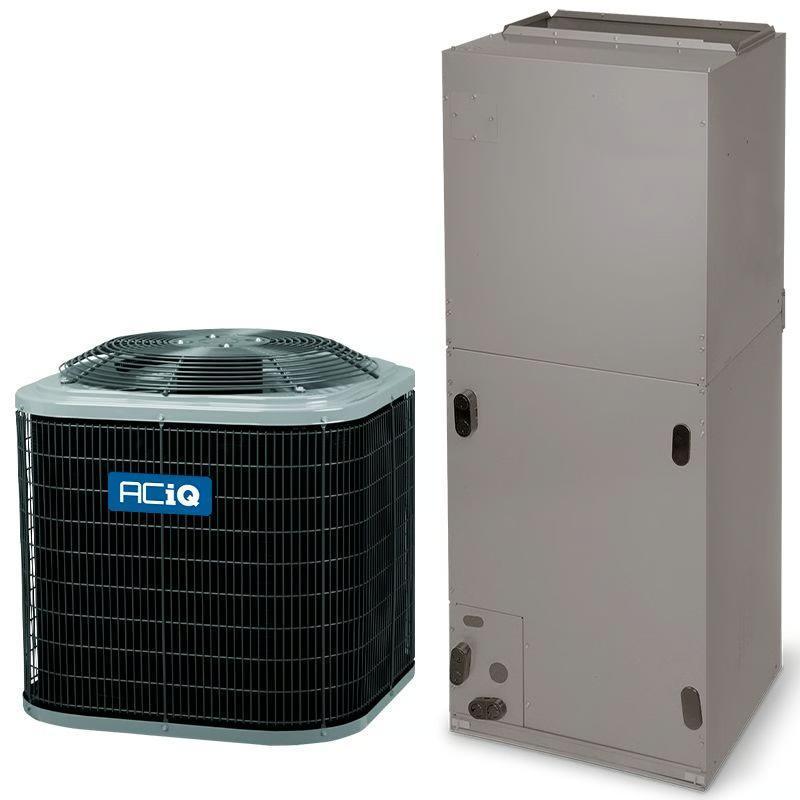

2 Ton 16.5 SEER2 ACIQ Variable Speed Air Conditioner Split System - Multi-Positional - R454B
With tons of extra features and a great price, an ACiQ air conditioning system is the perfect choice for all of your cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.
Product Features
- Complete air conditioning system
- Certified for use with R454B refrigerant
- Can be installed in upflow, downflow, or horizontal applications
- Optional electric heat kits up to 15kW available
- Well-suited for small-sized houses in various climates

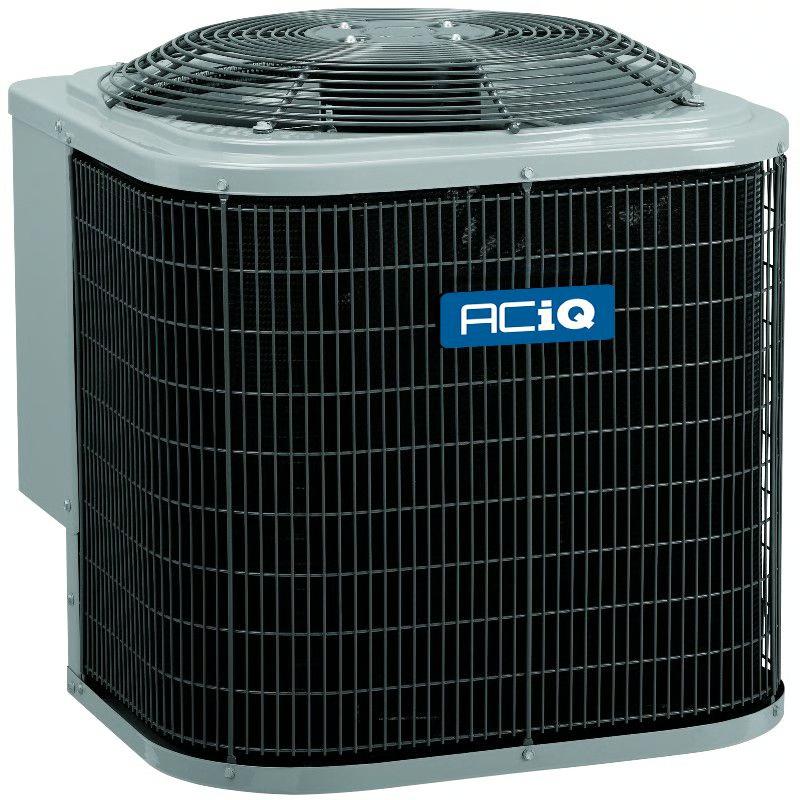

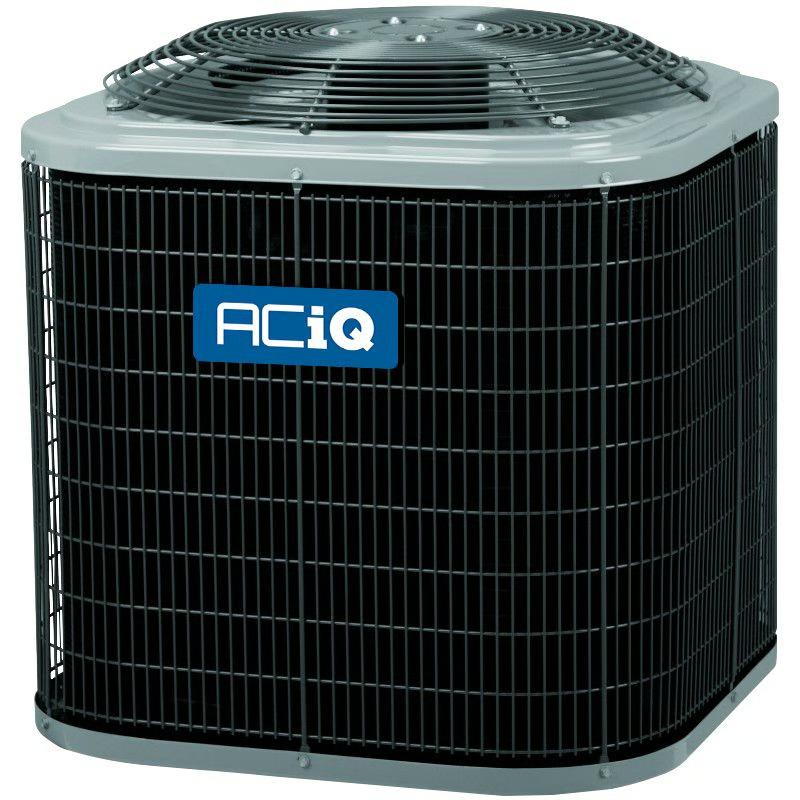

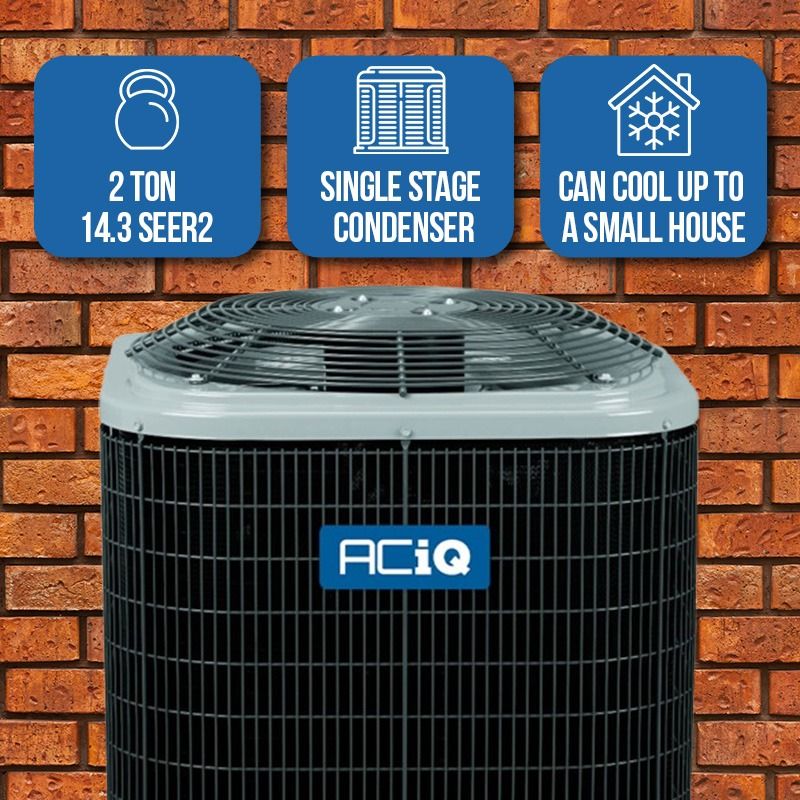

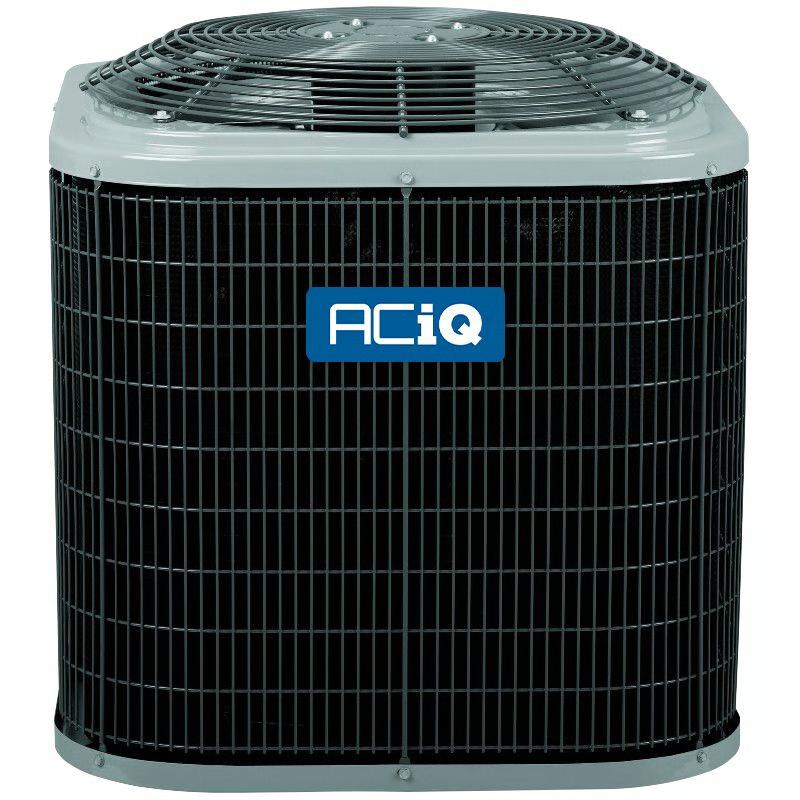

ACIQ 2 Ton 14.3 SEER2 Central Air Conditioner Condenser - R454B Single Stage
Overview
The ACiQ R5A5S24AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
Quick Facts
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 2 ton, 14.3 SEER2 AC-only condenser
- Can cool up to a small house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed
2 Tons
The ACiQ R5A5S24AKAWA air conditioner condenser has an output of 2 tons, generally enough to cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
14.3 SEER2
The ACiQ R5A5S24AKAWA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A5S24AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

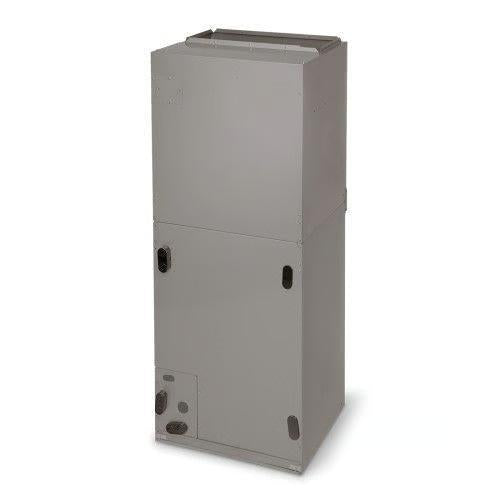

3 Ton Multi-Positional Variable Speed ACiQ Air Handler - R454B
Overview
This air handler includes factory-installed refrigerant leak dissipation, a quiet variable-speed blower, and an efficiency-optimizing TXV. It features a corrosion-resistant aluminum coil, washable filter, and compatibility with standard size filters, air purifiers, and dehumidifiers. The fully insulated cabinet and corrosion-free sloped drain pan enhance durability and hygiene.
Quick Facts
- Factory-installed refrigerant leak dissipation systems to meet new UL requirements, demonstrating our commitment to safety.
- Variable-speed blower for quiet operation, delivering more even temperature levels and enhanced humidity control.
- Efficiency-optimizing Thermostatic Expansion Valve (TXV).
- Compatible with two-stage outdoor units.
- Corrosion-resistant all-aluminum coil.
- Convenient washable filter.
- Standard size filter compatibility.
- Compatible with air purifiers and dehumidifiers.
- Fully insulated cabinet.
- Corrosion-free sloped drain pan design to help reduce mold and bacteria buildup.
- 10-year parts limited warranty.
Condenser Specifications:
| SKU |
R5A5S24AKAWA |
| Refrigerant Charge | 15' |
| Weight (in lbs) | 163.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces |
R4A5S, R5A5S24AKAAA |
| Product Features | New Refrigerant Compliant |
| Cooling BTU | 24,000 |
| Maximum CFM | 3600 |
| Decibel Level (dBA) | 73 |
| Motor RPM | 825 |
| Horsepower | 1/10 HP |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Tonnage | 2 Ton |
| Height | 35 1/16" |
| Width | 31 3/16" |
| Depth | 31 3/16" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU |
FTMA5B36L0CA |
| Weight (in lbs) | 146.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces |
FTMA4X36L0CA |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical |
208/230v 1ph 60hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.0 Amps |
| Tonnage | 3 Ton |
| Certification | UL Listed |
| Height | 53 7/16" |
| Width | 21 1/8" |
| Depth | 22 1/16" |
| Warranty |
10 Year No Hassle Replacement and 5 Year Parts with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
