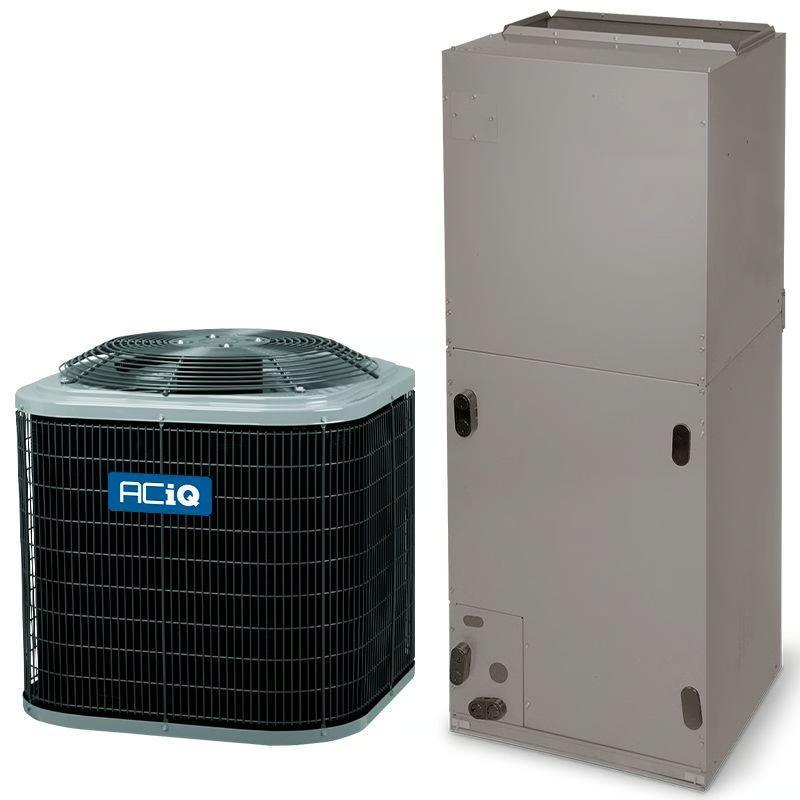

2 Ton 16 SEER2 ACiQ R454B Air Conditioner Split System - Multi-Positional
With tons of extra features and a great price, an ACiQ air conditioning system is the perfect choice for all of your cooling needs. All ACiQ models come with a 10 year parts warranty.
Product Features
- Complete air conditioning system
- Can be installed in upflow, downflow, or horizontal applications
- Well-suited for small-sized houses in various climates
- Certified for use with R454B refrigerant
- Optional electric heat kits up to 15kW available

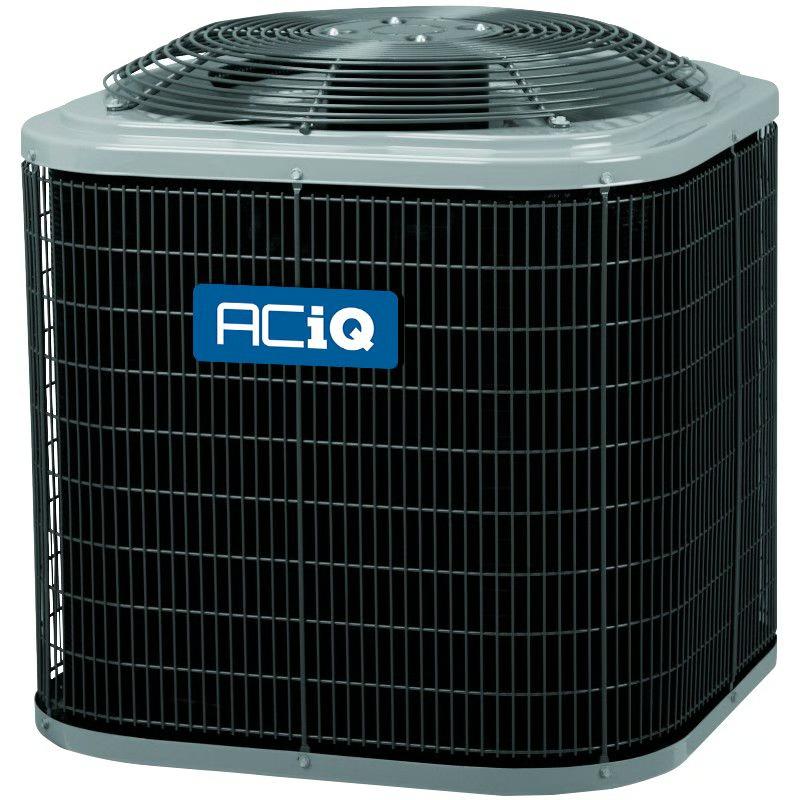

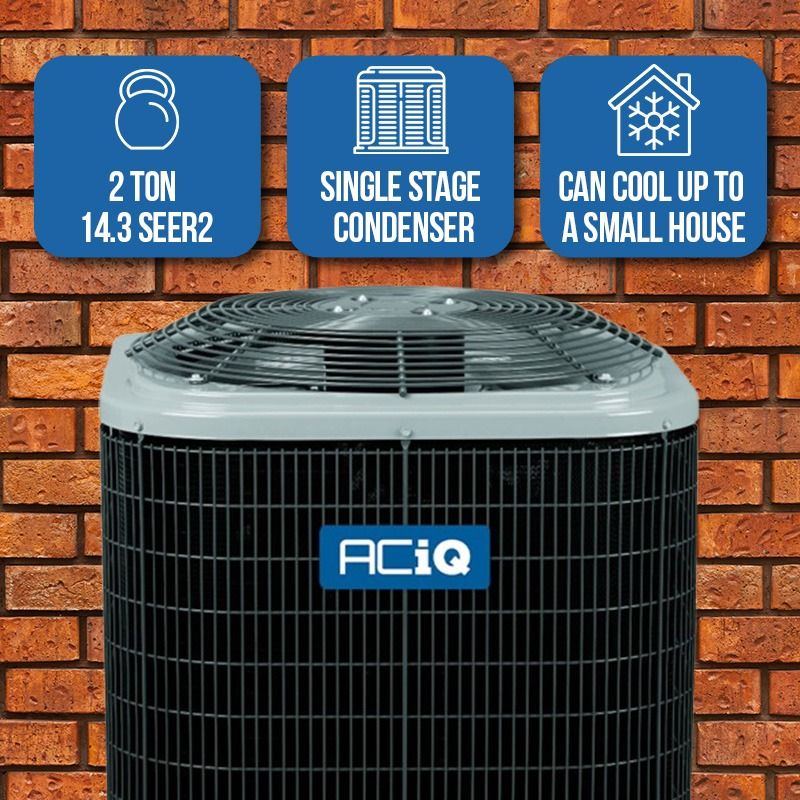

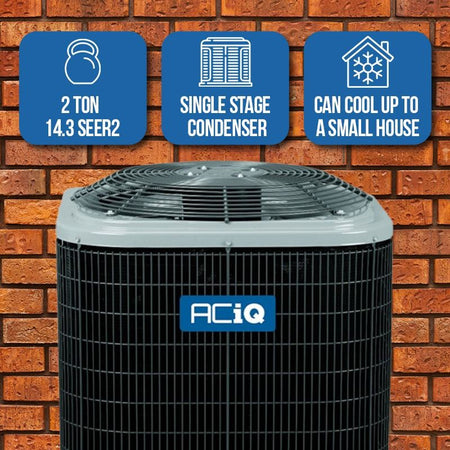

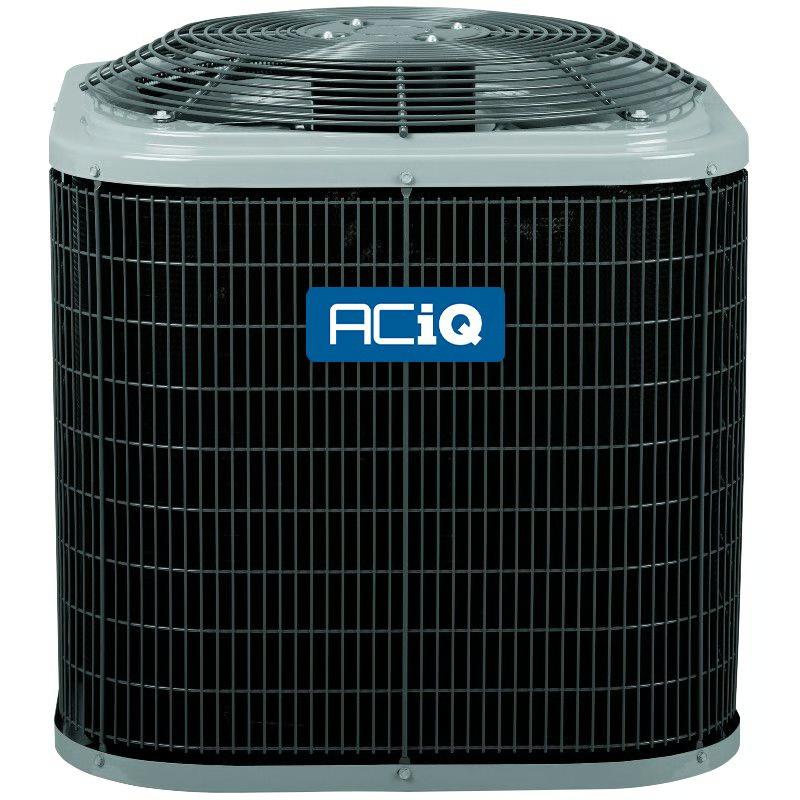

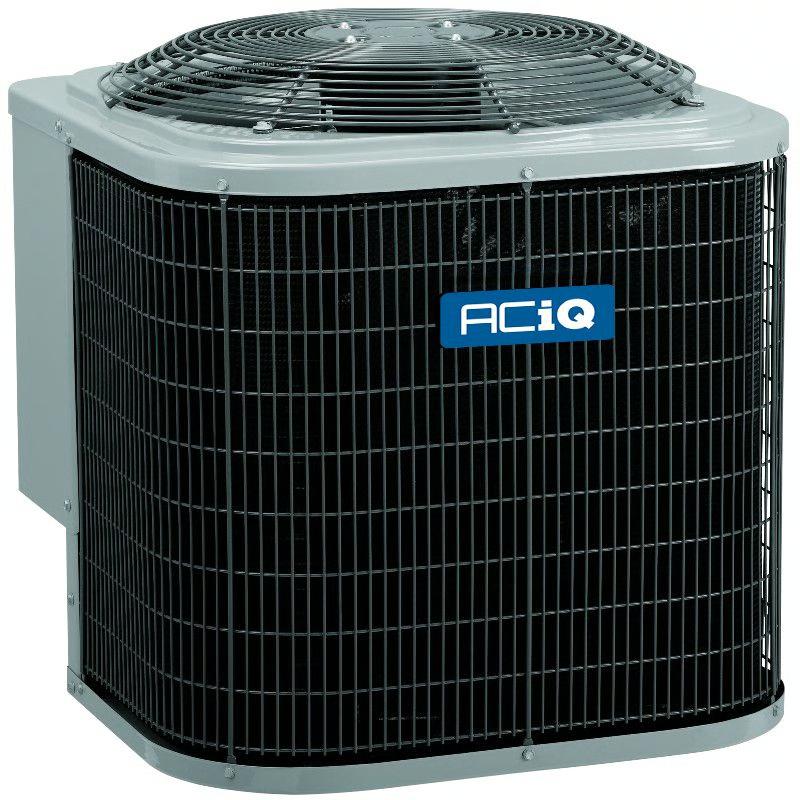

2 Ton 14.3 SEER2 ACiQ Air Conditioner Condenser - R454B
Overview
The ACiQ R5A5S24AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
Quick Facts
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 2 ton, 14.3 SEER2 AC-only condenser
- Can cool up to a small house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed
2 Tons
The ACiQ R5A5S24AKAWA air conditioner condenser has an output of 2 tons, generally enough to cool up to a small house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
14.3 SEER2
The ACiQ R5A5S24AKAWA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A5S24AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us if you have any questions.
All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

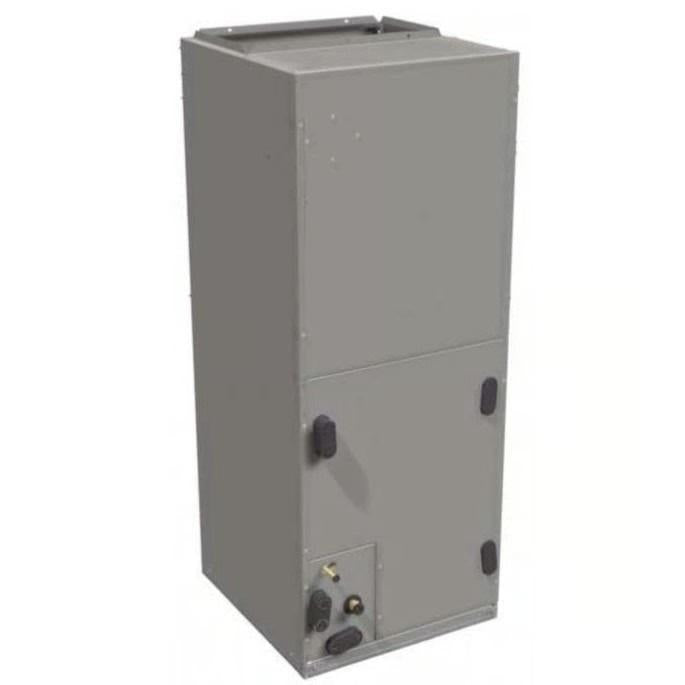

2 Ton 17.5" Width ACiQ Multi-Positional Air Handler - R454B
Overview
Get the most out of your indoor comfort by choosing ACiQ FHMA5X24L0BA air handler that fits your needs. This air handler include comfort enhancing and durability features to deliver lasting performance. If you want superior quality and enhanced comfort, look no further than this model.
Quick Facts
- 2 ton air handler
- R454B Refrigerant
- Multi 5-Speed high-efficiency ECM blower motor
- Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
- Factory-installed TXV kit for enhanced energy optimization
- Compatible with both AC-only and heat pump condensers
- Sturdy, fully insulated cabinet
2 Tons
The ACiQ FHMA5X24L0BA air handler is rated for an output of 2 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
R454B Refrigerant
With R454B refrigerant, ACiQ proudly displays our commitment to environmental stewardship. It is a refrigerant that delivers a 75% decrease in global warming potential while maintaining original R-410A's non-ozone depleting properties. All new ACiQ fan coils with R454B include factory-installed leak dissipation systems to meet new UL requirements and to show our commitment to safety.
Warranty
ACiQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.
Installation and Durability
To make a more versatile unit, ACiQ designed the FHMA5X24L0BA to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FHMA5X24L0BA air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.
Intelligent Comfort
The FHMA5X24L0BA air handler has an efficient 5-speed ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FHMA5X24L0BA meets ACiQ's superior standards.
What's Included:
- 1x 2 Ton 14.3 SEER2 ACiQ Air Conditioner Condenser - R454B
- 1x 2 Ton 17.5" Width ACiQ Multi-Positional Air Handler - R454B
Condenser Specifications:
| SKU | R5A5S24AKAWA |
| Refrigerant Charge | 15' |
| Weight | 163.000000 |
| Manufacturer | ACiQ |
| Replaces | R4A5S |
| Product Features | New Refrigerant Compliant |
| Cooling BTU | 24,000 |
| Maximum CFM | 3600 |
| Decibel Level (dBA) | 73 |
| Motor RPM | 825 |
| Horsepower | 1/10 HP |
| Refrigerant | R454B |
| SEER2 | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Tonnage | 2 Ton |
| Height | 35 1/16" |
| Width | 31 3/16" |
| Depth | 31 3/16" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU | FHMA5X24L0BA |
| Weight | 131.000000 |
| Manufacturer | ACiQ |
| Cooling BTU | 24,000 |
| Blower Motor | Multi-tap 5-Speed ECM |
| Maximum CFM | 700 |
| Horsepower | 1/3 HP |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Filter Size | 16" x 20" |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 3.6 Amps |
| Tonnage | 2 Ton |
| Connection | Sweat |
| Height | 49 5/8" |
| Width | 17 5/8" |
| Depth | 22 1/16" |
| Warranty | 10 Years Parts and 5 Years No Hassle Replacement with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
