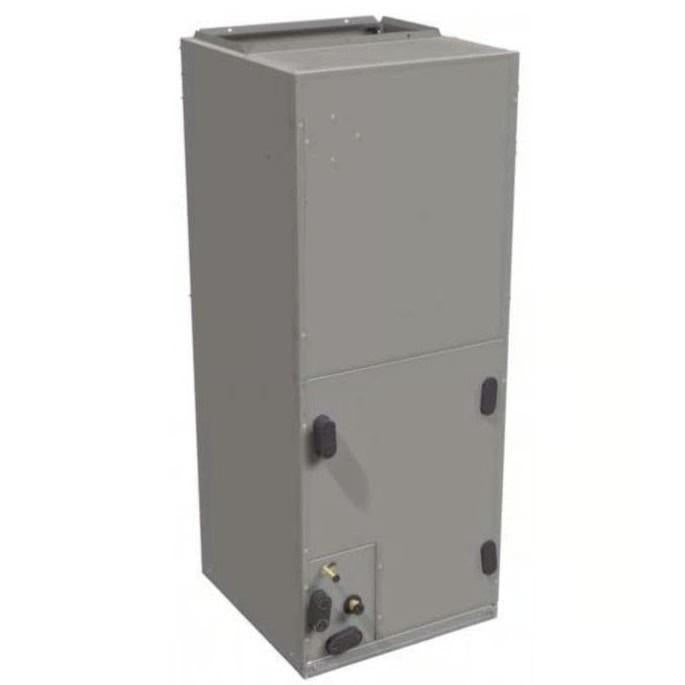

2 Ton 17.5" Width ACiQ Multi-Positional Air Handler - R454B
Overview
Get the most out of your indoor comfort by choosing ACiQ FHMA5X24L0BA air handler that fits your needs. This air handler include comfort enhancing and durability features to deliver lasting performance. If you want superior quality and enhanced comfort, look no further than this model.
Quick Facts
- 2 ton air handler
- R454B Refrigerant
- Multi 5-Speed high-efficiency ECM blower motor
- Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
- Factory-installed TXV kit for enhanced energy optimization
- Compatible with both AC-only and heat pump condensers
- Sturdy, fully insulated cabinet
2 Tons
The ACiQ FHMA5X24L0BA air handler is rated for an output of 2 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
R454B Refrigerant
With R454B refrigerant, ACiQ proudly displays our commitment to environmental stewardship. It is a refrigerant that delivers a 75% decrease in global warming potential while maintaining original R-410A's non-ozone depleting properties. All new ACiQ fan coils with R454B include factory-installed leak dissipation systems to meet new UL requirements and to show our commitment to safety.
Warranty
ACiQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.
Installation and Durability
To make a more versatile unit, ACiQ designed the FHMA5X24L0BA to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FHMA5X24L0BA air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.
Intelligent Comfort
The FHMA5X24L0BA air handler has an efficient 5-speed ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FHMA5X24L0BA meets ACiQ's superior standards.
Specifications
| SKU | FHMA5X24L0BA |
| Weight (in lbs) | 131.000000 |
| Brand/Manufacturer | ACiQ |
| Cooling BTU | 24,000 |
| Blower Motor | Multi-tap 5-Speed ECM |
| Maximum CFM | 700 |
| Horsepower | 1/3 HP |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Filter Size | 16" x 20" |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 3.6 Amps |
| Tonnage | 2 Ton |
| Connection | Sweat |
| Height | 49 5/8" |
| Width | 17 5/8" |
| Depth | 22 1/16" |
| Warranty | 10 Years Parts and 5 Years No Hassle Replacement with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
