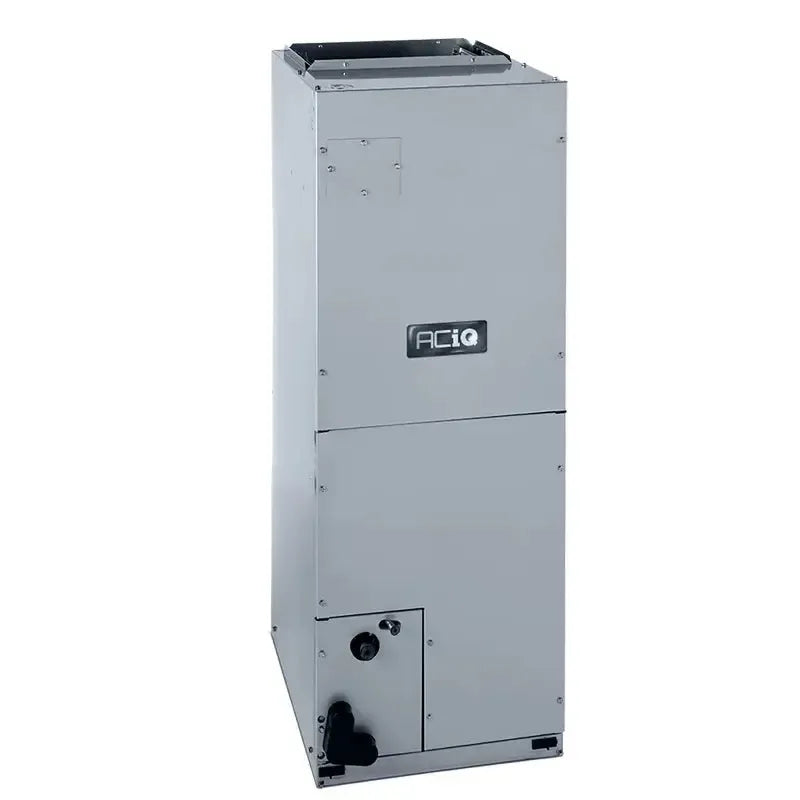

3 Ton ACiQ Central Air Handler
The ACiQ-36-AHB air handler features a variable DC blower and communicating technology to maximize comfort and efficiency at the same time. The included smart thermostat communicates with the inverter condenser outside, and the variable air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.
- 36,000 BTU, 3 ton central ducted air handler
- Wired smart thermostat included
- Or – use your preferred 24v thermostat
- Variable DC blower
- Upflow, dowflow, horizontal left or right
- Manufactured Home and mobile home approved
Installation and Maintenance
Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat and communication connections, plus, connect to your return and supply ductwork. The ACiQ Next Gen Air Handler is multi-positional (upflow, downflow or horizontal) and mobile-home approved. Any 24V thermostat with 2 stages of heating can control the system, although the supplied thermostat is recommended. You can add electric strip heat as a backup system for the coldest days of the year. The intelligent control board in the air handler displays fault codes in case part of the system requires maintenance.
Please note - in order to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
What's Included:
- 1x 3 Ton ACiQ Central Air Handler
Air Handler Specifications:
| Brand | ACiQ |
| Model Number |
ACiQ-36-AHB |
| Weight (in lbs) | 155.640000 |
| AHRI Certificate Number | 208106636 |
| HSPF | 11 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 36000 BTU |
| Maximum CFM | 1082.35 |
| Decibel Level (dBA) | 45 |
| Electric Heat | Heat Pump |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 18-20 |
| EER | 12.5 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 4.5 |
| System Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Multi-Positional |
| Min/Max Outdoor Temp for Heating | 5~122 |
| Min/Max Outdoor Temp for Cooling | 62~90 |
| Zone Compatibility | Single Zone |
| Height | 49" |
| Width | 21" |
| Depth | 21" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Proposition 65 Warning | Yes |
