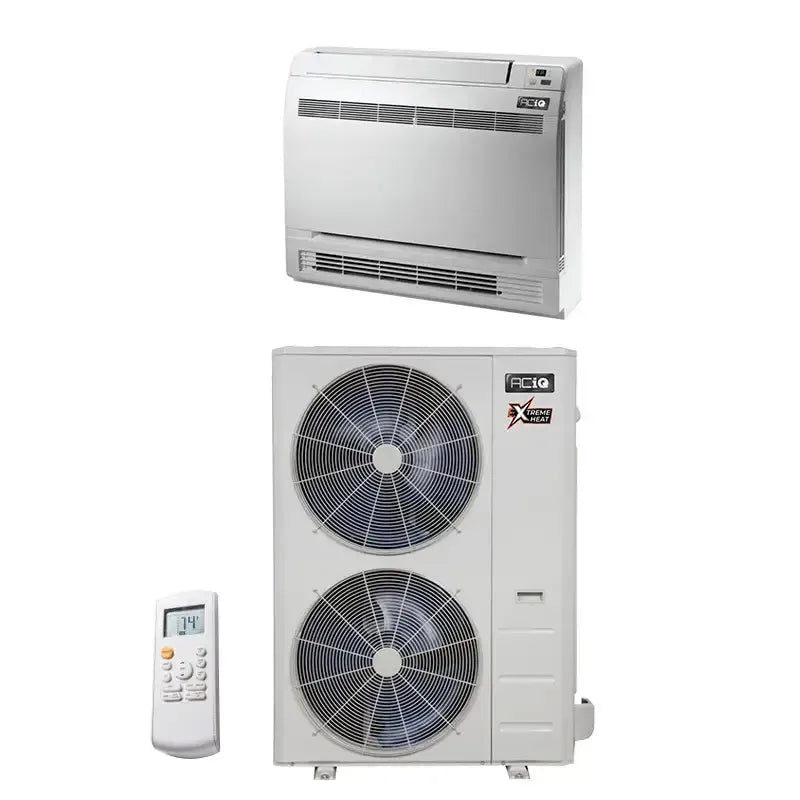

36,000 BTU 17.6 SEER2 ACiQ Platinum Single Zone Ceiling/Floor Mounted Mini Split System w/ Extreme Heat
ACiQ’s mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Equipped with Extreme Heat technology, this system enables continuous heating all the way down to -22 degrees outside. With a high SEER2 rating of 17.6, you get maximum efficiency whether you're cooling or heating your space.
Features:
- Maximum performance at an affordable cost
- Ideal for spaces up to 1,800 square feet (depending on climate)
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
- Included Smart Remote
- WiFi compatibility through free app, Amazon Alexa or Google Assistant
What's Included:
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with batteries)
- Copper Lines (Length will match the size of the installation kit)
- Electrical Wire (Length will match the size of the installation kit)
- Free DiversiTech Condenser Mounting Pad ($139.99 Value)
- 20' Condensate Drain Line
- Installation Manual
- User Manual

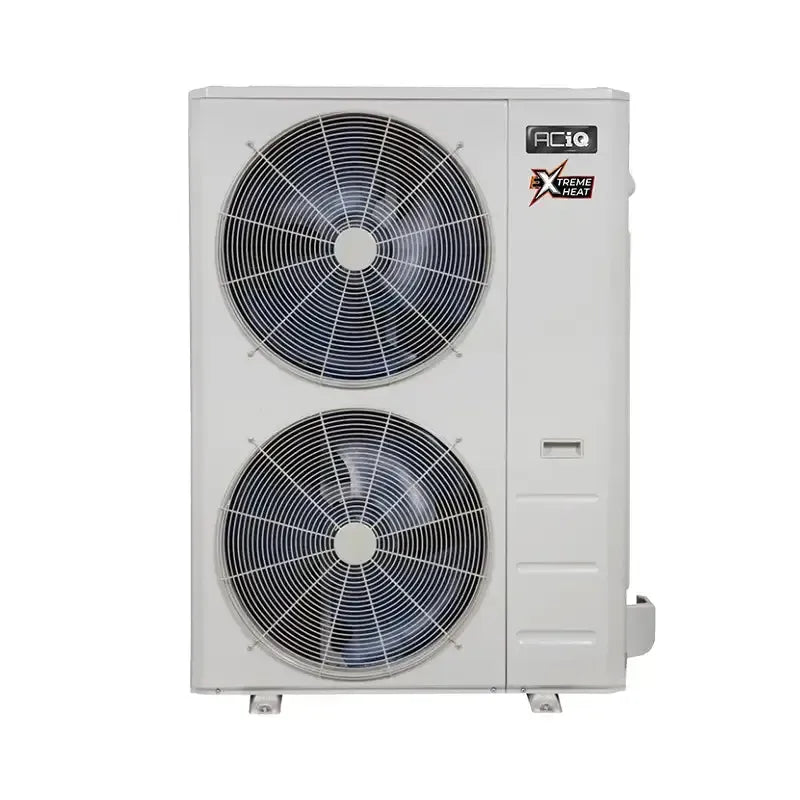

Condenser Specifications:
| Brand | ACiQ |
| Model | ACIQ-36ZPL-HP230B |
| Weight (in lbs) | 158.950000 |
| Refrigerant Charge | 25' |
| HSPF | 10.5 |
| HSPF2 | 8.5 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 40000 BTU |
| Decibel Level (dBA) | 63.5 |
| Electric Heat | Heat Pump |
| Compressor Type | Twin Rotary |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 16-17 |
| EER | 9.5 |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Max Breaker Size | 50 |
| Min. Breaker Size | 41 |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Zone Compatibility | Single Zone |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12-Year Compressor / 7-Year Parts with Registration |
| Safety Information | PROPOSITION 65 WARNING |

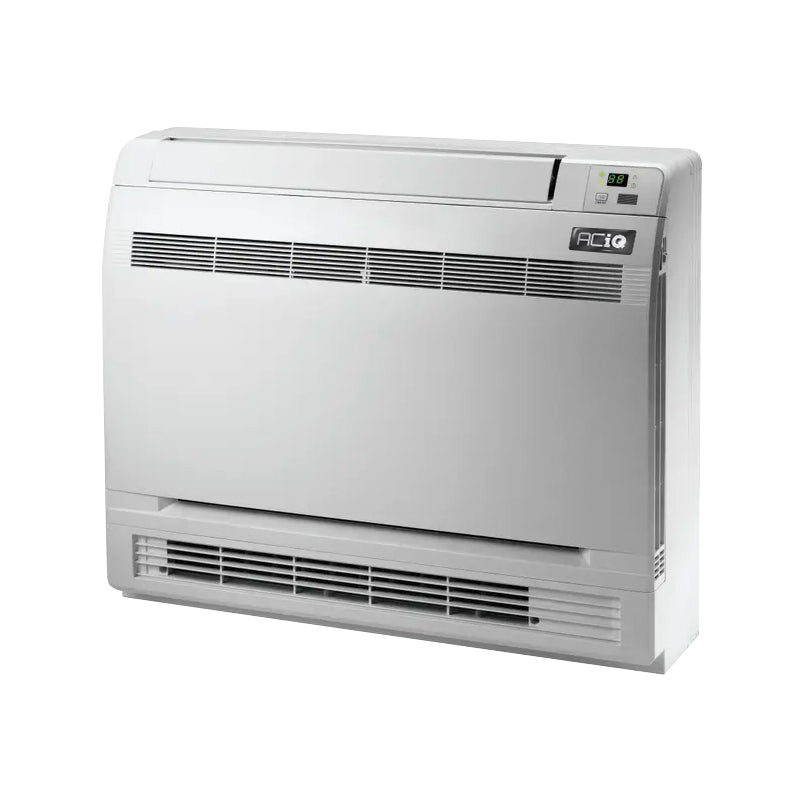

Air Handler Specifications:
| Brand | ACiQ |
| Model | ACIQ-36FM-HH-MB |
| Weight (in lbs) | 72.000000 |
| Controller | Wireless Included |
| Cooling BTU | 36,000 BTU |
| Heating BTU | 36,000 BTU |
| Maximum CFM | 1036.47 |
| Decibel Level (dBA) | As low as 42 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 35 |
| Min. Breaker Size | 25 |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Low Wall/Ceiling |
| Zone Compatibility | Multi Zone, Single Zone |
| Height | 26.57" |
| Width | 50.59" |
| Depth | 9.25" |
| Warranty | 12 year compressor, 7 year parts with online registration |
Product information and Guides:
Condenser
Air Handler
