36,000 BTU 23 SEER ACiQ Single Zone Ceiling Cassette Mini Split System | Extreme Series
The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
- Maximum Performance at an Affordable Cost
- Heating & Cooling
- Ductless Solution perfect for 250-400 sq ft Room
- Efficient Cooling from -22°F - 122°F Outdoor Temperatures
- Efficient Heating from -22°F - 75°F Outdoor Temperatures
- Single Zone/Room Compatible

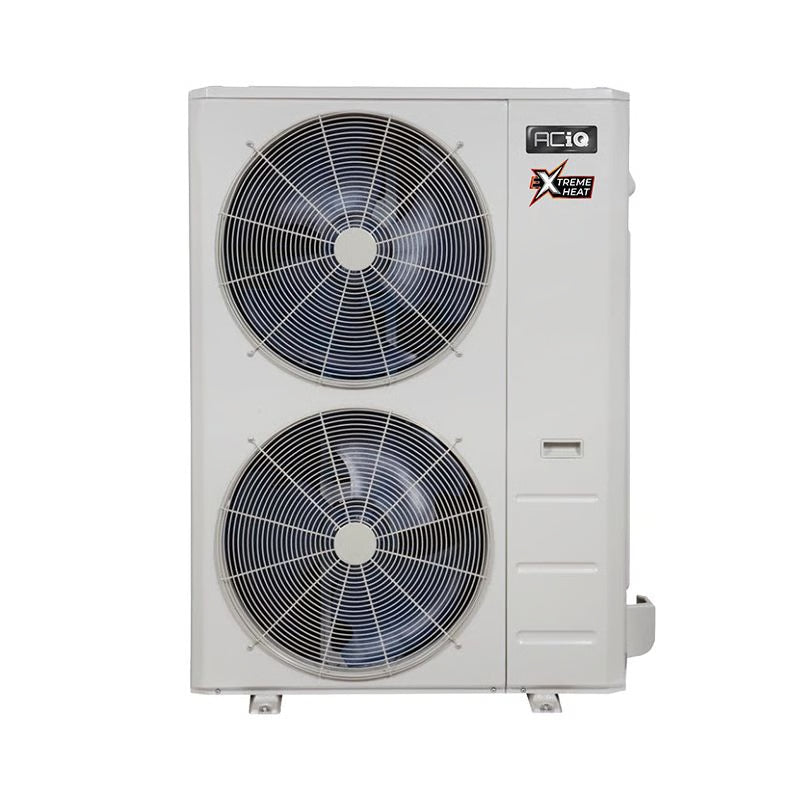

36,000 BTU ACiQ Single Zone Condenser | Extreme Series| R454B
Overview
The ACiQ Extreme series showcases hyper heat technology, providing continuous heating capabilities down to -22 degrees outside. Achieve optimal efficiency for both cooling and heating your space with its high SEER2 and high HSPF ratings.
Quick Facts
- Delivers maximum performance at an affordable cost
- Perfectly suited for spaces of approximately 1,200-1,800 square feet (varies depending on climate)
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Equipped with a gold fin condenser and full-protection coating
- Operates quietly even under heavy workloads
High capacity, high efficiency
The ACIQ-36ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct, floor mount, or ducted air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

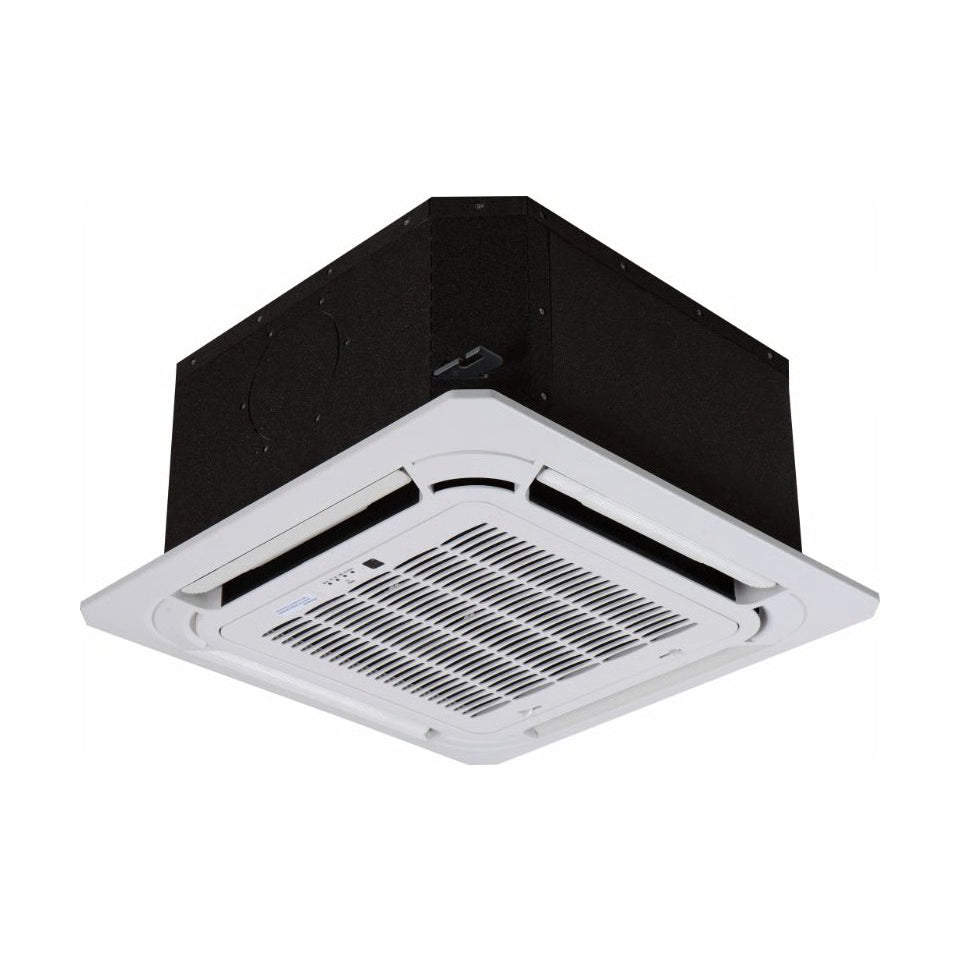

36,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler| R454B
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-24CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The 24k Ceiling cassette is large format (see specs below) and will require modifications to ceiling framing in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
Features
- 24,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a medium room in most climates
- 4 Way Air Supply for consistent room coverage

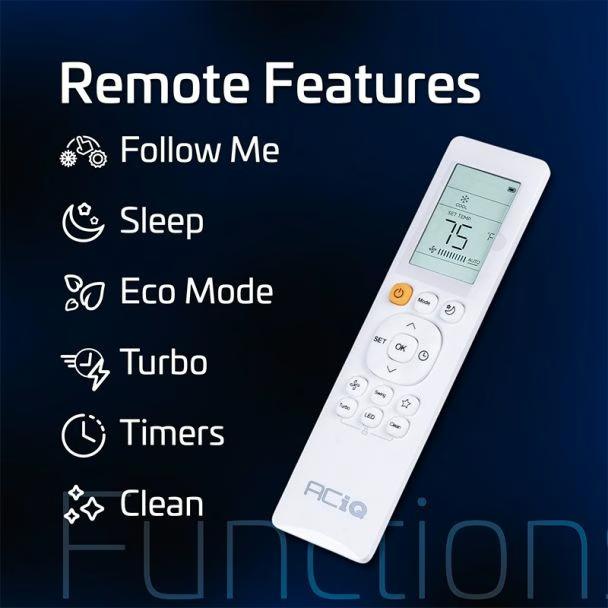

- Handheld remote included
- Decorative Grille included

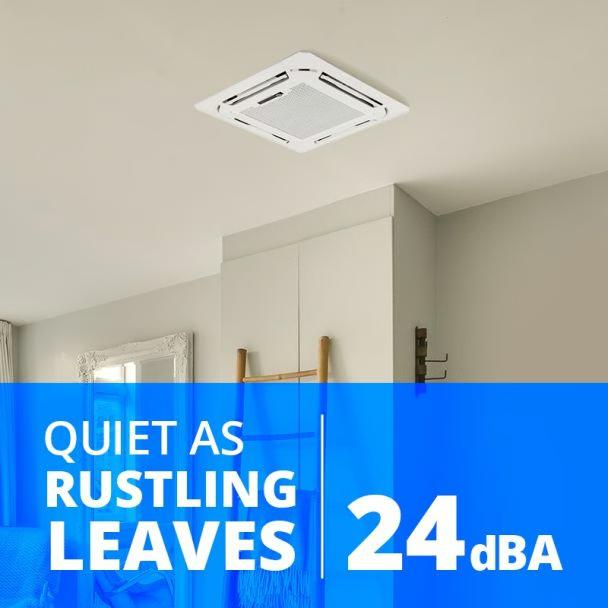

Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

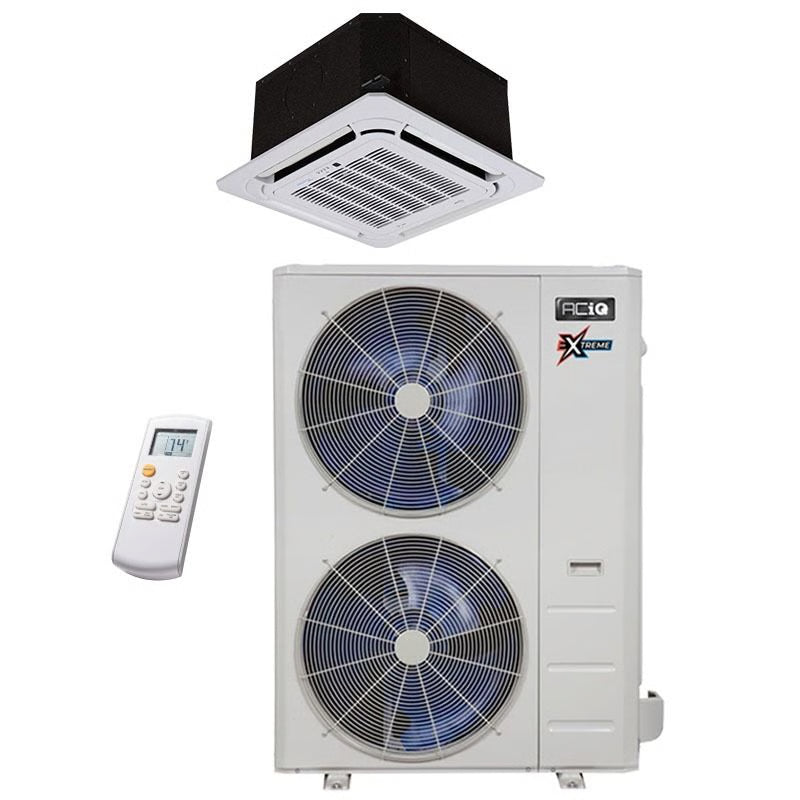

What's Included:
- 1x 36,000 BTU ACiQ Single Zone Condenser | Extreme Series| R454B
- 1x 36,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler| R454B
Condenser Specifications:
| SKU | ACIQ-36ZPL-HP230C |
| Refrigerant Charge | 25' |
| Weight |
237.440000 |
| AHRI Certificate Number | 216032342 |
| Manufacturer | ACiQ |
| Product Features | Low Ambient Heating |
| HSPF2 | 10.6 |
| Cooling BTU | 36,000 BTU |
| Heating BTU | 42,000 BTU |
| Maximum CFM | 3001.9 |
| Decibel Level (dBA) | 64.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 |
21.2 |
| Compressor Type | Rotary |
| Liquid Line | 3/8in |
| Suction Line |
3/4in |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Max Breaker Size |
50 |
| Min. Breaker Size |
41 |
| Tonnage |
3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Zone Compatibility | Single Zone |
| Height |
38.39" |
| Width |
38.58" |
| Depth |
16.34" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU | ACIQ-36CC-HH-MC |
| Weight (in lbs) | 69.000000 |
| Manufacturer | ACiQ |
| Controller | Wireless Included |
| Product Features | Low Ambient Heating |
| Cooling BTU | 36,000 BTU |
| Heating BTU | 40,000 BTU |
| Maximum CFM | 1041.18 |
| Decibel Level (dBA) | 52.5 max |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 50 |
| Min. Breaker Size | 41 |
| Tonnage | 3 Ton |
| Tonnage Bundle | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Ceiling Cassette |
| Zone Compatibility | Single Zone, Multi Zone |
| Height | 52.48 |
| Width | 37.48 |
| Depth | 16.34 |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
