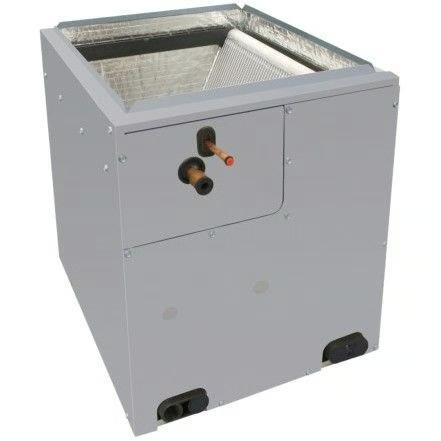

ACiQ 3 Ton 21" Width Vertical Evaporator Cased Coil - R454B
$709.00$970.00
Call for best pricing before large-system orders.
ACiQ 3 Ton 21" Width Vertical Evaporator Cased Coil - R454B
Overview
ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EVD5X36M21A vertical coil is a superior option for any air conditioning application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization.
Product Features
- Can be installed in upflow and downflow applications
- Pre-charged with R454B refrigerant
- 10 Year Parts Limited Warranty with Online Registration
Quick Facts
- 3 ton vertical coil
- Works in both upflow and downflow applications
- Fully insulated, cased V-coil design for efficient heat transfer in a compact size
- Factory-installed TXV kit for enhanced energy optimization
- Corrosion-resistant drain pan designed with a Polybutylene Terephthalate (PBT) material for unsurpassed strength
3 Tons
The ACiQ EVD5X36M21A is rated for up to 3 tons of cooling. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
Specifications:
| SKU |
EVD5X36M21A |
| Weight (in lbs) | 40.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | EVD4X |
| Equivalent |
|
| Configuration | Upflow / Downflow |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 3 Ton |
| Style | V-Coil |
| Connection | Sweat |
| Certification | UL Listed |
| Height | 19 1/16" |
| Width | 21" |
| Depth | 20 5/8" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
