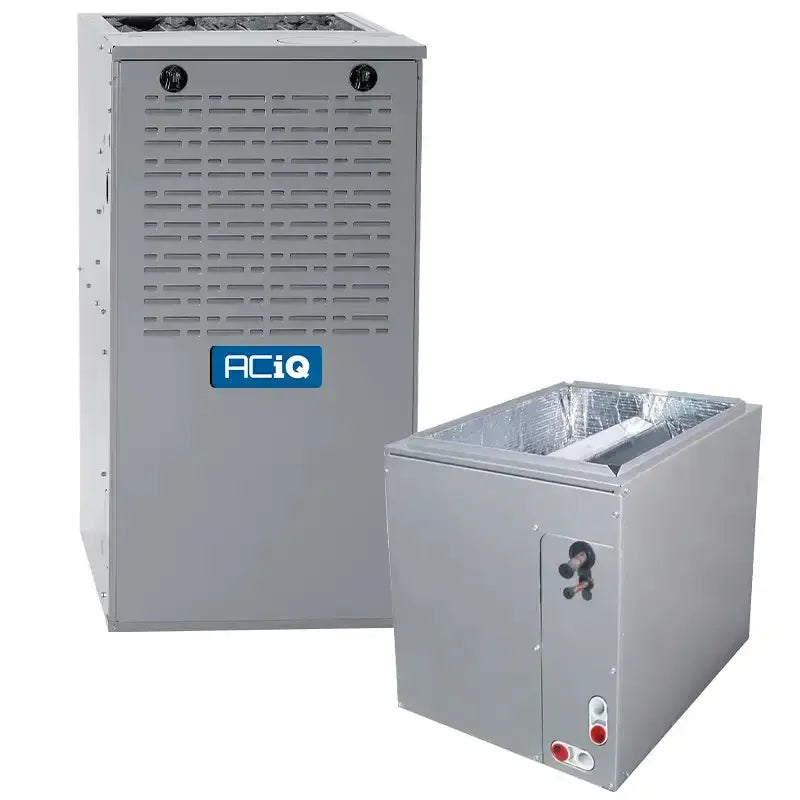

ACiQ 3 Ton 80% AFUE 66,000 BTU Furnace and Coil System - Multi-Positional
An ACiQ furnace and coil system is a great choice to keep your home warm all season long. With plenty of extra features at an affordable price, the N80ESN0702116A is the perfect choice for heating.

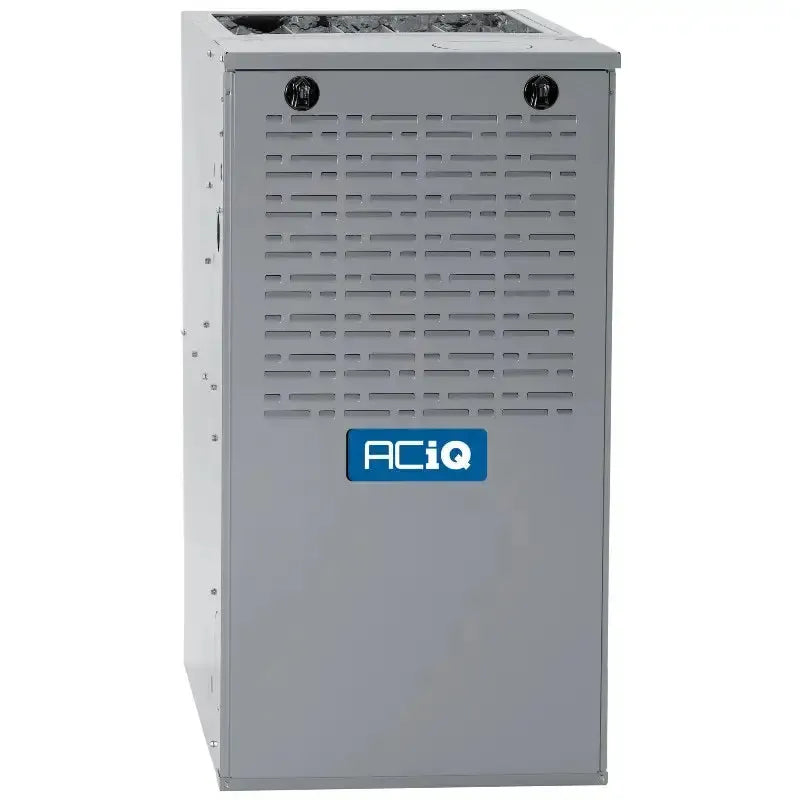

66,000 BTU 80% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
The ACiQ N80ESN0702116A is an inexpensive model of furnace to provide reasonable comfort to your home. At a basic efficiency, this furnace will heat your home adequately with the right output, providing comfort to your home even in the coldest parts of the year.
The ACiQ N80ESN0702116A has an input of 66,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 52,800 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Low NOx or Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Features:
- Quiet Comfort: Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
- High Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
-
Longer life, longer warranty: Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. This furnace is protected by ACiQ's 20 Year Heat Exchanger and 10 Year Parts warranty.
Highlights:
- 66,000 BTU, 80% AFUE natural gas furnace
- Generally suitable for up to a small house in ideal applications
- Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
- Single stage burner with a multi-speed blower
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
Warranty
ACiQ offers 10 year parts and 20 year heat exchanger limited warranties. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal) the ACiQ N80ESN0702116A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for mobile home installation on its own.

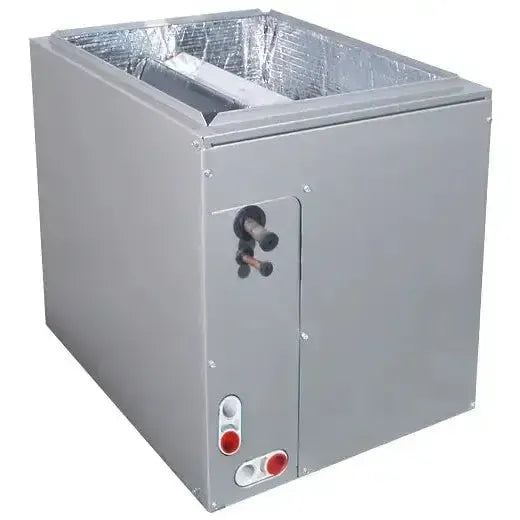

ACiQ 3 Ton 21" Width Multi-Positional Evaporator Cased Coil
ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM4X36L21A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.
Features:
- 3 ton multi-positional evaporator coil
- Works in almost any upflow, downflow, or horizontal system setup
- Compatible with both AC-only and heat pump condensers
- Factory-installed TXV kit for enhanced energy optimization
- Sturdy and compact design
3 Tons
The ACiQ EAM4X36L21A is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
Warranty
ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.
Furnace Specifications:
| Brand | ACiQ |
| Model | N80ESN0702116A |
| Weight (in lbs) | 142.000000 |
| Exhaust Flue Requirement | Metal |
| Equivalent |
|
| Furnace Efficiency / AFUE | 80% |
| Heating BTU | 66,000 |
| Blower Motor | Multi-Speed ECM |
| Drive Type | Direct |
| Maximum CFM | 1545 |
| Motor RPM | 1050 |
| Horsepower | .75 HP |
| Configuration | Upflow/Downflow/Horizontal |
| Exhaust Pipe | Metal |
| Electrical | 115v 1 Phase 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 15 Amps |
| Connection | 1/2" NPT |
| Maximum Inlet Pressure | 13.6"wc |
| Burner Stages | Single |
| Ignition Type | Direct Ignition with Silicon Nitride Hot Surface Ignitor |
| Fuel Type | Propane, Natural Gas |
| Certification | AHRI Certified |
| Height | 33 1/3" |
| Width | 21" |
| Depth | 29" |
| Warranty | 20 Year Heat Exchanger and 10 Year Parts with Online Registration |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. |
| Proposition 65 Warning | Yes |
Evaporator Coil Specifications:
| Brand | ACiQ |
| Model | EAM4X36L21A |
| Weight (in lbs) | 73.000000 |
| Equivalent |
|
| Configuration | Multi-Positional |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 3 Ton |
| Style | A-Coil |
| Certification | UL Listed |
| Height | 29 3/4" |
| Width | 21" |
| Depth | 20 5/8" |
| Warranty | 10 Years Parts Warranty with Online Registration |
| Proposition 65 Warning | Yes |
Product Information and Guides:
Furnace
- ACiQ Gas Furnace Brochure
- ACiQ Installation Manual
- ACiQ Natural Gas to Propane Conversion Instructions
- ACiQ Owners Manual
- ACiQ Specifications
- ACiQ Warranty
Evaporator Coil
