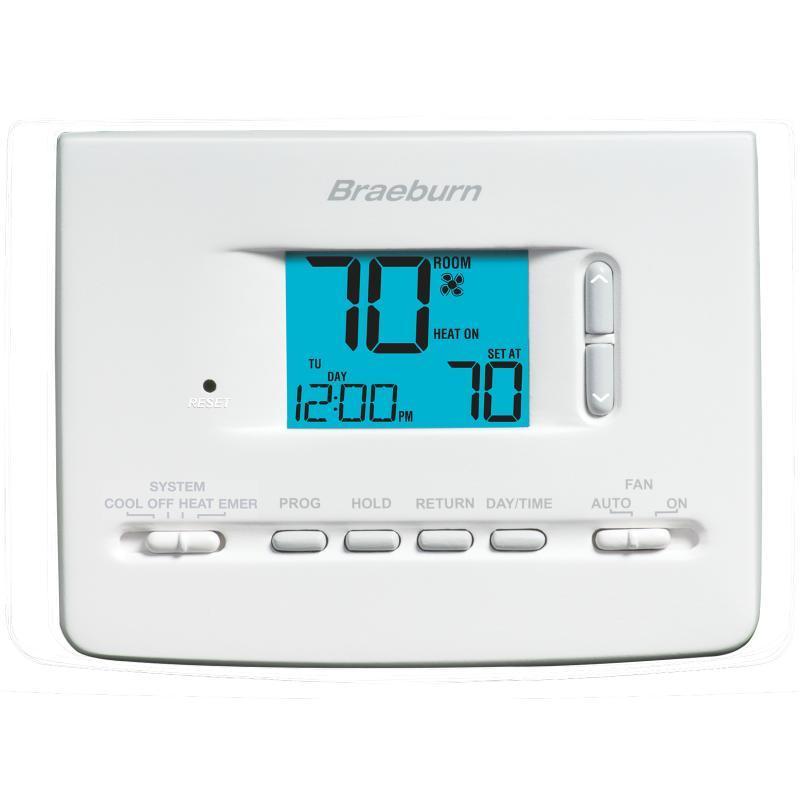

Braeburn Builder 2220NC 2 Heat / 1 Cool Universal Programmable Thermostat

Braeburn Builder 2220NC 2 Heat / 1 Cool Universal Programmable Thermostat

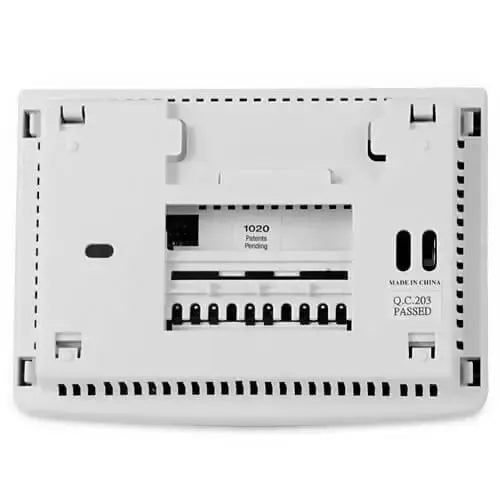

The digital programmable thermostat shall be a Braeburn® model number 2220NC, 3.62” high x 4.72” wide x 1.38” deep, powered independently with either 24 Volt AC or with two “AA” alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with multi-stage conventional systems with up to two stages of heating and one stage of cooling and heat pump systems with one compressor and up to one auxiliary stage. The thermostat shall have a bright blue backlight display and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain all user and program settings, adjustable temperature limits, filter check monitor, adaptive recovery mode (ARM™), separate heating and cooling set point program times and temperatures, and auxiliary heat indicator. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box. Meets Energy Aware® Guidelines.

Specifications:

Product Information and Guides:

• Specifications
• User Guide
