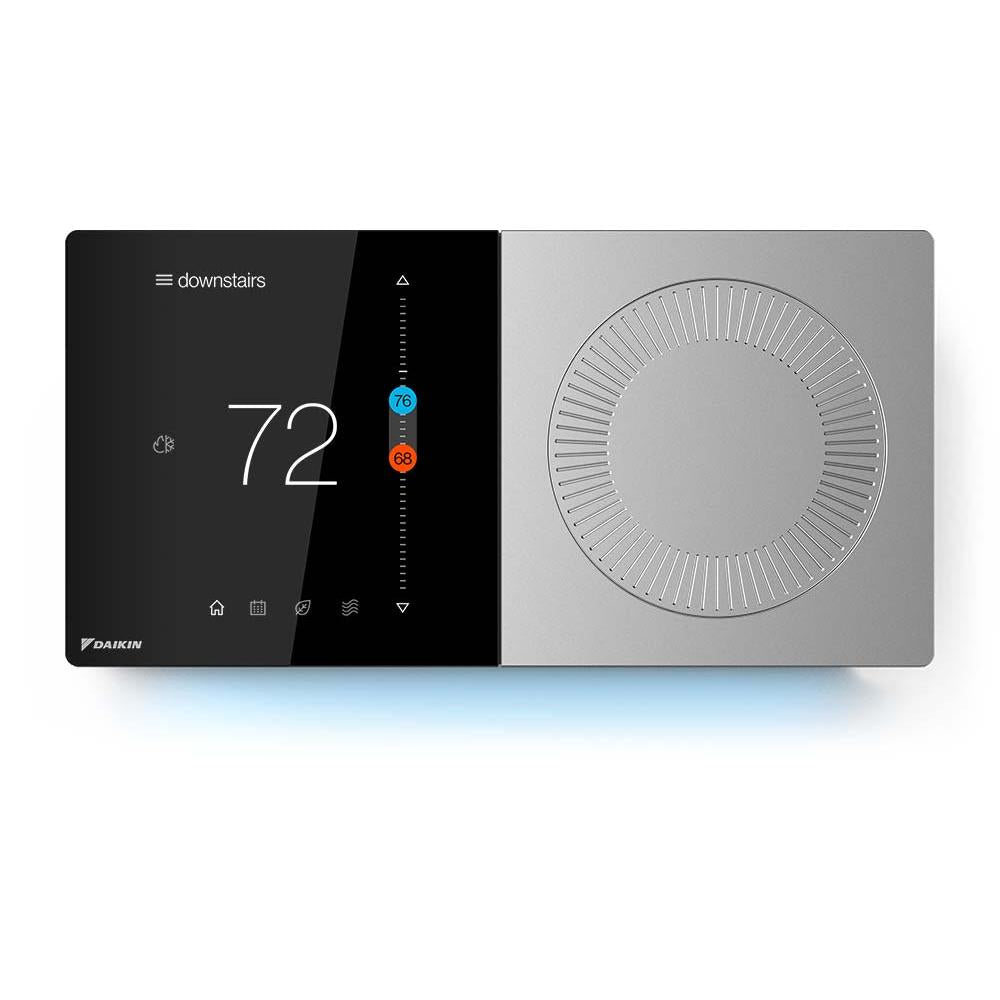

Daikin One+ Smart Thermostat - DTST-ONE-ADA-A

Daikin One+ Smart Thermostat - DTST-ONE-ADA-A

The first smart thermostat to offer full two-way communications with Daikin HVAC systems. The Daikin One+ smart thermostat is an intelligent home air controller from one of the world’s leading heating, ventilating, and air conditioning (HVAC) manufacturers. It is the cloud-connected hub of a sophisticated, integrated solution for controlling temperature, humidity, and air quality.

Features:

Stylish design

• Capacitive multi-touch display
• Easy rotational dial for precise setpoint adjustment
• Light pipe indication for heating/cooling operation

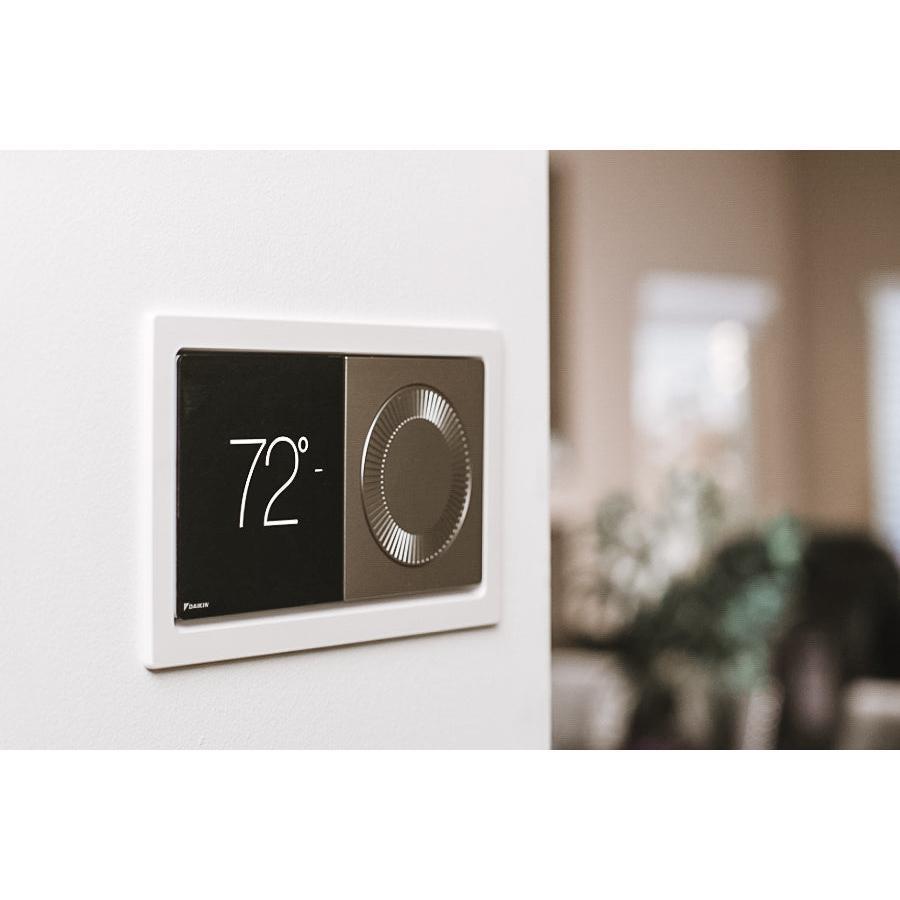

• Supported mounting methods: surface mounted and recess mounted

Remote control and software update

• Wifi-enabled smart thermostat with iOS and Android app control
• Voice control by Amazon Alexa and Google Assistant
• Over-the-air software updates
• Outdoor environment report: outdoor temperature, outdoor humidity, and weather forecast

Intelligent energy management

• Energy and comfort functions: Schedule/Adjustment Hold/Away mode with geo-fencing
• Programmable schedule with up to 6 scheduled events per day

Versatile indoor comfort control

• Indoor unit control: Mode (Auto/Heat/Cool/Off), Setpoint, Fan Speed (Heat/Cool), Louver position
• Built-in temperature and humidity sensors
• Dehumidification with overcooling function
• Error Code and maintenance notification

External device support

• Built-in Bluetooth and Sub GHz communication
• Two dry contacts for auxiliary devices
• Auxiliary heater control: capable to control the auxiliary heater as primary heater/secondary heater/emergency heater

Complete support

• Multi-language support: English, Spanish, French
• Compliant to California Title 24 (OCST listed)

Technical Specifications

• Analog dial

• Capacitive touch screen

• Backlit, 3.5 inch MVA TFT LCD display

• Bi-directional communications protocol for controlling HVAC system

• Bubble level (to aid installation)

• 640 × 480 pixels × 24 bit RGB (full color screen)

• Light pipe indicates heating or cooling

• WiFi

Product Dimensions

• Length: 6¾ inches

• Height: 3⅜ inches

• Depth: 13⁄16 inches
• Weight: 10.5 ounces

Model Compatibility:

The Daikin One+ smart thermostat is a cloud-connected hub of sophistication, designed for controlling temperature, humidity, and air quality. With a variety of connectivity options, there’s a comfort solution for every project and customer. See the extended list of model compatibility here.

Equipment Type	Equipment Part Number	Compatible Model
AIR CONDITIONERS	Daikin Fit (DX17VSS), DX20VC, DX18TC, DX16TC	DTST-CWBSA-NI-A
HEAT PUMPS	Daikin Fit (DZ17VSA), DZ20VC, DZ18VC, DZ18TC, DZ16TC	DTST-CWBSA-NI-A
GAS FURNACES	DM97MC, DC97MC, DM96VC, DC96VC, DM80VC, DC80VC	DTST-CWBSA-NI-A
AIR HANDLERS	DVFEC, DVPEC, DVPTC, MBVC	DTST-CWBSA-NI-A
SINGLE & MULTI-ZONE (S21)	CDXS, CTXS, FDXS, FTK_N, FTX_N, FTX_U, FTXG*, FTXR, FTXS, FVXS	DTST-ONE-ADA-A
SINGLE & MULTI-ZONE (P1P2)	FDMQ, FFQ	DTST-ONE-ADA-A
VRV and VRV LIFE	CXTQ, FXAQ, FXDQ, FXEQ, FXFQ, FXHQ, FXLQ, FXMQ, FXNQ, FXSQ, FXTQ, FXUQ, FXZQ	DTST-ONE-ADA-A
SKYAIR	FAQ, FBQ, FTQ, FCQ, FHQ	DTST-ONE-ADA-A
INDOOR AIR QUALITY	Daikin One Home Air Monitor (Only compatible with ducted units) - DESEN-HAQA	DTST-CWBSA-NI-A, DTST-ONE-ADA-A

*The Sarara drying function of the QUATERNITY units is not supported with Daikin One+ smart thermostat, but the dehumidification function of the Daikin One+ can be used with the QUATERNITY indoor units.

Easy Installation

Warranty:

• The Daikin One+ Smart Thermostat is backed by an outstanding 12-Year Limited Warranty. The 12-Year Limited Warranty is available for owner-occupied residences only. For multi-family and/or commercial applications, the warranty period is 5-years. Click here to view the Full Warranty Certificate.

Accessories:

• Flush Mount Kit (DKIT-FLSH-ONE)

• J-box Adaptor Plate Kit (DKIT-CONV-ONE)

Product Information and Guides:

• Daikin One+ Installation Instructions
• Daikin One+ Thermostat - Reference Guide
• Daikin One+ Thermostats - Spec Sheet
• Daikin One+ Submittal
• Daikin One+ Thermostat - Product Brochure
• Daikin One+ Thermostat - Product Flyer
• Daikin One+ Thermostat - Homeowner Guide
• Daikin One+ Connectivity – Single/Multi-zone Product Overview
• Daikin One+ Connectivity – Residential Product Overview
• Daikin One+ Connectivity – SkyAir Product Overview
• Daikin One+ Connectivity – VRV Product Overview
• Engineering Manual - VRV Controls
• Full Warranty Certificate
