Ecor Pro
Ecor Pro High Voltage Humidistat for EPD150/EPD200
$209.00$229.00
Call for best pricing before large-system orders.
Ecor Pro Low Voltage Humidistat for EPD30/EPD50

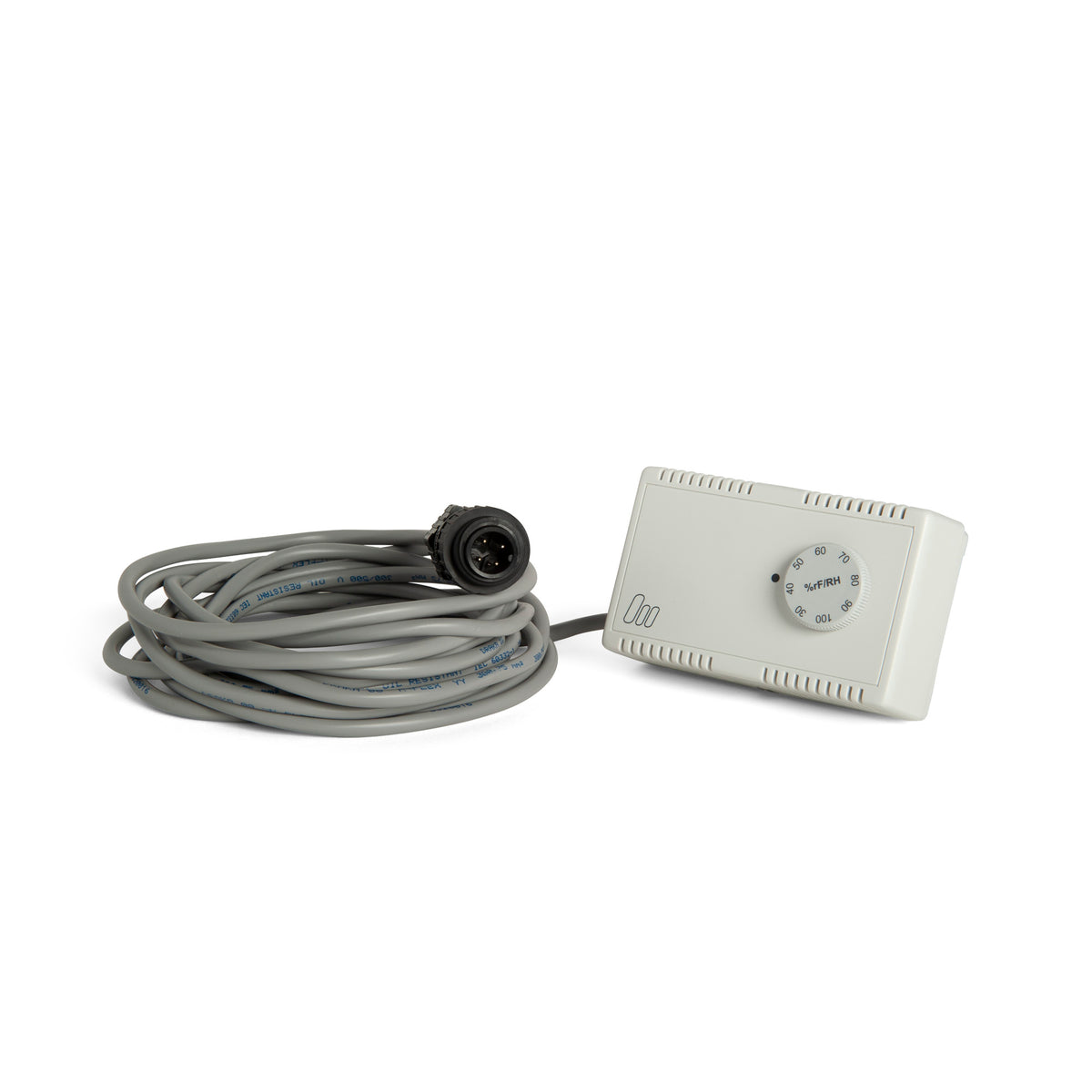

The ECOR PRO EPHUM220 high voltage humidistat controls a dehumidifier or dehumidification system to help prevent mildew build-up, which is associated with high humidity levels. The controller is designed to be wall-mounted and can be wired in parallel or in series with any 24V thermostat. The EPHUM220 is compatible with EPD150 and EPD200, painted and stainless steel models.
Features:
- Easy-to-operate, high voltage humidistat that can be used with EPD150 and EPD200 (painted and stainless steel units).
- All-white, matt finish, plastic housing material with 15 feet connecting cable.

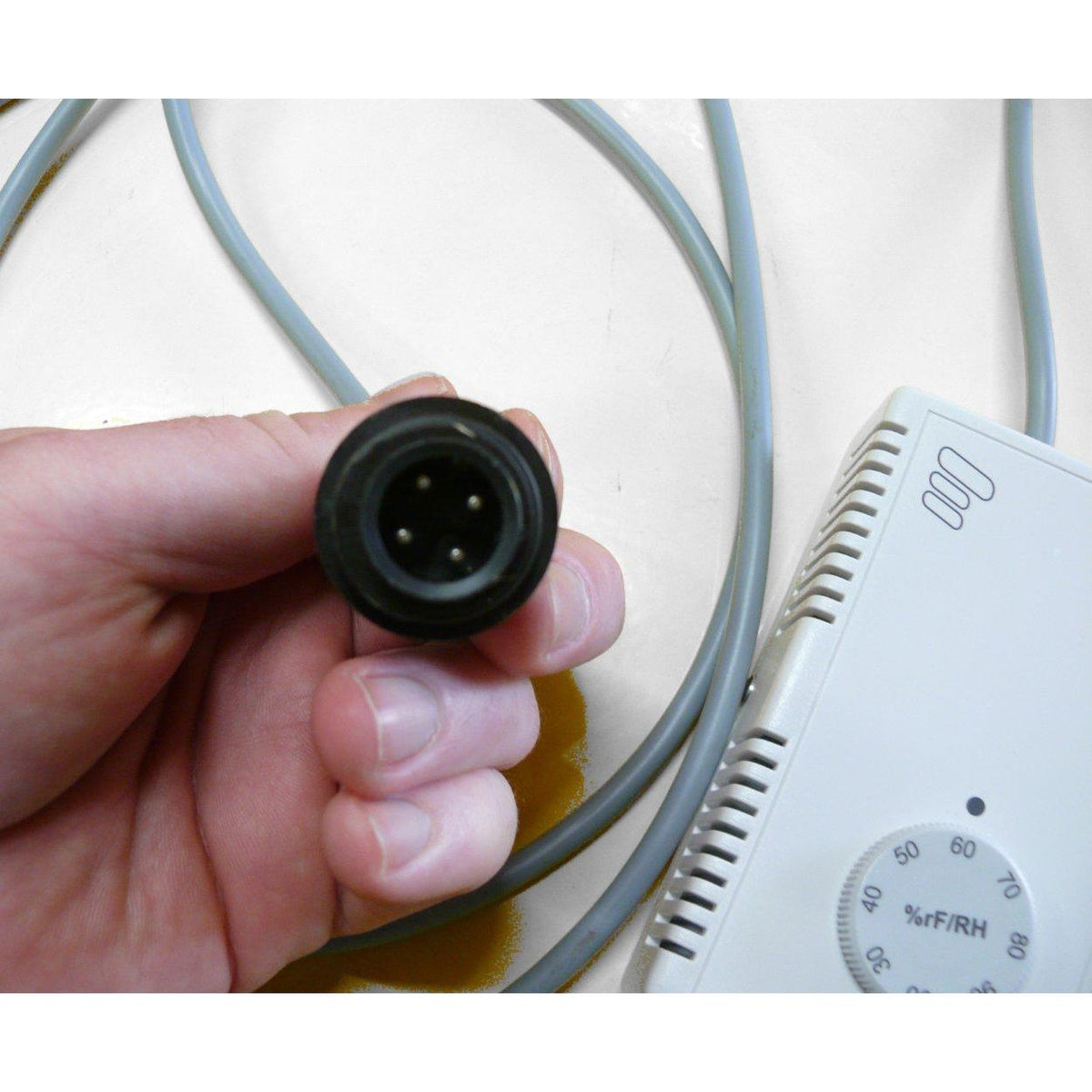

- Manual control dial that comes with mil standard screw plug fitted to connect directly into the dehumidifiers.
- Operating temperature ranges from -4°F up to 104°F
Specifications:
| Brand |
Ecor Pro |
| Model | EPHUM220 |
| Barcode | EAN 5060224950463 |
| Technology | Humidistat |
| Color | White |
| Housing Construction & Materials | Matt Finish / Plastic |
| Swimming Pool Ready | No |
| Works from DC-AC Converter | Yes |
| Cord Length (ft) | 15 feet |
|
Individual Unit Dimensions / Filter Pack (L x W x H): Weight (Pounds): |
4.50 x 3.00 x 1.80 (inches) 0.40 lbs. |
|
Shipping Box Dimensions / Filter Master Pack (L x W x H): Weight (Pounds): |
5.00 x 3.50 x 2.00 (inches) 1.50 lbs. |
