Goodman
Goodman GLZT7CA4810 4 Ton 17.2 SEER2 & 8.2 HSPF2 Two Stage High Efficiency Split System Heat Pump Condenser - R-32 Refrigerant
$5,561.00$7,507.35
Call for best pricing before large-system orders.
Goodman GLZT7CA4810 4 Ton 17.2 SEER2 & 8.2 HSPF2 Two Stage High Efficiency Split System Heat Pump Condenser - R-32 Refrigerant

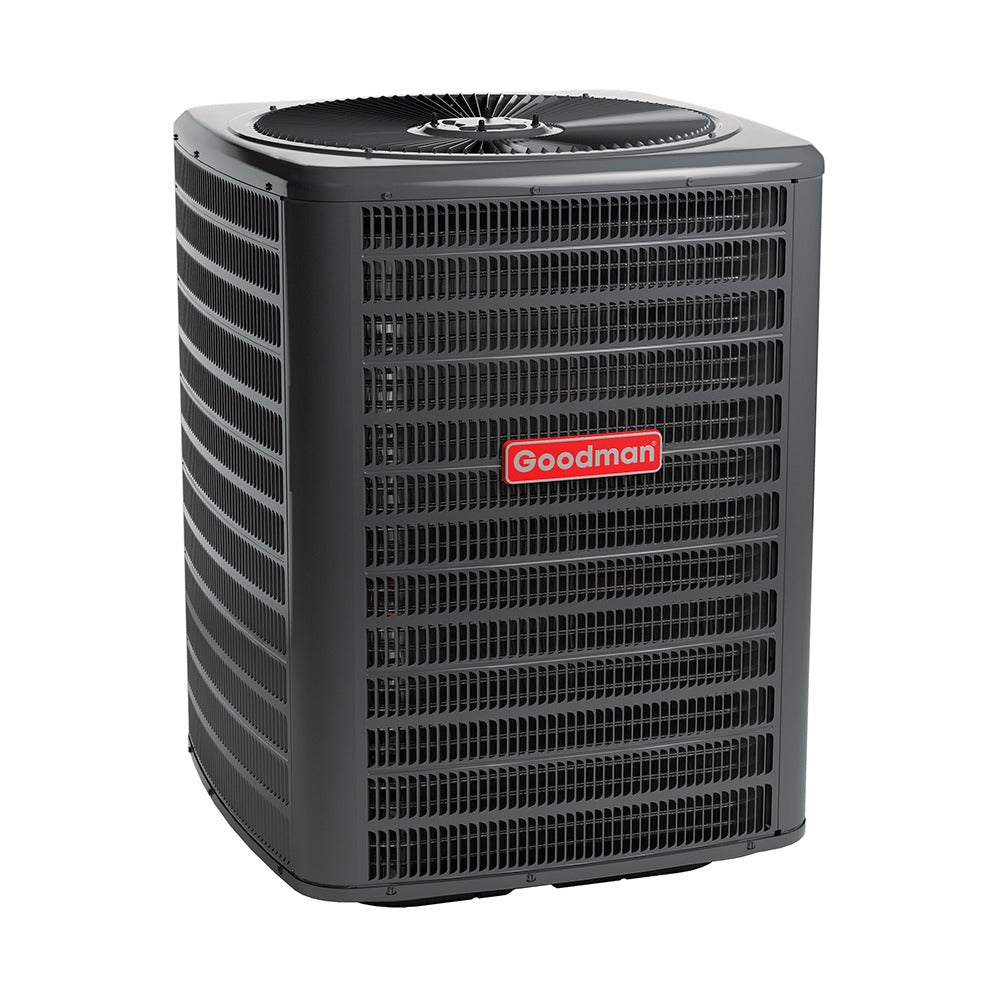

The Goodman GLZT7CA4810 R-32 High-Efficiency Split System Heat Pump is a two-stage, split-system heat pump condenser that uses the more environmentally friendly R-32 refrigerant. It delivers up to 17.2 SEER2 cooling efficiency and 8.2 HSPF2 heating performance, and includes features such as ComfortBridge™ communicating controls, built-in diagnostics, and quieter operation through a high-density foam compressor sound blanket. It’s available in sizes from 2 to 5 tons, making it suitable for a range of applications.
Standard Features:
- Two-Stage Copeland® UltraTech scroll compressor
- High-density foam compressor sound blanket
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
- Goodman® GTST Connected Thermostat Compatibility
- ComfortAlert™ built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Copper tube/enhanced aluminum fin coil -7mm on 4.0-5.0 T
- Efficient, two-speed ECM condenser fan motor
- Simple low-voltage wiring to outdoor unit in communicating mode
- Diagnostic indicator lights and storage of six fault codes
- Color-coded terminal strip for non-communicating set-up
- High- and low-pressure switches
- Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- Factory-installed coil and ambient temperature sensors
- AHRI Certified; ETL Listed
Cabinet Features:
- Grille-style sound control top design
- Custom Nickel Gray powder-paint finish
- 500-hour salt-spray tested
- Wire fan discharge grille
- Steel louver coil guard
- Single panel access to controls with space provided for field-installed accessories
- Sweat connection service valves with easy access to gauge ports
- When properly anchored, meets the 2024 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Warranty:
- 10-Year Unit Replacement Limited Warranty
- 10-Year Parts Limited Warranty
- See the warranty document here for full warranty details
Goodman GLZT7CA4810 4 Ton 17.2 SEER2 & 8.2 HSPF2 Two Stage High Efficiency Split System Heat Pump Condenser - R-32 Refrigerant Specifications:
| Brand | Goodman |
|---|---|
| Model | GLZT7CA4810 |
| Refrigerant Type | R-32 |
| Pre-Charged Length | Pre-charged for 15 ft of line set length |
| Nominal Capacities |
Cooling (BTU/h): 48,000 Heating (BTU/h): 48,000 Decibels: 75 |
| Compressor |
RLA: 23.3 LRA: 128.4 Stage: Two Type: Scroll |
| Condenser Fan Motor |
Motor Type: ECM Horsepower: 1/3 FLA: 2.80 |
| Refrigeration System |
Refrigerant Line Size¹:
Refrigerant Connection Size:
Valve Connection Type: Sweat Refrigerant Charge (oz.): 229 |
| Electrical Data |
Voltage-Phase-Hz: 208/230-1-60 Minimum Circuit Ampacity²: 31.6 Max. Overcurrent Protection³: 50 Min / Max Volts: 197/253 Electrical Conduit Size: 1/2" or 3/4" |
| Dimensions | 35½" x 35½" x 41⅝" (W x D x H) |
| Unit Weights |
Equipment Weight (lbs): 308 Shipping Weight (lbs): 323 |
| ENERGY STAR® |
ENERGY STAR® Certified: Yes |
| Resources |
