MRCOOL
MRCOOL® Olympus 36,000 BTU 4-Zone Ductless Mini-Split Condenser - 230V/60Hz
$2,940.00$3,969.00
Call for best pricing before large-system orders.

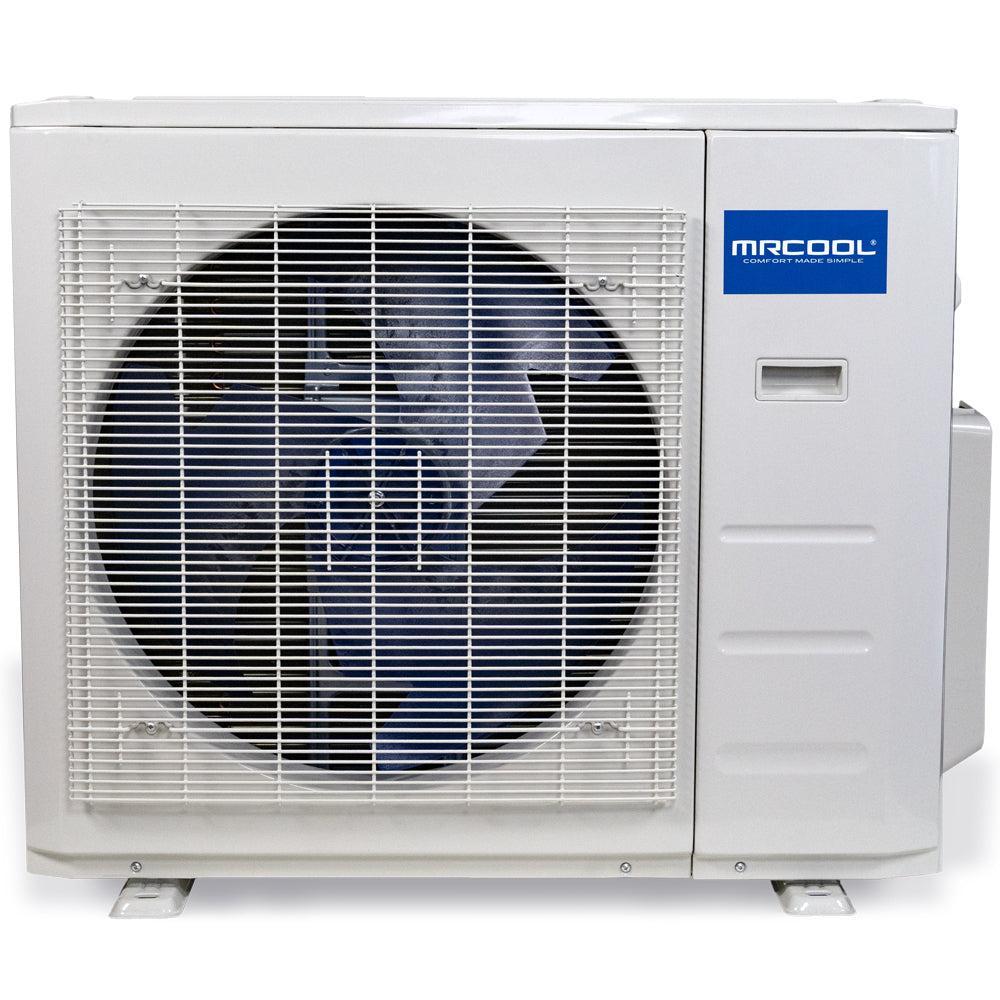

MRCOOL® Olympus 36,000 BTU 4-Zone Ductless Mini-Split Condenser - 230V/60Hz
If you’re looking for affordability and efficiency, you’ll find just that with the MRCOOL® Olympus 36k Ductless Mini-Split Condenser. This Energy-Star certified condenser features a 23 SEER and 11.3 HSPF. Simply match this unit with an Olympus ceiling cassette or wall-mounted air handler and experience exceptional heating and cooling performance, while remaining eco-friendly with R-410A refrigerant. Once installed by a licensed professional and registered online, you can have peace of mind thanks to the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
Features:
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Specifications:
| BRAND | MRCOOL® |
| SERIES | Olympus Multi-Zone |
| MODEL | MULTI4-36HP230B |
| GTIN | 00840255522014 |
| UPC | 840255522014 |
| SEER | Up To 23 |
| SEER2 | 23.9 |
| EER | Up To 11.5 |
| EER2 | 11.7 |
| HSPF-4 |
11.3 |
| HSPF-5 |
9.2 |
| HSPF2-4 |
9.3 |
| HSPF2-5 |
7.1 |
| COOLING CAPACITY (BTU) |
36000 |
| HEATING CAPACITY (BTU) |
37000 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) |
40 |
| MIN CIRCUIT AMPACITY (A) |
25 |
| ZONE CAPACITY |
4 |
| REFRIGERANT TYPE |
R-410A |
| REFRIGERANT VOLUME (OZ) |
134.04 |
| DECIBEL RATING (DBA) |
63 |
| LIQUID LINE SIZE |
1/4 |
| SUCTION LINE SIZE |
3/8 & 1/2 |
| COMPRESSOR MOTOR TYPE |
ROTARY |
| CONDENSER FAN MOTOR RPM |
1000/900/750 |
| OVERLOAD PROTECTION |
Yes |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
| REGISTERED PARTS WARRANTY |
5-year |
| REGISTERED COMPRESSOR WARRANTY |
7-year |
| REGISTERED REMOTE WARRANTY |
1-year |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| RESTRICTED STATES |
GU, PR, VI |
| NET DEPTH (IN) |
16.14 |
| NET HEIGHT (IN) |
31.89 |
| NET WIDTH (IN) |
37.24 |
| NET WEIGHT (LBS) |
169.09 |
| GROSS DEPTH (IN) |
19.69 |
| GROSS HEIGHT (IN) |
34.84 |
| GROSS WIDTH (IN) |
42.91 |
| GROSS WEIGHT (LBS) |
181 |
Product Information and Guides:
Need sizing help?
Call before you order and we can help confirm capacity, zones, line sets, electrical needs, and accessories.
Shipping, liftgate, and delivery
Use this block for freight delivery expectations, liftgate details, inspection steps, and tracking support.
AI-ready product facts
Connect product metafields for BTU, SEER2, zones, voltage, refrigerant, line-set compatibility, warranty, and install notes so an assistant can recommend complete bundles.
Before checkout
Confirm the right system package for your installation.
Review capacity, electrical requirements, indoor unit placement, line set length, and accessories before ordering.
