Pioneer®

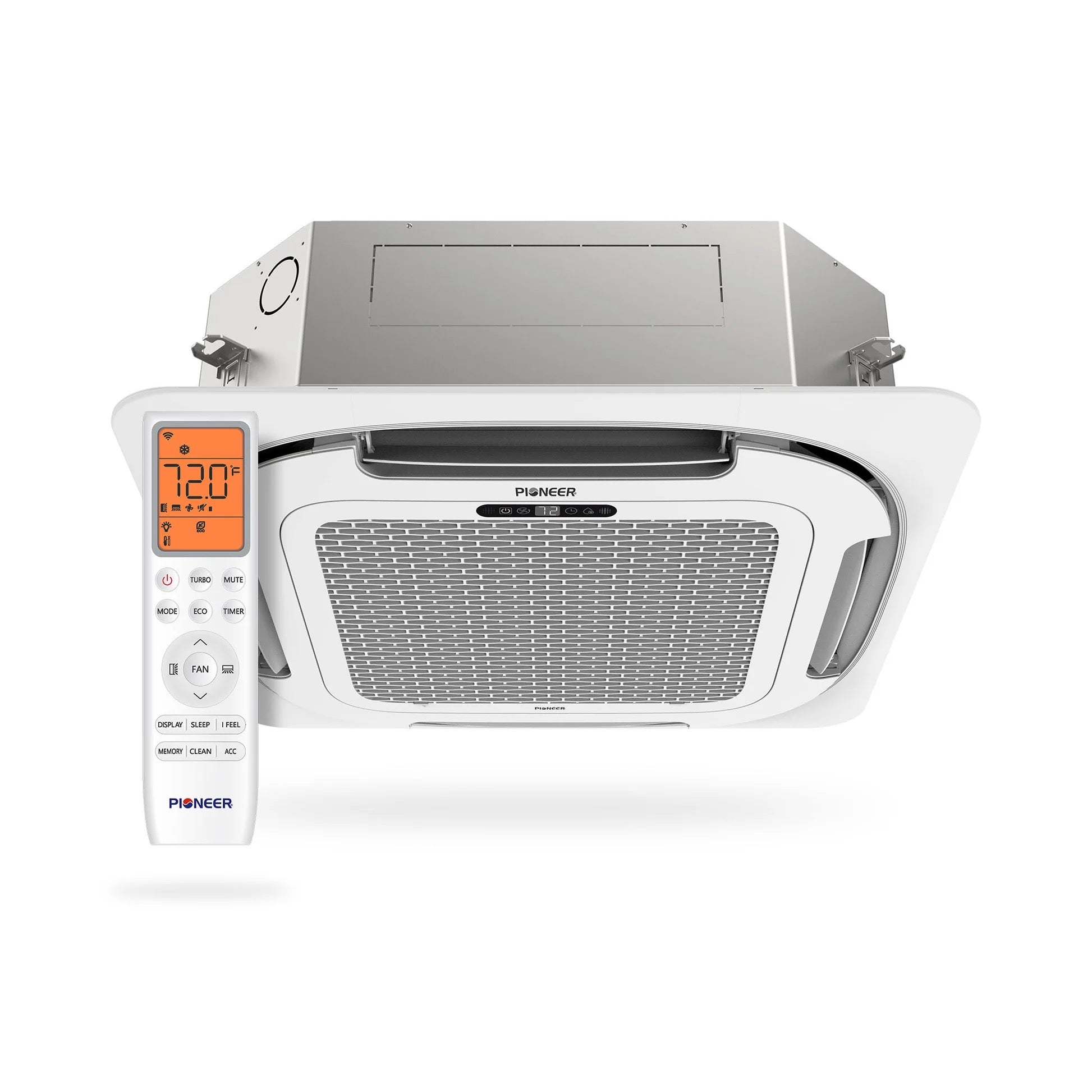

Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
$778.00$1,012.00
Call for best pricing before large-system orders.
Guaranteed safe and secure checkout
Financing options available for qualified shoppers.
Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,000 BTU/h
- Suitable Area: 200~350 Sq.F
Indoor Unit
- Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
- Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
- Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs
Decorative Panel
- Part Number: CT0918DPNL
- Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
- Carton Dimensions (WDH):28"-7/8 x 28"-7/8 x 4"-3/8
- Net / Gross Weight: 6.0 / 9.5 lbs
Manuals & Documents
- Technical Brochure
- Installation and User's Manual
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App

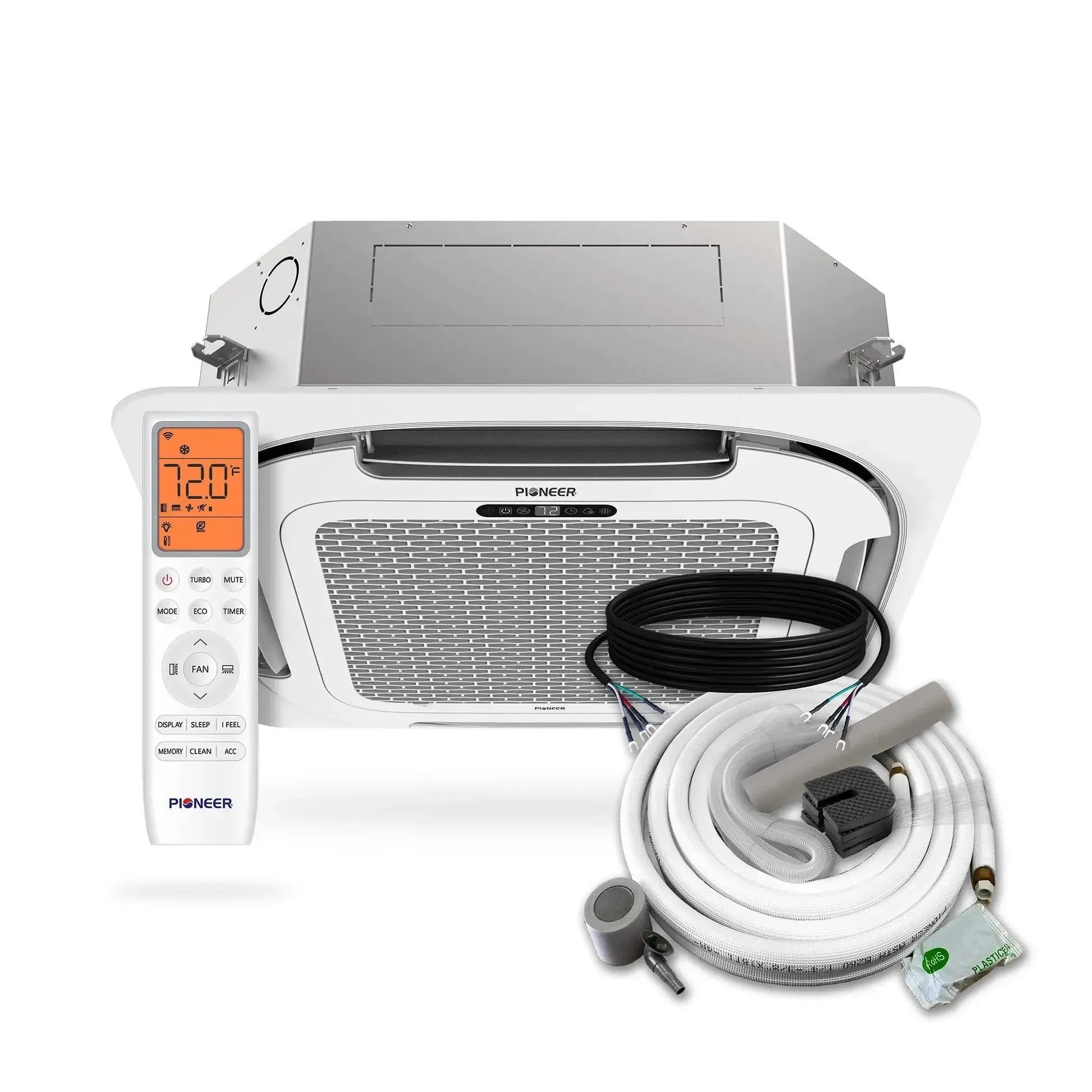

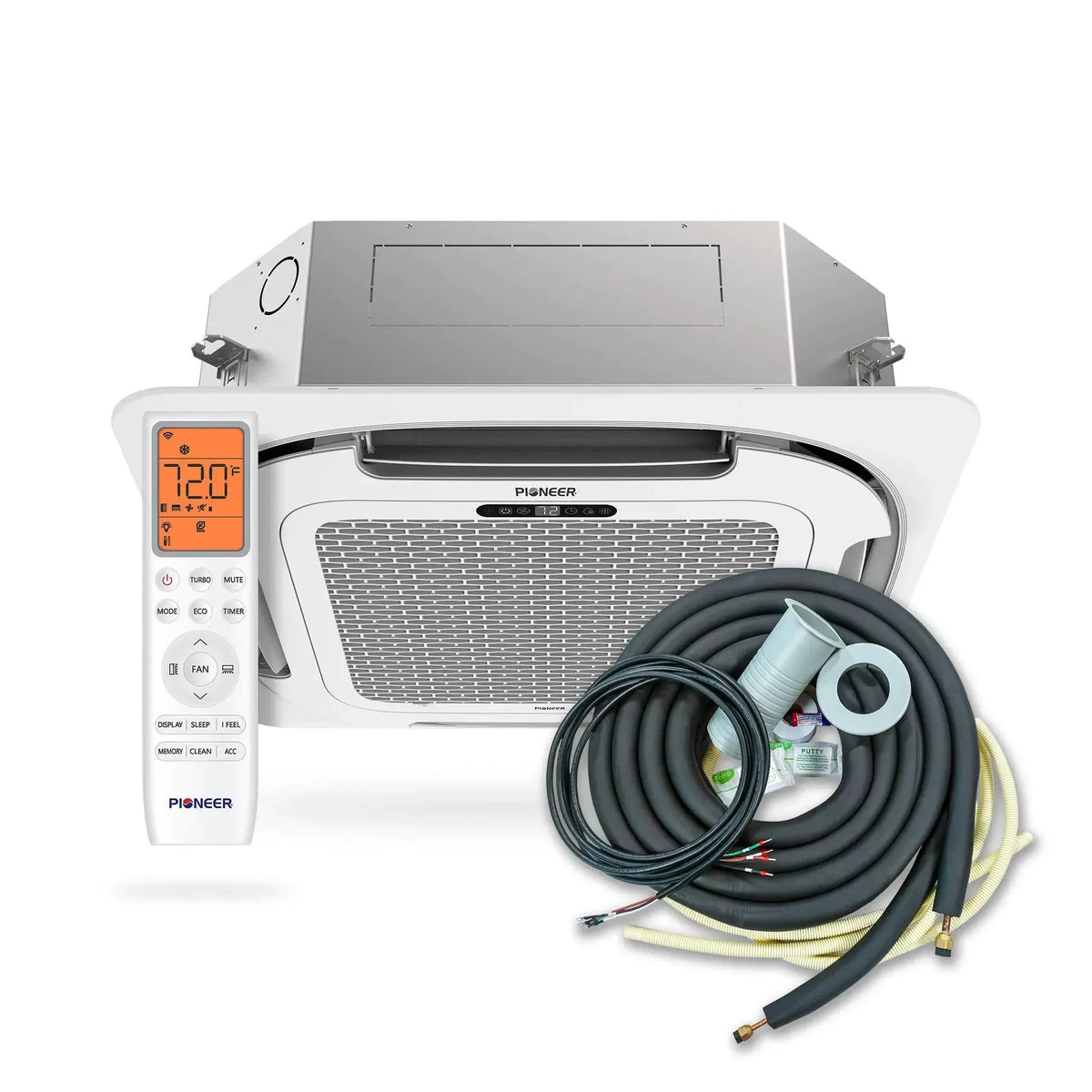

- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
