Rich Solar 1600 Watt Solar Kit

Rich Solar 1600 Watt Solar Kit

Our largest 24V kit contains 8 high-efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off-grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

Features:

• High-Efficiency Solar Panel: With the highest-grade monocrystalline solar cells for optimal output, our 200 watt panel is treated with an anti-reflective coating to maximize light absorption.
• Simple Installation: Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, makes expansions, upgrades, or additions simple and easy… just plug in and go!
• Reliable and Convenient: The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. provide peace of mind by protecting your system from overcharging.
• 25-Year Output Warranty: Buy with confidence knowing that your solar investment will last for the long haul.

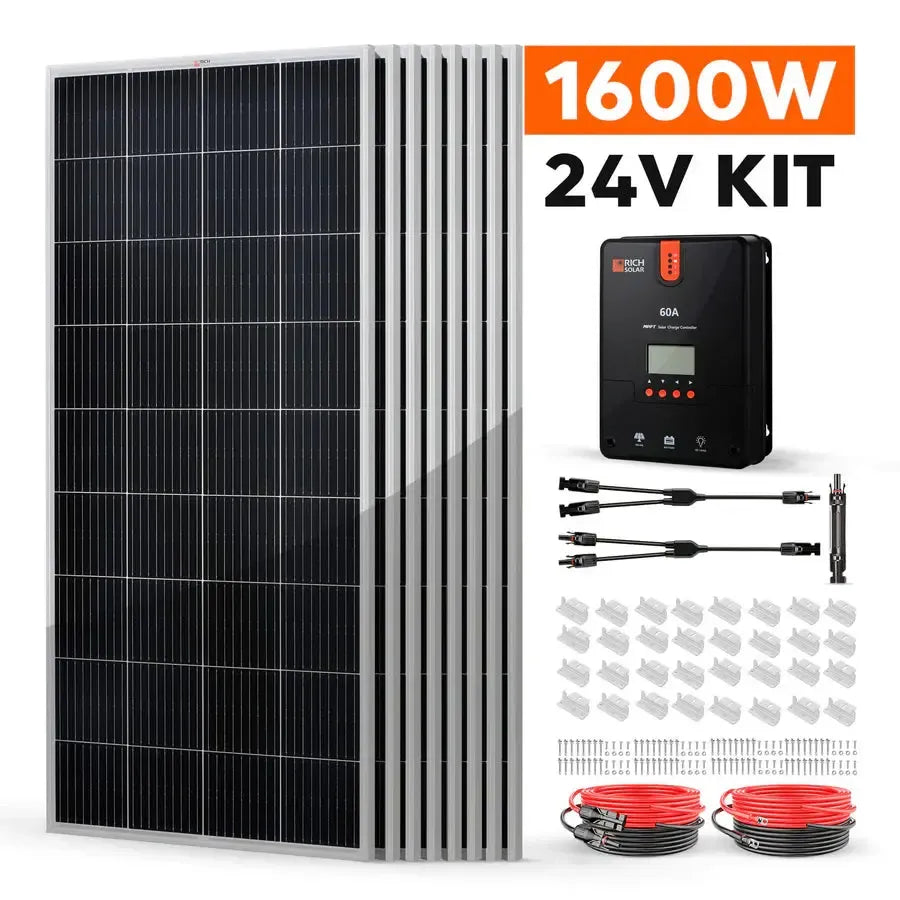

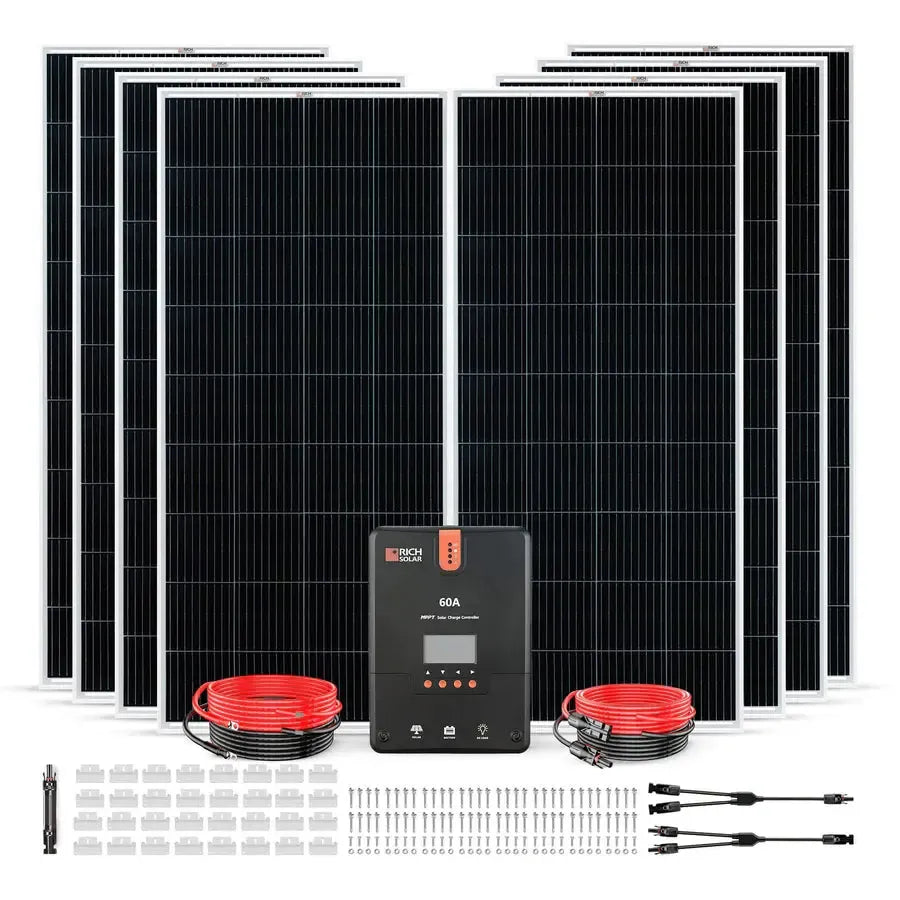

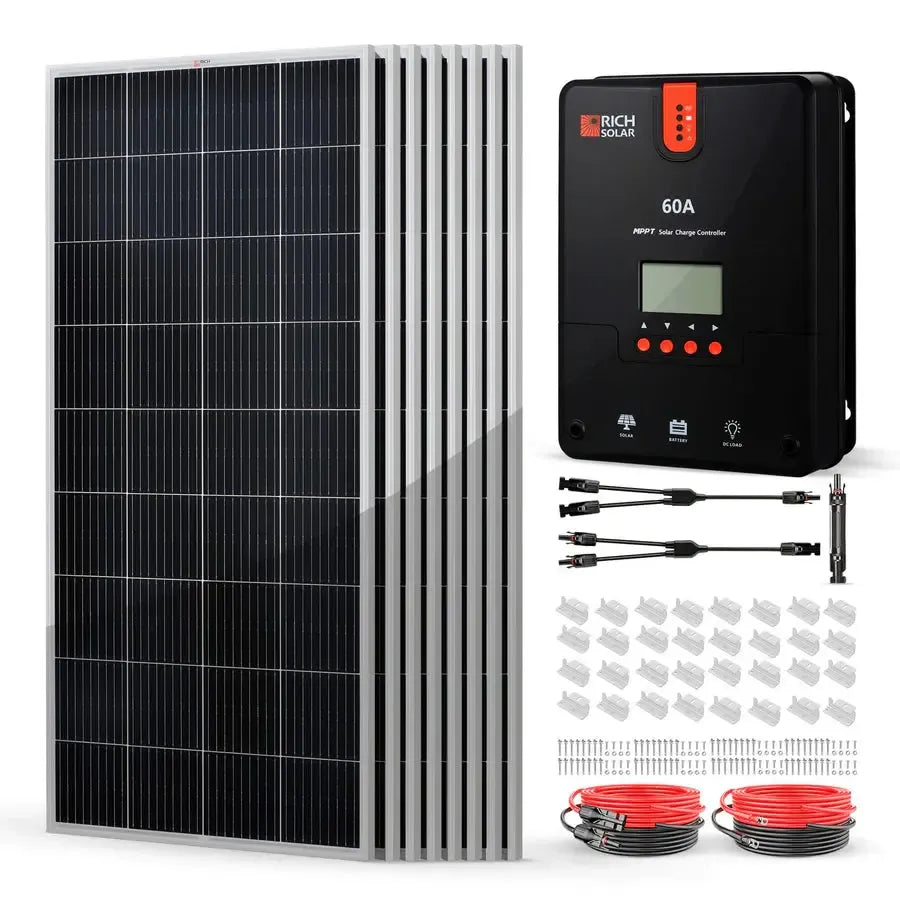

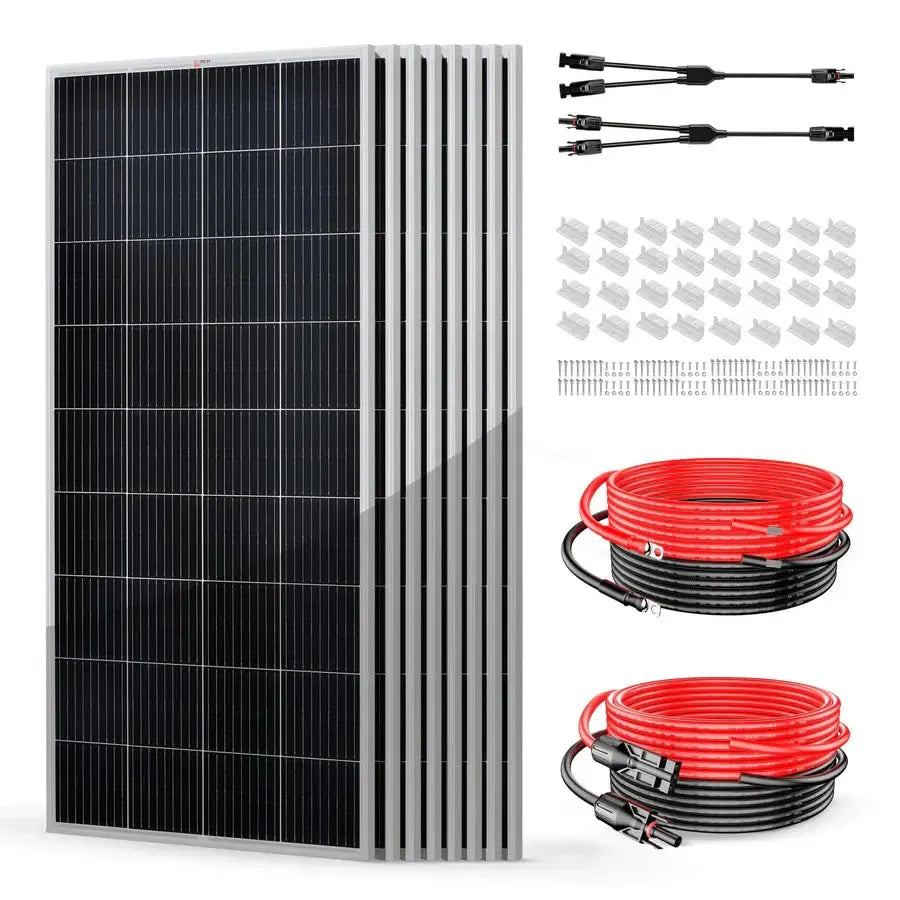

Package Includes:

• 8 x 200 Watt Monocrystalline Solar Panel(RS-M200)
• 1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
• 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
• 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
• 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
• 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
• 8 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
• 1 x 30A Inline Fuse Holder with Fuse(RS-SC30F)
• 1 x Y Branch Parallel Adapters(RS-T2)

200 Watt Solar Panel Specifications:

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 20.4V
• Maximum Power Current(Imp): 9.80A
• Open Circuit Voltage(Voc): 24.3V
• Short Circuit Current(Isc): 10.2A
• Weight: 26.5 lbs
• Dimensions: 58.7 x 26.8 x 1.4 in
• Warranty: 25 years output warranty
