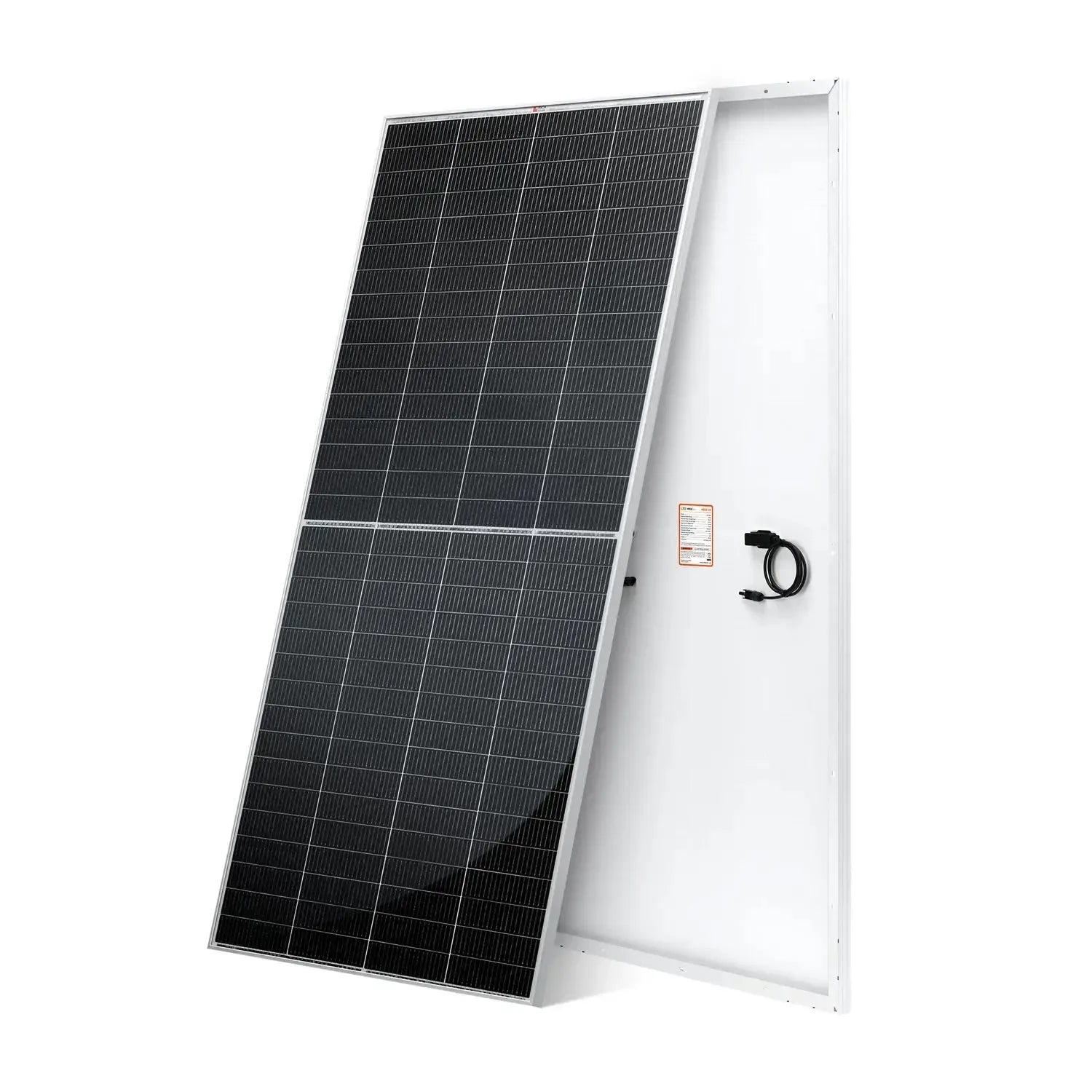

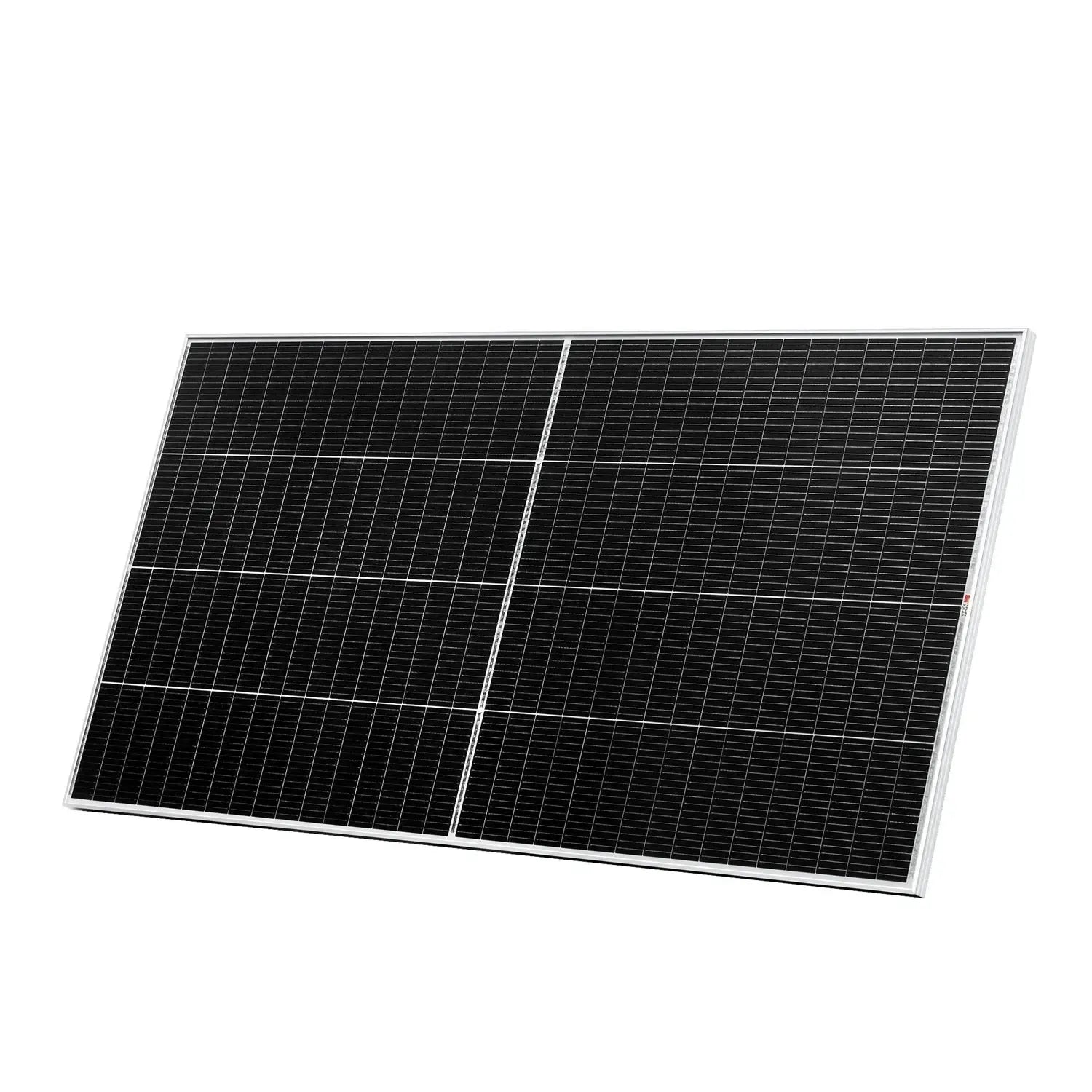

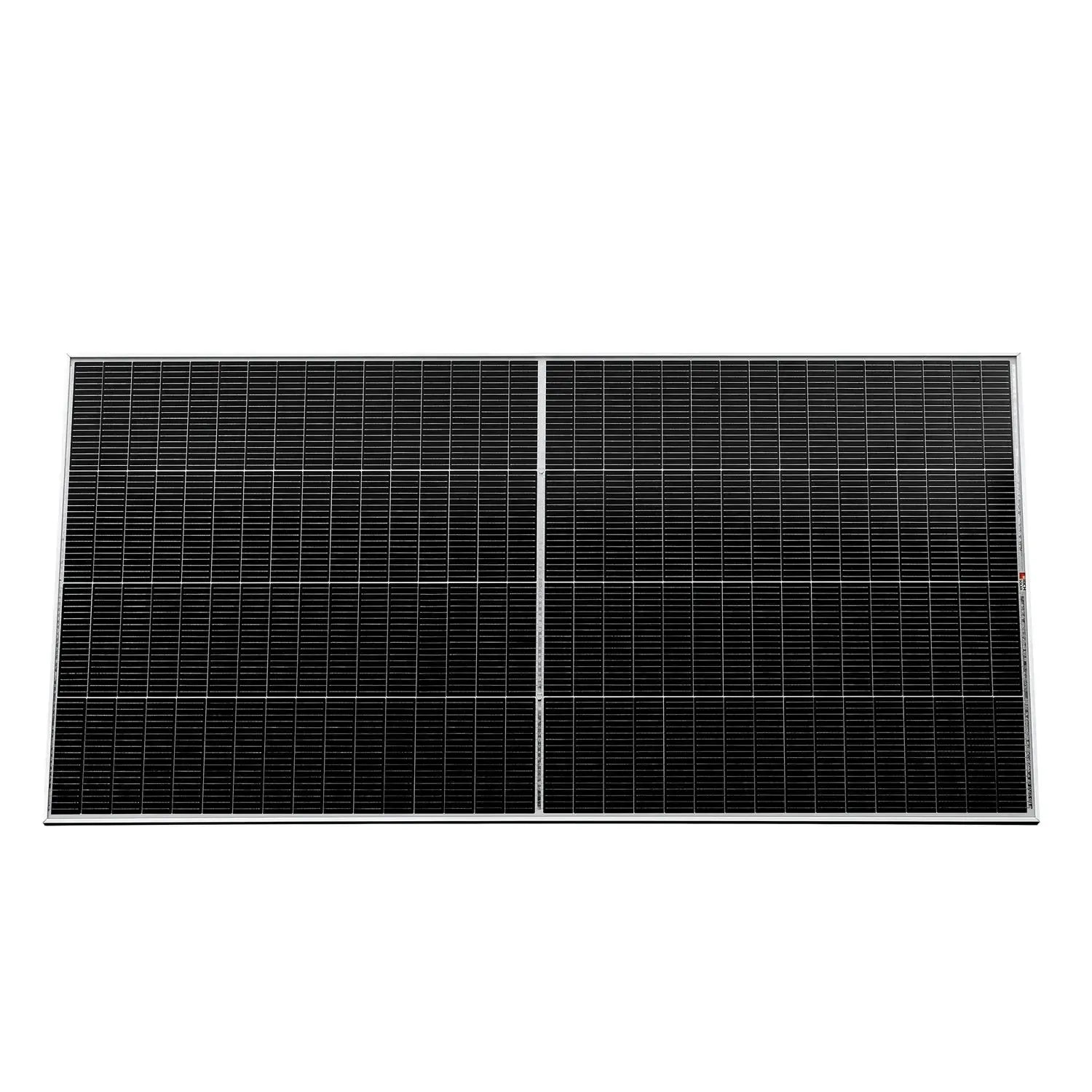

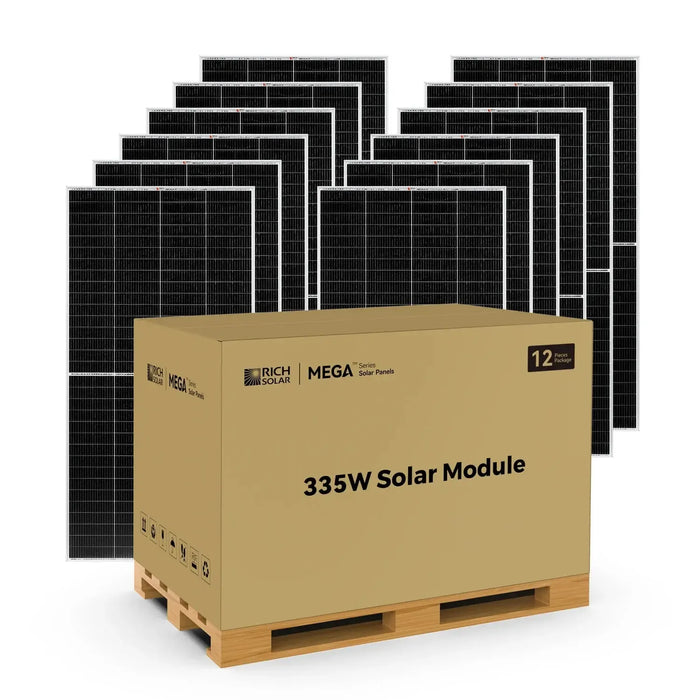

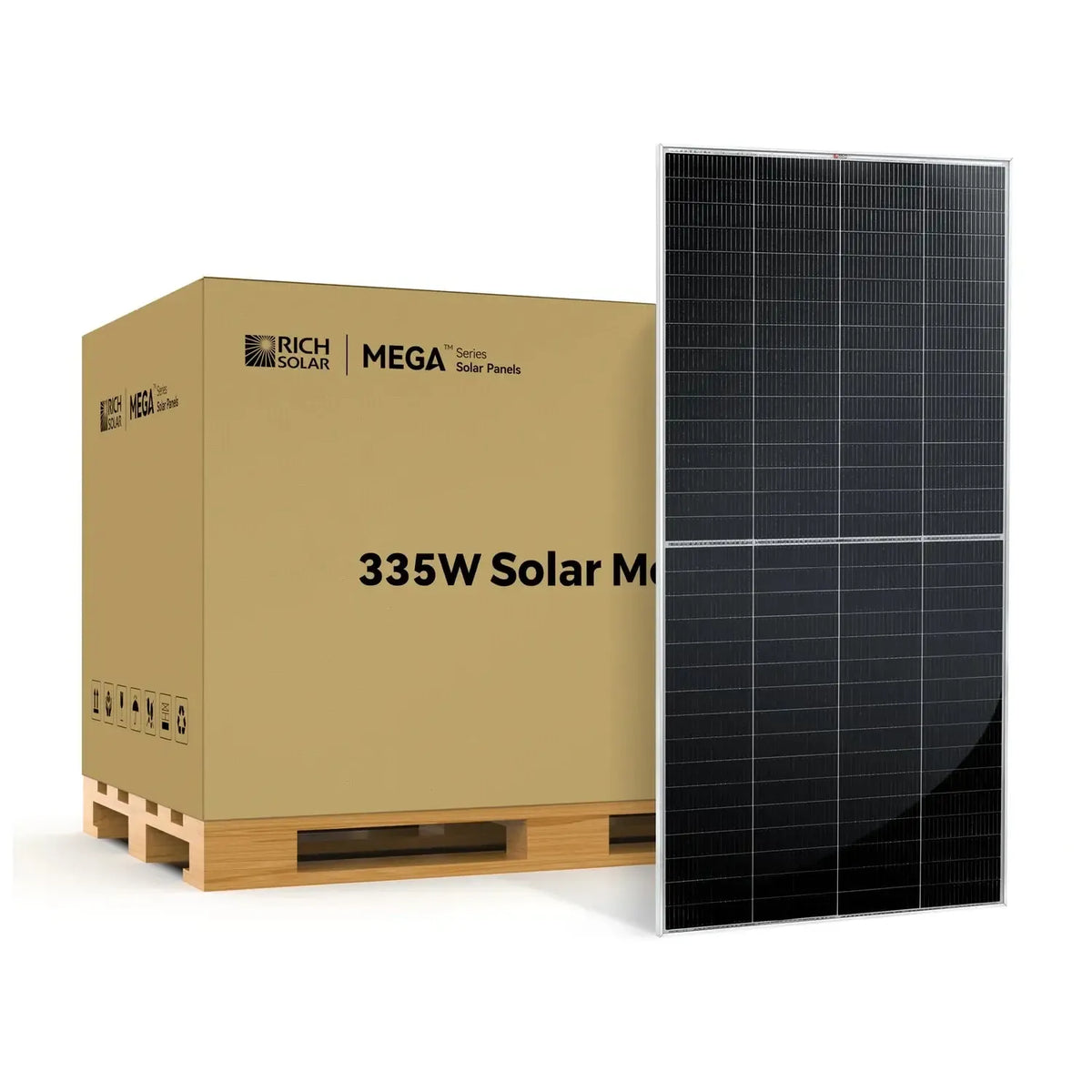

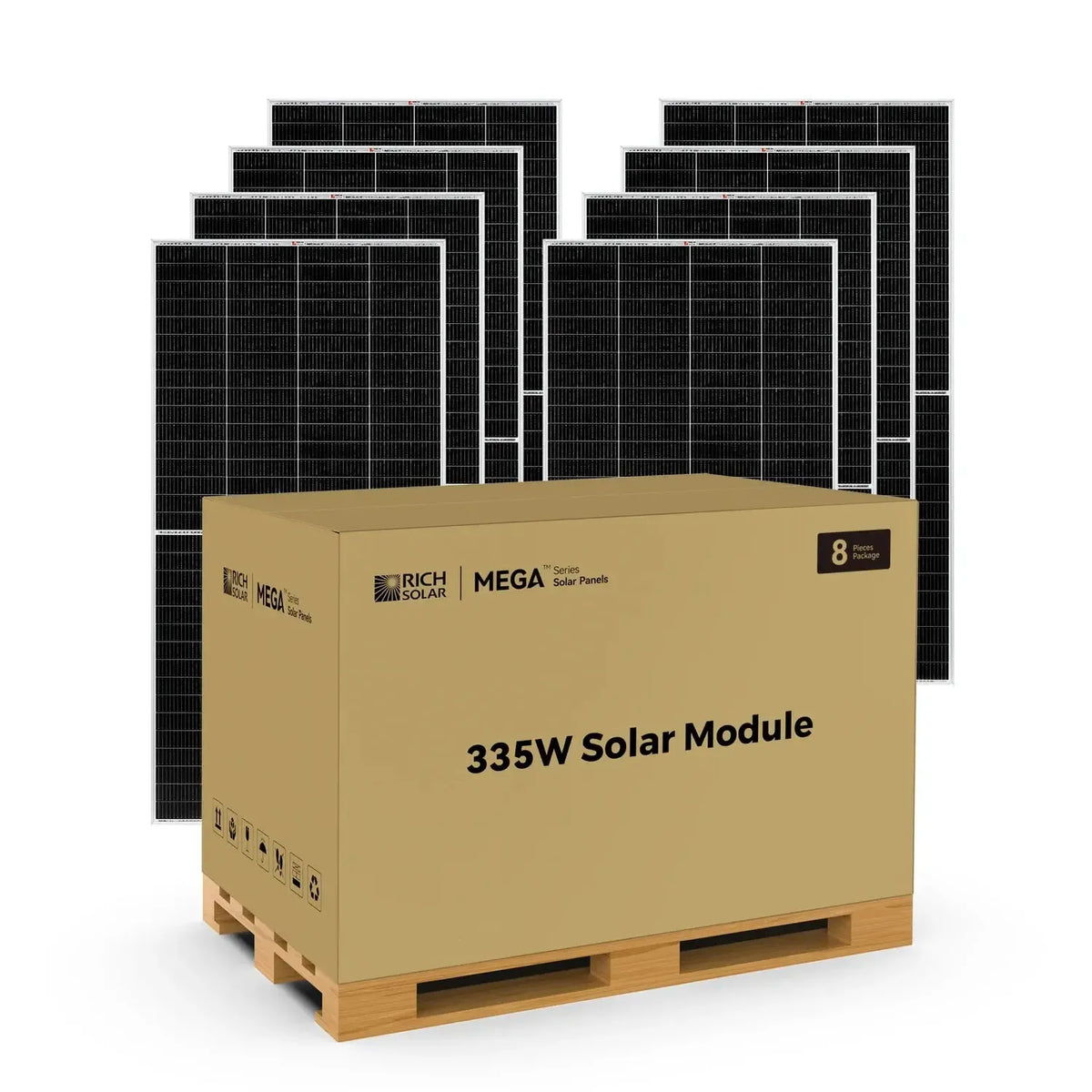

Rich Solar MEGA 335 | 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture | 25-Year Output Warranty | UL Certified
Built-in Components:

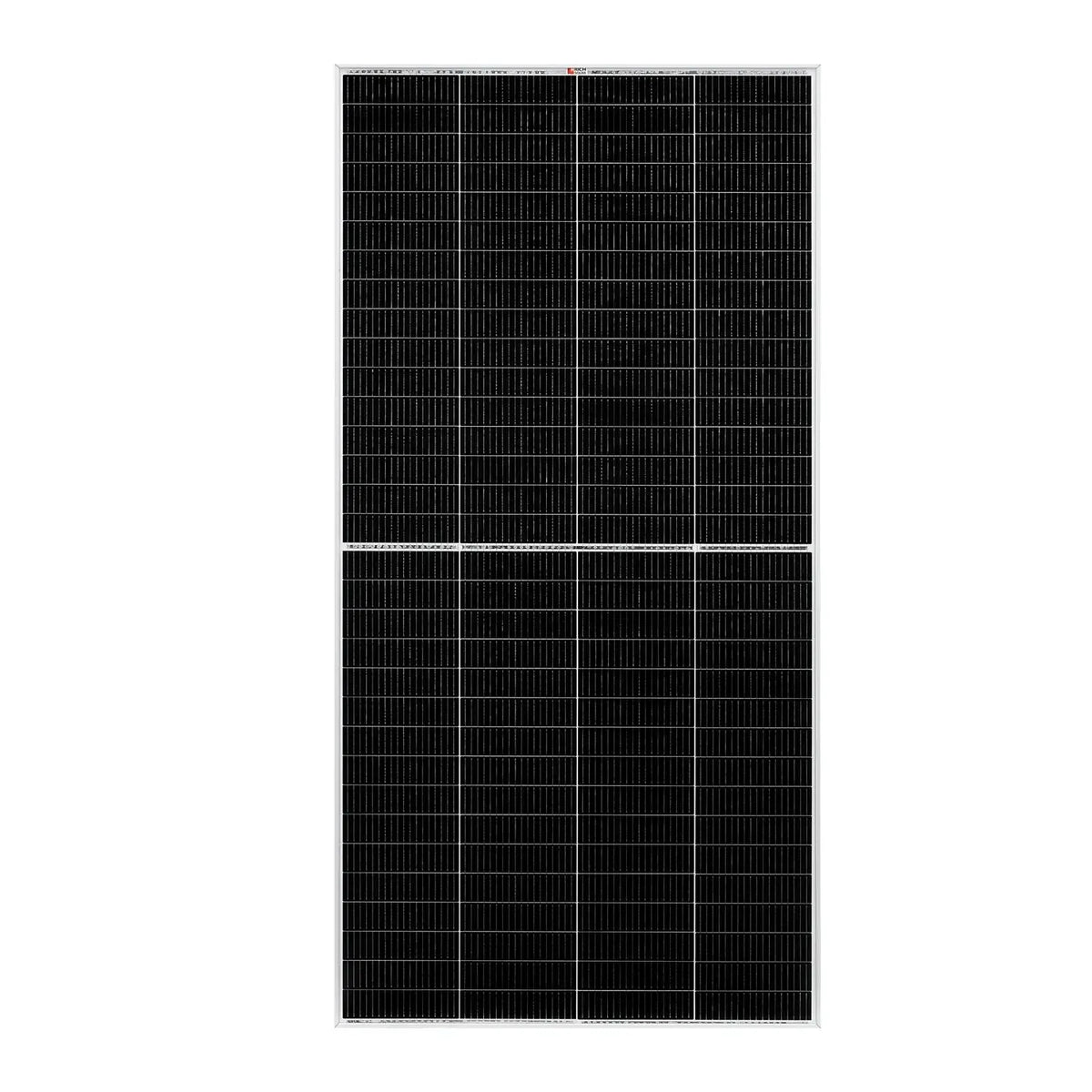

- 335-watt monocrystalline solar panel

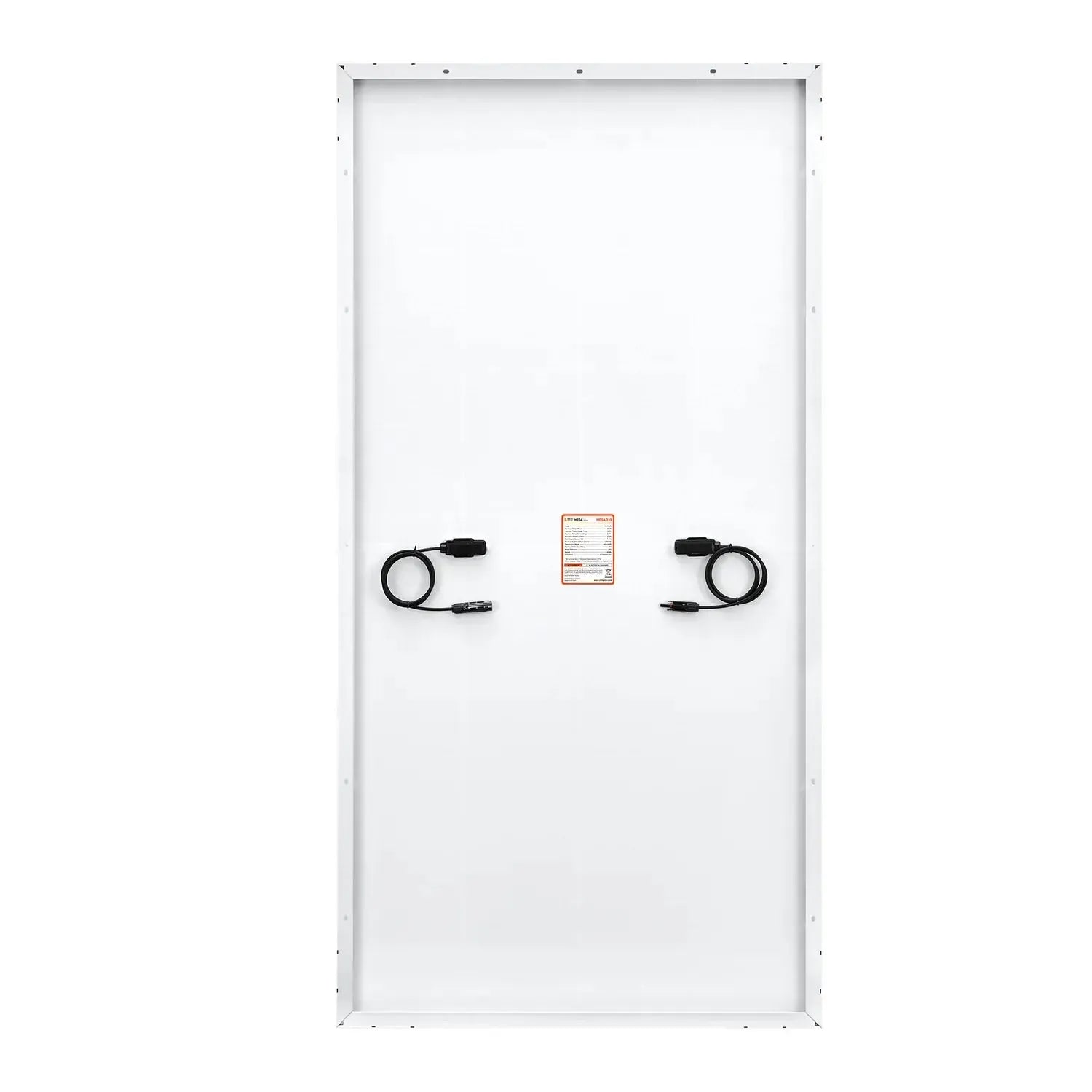

- Panel leads (pair): 3 feet each

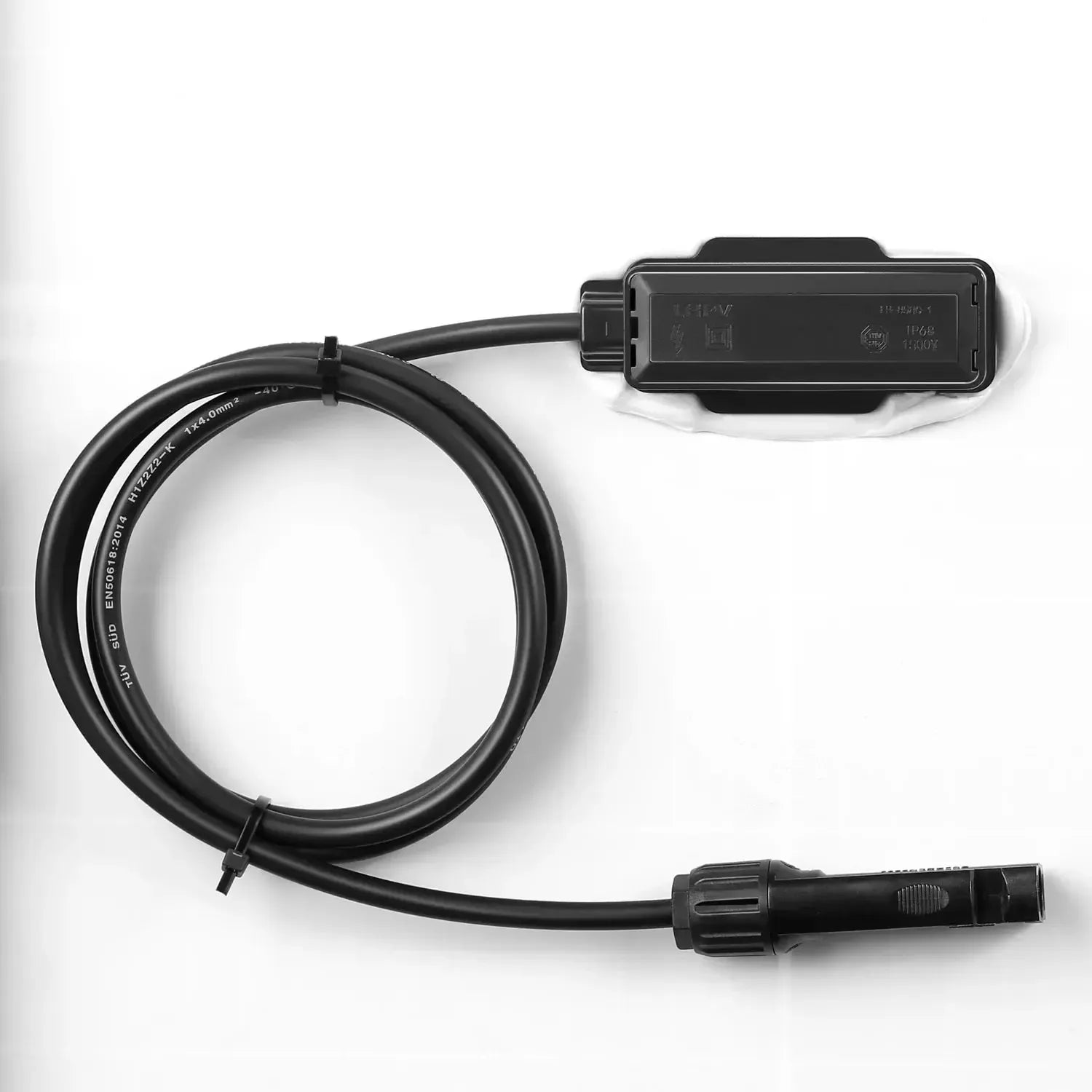

- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
Features:
- Industry Standard: Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- High Performance: Excellent low-light performance even on early mornings, evenings, and cloudy days.

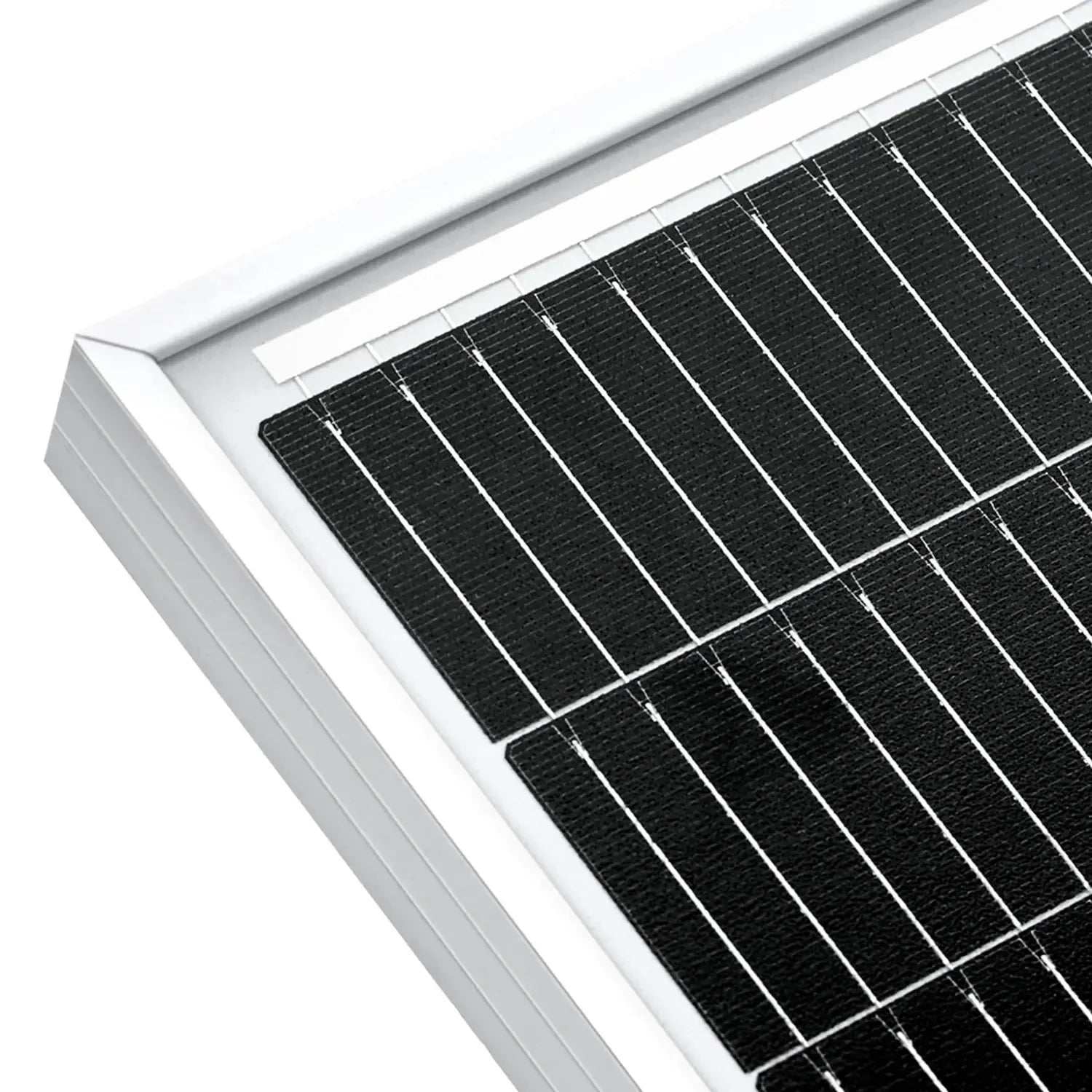

- Rugged Durability: Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Simple Installation: Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- Warranty: 25-year power output warranty and a 10-year workmanship warranty.

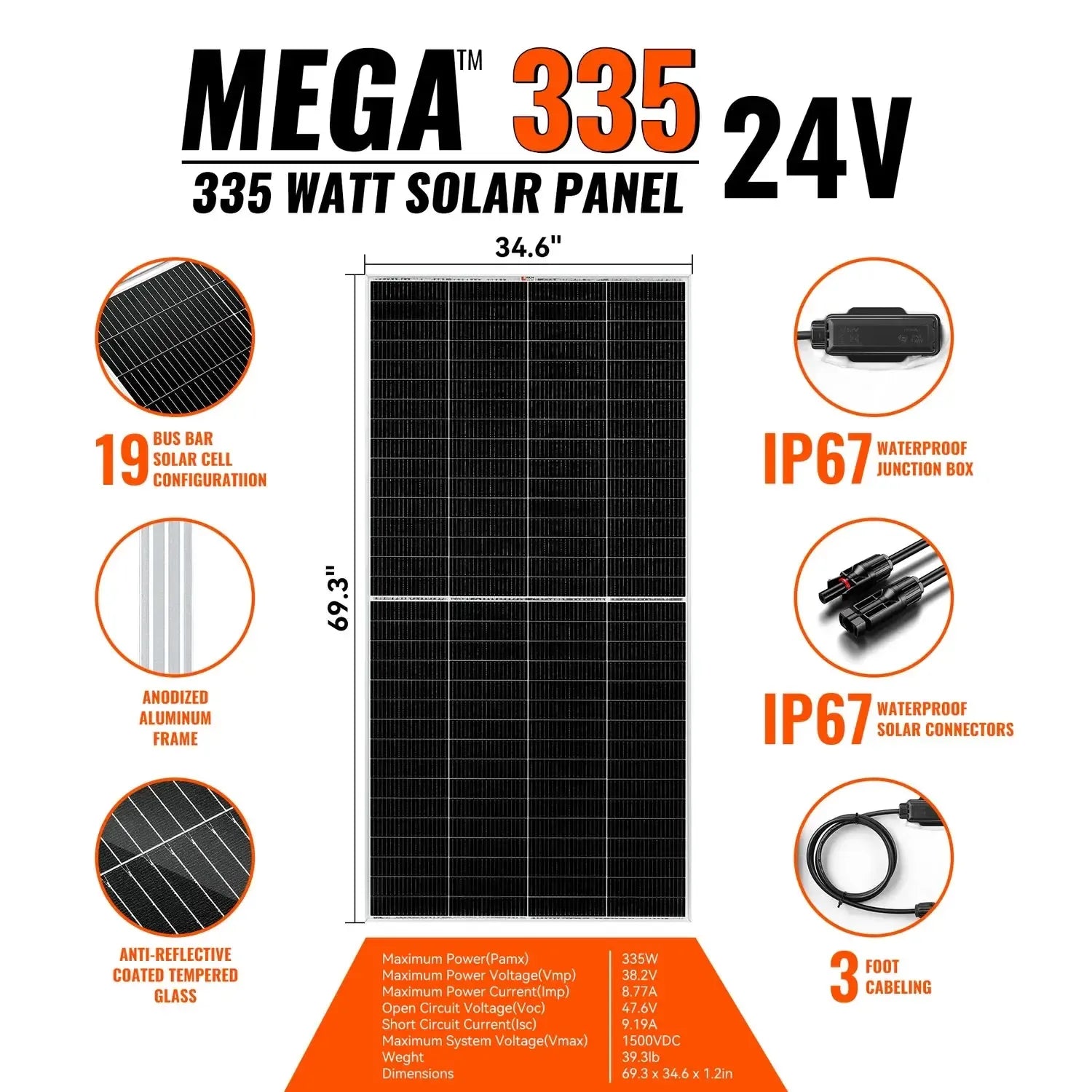

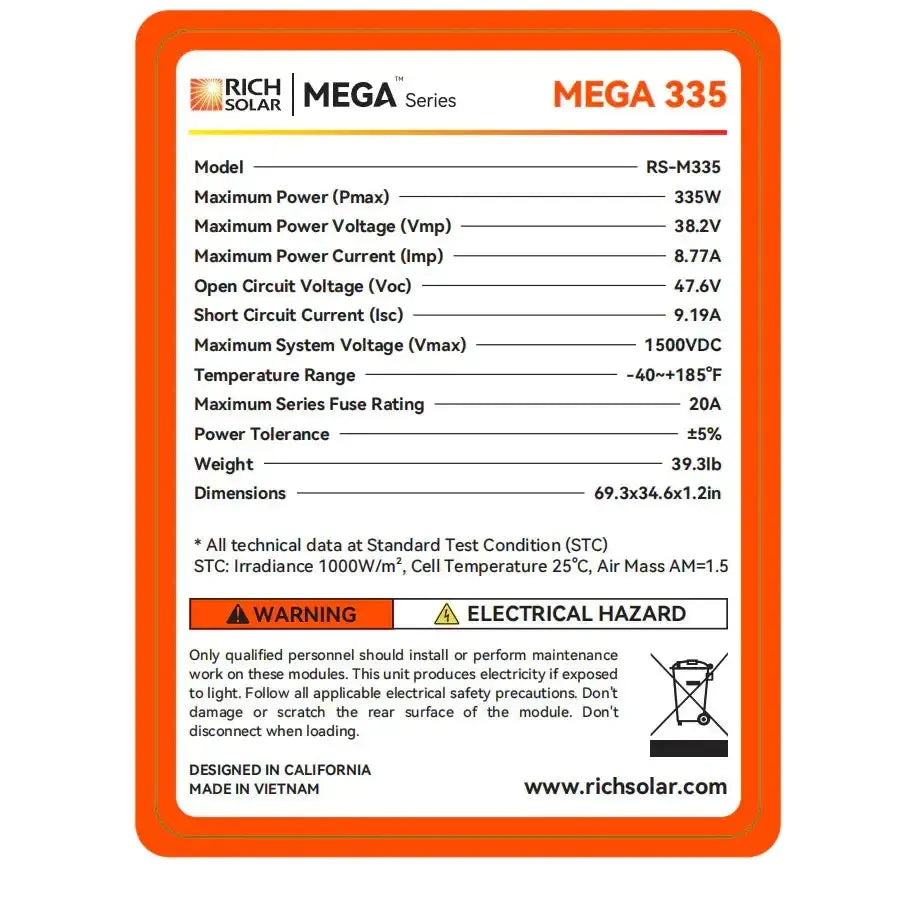

Specifications:
Brand |
Rich Solar |
Warranty |
25-year power output warranty and a 10-year workmanship warranty |
On Panel Cable Length |
≈ 35 in |
Material |
Tempered Glass, Aluminum, Monocrystalline Silicon |
Maximum Power(Pmax) |
335W |
Maximum Power Voltage(Vmp) |
38.2V |
Maximum Power Current(Imp) |
8.77A |
Open Circuit Voltage(Voc) |
47.6V |
Short Circuit Current(Isc) |
9.19A |
Maximum System Voltage(Vmax) |
1500VDC |
Temperature Range |
-40°F ~ 185°F |
Max Series Fuse Rating |
20A |

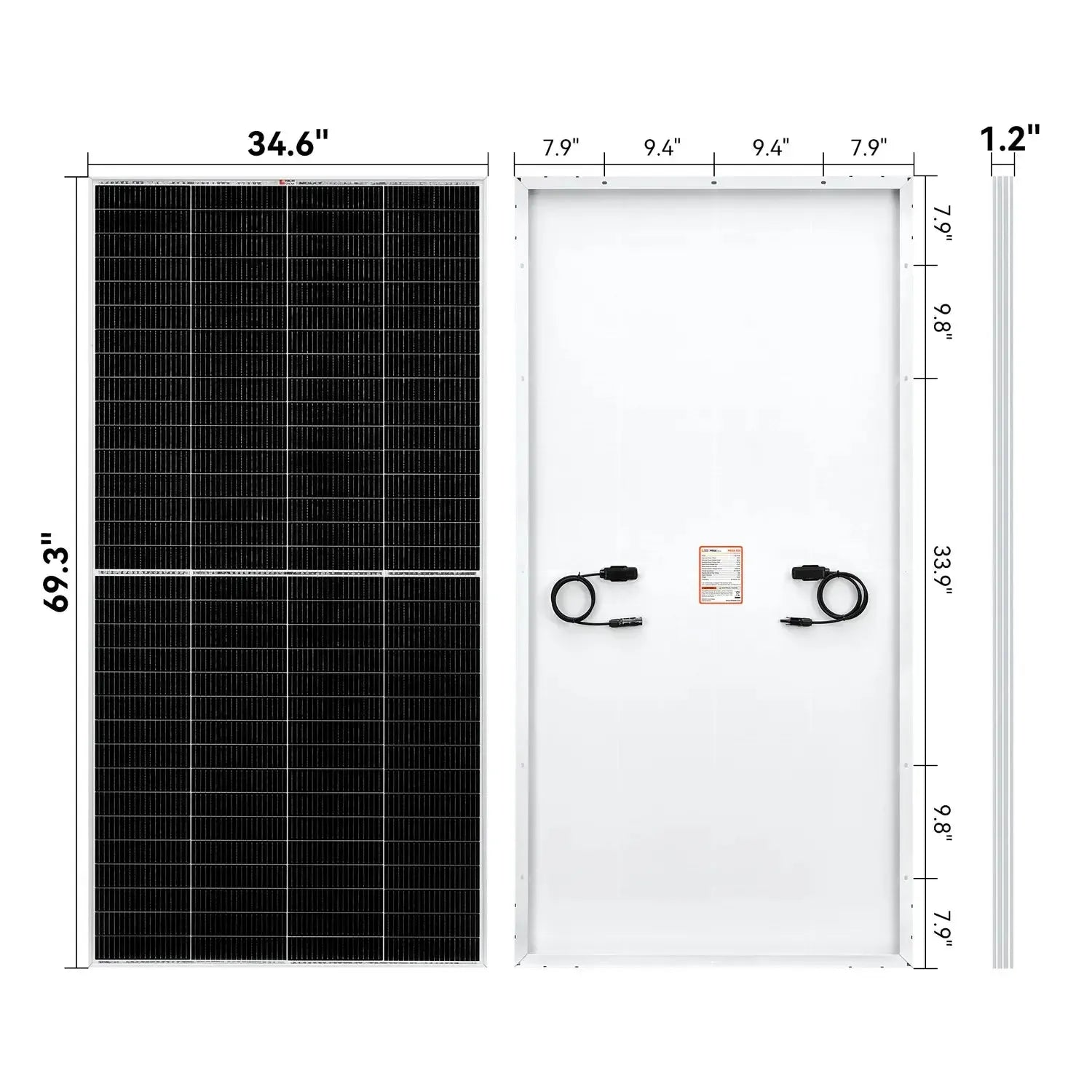

Dimensions |
69.3 x 34.6 x 1.2 in |
Weight |
39.3 lb |
