ACiQ

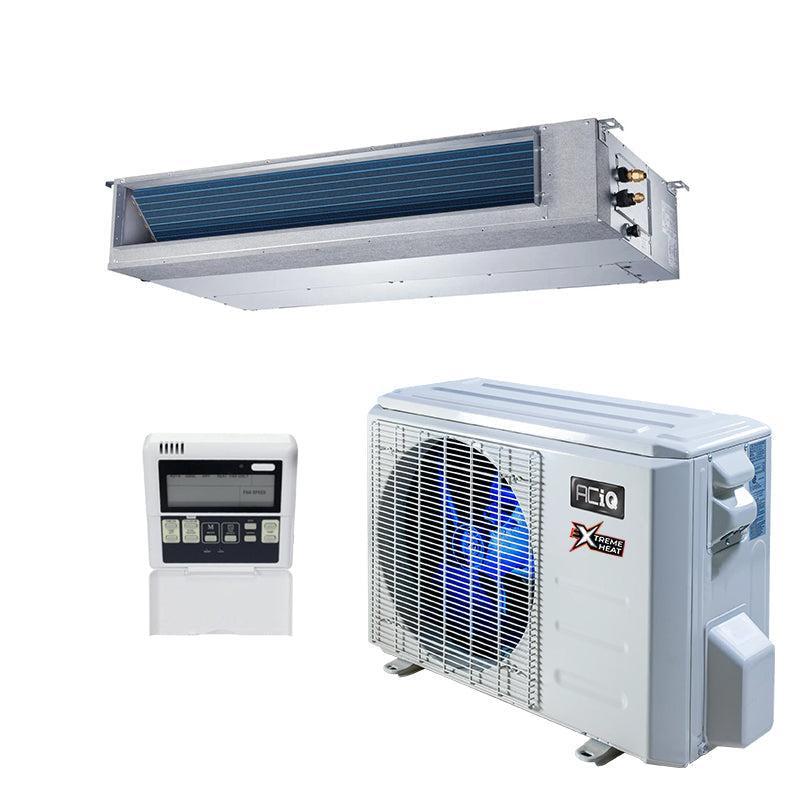

18,000 BTU 21 SEER ACiQ Platinum Single Zone Concealed Duct Mini Split System w/ Extreme Heat - ACiQ-18ZPL-HP230B / ACiQ-18CD-HH-MB
$2,322.00$3,573.23
Call for best pricing before large-system orders.
18,000 BTU 21 SEER ACiQ Platinum Single Zone Concealed Duct Mini Split System w/ Extreme Heat - ACiQ-18ZPL-HP230B / ACiQ-18CD-HH-MB
ACiQ’s mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
Features:
- Intelligent comfort at an affordable cost
- Ideal for spaces ranging from 600 - 900 square feet (depending on climate)
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
- Included Smart Remote
- WiFi compatibility through free app, Amazon Alexa or Google Assistant

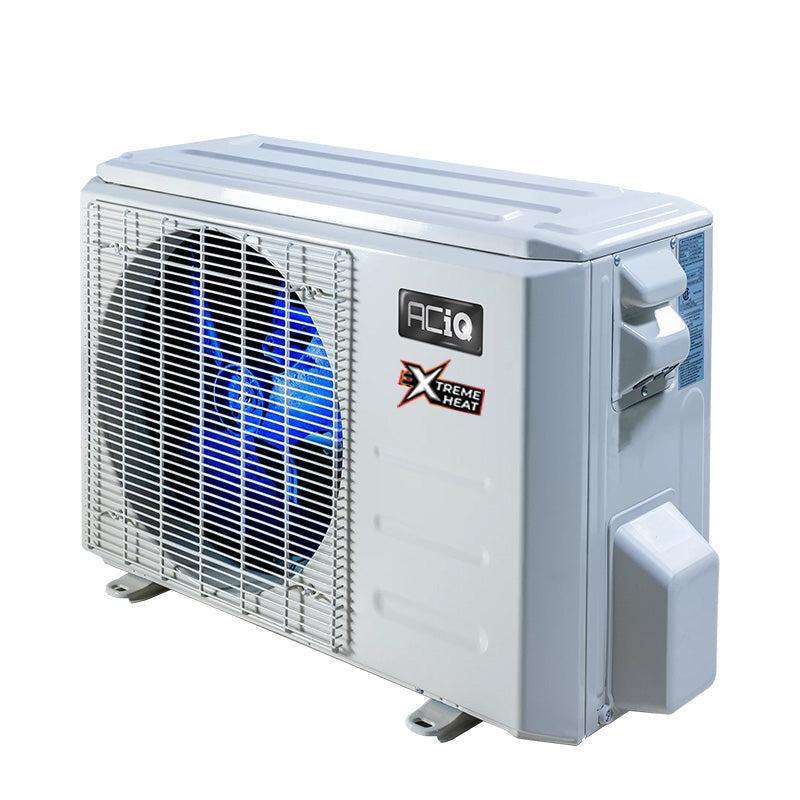

Condenser Specifications:
| Brand | ACiQ |
| Model | ACiQ-18ZPL-HP230B |
| Weight (in lbs) | 108.03 |
| AHRI Certificate Number | 210857317 |
| HSPF | 8.3 |
| HSPF2 | 11.3 |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Decibel Level (dBA) | 59 |
| Electric Heat | Heat Pump |
| Compressor Type | Twin Rotary |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 21 |
| SEER2 (Efficiency) | 21.5 |
| EER | 12.5 |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Max Breaker Size | 25 |
| Min. Breaker Size | 20 |
| Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Min/Max Outdoor Temp for Heating | -22~75 F / -30~24 C |
| Min/Max Outdoor Temp for Cooling | -22~122 F / -30~50 C |
| Zone Compatibility | Single Zone |
| Certification | Energy Star, NEEP, UL AHRI |
| Height | 26.5" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 12-Year Compressor / 7-Year Parts with Registration |
| Safety Information | PROPOSITION 65 WARNING |

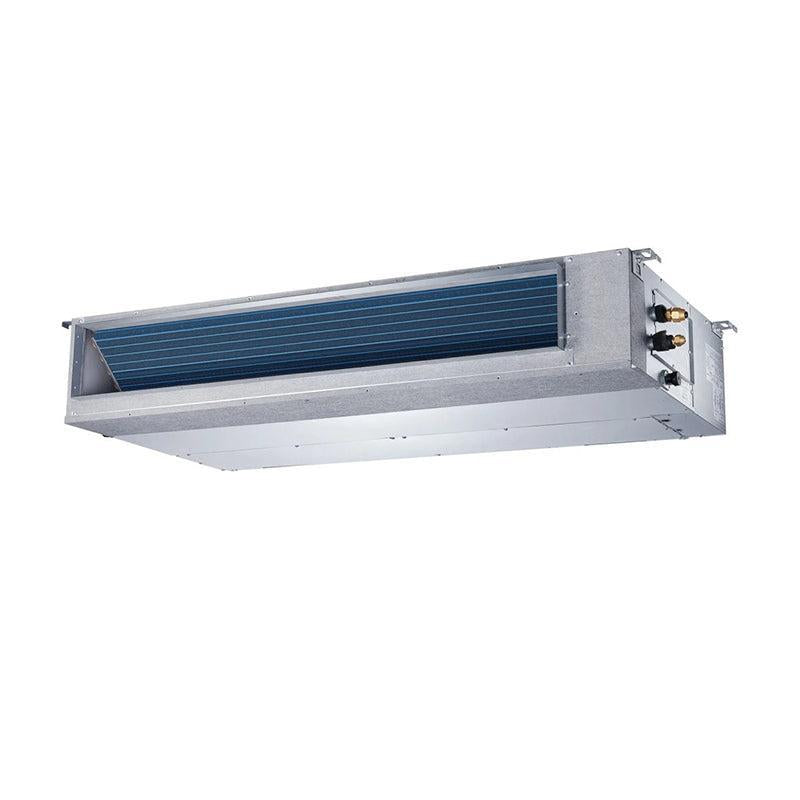

Air Handler Specifications:
| Brand | ACiQ |
| Model | ACIQ-18CD-HH-MB |
| Weight (in lbs) | 67 |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 529.41 |
| Decibel Level (dBA) | As low as 35 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 25 |
| Min. Breaker Size | 20 |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini-Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Height | 8.27" |
| Width | 34.65" |
| Depth | 26.54" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
Product information and Guides:
Need sizing help?
Call before you order and we can help confirm capacity, zones, line sets, electrical needs, and accessories.
Shipping, liftgate, and delivery
Use this block for freight delivery expectations, liftgate details, inspection steps, and tracking support.
AI-ready product facts
Connect product metafields for BTU, SEER2, zones, voltage, refrigerant, line-set compatibility, warranty, and install notes so an assistant can recommend complete bundles.
Before checkout
Confirm the right system package for your installation.
Review capacity, electrical requirements, indoor unit placement, line set length, and accessories before ordering.
