MrCool  |  SKU: DIYM236HPW00C08

33k BTU 21.5 SEER Multi-Zone MRCOOL DIY 2 Zone Ductless Heat Pump Split System 4th Generation - 9k+24k

Sale price $3,862.00 Regular price $5,213.70

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:

  • Free Shipping ($100 Value)
  • Expedited Processing ($50 Value)
  • Website Discount of $193.10 off the current discounted price (Use Code: FLASH5) ($193.10 Value)
  • Free 5-year Parts Warranty ($500 Value)
  • Free 7-Year Compressor Warranty ($700 Value)
  • Free Lifetime Technical Support ($500 Value)
  • Free Condenser Wall Mounting Brackets ($119.99 Value)

TO CLAIM YOUR FREE GIFT CLICK ADD TO CART

Total Extra Savings With Us Today = $2,163.09

33k BTU 21.5 SEER Multi-Zone MrCool DIY 2 Zone Ductless Heat Pump Split System 4th Generation - 9k+24k

Elevate your comfort and climate control effortlessly with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split – a remarkable innovation in DIY mini split systems. This versatile heat pump offers both cooling and heating capabilities, boasting a substantial 36,000 BTU heating capacity and an impressive SEER rating of 21.5, thanks in no small part to its cutting-edge variable speed DC inverter technology. The 24,000 BTU indoor air handler can efficiently regulate temperatures in spaces spanning 1,000 to 1,200 square feet, while the 9,000 BTU handler excels in covering rooms ranging from 375 to 450 square feet.

Installation is a breeze with the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split, requiring no specialized training, costly HVAC installers, or special tools. Its Quick Connect line set comes pre-charged with refrigerant, eliminating the need for vacuuming. Plus, it includes the innovative DIYPRO cable, offering mechanical protection without the need for an electrical conduit.

When it comes to controlling your environment, the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split provides multiple options. You can seamlessly manage it through the SmartHVAC app on your Apple or Android device, utilizing the provided USB devices for each indoor air handler. Alternatively, take command with your Amazon Alexa, Google Assistant, or the included remote.

Customizing your comfort is a breeze with various operational modes at your disposal. The primary auto mode lets you set your desired temperature, allowing the unit to automatically make necessary adjustments to maintain it.

Optimize your energy usage and savings with the sleep mode, designed to adjust the temperature by two degrees cooler or warmer over an 8-hour period while you slumber. It then maintains this temperature for the remaining 6 hours, resulting in lower utility costs.

Worry not about mold and mildew growth, as the anti-mildew function keeps the indoor unit pristine. Following shutdown, it continues to run at a low airflow for 10 minutes to prevent condensation buildup.

In the unlikely event of issues like low refrigerant, leaks, or reminders to clean or replace the air filter, the front panel of the air handler displays troubleshooting codes, easily referenced in the user manual for quick problem resolution. Address these alerts proactively to keep your unit in top condition, ensuring longevity. Maintain the unit's cleanliness with a dry or damp cloth, and wash the air filters with regular tap water.

For added peace of mind, this system is backed by the industry's first limited lifetime warranty, accompanied by a 7-year compressor warranty and a 5-year parts warranty. Invest in the 4th Generation MrCool DIY Multi-Zone 33k BTU 2 Zone Ductless Mini Split for unparalleled comfort, convenience, and reliability.

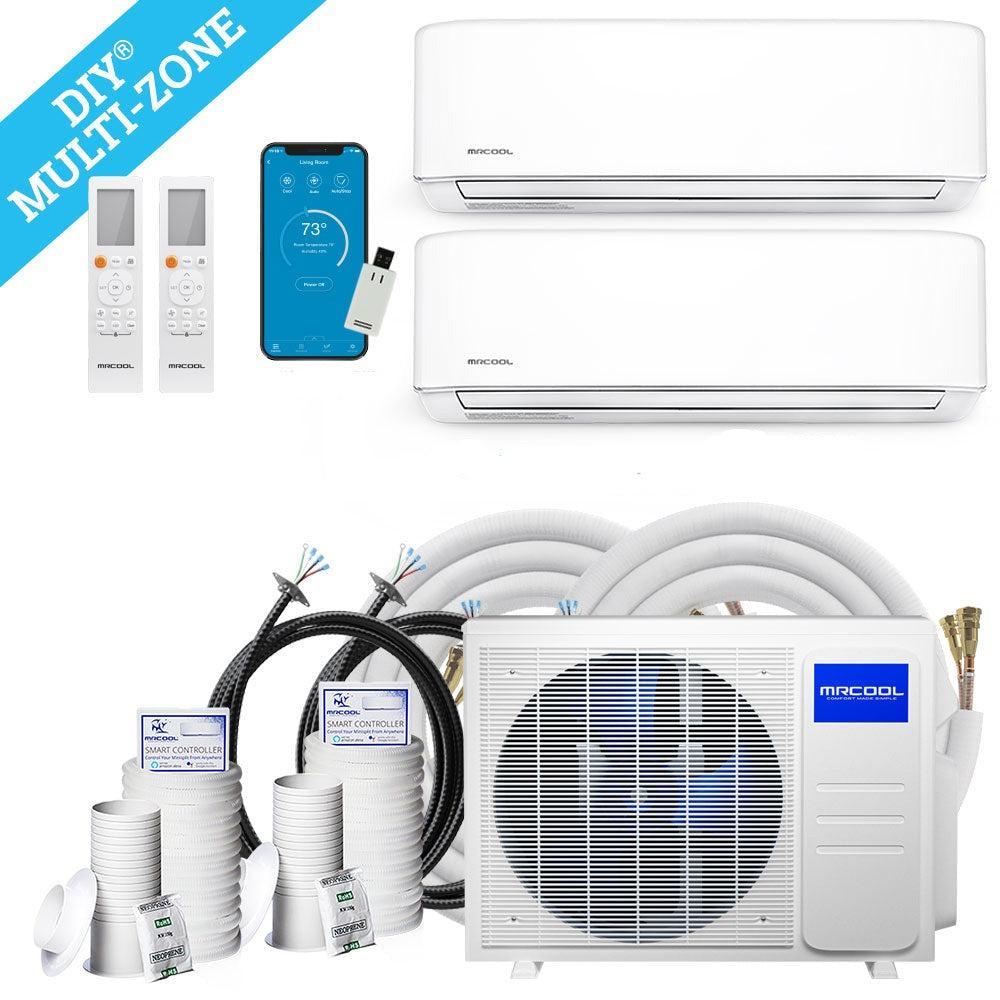

    This Bundle Includes:

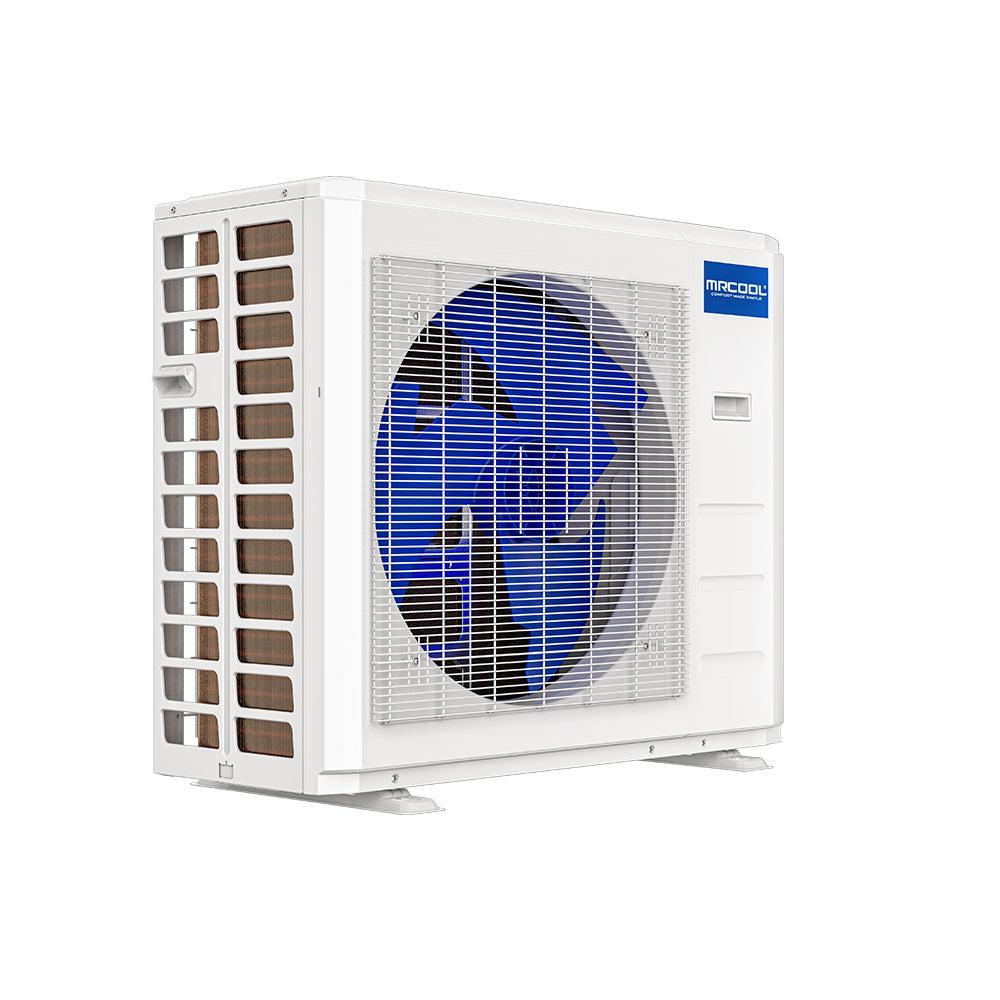

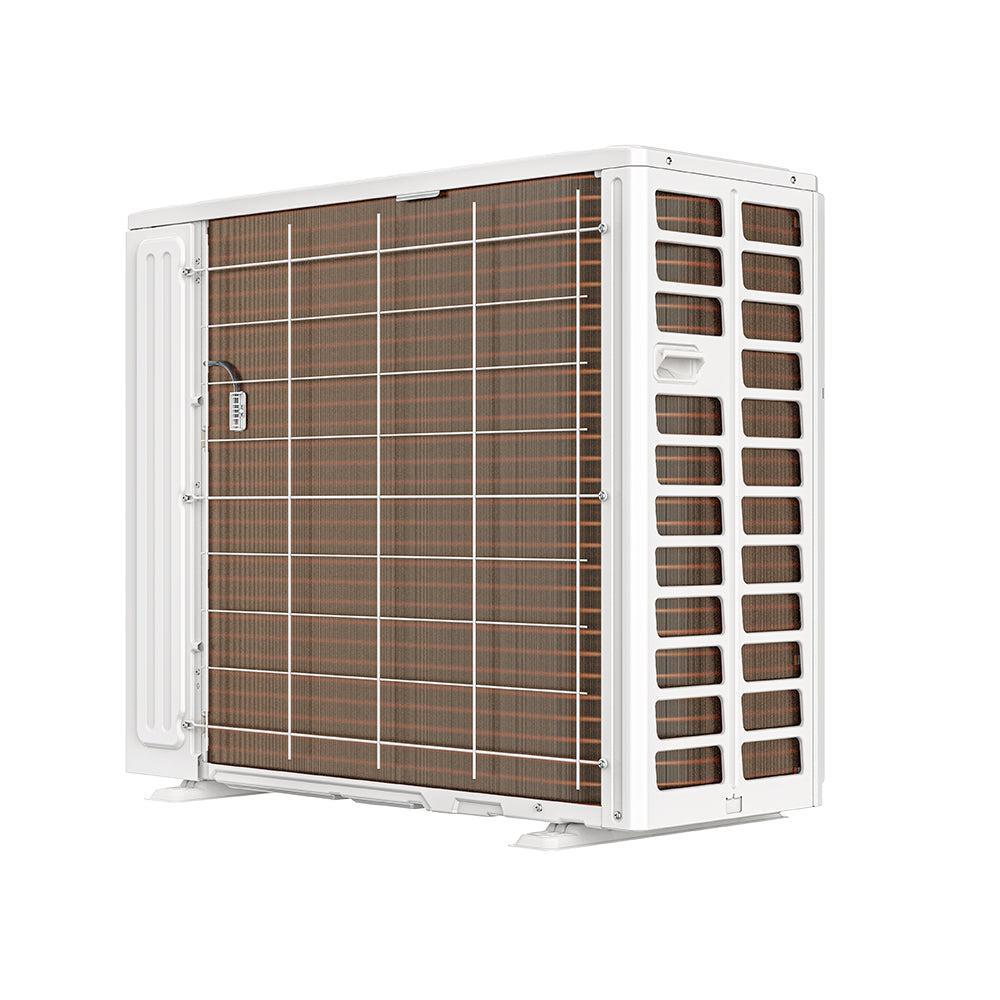

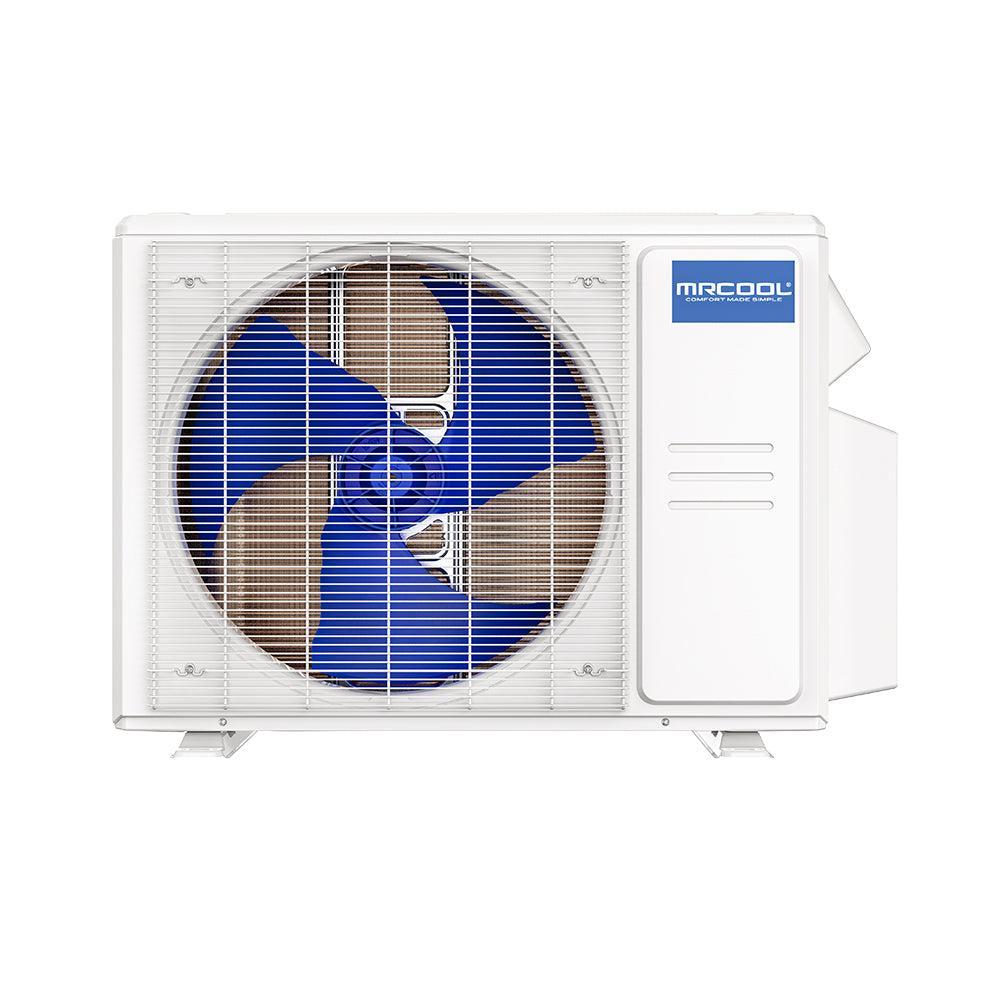

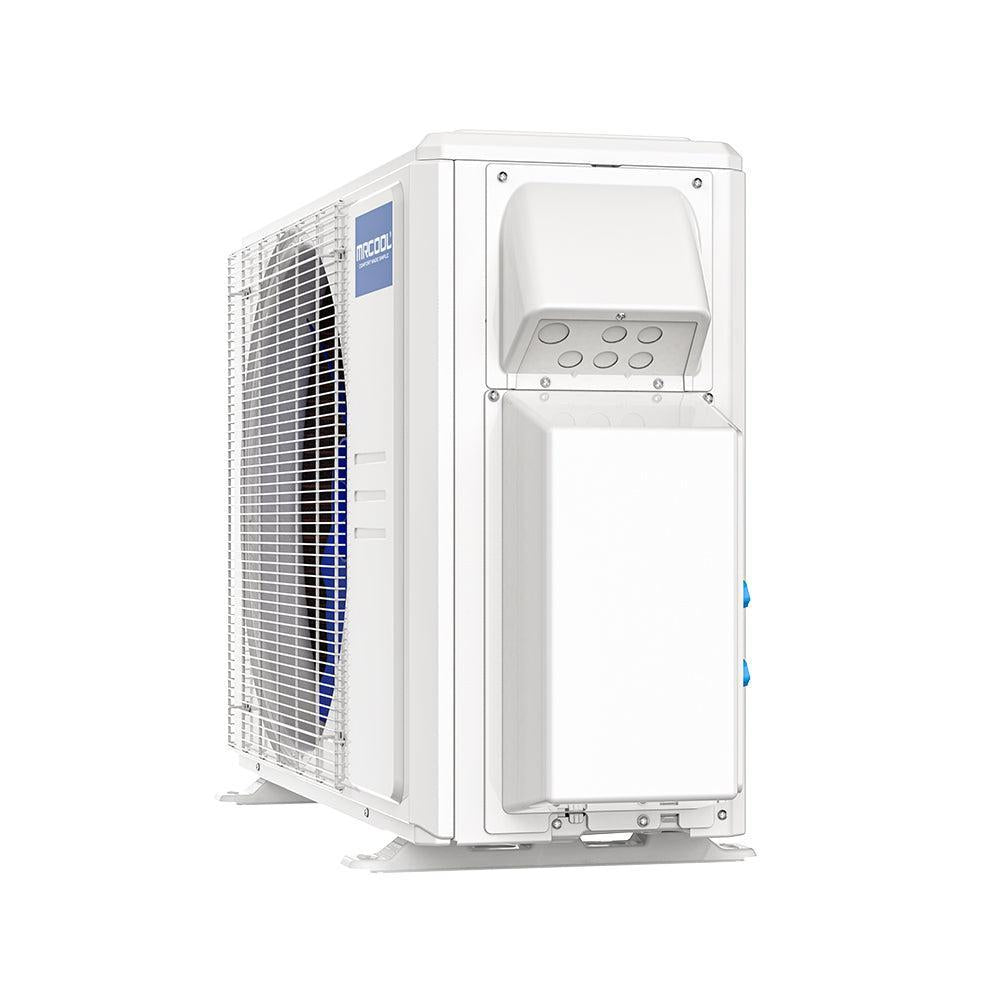

    • 1x 36k BTU 21.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4th Generation - 4 Zone 240v
    • 1x 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v
    • 1x 24k BTU MrCool DIY Ductless Wall Mounted Air Handler - 4th Generation 240v
    • 1x 1/4" x 1/2" MrCool DIY Ductless Split System Line Set - 25 Feet
    • 1x 3/8" x 5/8" MrCool DIY Ductless Split System Line Set - 25 Feet
    • 1x FREE GIFT: Free Condenser Wall Mounting Brackets ($119.99 Value)

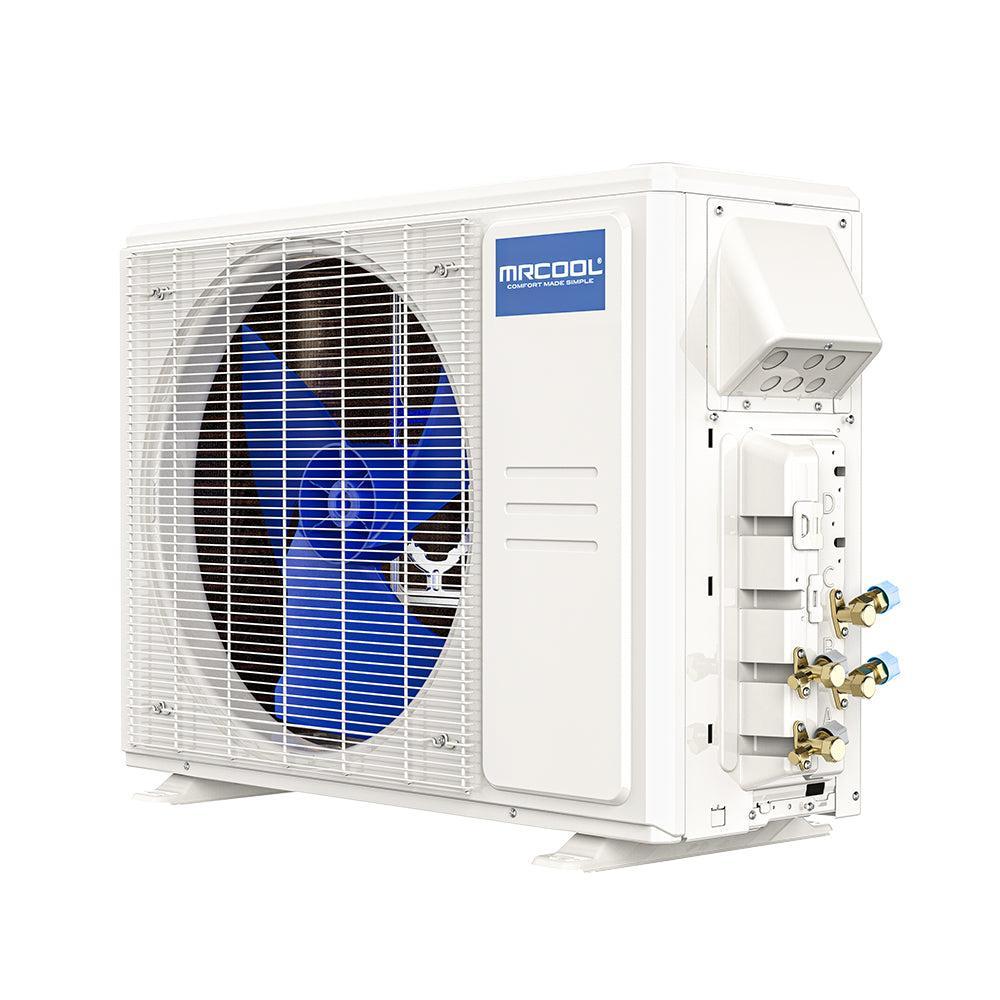

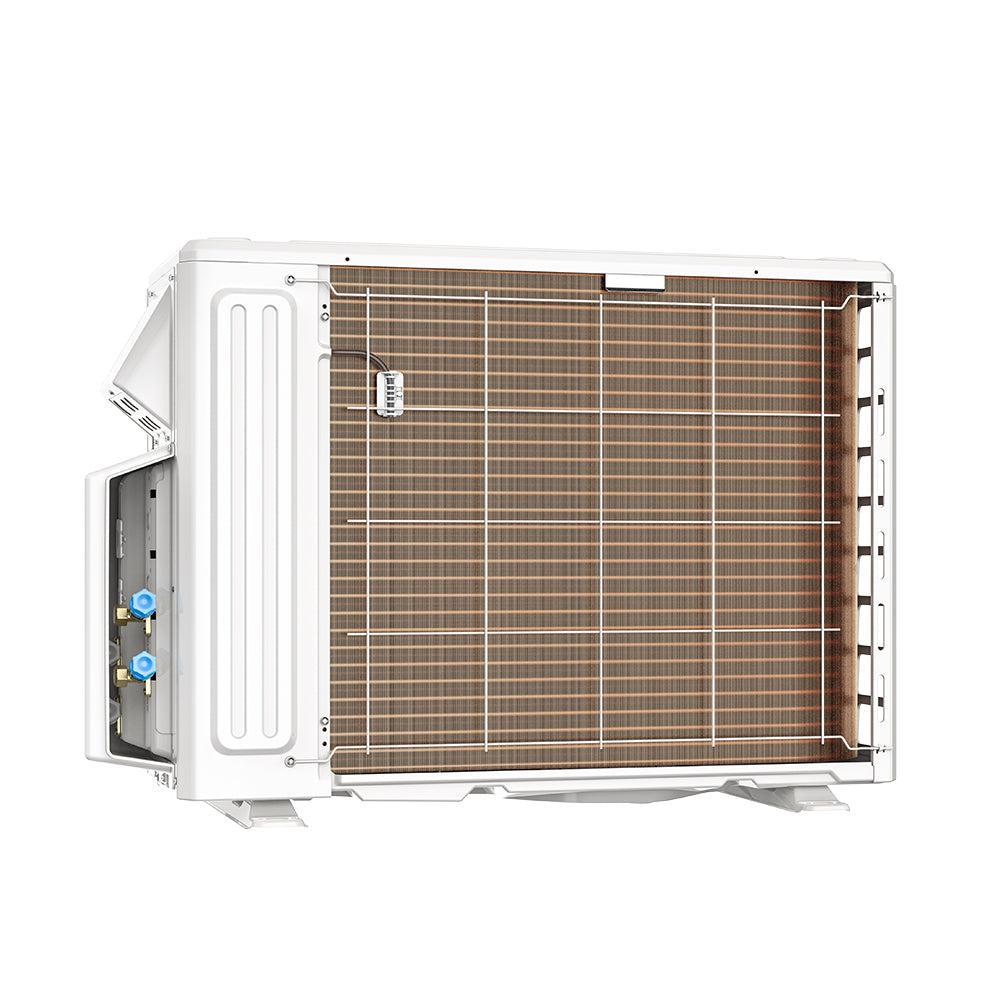

    Condenser Specifications:

    MODEL DIY-MULTI4-36HP230C
    SEER 21.5
    EER 10.5
    HSPF hspf4/hspf5 : 11/8.5
    CFM 2147.06
    COOLING CAPACITY
    36000 BTU
    HEATING CAPACITY
    36000 BTU
    VOLTAGE
    208-230 V
    PHASE 1
    CYCLE 60 Hz
    MAX FUSE BREAKER
    45 A
    MIN CIRCUIT AMPACITY
    27 A
    COLOR White
    COLOR FAMILY
    White
    ZONE CAPACITY
    Up to 4
    REFRIGERANT TYPE
    R-410A
    REFRIGERANT VOLUME
    134.04 oz
    DECIBEL RATING
    65 dBA
    INVERTER Yes
    MIN AMBIENT COOL
    5F ~ 122F
    MIN AMBIENT HEAT
    -13F ~ 75.2F
    MAX LINESET LENGTH
    221 ft TOTAL
    LIQUID LINE SIZE
    1/4in (3/8in w/ adapter)
    SUCTION LINE SIZE
    1/2in (5/8in w/ adapter)
    COMPRESSOR MOTOR TYPE
    Rotary
    CONDENSER FAN MOTOR RPM
    1000/900/750
    WIFI COMPATIBILITY
    Yes
    APP COMPATIBILITY
    Yes
    WORKS WITH IOS
    Yes
    WORKS WITH ANDROID
    Yes
    REGISTERED WARRANTY
    Limited Lifetime Compressor
    BASE WARRANTY
    5-year Parts/7-year Compressor
    BASE PARTS WARRANTY
    5-year Parts
    REGISTERED COMPRESSOR WARRANTY
    Limited Lifetime Compressor
    BASE COMPRESSOR WARRANTY
    7-year Compressor
    CONTAINS ELECTRONICS
    Yes
    CONTAINS CHEMICALS
    Yes
    CONTAINS AEROSOL
    Yes
    CONTAINS COMPRESSED GAS
    Yes
    PROPOSITION 65 WARNING
    Yes
    NET DEPTH
    16.14 in
    NET HEIGHT
    31.89 in
    NET WIDTH
    37.24 in
    NET WEIGHT
    170.42 lbs
    GROSS DEPTH
    19.88 in
    GROSS HEIGHT
    35.04 in
    GROSS WIDTH
    42.91 in
    GROSS WEIGHT
    187.83 lbs

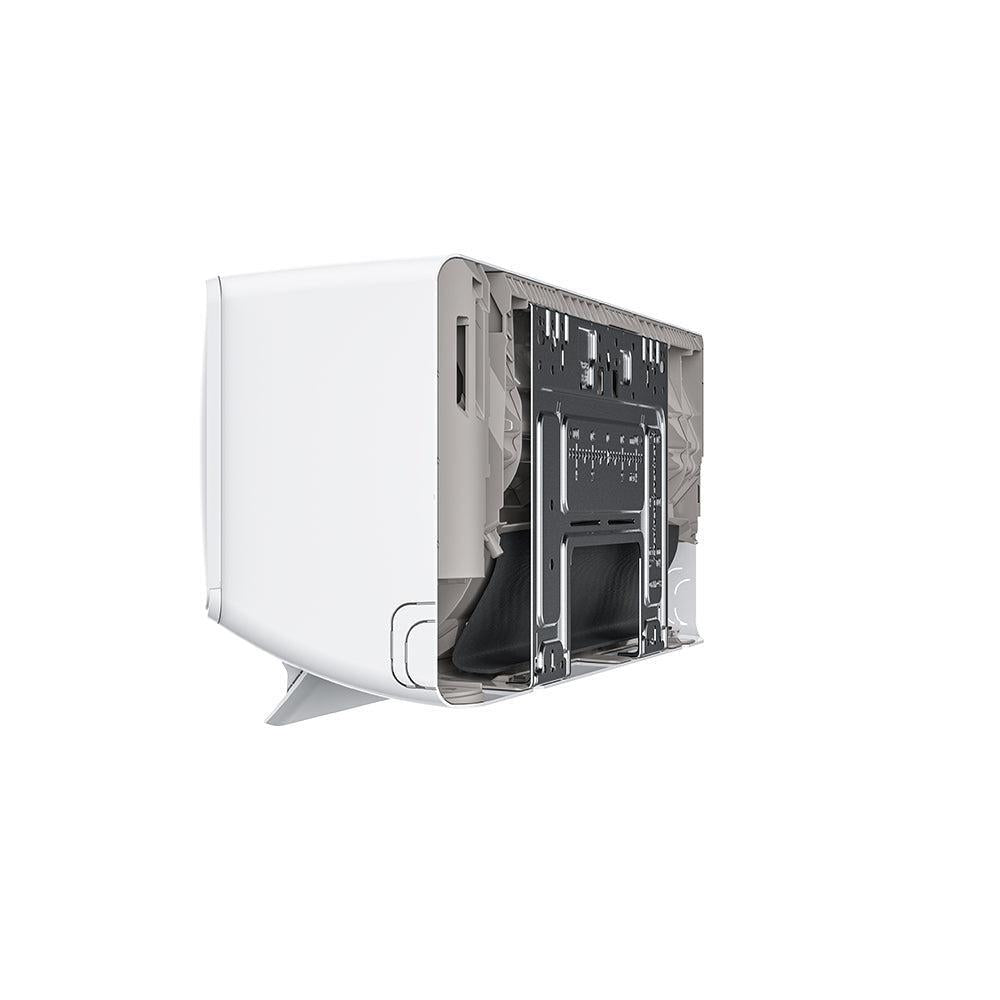

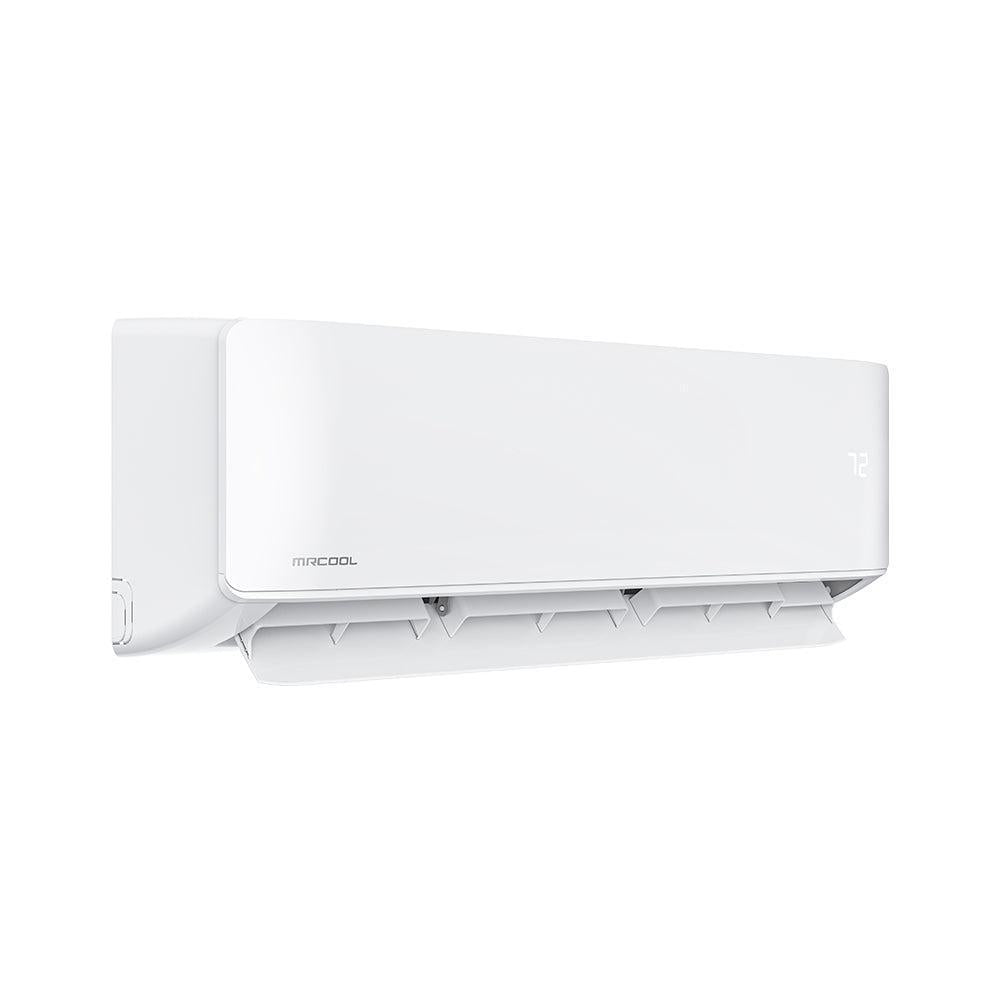

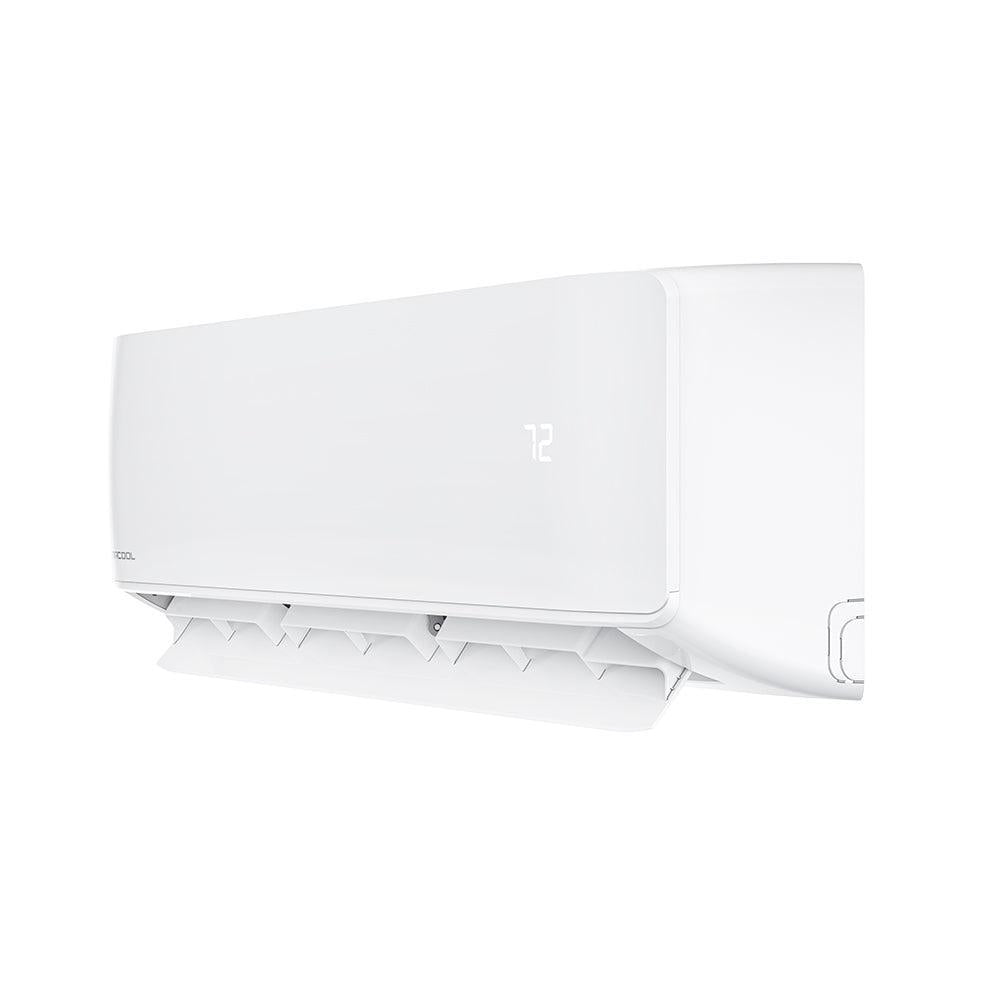

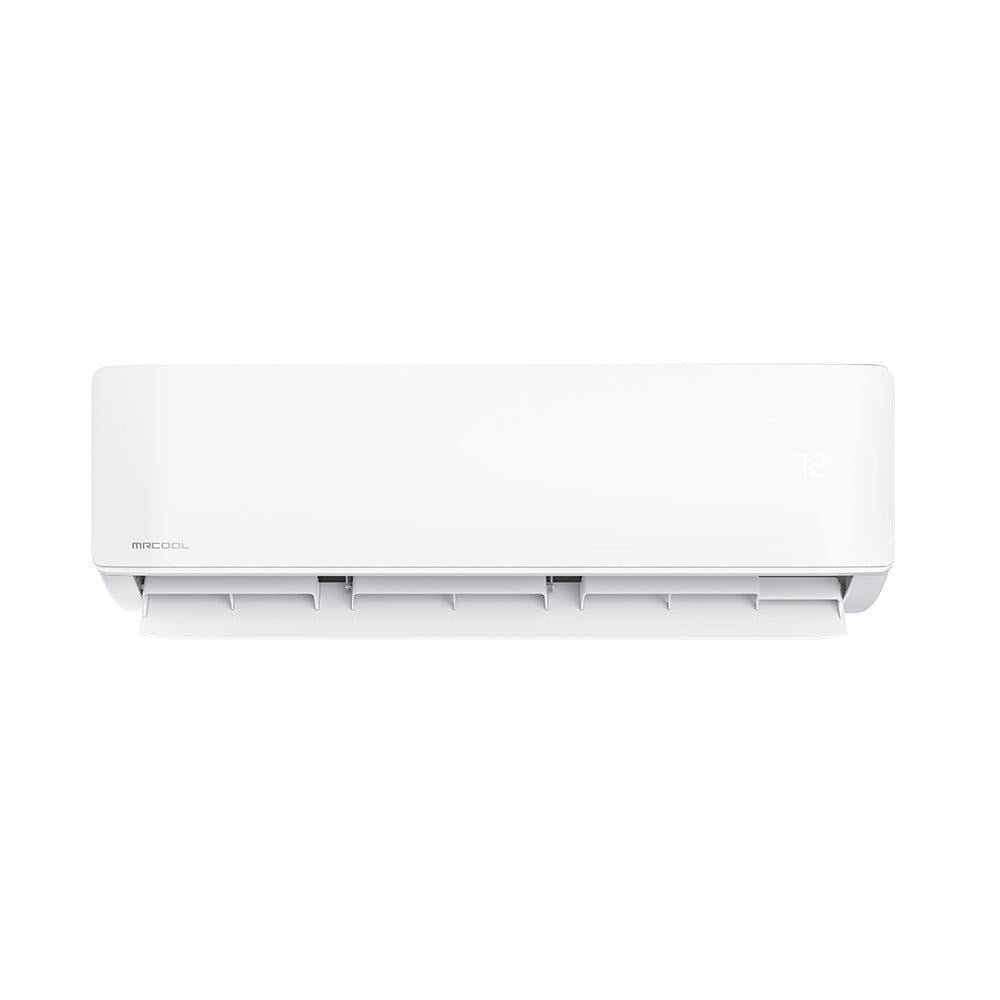

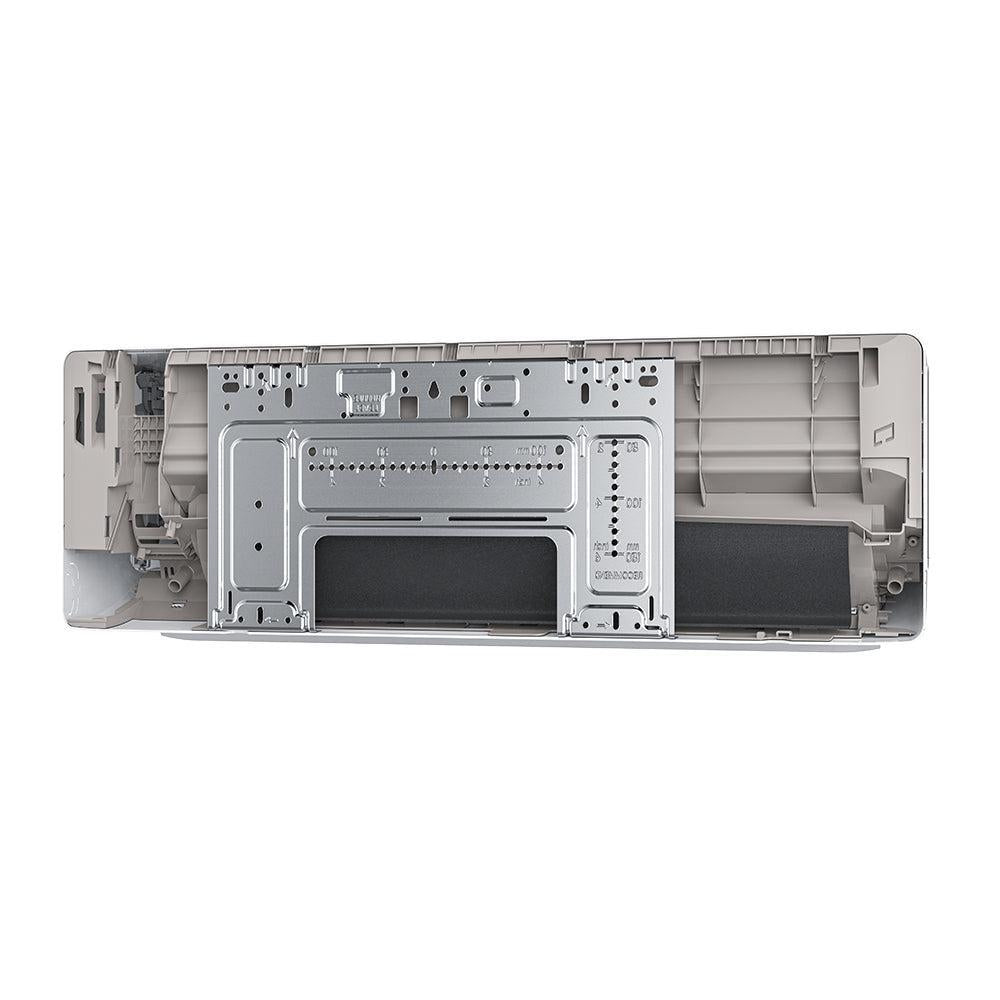

    9K Air Handler Specifications:

    MODEL DIY-09-HP-WMAH-230C25
    COOLING CAPACITY
    9000 BTU
    HEATING CAPACITY
    9000 BTU
    VOLTAGE
    208-230 V
    PHASE 1
    CYCLE 60 Hz
    MAX FUSE BREAKER
    15 A
    MIN CIRCUIT AMPACITY
    3 A
    MOUNT TYPE
    Wall
    COLOR White
    COLOR FAMILY
    White
    MAX COVERAGE AREA
    Up to 375 sqft
    REFRIGERANT TYPE
    R-410A
    DECIBEL RATING
    35 dBA
    DECIBEL RATING LOW
    25 dBA
    DECIBEL RATING HIGH
    40 dBA
    INVERTER Yes
    LIQUID LINE SIZE
    1/4 in
    SUCTION LINE SIZE
    1/2 in
    BLOWER MOTOR RPM
    1050/850/650
    FAN ONLY OPTION
    Yes
    QUIET MODE
    Yes
    AUTO COOL
    Yes
    WIFI COMPATIBILITY
    Yes
    APP COMPATIBILITY
    Yes
    WORKS WITH IOS
    Yes
    WORKS WITH ANDROID
    Yes
    REMOTE CONTROL INCLUDED
    Yes
    ENERGY STAR CERTIFIED
    Yes
    AHRI CERTIFIED
    Yes
    REGISTERED WARRANTY
    Limited Lifetime Compressor
    BASE WARRANTY
    5-year Parts/7-year Compressor
    BASE PARTS WARRANTY
    5-year Parts
    REGISTERED COMPRESSOR WARRANTY
    Limited Lifetime Compressor
    BASE COMPRESSOR WARRANTY
    7-year Compressor
    HAS BATTERIES
    Yes
    CONTAINS ELECTRONICS
    Yes
    CONTAINS CHEMICALS
    Yes
    CONTAINS AEROSOL
    Yes
    CONTAINS COMPRESSED GAS
    Yes
    PROPOSITION 65 WARNING
    Yes
    RESTRICTED STATES
    GU;PR;VI
    NET DEPTH
    7.44 in
    NET HEIGHT
    11.69 in
    NET WIDTH
    31.57 in
    NET WEIGHT
    23.81 lbs
    GROSS DEPTH
    16.34 in
    GROSS HEIGHT
    13.98 in
    GROSS WIDTH
    36.02 in
    GROSS WEIGHT
    34.39 lbs


    24K Air Handler Specifications:

    MODEL DIY-24-HP-WMAH-230C25
    COOLING CAPACITY
    23000 BTU
    HEATING CAPACITY
    25000 BTU
    VOLTAGE
    208-230 V
    PHASE 1
    CYCLE 60 Hz
    MOUNT TYPE
    Wall
    COLOR White
    COLOR FAMILY
    White
    MAX COVERAGE AREA
    Up to 1000 sqft
    REFRIGERANT TYPE
    R-410A
    DECIBEL RATING
    48.5/43.5/33
    DECIBEL RATING LOW
    33 dBA
    DECIBEL RATING HIGH
    48.5 dBA
    INVERTER Yes
    MAX LINESET LENGTH
    98.42 ft
    LIQUID LINE SIZE
    3/8 in
    SUCTION LINE SIZE
    5/8 in
    BLOWER MOTOR RPM
    1200/1000/700
    FAN ONLY OPTION
    Yes
    QUIET MODE
    Yes
    AUTO COOL
    Yes
    WIFI COMPATIBILITY
    Yes
    APP COMPATIBILITY
    Yes
    WORKS WITH IOS
    Yes
    WORKS WITH ANDROID
    Yes
    REMOTE CONTROL INCLUDED
    Yes
    ENERGY STAR CERTIFIED
    Yes
    AHRI CERTIFIED
    Yes
    REGISTERED WARRANTY
    Limited Lifetime Compressor
    BASE WARRANTY
    5-year Parts/7-year Compressor
    BASE PARTS WARRANTY
    5-year Parts
    REGISTERED COMPRESSOR WARRANTY
    Limited Lifetime Compressor
    BASE COMPRESSOR WARRANTY
    7-year Compressor
    HAS BATTERIES
    Yes
    CONTAINS ELECTRONICS
    Yes
    CONTAINS CHEMICALS
    Yes
    CONTAINS AEROSOL
    Yes
    CONTAINS COMPRESSED GAS
    Yes
    PROPOSITION 65 WARNING
    Yes
    RESTRICTED STATES
    GU;PR;VI
    NET DEPTH
    8.90 in
    NET HEIGHT
    13.19 in
    NET WIDTH
    42.52 in
    NET WEIGHT
    35.27 lbs
    GROSS DEPTH
    19.57 in
    GROSS HEIGHT
    17.32 in
    GROSS WIDTH
    49.09 in
    GROSS WEIGHT
    60.19 lbs
