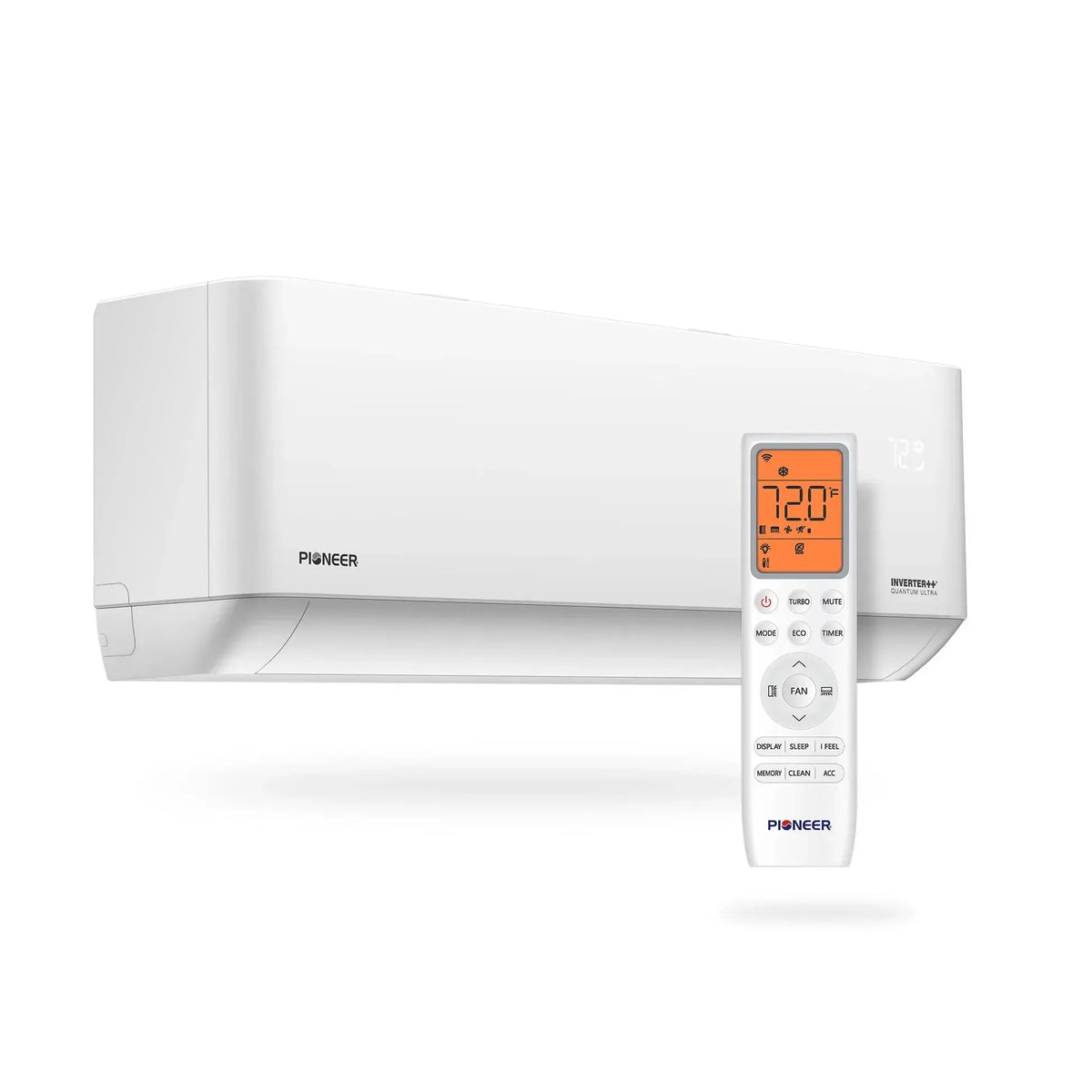

Pioneer® Multi Zone 18,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
$508.00$661.00
Call for best pricing before large-system orders.
Guaranteed safe and secure checkout
Financing options available for qualified shoppers.
Pioneer® Multi Zone 18,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 18,000 BTU/h
- Heating Capacity: 19,000 BTU/h
- Suitable Area: 400~650 Sq.F
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
- Product Dimensions (WDH): 43-1/8" x 8-3/4" x 13" Inches
- Carton Dimensions (WDH): 45-7/8" x 11-5/8" x 16" Inches
- Net / Gross Weight: 30.9 / 35.3 lbs
- Piping Diameter: 1/4-1/2"
Compatibility
- Dual (2) Zone Condenser: YN020GLSI24M2G
- Triple (3) Zone Condenser: YN030GLSI24M3G
- Quad (4) Zone Condenser: YN040GLSI24M4G
- Quint (5) Zone Condenser: YN050GLSI24M5G
Manuals & Documents
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
