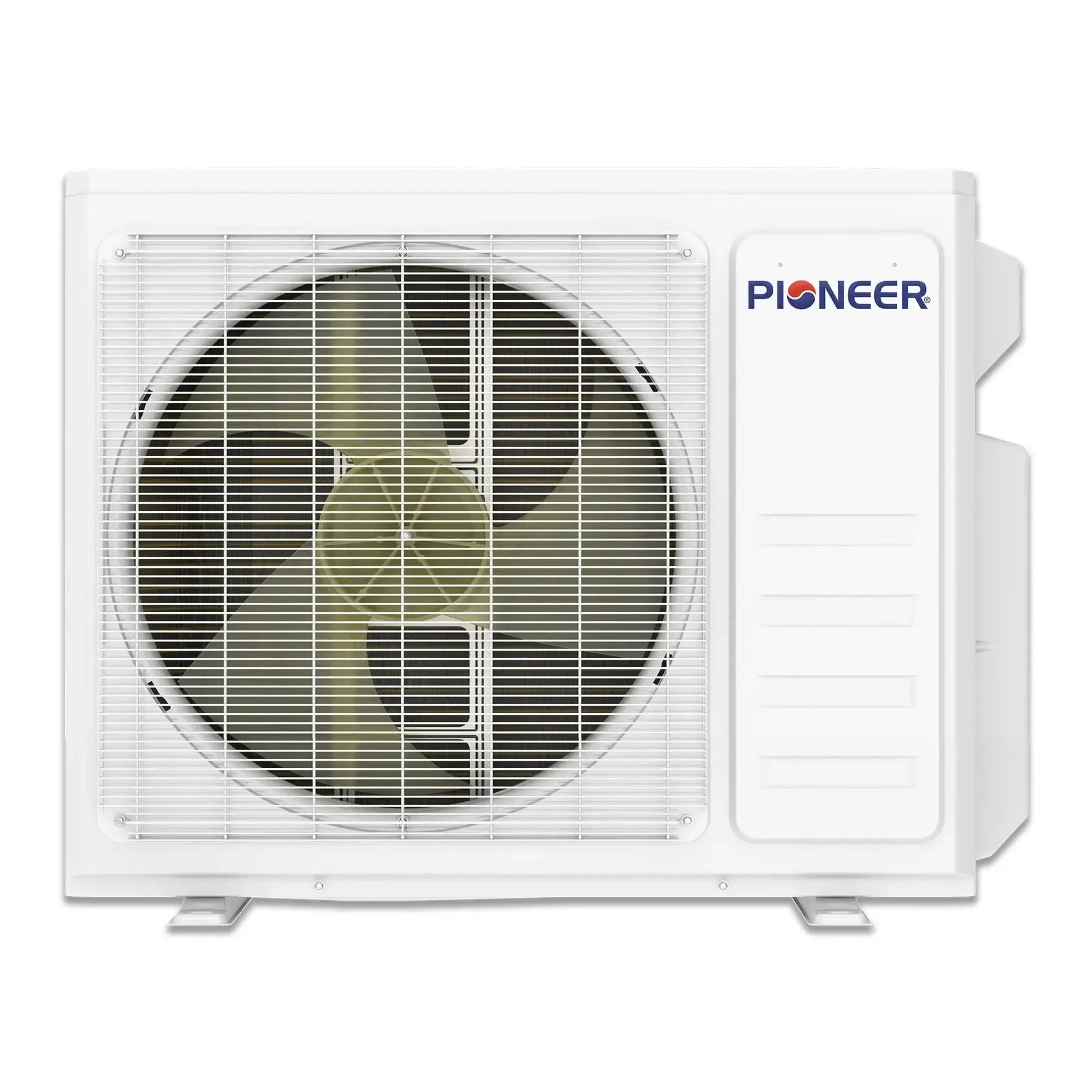

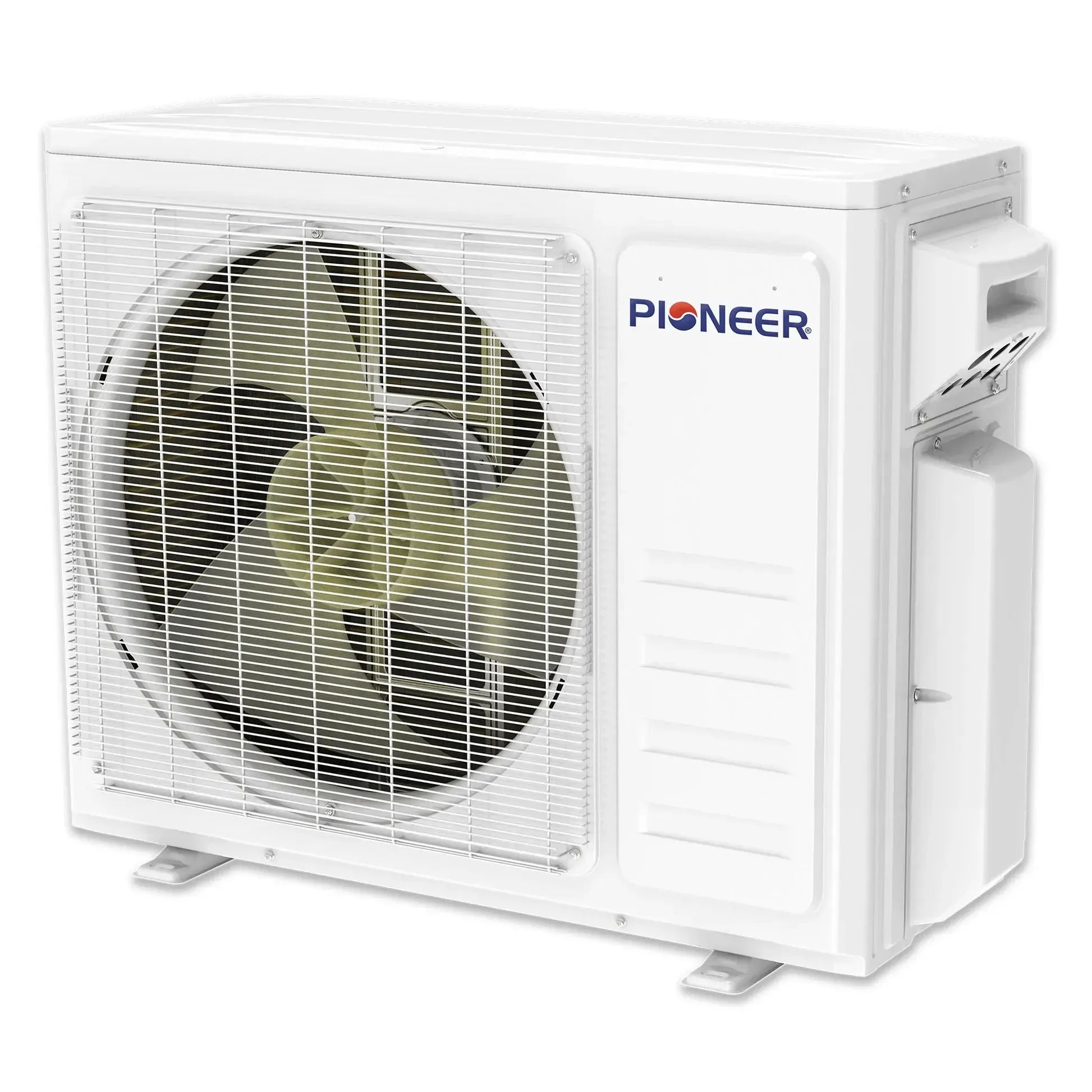

Pioneer® Multi (2) Circuit Quantum Ultra Series 24 SEER2 Dual Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Pioneer® Product Series
Multi-Zone Quantum Ultra™ Mini Split Outdoor Units
Empower zone heating and cooling throughout your entire building with a multi-zone mini split condenser from Pioneer. Multi-zone systems can power multiple indoor mini split units from a single condenser. With a multi-zone outdoor unit, one exterior unit connects and simplifies your entire system. Multi-zone systems minimize the number of outdoor units necessary to bring premium temperature control to your home. A single multi-zone outdoor unit serves up to eight indoor units. Minimizing the number of units you need improves the look of your building’s exterior, which boosts curb appeal for your home or commercial building.
Important
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit.
Notes
- Different models of all available matching indoor units can be combined in any order to create a multi-zone split system, up to a quantity of the number of available circuits.
- Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.
- Every indoor unit attached to a multi-zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
- Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
- With multi-split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
- Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
- Although very seldom, if the total demand from the combined group of indoor units exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
- For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.
What's Included in Your Purchase
- Outdoor Unit
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Manuals & Documents
Summary
- Ultra High Efficiency Dual Zone (2 Circuit) Outdoor Condensing System
- Cooling Capacity: 18,000 BTU with 24 SEER2 / 13.0 EER2 efficiency
- Heating Capacity: 20,000 BTU with 10.0 HSP2 / 3.5 C.O.P. efficiency
- Energy-Star and Energy-Star Cold-Climate Designated Performance
- Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
- Factory Precharged to Cover Up to 50 Ft. of Total Combined Attached Lineset Length
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 12,000~27,000 BTU/h
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling SEER2 (Ductless): 24.0 BTU/W.h
- Cooling EER2 (Ductless): 13.0 BTU/W.h
- Heating Rated Capacity: 20,000 BTU/h
- Heating HSPF2 (Ductless): 10.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
-
Refrigerant Type: R454B
- Suitable Area: 300~750 Sq.F
- Sound Level: 58.0 dB(A)
- Circuit Breaker Utilized: 20A (double-pole)
- Net Dimensions (WDH): 36-1/2 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 16-7/8 x 28-3/4 Inches
- Net / Gross Weight: 93 / 99 Lbs
Manuals & Documents
- Technical Brochure
- Submittal Sheet
- Installation Manual
- Service Manual
- AHRI Certificate (Ductless Indoor Units / Ducted Indoor Units)
- Energy Guide
Dual Zone Combinations (in thousands BTU)
|
Two Units |
| 9 + 9 |
| 9 + 12 |
| 12 + 12 |
| 18 + 9 |
9,000 BTU Compatible Units
- Wall Mounted: WT009GLSI24HLG (32-1/4 x 7-5/8 x 12 inches WDH)
- Ceiling Cassette: CT009GLSILCFHG (22-1/2 x 22-1/2 x 9-5/8 inches WDH)
- Ductable Concealed: RT009GLSILCFHG (27-1/2 x 19-1/4 x 7-7/8 inches WDH)
12,000 BTU Compatible Units
- Wall Mounted: WT012GLSI24HLG (36-1/4 x 7-5/8 x 12 inches WDH)
- Ceiling Cassette: CT012GLSILCFHG (22-1/2 x 22-1/2 x 9-5/8 inches WDH)
- Ductable Concealed: RT012GLSILCFHG (27-1/2 x 19-1/4 x 7-7/8 inches WDH)
18,000 BTU Compatible Units
- Wall Mounted: WT018GLSI24HLG (43-1/8 x 8-3/4 x 13 inches WDH)
- Ceiling Cassette: CT018GLSILCFHG (22-1/2 x 22-1/2 x 9-5/8 inches WDH)
- Floor-Ceiling Flex Console: UT018GLSILCFHG (41-1/2 x 9-1/4 x 26-1/2 inches WDH)
- Ductable Concealed: RT018GLSILCFHG (35-1/2 x 19-1/4 x 7-7/8 inches WDH)
Min. / Max. Loading
12,000 / 27,000 BTU/h.
Notes
- Different models of all available matching indoor units can be combined in any order to create a multi zone split system, up to a quantity of the number of available circuits.
- Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.
- Every indoor unit attached to a multi zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
- Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
- With multi split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
- Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
- Although very seldom, if the total demand from the combined group of indoor units' exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
- For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.
