Eltwin Hyper SureStart Single Phase Soft Starter 230V (16-32 FLA) - SS1B16-32SN

SKU: SS1B16-32SN
Your Price:
$289.00 $390.15
You Save: $101.15 26%
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 10 Left in Stock.
Order in the next to get it by

Get Extra 5% Off With Code: FLASH5 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

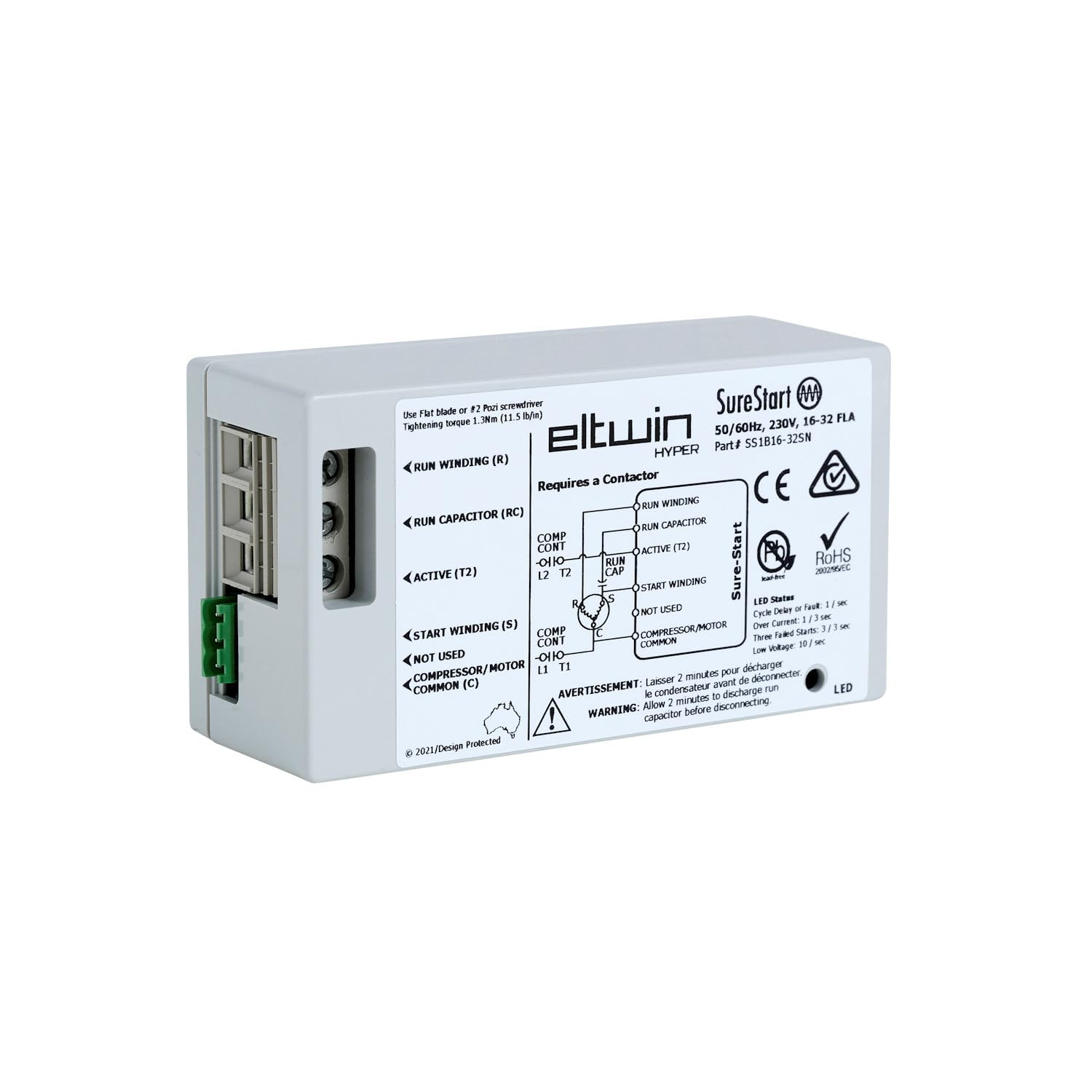

Eltwin Hyper SureStart Single Phase Soft Starter 230V (16-32 FLA) - SS1B16-32SN

Give large compressors and motors a soft start and extend their lifetime. Achieve over 60% reduction in startup current for your AC unit and pumps with our range of single phase SureStart solutions.

SureStart Series is the original single-phase soft starter specifically targeted to reduce light flicker caused by the startup of fixed speed permanent split-capacitor motors (PSC). These motors are often of the scroll compressor types which are commonly used in air-conditioning and heat pump applications.

Features:

  • 60-70% reduction in direct on-line (DOL) or in-rush current
  • Sophisticated under voltage protection
  • Motor reversal protection
  • Self-adjusting up to nominal 7 hp for optimal start performance
  • 50/60 Hz compatible
  • ETL, CE, EMC, and RoHs compliant
  • Tolerant to “dirty power” conditions
  • Versions available for retrofit installations or OEM production use
  • Fault LED
  • Internal Current Limiting

Designed for:

  • Motors Between 1.5 - 7 HP
  • For applications w/ 16-32 Full Load Amps (FLA)

Applications:

  • HVAC/R
  • Irrigation/submersible pumps
  • Compressors
  • Marine/RV
  • Solar power
  • RV/trucks
  • Military/government
  • Backup generators

Specifications:

Brand Eltwin
Model SS1B16-32SN
Weight (in lbs) 2.000000
Additional Information Power Supply & Control voltage: Auto-Start at Power Up
Electrical 208 / 230 V. 1 Phase 50Hz/60Hz
Amperage Requirement 16A - 32A max FLA range
Temperature Control Range -4° F to 140° F
Height 2"
Width 3"
Depth 5 1/4"
Warranty 1 Year
