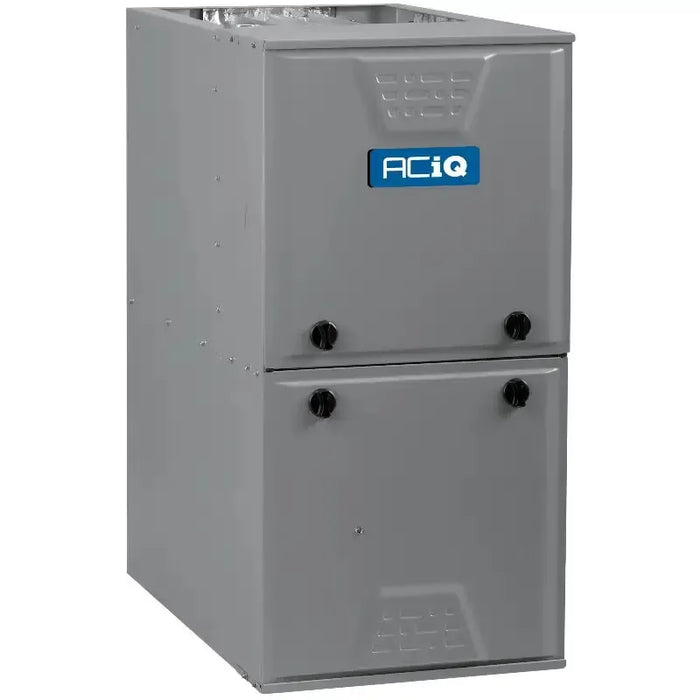

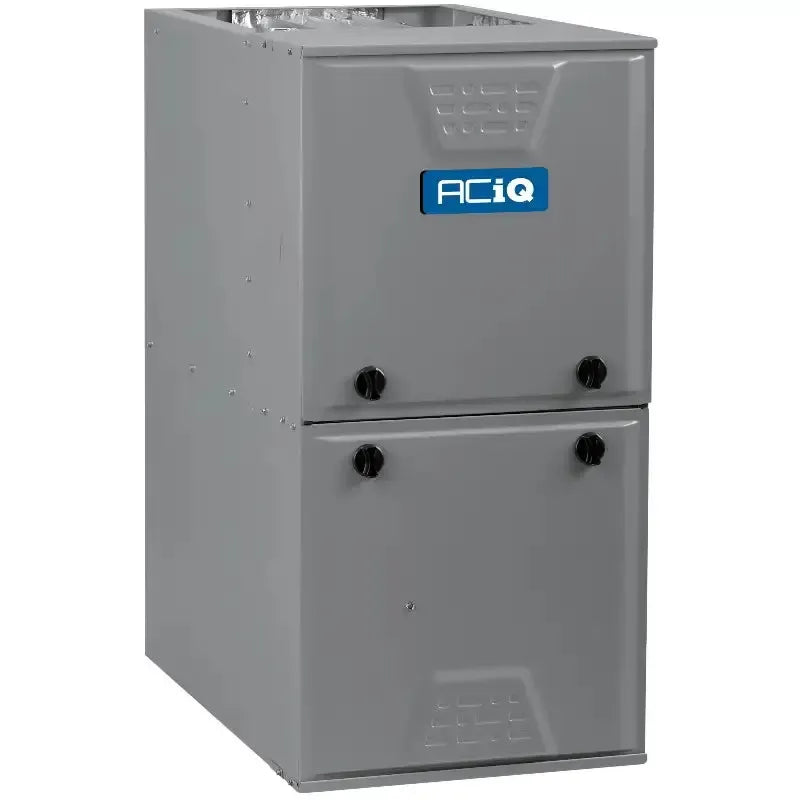

100,000 BTU 96% AFUE Two-Stage Multi-Positional ACiQ Gas Furnace
With its variable speed blower motor and two stage burner, the ACiQ G96VTN1002120A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G96VTN1002120A is a great choice to keep you comfortable while saving you money in energy bills year-round.
Quick Facts
- 100,000 BTU, 96% AFUE natural gas furnace
- Generally suitable for up to a medium to large house in ideal applications
- Variable speed blower with a two stage burner
- Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
100,000 BTU, 96% AFUE
The ACiQ G96VTN1002120A has an input of 100,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 96,000 BTU, meaning that it is generally suitable for medium to large house in ideal climates. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while the remaining 4% is lost out the flue piping and lost to normal furnace operations. All 96% furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.
Warranty
ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Installation and Durability
With its ability to be installed in any configuration - upflow, downflow, or horizontal - the ACiQ G96VTN1002120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.
Superior Comfort
All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G96VTN1002120A definitely lives up to the name thanks in part to its variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
Specifications:
| Brand | ACiQ |
| Model | G96VTN1002120 |
| Weight (in lbs) | 170.000000 |
| AHRI Certificate Number | 213148562 |
| Exhaust Flue Requirement | Plastic / PVC |
| Equivalent |
|
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 100,000 |
| Blower Motor | Variable Speed |
| Maximum CFM | 2005 |
| Configuration | Upflow/Downflow/Horizontal |
| Energy Star | Yes |
| Electrical | 120 V. 1 Phase 60 Hz |
| Burner Stages | Two |
| Fuel Type | Propane, Natural Gas |
| Height | 35" |
| Width | 21" |
| Depth | 29 1/2" |
| Warranty | 5 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
| Resources | |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. |
