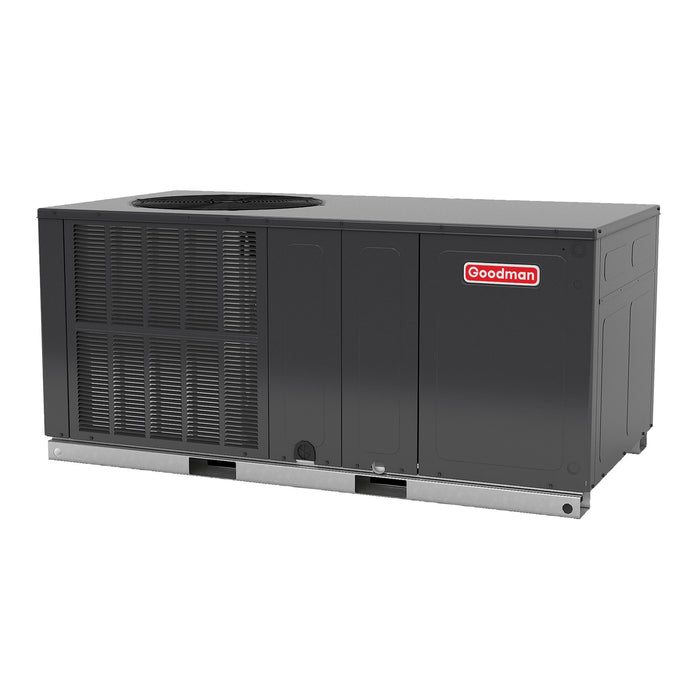

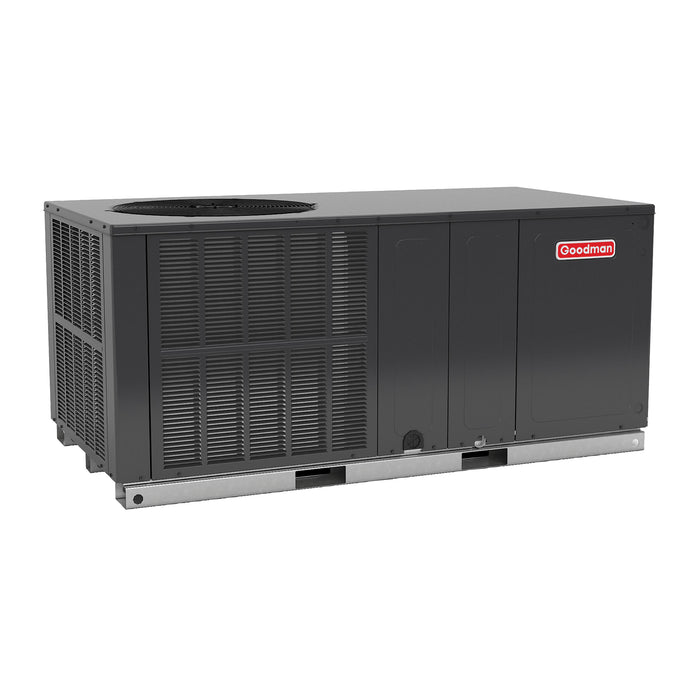

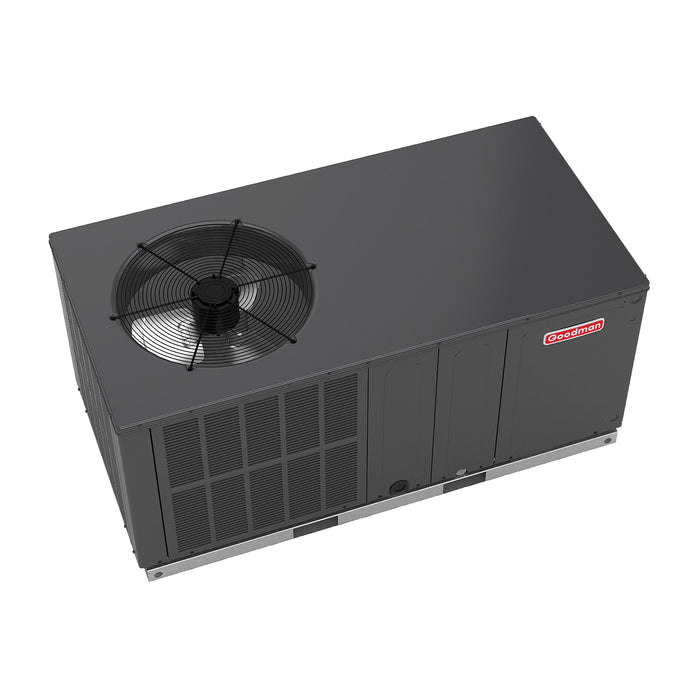

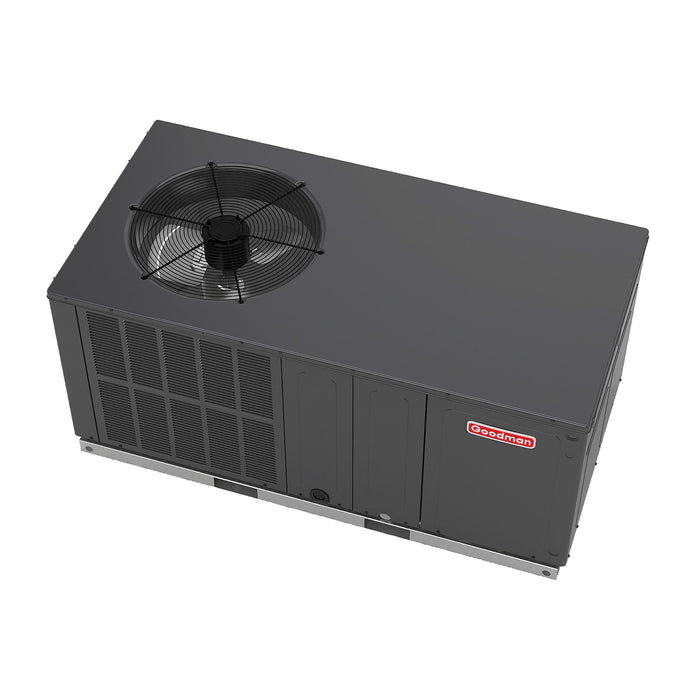

Goodman 3 Ton 13.4 SEER2 Horizontal Package Heat Pump - GPHH33641
The Goodman 3 Ton 13.4 SEER2 Horizontal Package Heat Pump - GPHH33641 provides energy-efficient cooling and heating performance in one self-contained unit. This unit uses the environmentally friendly refrigerant R-410A, which is chlorine-free to help prevent damage to the ozone layer. The GPHH33641 is housed in a heavy-gauge, galvanized-steel cabinet that offers a high-quality, UV-resistant powder-paint finish and allows for a ground level or rooftop mount.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- All-aluminum evaporator coil
- Copper tube/aluminum fin condenser coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Electric heat kit available as a field-installed option
- AHRI certified; ETL listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with architectural gray powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- Louvered condenser coil protection
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH33641 |
| Warranty | 10 Years Parts Warranty |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 35,200 Sensible BTU/h: 27,632 SEER2 / EER2: 13.4 / 10.6 AHRI Numbers: 208842406 |
| Heating Capacity |
BTU/h (47°F): 32,200 C.O.P. (47°F): 3.70 BTU/h (17°F): 19,400 C.O.P. (17°F): 2.34 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10" x 8" Cooling CFM: 1,200 Fan-Only CFM: 958 No. of Speeds: 5 Horsepower - RPM: 1/2 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 6.23 Rows Deep: 3 Fins per Inch: 14 Metering Device Type: Piston Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 116 |
| Condenser Fan |
Horsepower - RPM: 1/4 - 830 Fan Diameter: 22 # Fan Blades: 4 |
| Condenser Coil |
Face Area (ft²): 17.02 Rows Deep: 1 Fins per Inch: 24 Metering Device Type: Piston |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 78 |
| Electrical Data |
Compressor RLA/LRA: 16.7 / 79 Voltage/Phase (60 Hz): 208/230-1-60 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 1.3 M.C.A: 26 M.O.P: 40 |
| Operating Weight (LBS) | 375 |
| Shipping Weight (LBS) | 387 |
| Dimensions (W x D x H) | 66 x 34 x 35 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 24 inches |
| Resources |
