Goodman AWST18SU1305 1.5 Ton Wall Mount Air Handler with 5kW Electric Heat Kit (R-32) - 208/230-1-60

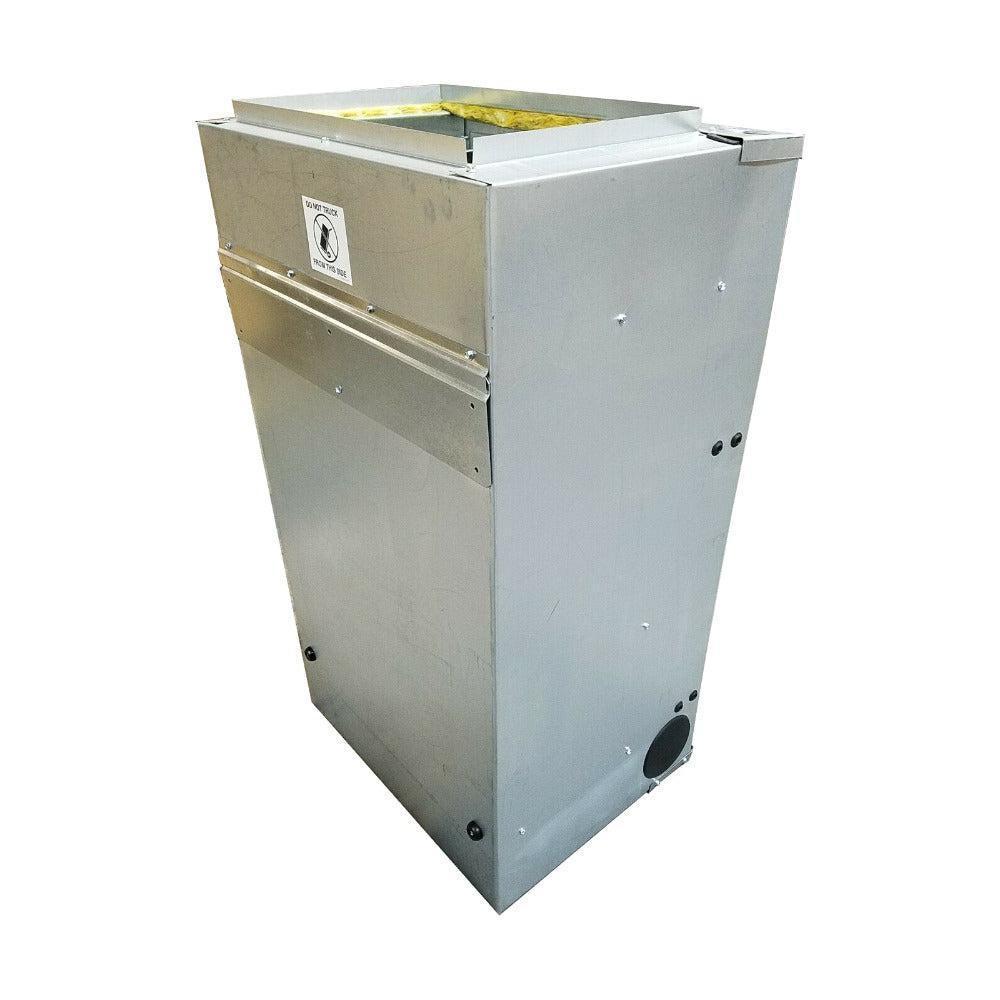

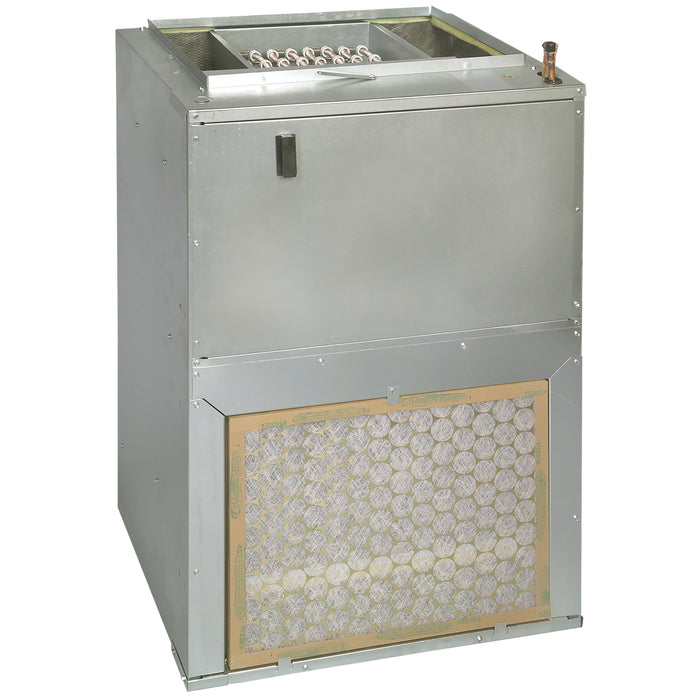

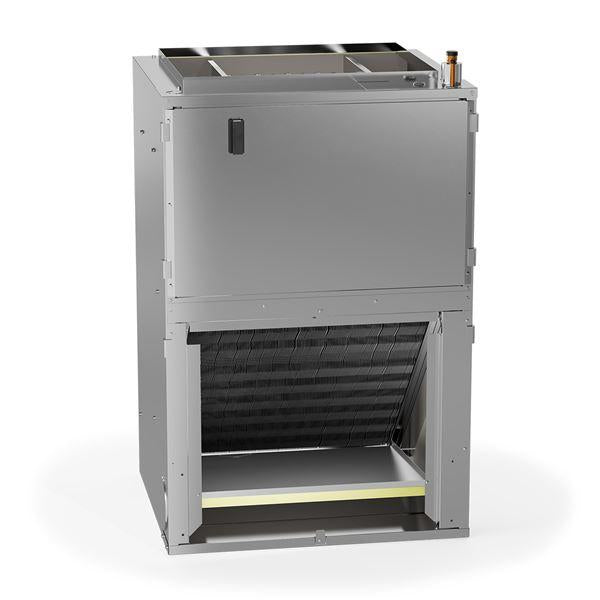

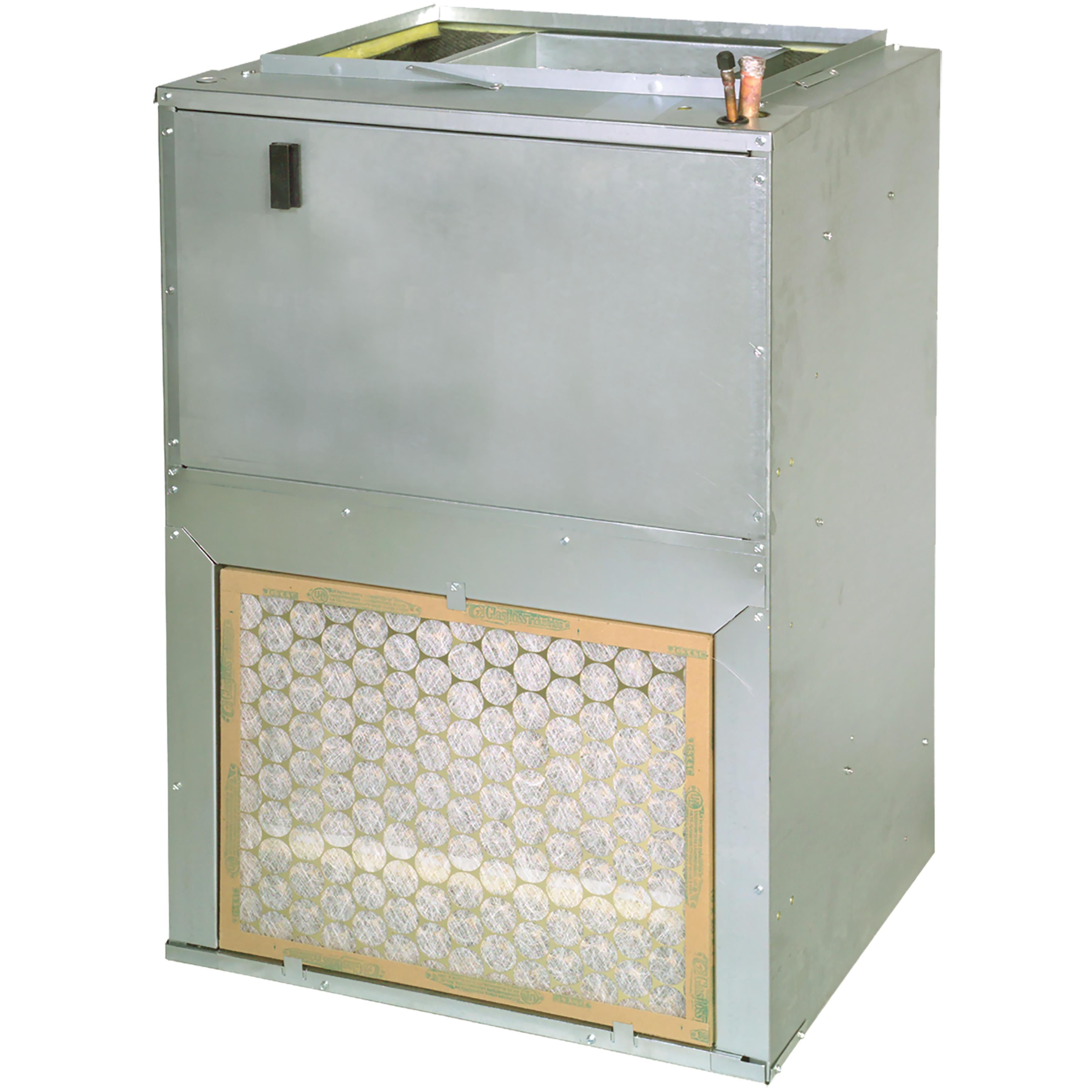

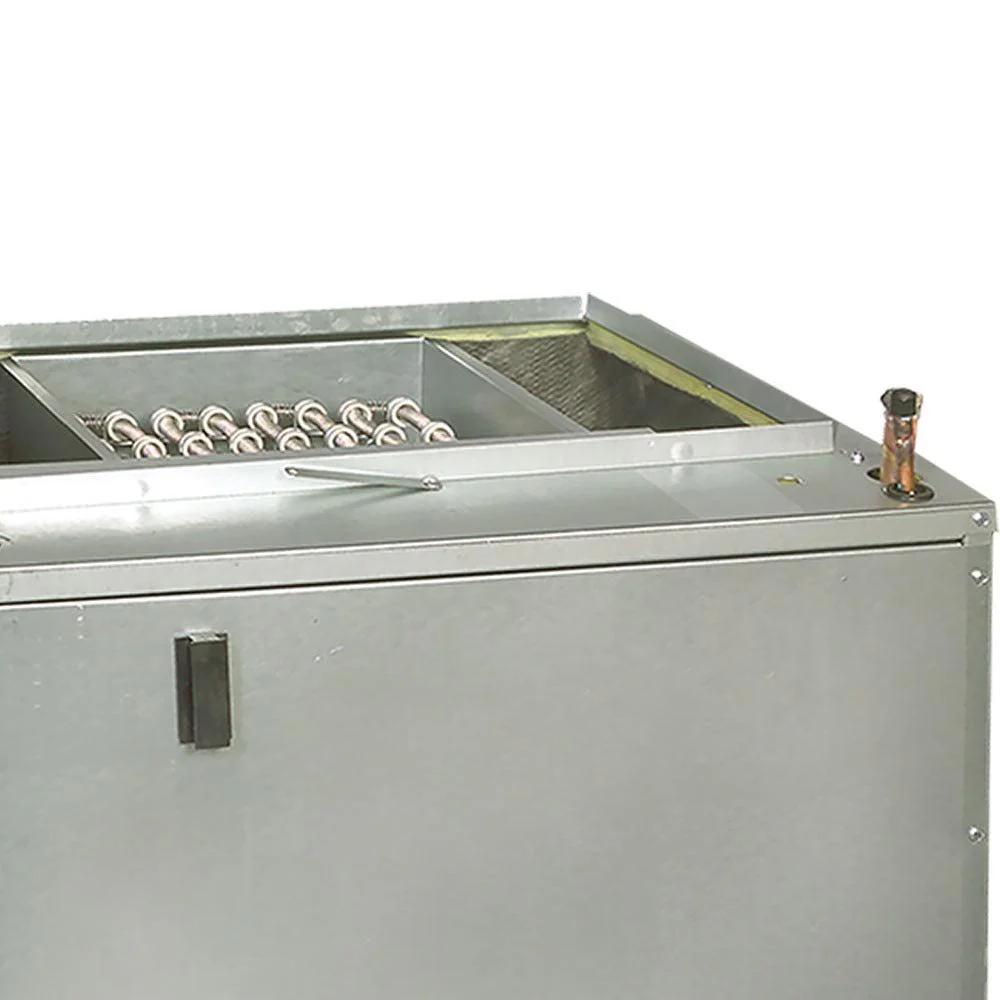

The Goodman AWST18SU1305 air handler is designed to be vertically wall- or stud-mounted. This unit is equipped with a fully adjustable TXV and direct-drive, multi-speed motor. The AWST is housed in a fully insulated, galvanized-steel cabinet. Supports 2023 DOE energy efficiency standards. This product is UL60335 2-40 Compliant.

Features:

  • AWST Models: Equipped with a fully adjustable TXV

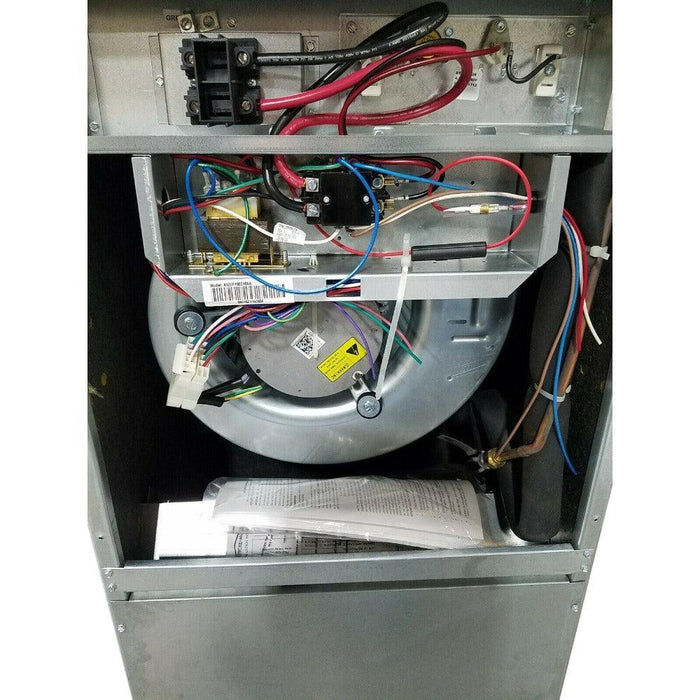

  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling

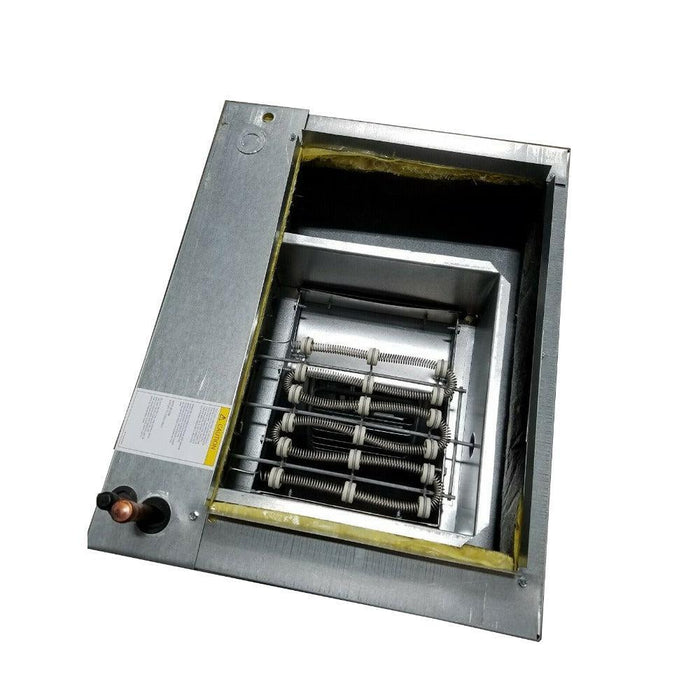

  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • UL 60335 2-40 Compliant
  • Factory installed R-32 sensor designed for the lifespan of the coil.
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) – front return only
  • Small chassis (1½- and 2-ton units) – front or bottom return
  • Wall-hanging bracket provided
  • AHRI Certified; ETL Listed

Specifications:

Brand Goodman
Model AWST18SU1305
Warranty 10 Years Parts Warranty
Refrigerant Type R-32
Nominal Ratings

Cooling (BTU/h): 18,000

Electric Heat (kW) 5
Blower

Diameter: 10

Width: 6

Coil Connections

Liquid: 3/8"

Suction: 5/8"

Coil Drain Connection (FPT): 3/4"

Electrical Data

Voltage, Phase, Hz: 208/230-1-60

Minimum Circuit Ampacity: 24.9/28.3

Max. Overcurrent Device (Amps): 25/30

Minimum VAC: 197

Maximum VAC: 253

Blower Motor

Full Load Amps (FLA): 2.6

Horsepower (HP): 1/3

Ship Weight (LBS) 84
System Dimensions (W x D x H) 20-3/16" x 16-1/8" x 36"
Filter Dimensions 14" x 18" x 1" inches
