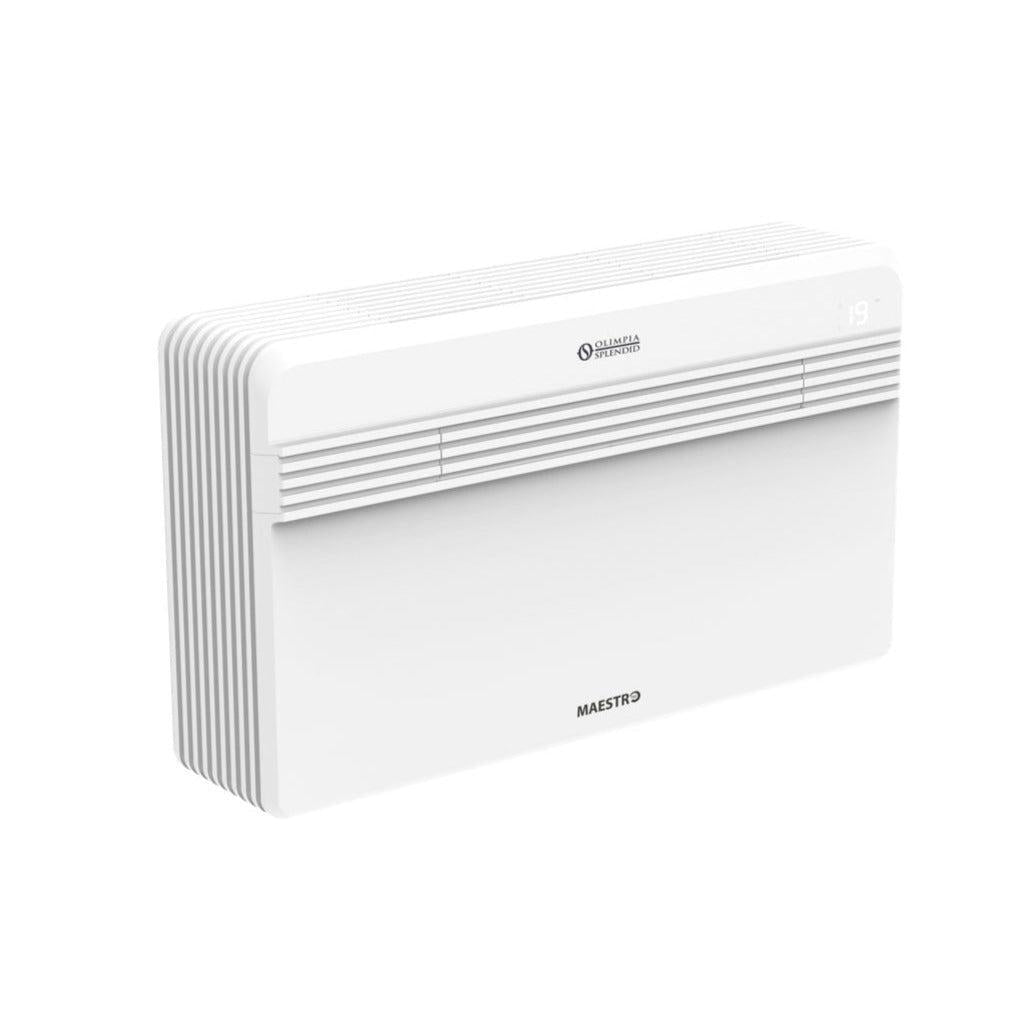

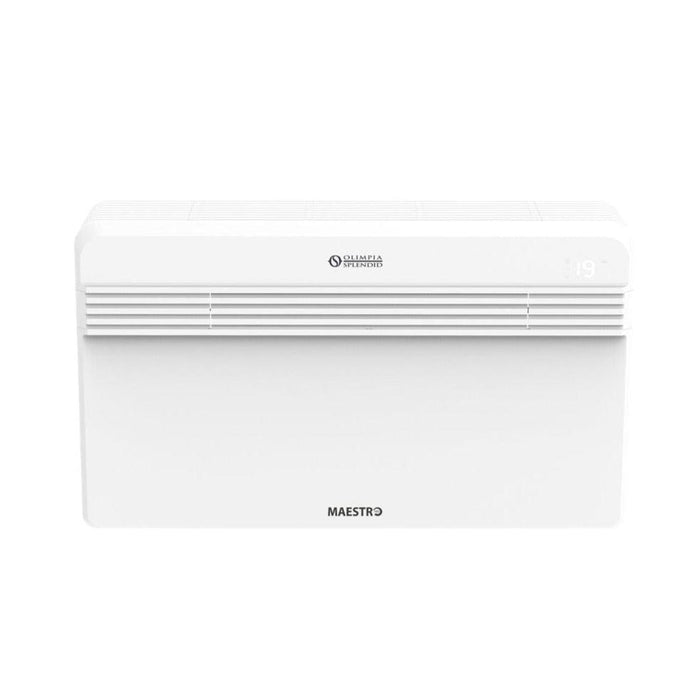

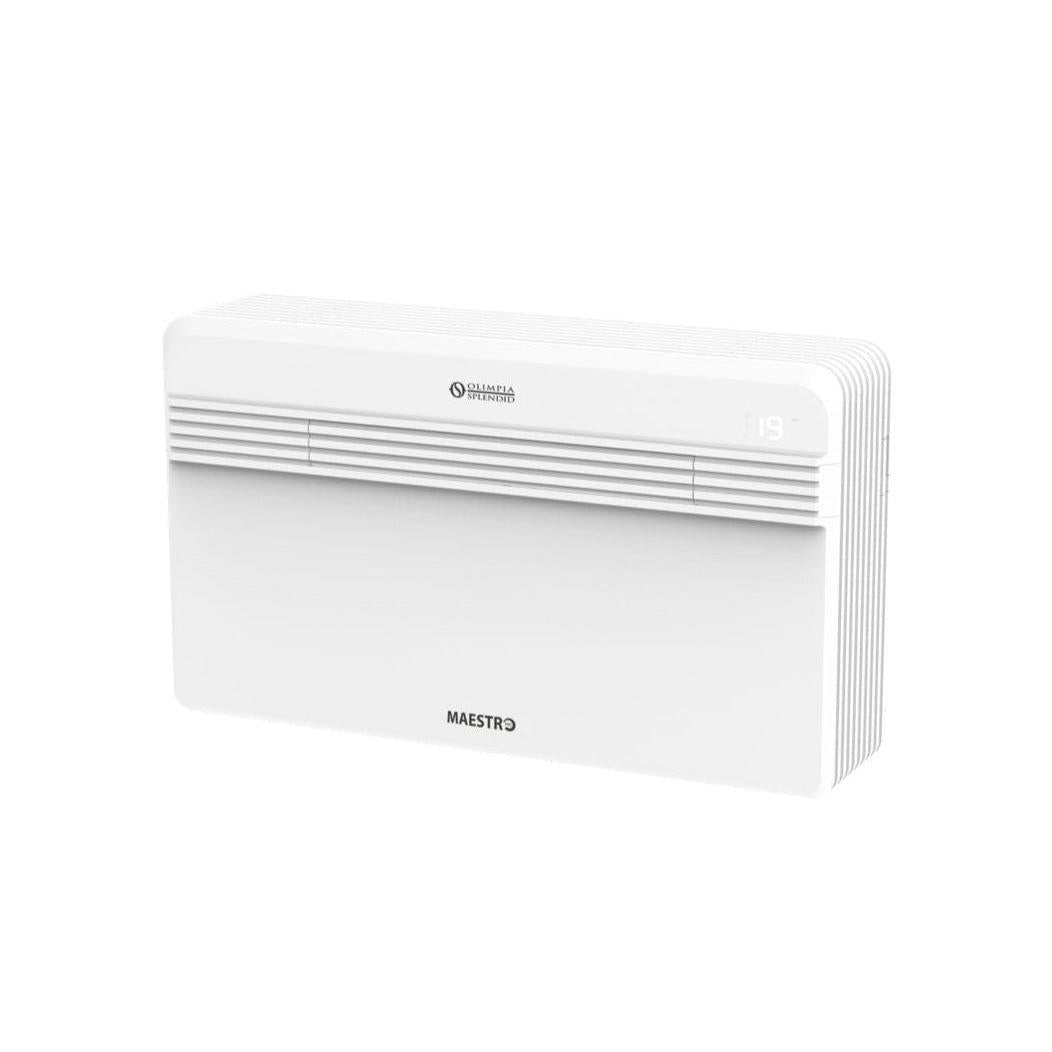

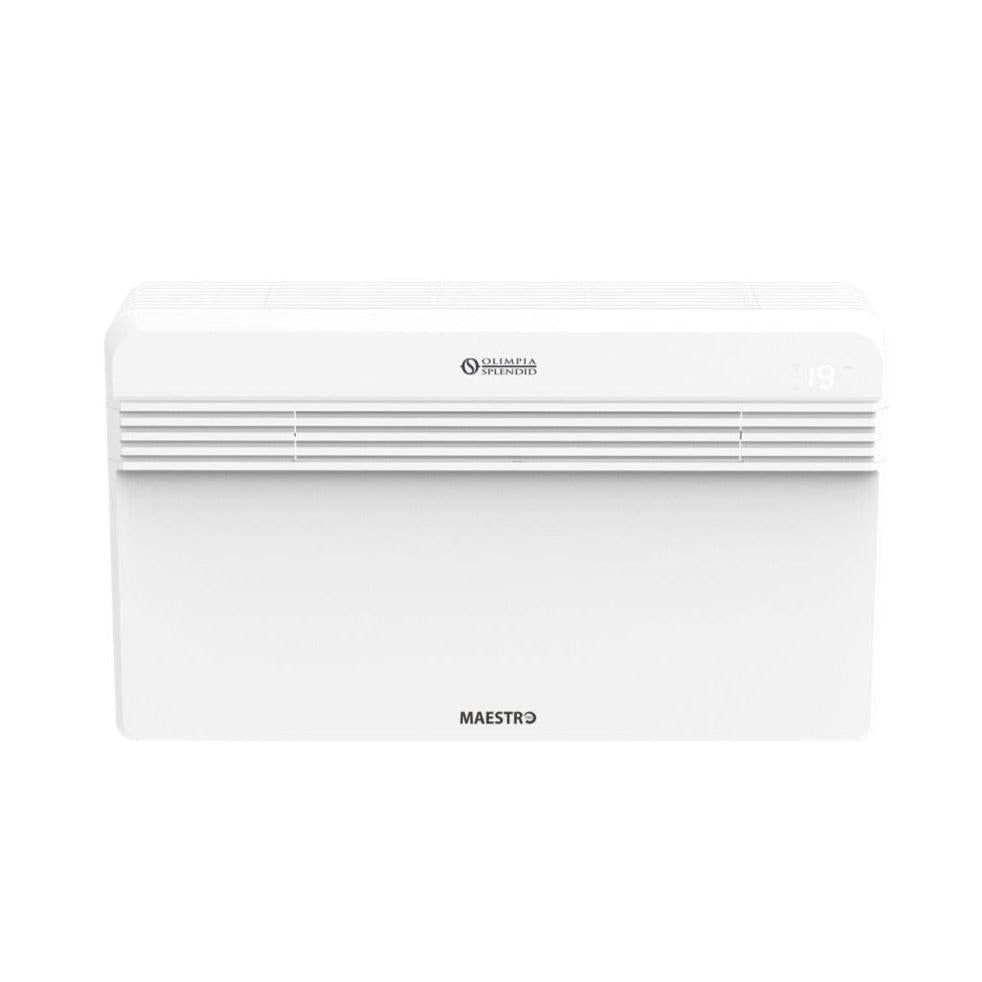

Olimpia Splendid Maestro PRO Inverter 12 HP (12,000 BTUH – 230V- R32) Inverter Compressor & Variable Speed Motor, Wi-Fi Ready. Includes Condensate Base Pan Heater - Model 2450

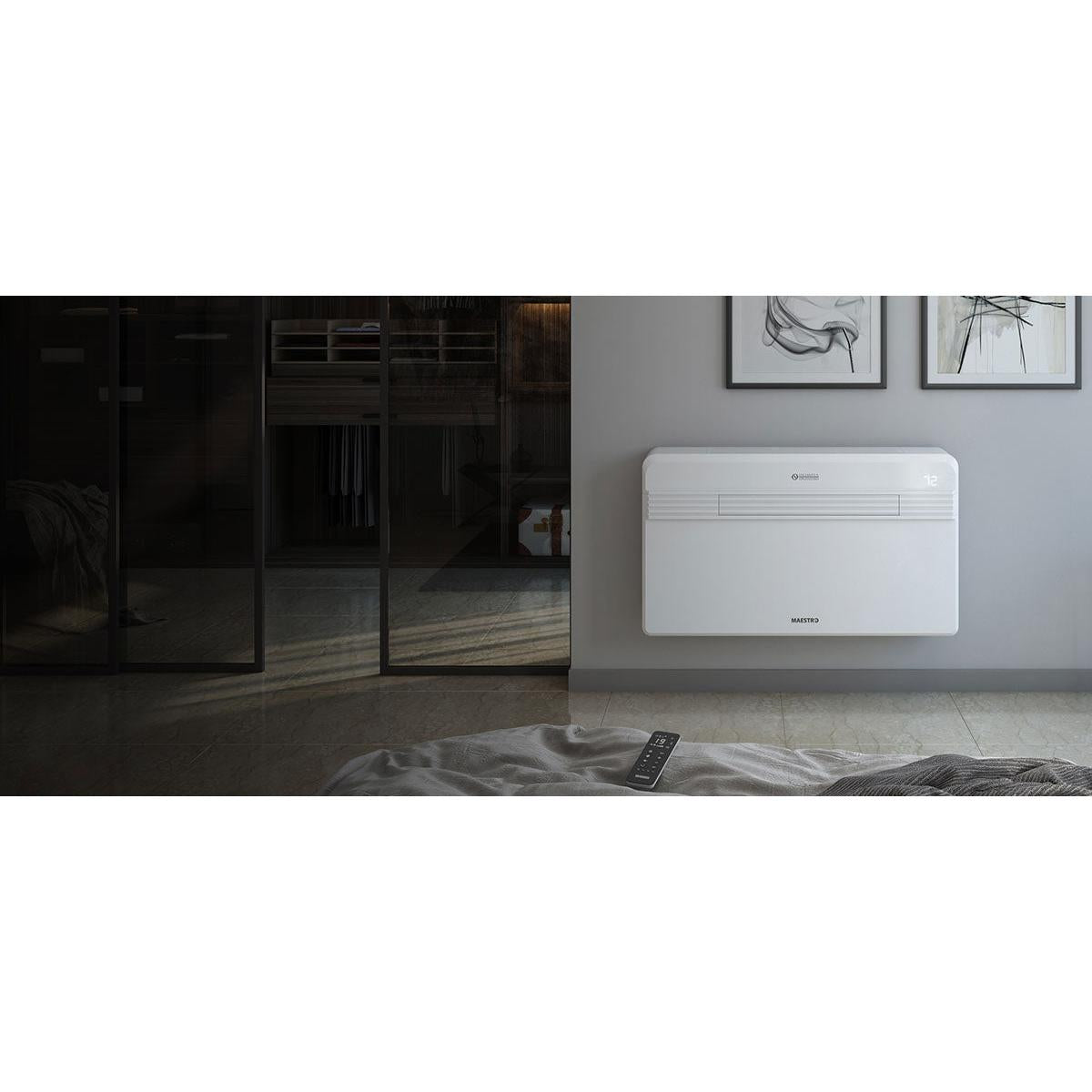

The industry’s first wall-mounted air conditioner and heater with no outdoor unit provides maximum comfort with minimal architectural impact to the exterior of the building or home.

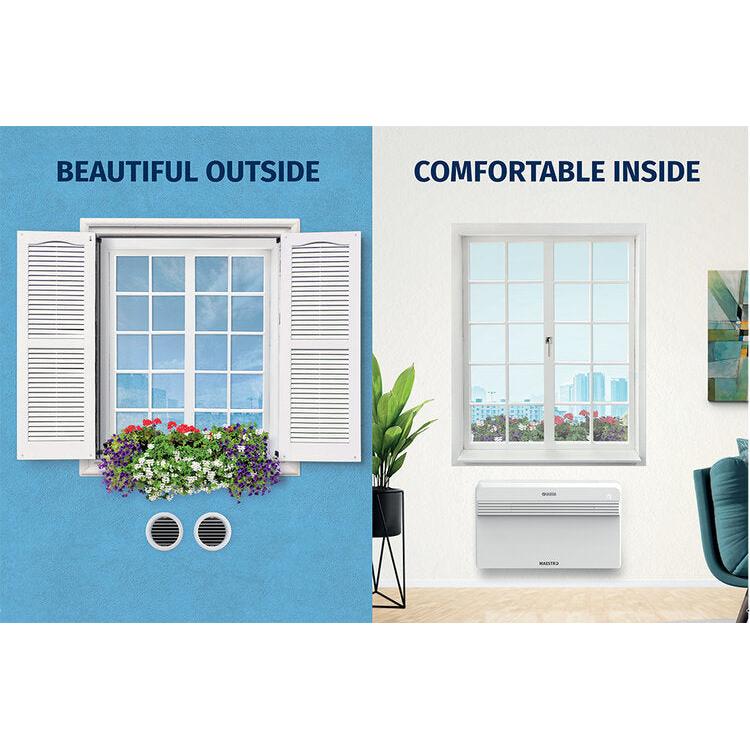

The Maestro installation can be done entirely from the inside of the room requiring only two (8” or 6.4") wall penetrations made with a core drill on the outside wall, and there are only two louvred grilles covering the holes with no architectural impact.

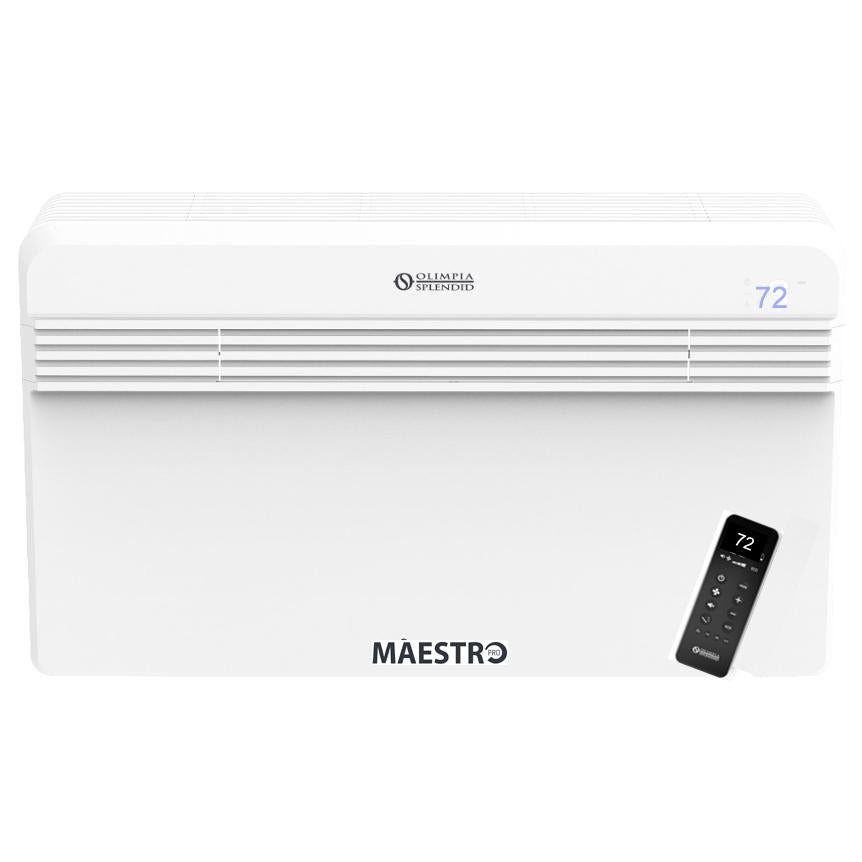

Maestro can be operated either with the handheld remote controller, or with the Maestro App from a smart phone via Wi-Fi. Maestro Pro models also have an onboard touch screen display.
Its unique “splitless” and “windowless” application makes it the ideal comfort solution, providing year-round comfort and whisper quiet operation, with a one-of-a-kind, made in Italy design.
The Pro Series, with its industry leading inverter compressor technology and variable-speed fan motor, provides unparalleled comfort with no swings in temperature when heating or cooling your home or business.
Functions:
- Dehumidification Mode: Controls humidity during mild ambient conditions for increased comfort
- Fan Mode: Variable speed motor maintains a consistent temperature throughout the conditioned space.
- Economy Mode: Allows for energy saving by automatically optimizing the unit’s performance
- Auto Mode: Adjusts comfort settings based on ambient conditions.
- Sleep Mode: Gradually increase/decreases the temperature setpoint ensuring whisper quiet operation, greater comfort and energy savings while you sleep.
- Inverter Compressor: Innovative compressor technology that is versatile and efficient with a wide range of frequencies available and electronic management of the electronic expansion valve (EEV)
- Heat Pump: Our reverse cycle heat pumps offer both heating and cooling to provide occupants with year round comfort. It can also be used as backup heat during shoulder seasons.

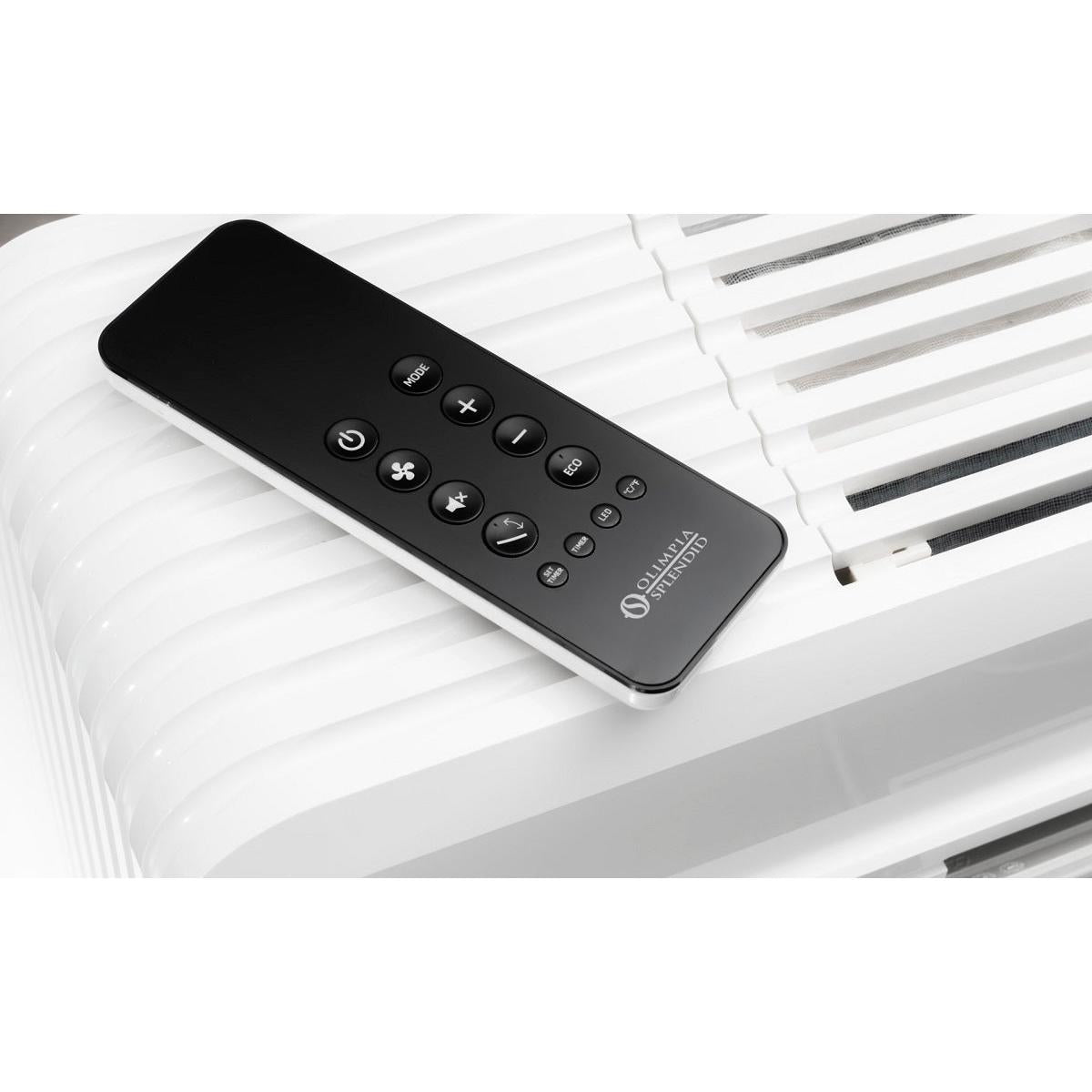

- Remote Control: “Fully Digital” remote control allows functions such as dehumidification, silent mode, sleep mode and ventilation mode.
- Easy Installation: Can be installed from inside the space in just a few minutes.
Warranty:
- 1-Year Unit Replacement Warranty:See full warranty details here
- 2 Years Parts Warranty:See full warranty details here
- 7 Years Compressor Warranty:See full warranty details here
Specifications:
Brand |
Olimpia Splendid |
Model |
2450 |
Cooling Capacity Range (Btu/h) |
6,600 - 11,600 |
Nominal Cooling Capacity (Btu/h) |
7,600 |
Cooling Input Power (Nominal) |
750W |
Cooling Input Power (Max) |
1500W |
Cooling Operating Range (Outdoor) |
64°F/18°C - 109°F/43°C |
Seasonal Energy Efficiency Ratio (SEER2) |
15 |
Energy Efficiency Ratio (EER2) |
10.15 |
Heating Seasonal Performance Factor (HSPF2) |
6.7 |
Electric Heat (kW) |
N/A |
Moisture Removal (Pts/h) |
2.3 |
Sensable Heat Factor (%) |
0.7 |
Heating Capacity Range 47°F |
6,200 - 10,600 Btu/h |
Nominal Heating Capacity 47°F |
7,500 Btu/h |
Heating Input Power (Nominal) 47°F |
685W |
Heating Input Power (max) 47°F |
1400W |
Heating Operating Range |
5°F/-15°C - 75°F/24°C |
Efficiency 47°F (COP) |
3.2 |
Heating Capacity Range 17°F |
3,000 - 5,200 Btu/h |
Heating Input Power 17°F |
350W - 800W |
Heating Efficiency 17°F (COP) |
2.5 - 1.9 |
Heating Capacity Range 5°F |
2,200 - 4,100 Btu/h |
Heating Input Power 5°F |
340W - 800W |
Heating Efficiency 5°F (COP) |
1.90 - 1.50 |
Defrost Method |
Reverse Cycle |
Indoor Blower Motor (Type) |
ECM Tangential |
Indoor Blower Motor (FLA) |
0.14 |
Indoor Blower Motor (HP) |
1/5 |
Indoor Airflow (CFM) |
Up to 200 |
Indoor Airflow Speeds |
Low/Med/High/Auto |

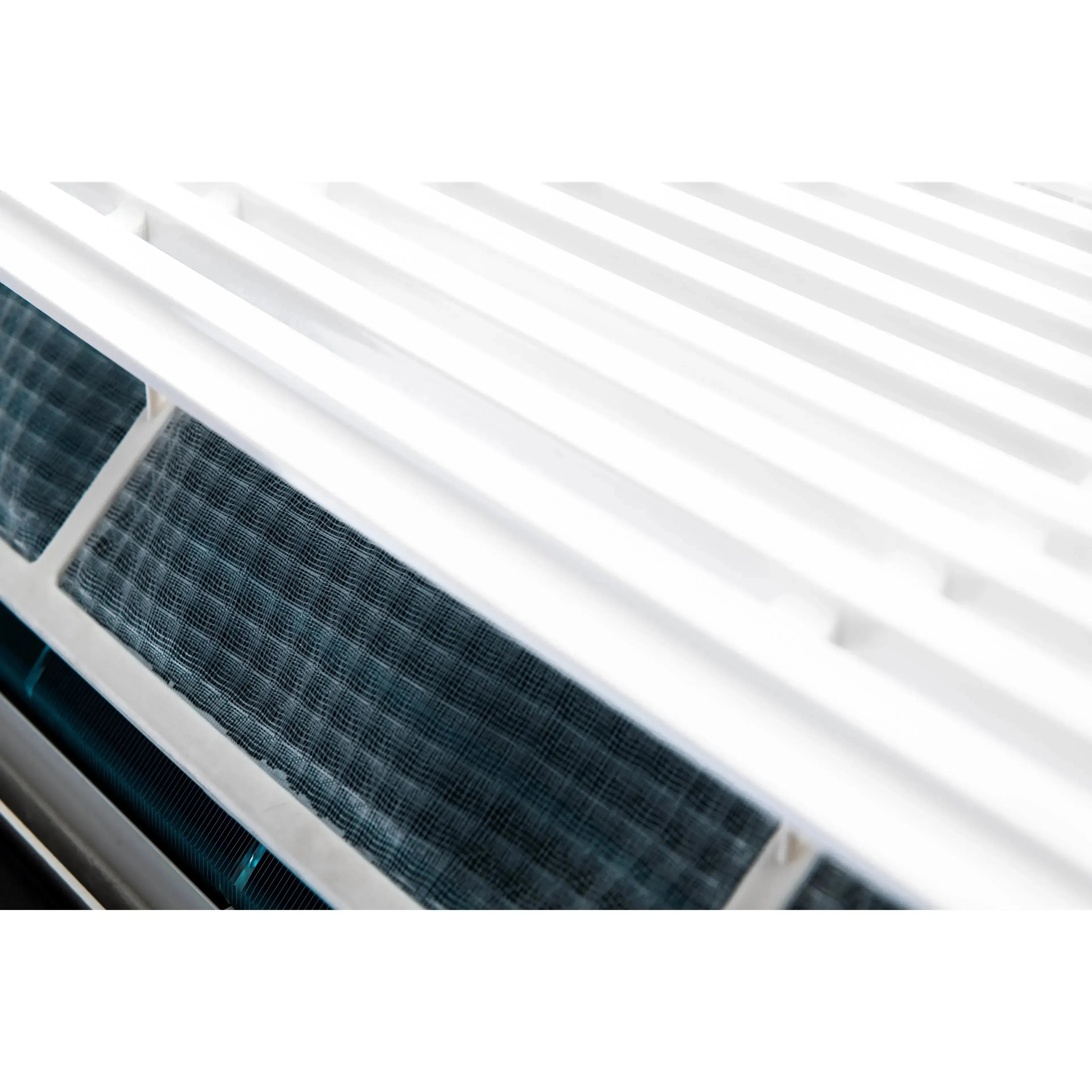

Filter (MERV) |
3 |
Outdoor Blower Motor (Type) |
ECM |
Outdoor Blower Motor (FLA) |
0.97 |
Outdoor Blower Motor (HP) |
0.17 |
Outdoor Airflow (CFM) |
350 |
Intake Opening Size (inches) |
8 |
Exhaust Opening Size (inches) |
8 |
Outdoor Airflow Speeds |
Min/Max |
Indoor Sound Rating |
32dB(A) - 42dB(A) |
Sound Transmission Class (STC) |
36 |
Outdoor/Indoor Transmission Class (OITC) |
25 |
Outdoor Sound Rating |
53dB(A) |
Compressor Type |
Rotary DC Inverter |
Refrigerant Type |
R-32 |
Refrigerant Factory Charge (Oz.) |
15 |
Oil Type |
VG74 |
Oil Amount (Oz.) |
9.5 |
Voltage |
208/230V |
Voltage range |
187V - 253V |
Frequency (Hz) |
60 |
Phase |
1 |
Power Supply |
Hardwired |
Power Factor (%) |
85 |
Cooling Nominal |
3.8A |
Heating Nominal |
3.5A |
Input Power (Standby) |
3W |
Input Power (Off mode) |
0.5W |
MCA |
11.5A |
Recommended Breaker Size |
15A |
MOCP |
20A |
Max Unit Amps |
7.5A |
Wi-Fi |
Yes |
ADA Compliant |
Yes |
Dry Contact |
Yes |
Pan Heater |
Field Installed |
Power Outage Restart |
Auto-on Based on last setting |
Modes |
Cool, Heat, Dehumidify, Fan Only, Auto |
Restricted modes |
Heat only, cool only, Temperature limiting |
Timers |
24 hr |
Drain line size (inches) |
5/8 |
Unit Dimensions (inches) |
35.5" W x 20.4" H x 8.5" D |
Packaging Dimensions (inches) |
38.6"W x 24" H x 13"D |
Unit Weight |
86 lbs |
Gross Weight |
93 lbs |
Cabinet Material |
Plastic |
Cabinet Color |
RAL 9003 |
Finish |
Specular High Gloss |
Safety Certification |
ETL Certified |
Energy efficiency test lab |
Intertek |
Warranty |
|
Safety Certification (ETL) |
UL 60335-2-40 |
Efficiency Certification (AHRI) |
AHRI 210/240 |
AHRI Reference Number |
214784009 |
Resources |
|
Import Note: |
(1) Test condition: Data refers to conditions and parameters as required by DOE requirements governing this product type. HEATING MODE: Outdoor Ambient Temperature DB 47°F/8.3°C WB 43°F/6°C; Indoor Ambient DB 70°F/21°C - WB 60°F/15.6°C COOLING MODE: Outdoor Ambient Temperature DB 95°F/35°C WB 75°F/24°C; Indoor Ambient DB 80°F/26.7°C - WB 67° F/19.4°C (2) Maximum capacity achieved with Power Pro Boost inverter technology. To achieve full capacity and efficiency 8” diameter openings are recommended. Alternately, 6.5” diameter openings can be used however there is a corresponding loss to capacity and efficiency which can vary based on the specific application. (3) CEER is calculated according to the ANSI RAC-1 2015 standard. The Combined Energy Efficiency Ratio (CEER) is a standard that measures the combined efficiency of the unit when it is in standby and when it’s actually cooling a space (4) Test conditions for sound ratings are conducted as per DOA rating conditions, conducted in a sound chamber performed at a distance of 6.5 feet (2 meters). Minimum sound pressure values are rated in ventilation mode only. (5) STC and OITC calculated by an independent 3rd party in accordance with ASHRAE standards. |
