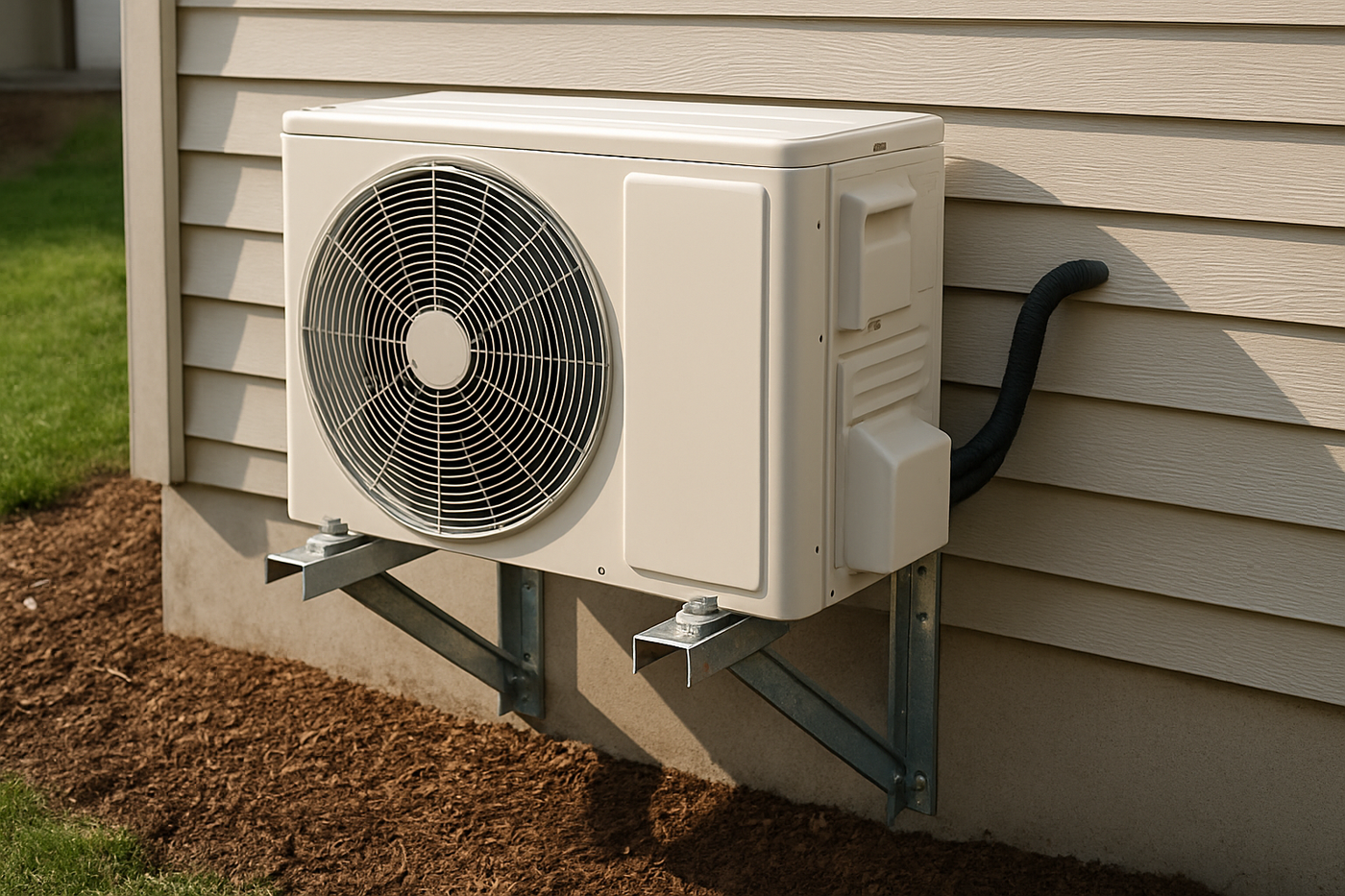

DIY Condenser Wall Mount: Save Space & Money

Understanding Condenser Wall Mounting: The Foundation of Efficient HVAC Installation

Condenser wall mounting represents a pivotal solution for homeowners grappling with spatial constraints and installation costs. This technique transforms your HVAC setup from a ground-level obstruction into an elevated, space-saving marvel. The methodology involves securing your condenser unit to an exterior wall using robust mounting apparatus, eliminating the need for concrete pads or ground-level positioning.

Traditional installations consume valuable yard space and often require expensive concrete work. Wall mounting circumvents these limitations while providing superior protection against flooding, debris accumulation, and unauthorized access. The elevation also enhances airflow dynamics around the unit, potentially improving operational efficiency.

Modern condenser units are engineered to accommodate wall-mounted configurations without compromising performance. Weight distribution becomes crucial, as does proper vibration dampening to prevent structural resonance. The installation methodology requires careful consideration of load-bearing capacity and mounting point selection.

Essential Tools and Materials for DIY Condenser Mounting

Successful condenser wall mounting demands specific tools and materials designed to handle substantial weight loads and environmental stresses. Your toolkit should include a high-torque impact driver, masonry drill bits sized for your chosen anchors, and a robust laser level for precise alignment.

Material selection proves equally critical. Heavy-duty expansion anchors rated for your unit's weight plus safety margin form the foundation. Stainless steel hardware resists corrosion in outdoor environments. Vibration-dampening pads between bracket and wall minimize structural transmission of operational noise.

• Structural-grade mounting brackets with appropriate weight ratings
• Galvanized or stainless steel fasteners
• Masonry anchors or lag bolts depending on wall material
• Anti-vibration isolation pads
• Weatherproof sealants and gaskets
• Professional-grade measuring tools

Quality materials represent a worthwhile investment, as replacement or repair costs far exceed initial premium pricing. Consider the long-term durability implications when selecting components.

Choosing the Right Mounting Hardware

Hardware selection depends entirely on your wall construction methodology. Masonry walls require different anchoring systems than wood frame construction. Concrete block installations utilize wedge anchors or sleeve anchors rated for dynamic loads.

Weight calculations must incorporate not only the condenser mass but also operational vibrations and wind loading. Safety factors of 3:1 or 4:1 are standard practice. Galvanized steel brackets offer excellent durability, while powder-coated finishes provide additional corrosion resistance.

Professional-Grade Wall Mounting Solutions

For homeowners seeking reliable, engineered mounting solutions, professional-grade brackets eliminate guesswork and ensure optimal performance. These systems undergo rigorous testing for weight capacity, vibration dampening, and environmental durability.

Mini Split Systems Direct offers comprehensive condenser wall mounting brackets that exemplify professional installation standards. These brackets feature adjustable positioning mechanisms, integrated vibration isolation, and corrosion-resistant construction suitable for diverse environmental conditions. The engineering behind these brackets accounts for thermal expansion, operational vibrations, and long-term structural integrity.

Professional mounting systems include detailed installation instructions, hardware specifications, and engineering documentation. This approach ensures compliance with local building codes and manufacturer warranty requirements while providing peace of mind regarding structural adequacy.

Step-by-Step Installation Process

Installation commences with thorough site evaluation and measurements. Locate wall studs or structural elements capable of supporting the combined load. Mark mounting points using a laser level to ensure perfect horizontal alignment.

Drilling procedures vary by wall material but require precision and patience. Masonry installations benefit from hammer drill methodology with carbide-tipped bits. Wood frame installations utilize standard wood boring techniques but require pilot holes to prevent splitting.

1. Measure and mark bracket positioning points
2. Verify level alignment using professional-grade tools
3. Drill anchor holes to manufacturer specifications
4. Install anchors and brackets with appropriate torque values
5. Mount condenser unit with helper assistance
6. Connect refrigerant lines and electrical connections
7. Test system operation and check for vibrations

Critical Safety Considerations

Electrical safety protocols cannot be understated. Disconnect power at the main panel before commencing any work. Refrigerant line connections require proper torque specifications to prevent leaks. Never attempt to move or position the unit single-handedly.

Structural considerations extend beyond simple weight calculations. Dynamic loading from operational vibrations creates fatigue stresses over time. Proper isolation materials mitigate these effects while reducing noise transmission to interior spaces.

Cost Analysis: DIY vs Professional Installation

Financial considerations often drive the decision toward DIY installation methodologies. Professional installation typically ranges from $300 to $800 depending on complexity and regional labor costs. DIY approaches reduce this expense to material costs alone.

Hidden costs in professional installations include permit fees, scheduling delays, and potential markup on materials. DIY installations provide complete control over timing and component selection while building valuable technical knowledge.

Troubleshooting Common Installation Challenges

Vibration issues represent the most frequent post-installation concern. Excessive vibration indicates inadequate isolation or improper mounting technique. Additional dampening materials often resolve these issues without requiring complete reinstallation.

Alignment problems manifest as operational inefficiencies or unusual noise patterns. Verification of level positioning using precision instruments ensures optimal performance. Minor adjustments during initial operation help fine-tune the installation.

Refrigerant line routing requires careful planning to maintain proper insulation and prevent damage. Excessive bending or inadequate support leads to premature failure. Professional-quality line sets and proper installation techniques ensure long-term reliability.

Long-Term Maintenance Considerations

Wall-mounted condensers require periodic inspection of mounting hardware and isolation materials. Annual torque verification prevents loosening from thermal cycling and vibration. Replacement of weatherstripping and sealants maintains moisture protection.

Accessibility for routine maintenance must be considered during initial installation. Adequate clearance around the unit facilitates coil cleaning and component inspection. Strategic positioning enhances serviceability without compromising performance.

Maximizing Space Efficiency and Performance

Proper positioning optimizes both space utilization and operational efficiency. Minimum clearance requirements ensure adequate airflow while maximizing usable ground space. Strategic placement considers prevailing wind patterns and seasonal sun exposure.

Elevated positioning provides natural protection against ground-level debris and potential vandalism. Snow accumulation becomes less problematic, and flooding concerns are virtually eliminated. These benefits contribute to extended equipment lifespan and reduced maintenance requirements.

Wall mounting enables creative landscaping opportunities previously impossible with ground-level installations. The recovered space accommodates gardens, walkways, or outdoor entertainment areas while maintaining full HVAC functionality.

This comprehensive approach to condenser wall mounting delivers substantial benefits for tech-savvy homeowners willing to invest in proper planning and execution. The combination of cost savings, space optimization, and enhanced performance makes DIY wall mounting an attractive alternative to traditional installation methodologies.
