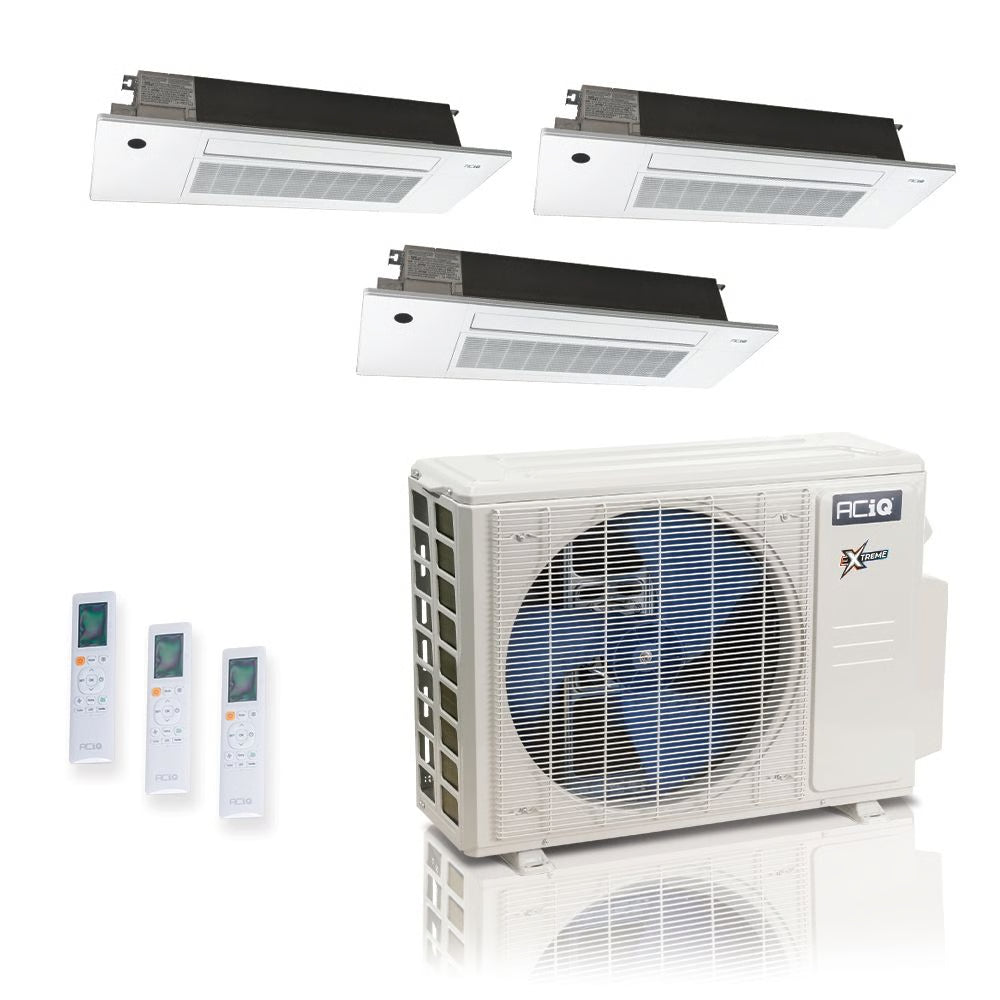

27,000 BTU 23 SEER2 ACiQ Extreme 3-Zone Slim Ceiling Cassette Mini Split System | R454B | 230v - 9+12+12
This ACiQ 3-Zone Extreme Series System offers maximum efficiency and is built for the most extreme hot or cold climates. ACiQ-27Z-HH-M4C / SCC-09-HH-MB / SCC-12-HH-MB-2 is the perfect solution for year-round heating and cooling in up to 3 spaces.

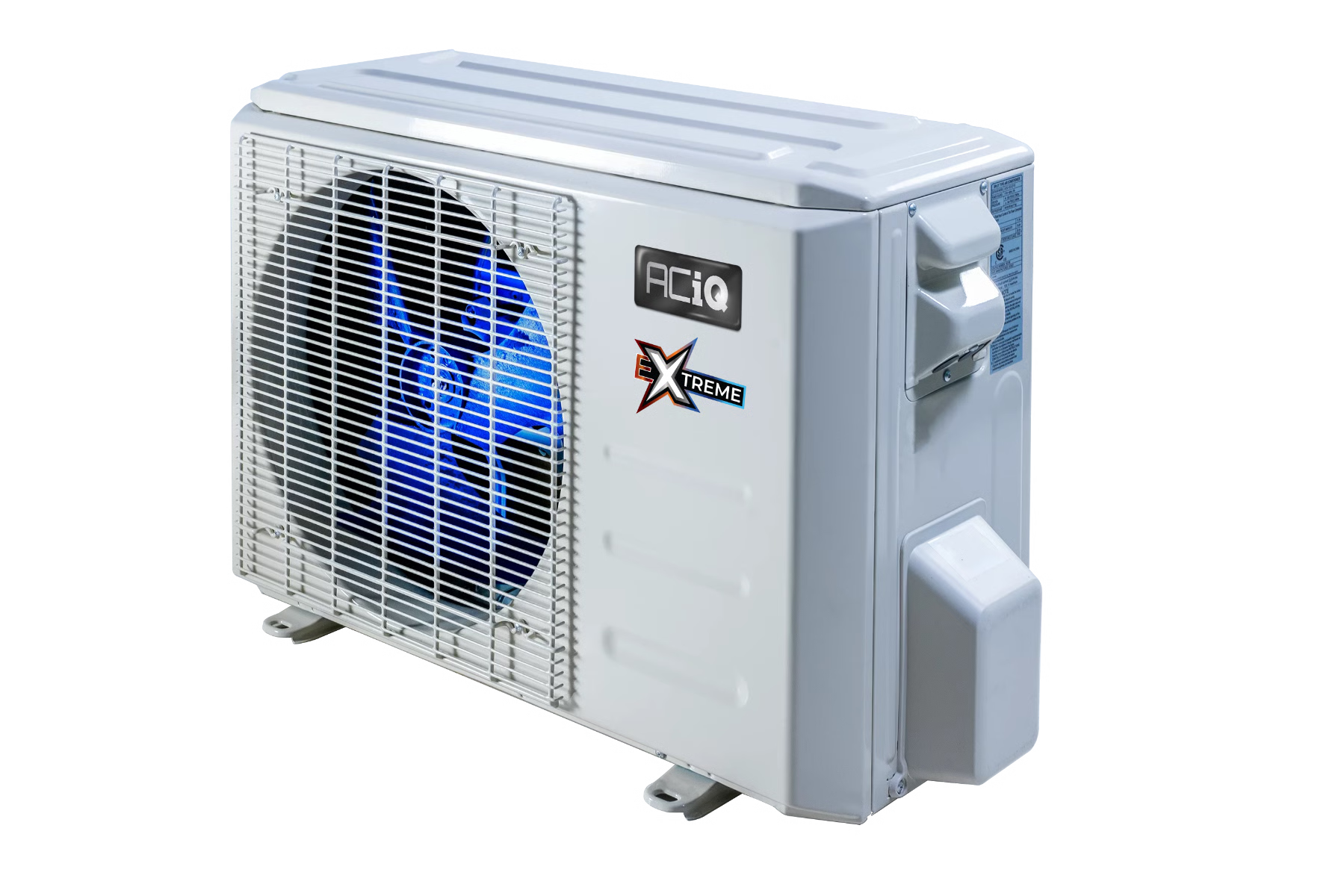

2.25 Ton 23 SEER2 ACiQ Multi Zone Condenser Extreme Series| R454B
Overview
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACiQ-27z-HH-M4C, you can have up to 4 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
Quick Facts
- 27,000 BTU, 23 SEER multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
27,000 BTU, 23 SEER
The 27,000 BTU, ACiQ-27z-HH-M4C is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 33,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 23 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Installation and Maintenance
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

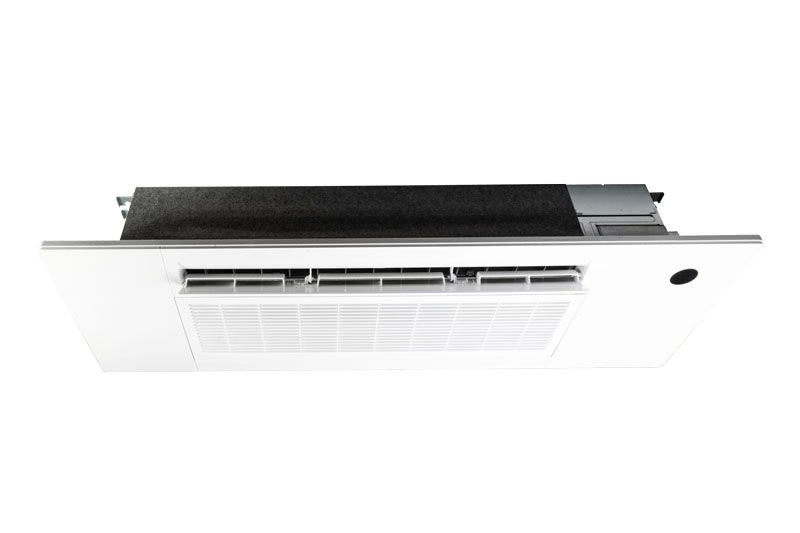

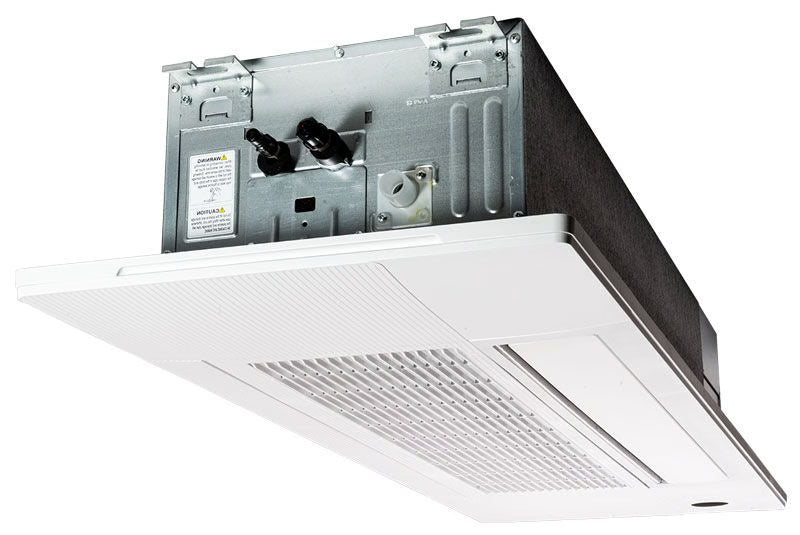

6,000-12,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler| R454B
Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.
Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.
Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.
This Slim Ceiling Cassette is rated for 6K, 9K and 12K Condensers and has a switch that allows you to change between settings as needed to fit your system.
BTU Compatibility
- Rated for 6,000, 9,000, and 12,000 BTU applications
- R-454B refrigerant – efficient and environmentally friendly
- Compatible with ACiQ multi-zone systems
Switchable Sizing
- ACiQ Slim Cassette models are rated for 6,000, 9,000, and 12,000 BTU applications.
Installation Considerations
Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling Cassette is designed to fit between 16” on-center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall-mounted units.
Features
- Narrow profile fits between 16 inch-on-center joists
- Rated for 6K, 9K, and 12K BTU – dip switch adjustable (model dependent)

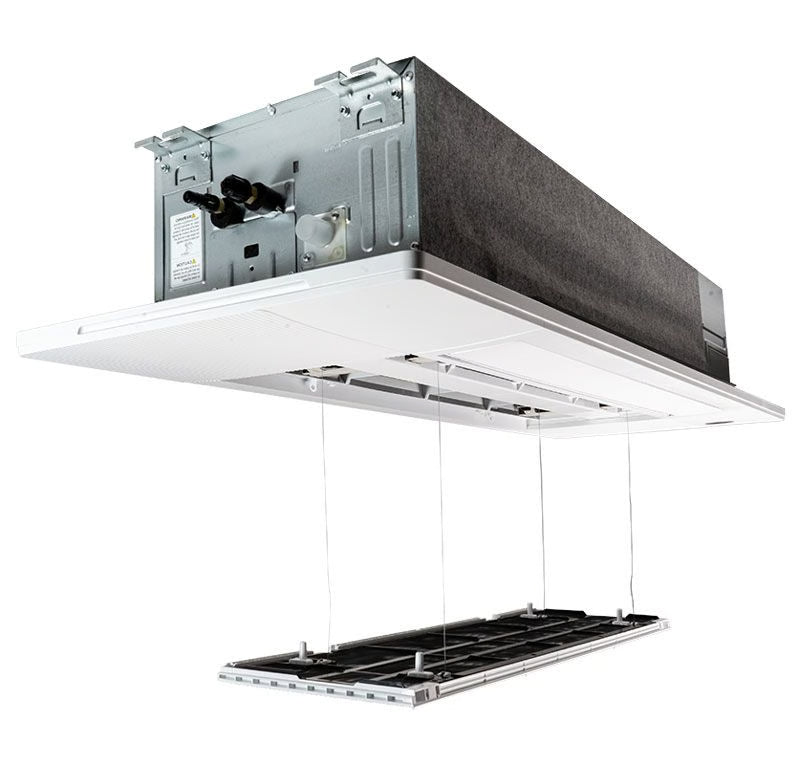

- No-ladder filter cleaning – grille lowers on cables for easy access to filter

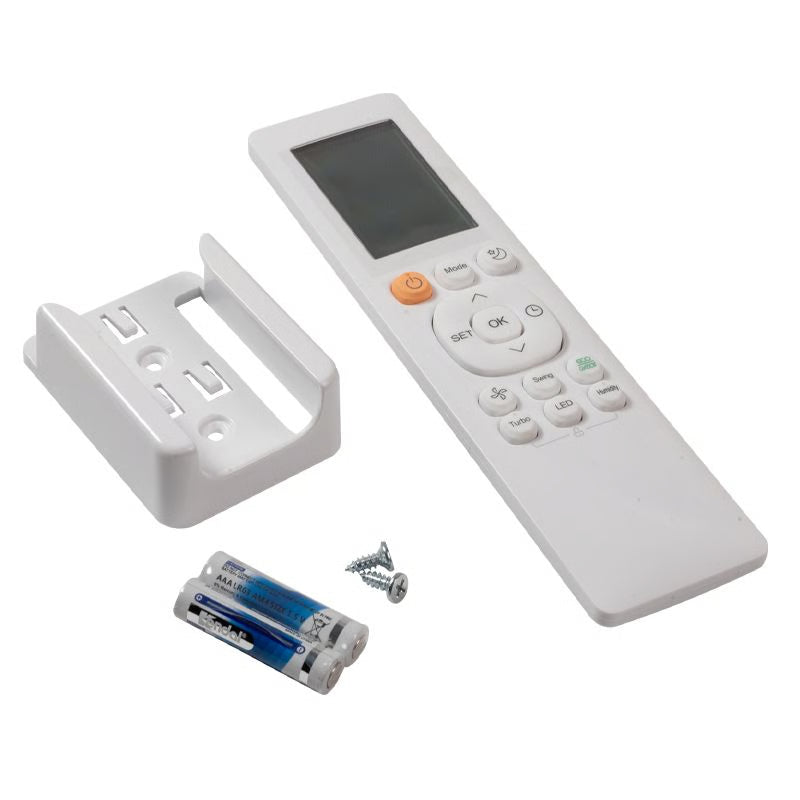

- Handheld remote included

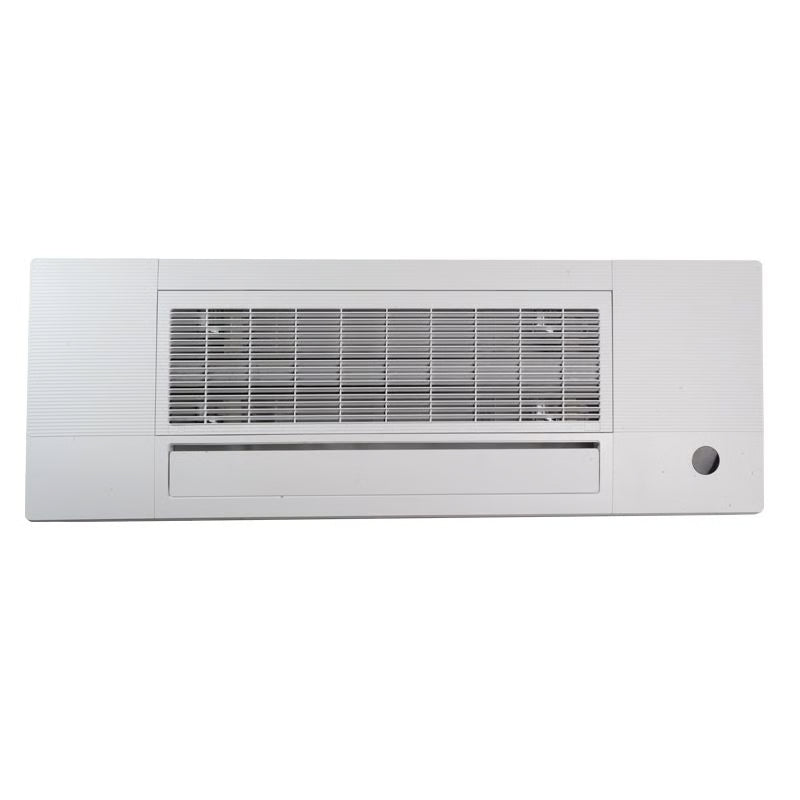

- Decorative Grille included
Condenser Specifications:
| SKU | ACIQ-27Z-HH-M4C |
| Refrigerant Charge | 98.4' |
| Weight (in lbs) | 179.670000 |
| AHRI Certificate Number | 216032364 |
| Manufacturer | ACiQ |
| Replaces | ACIQ-27Z-HH-M3B |
| Product Features | Low Ambient Heating |
| HSPF2 | 10.5 |
| Cooling BTU | 27000 BTU |
| Heating BTU | 27000 BTU |
| Decibel Level (dBA) | 61 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 23 |
| Compressor Type | Rotary |

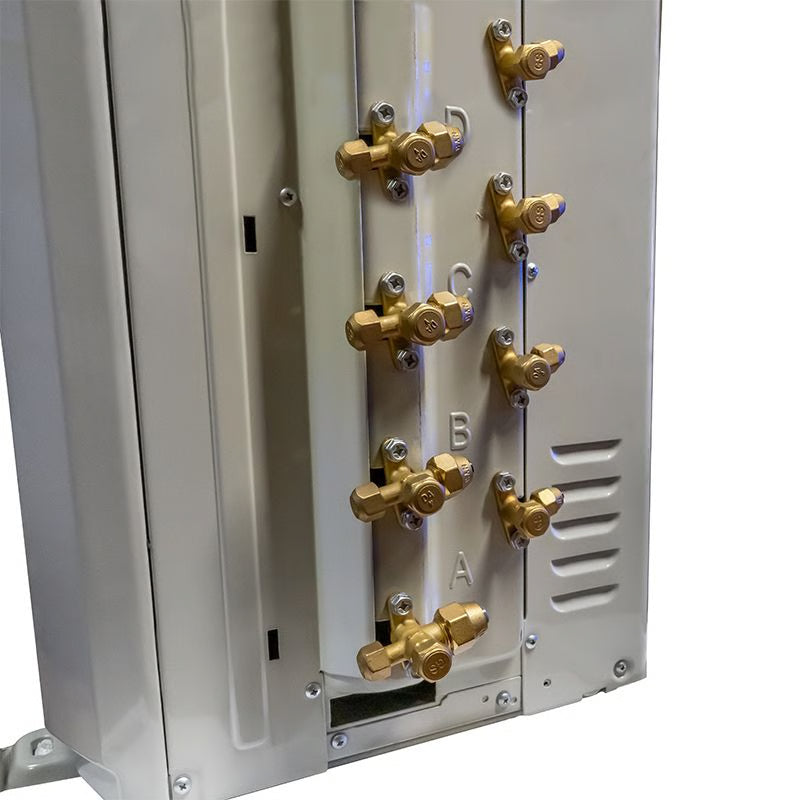

| Liquid Line | 1/4" (4) |
| Suction Line | 3/8" (3); 1/2" (1) |

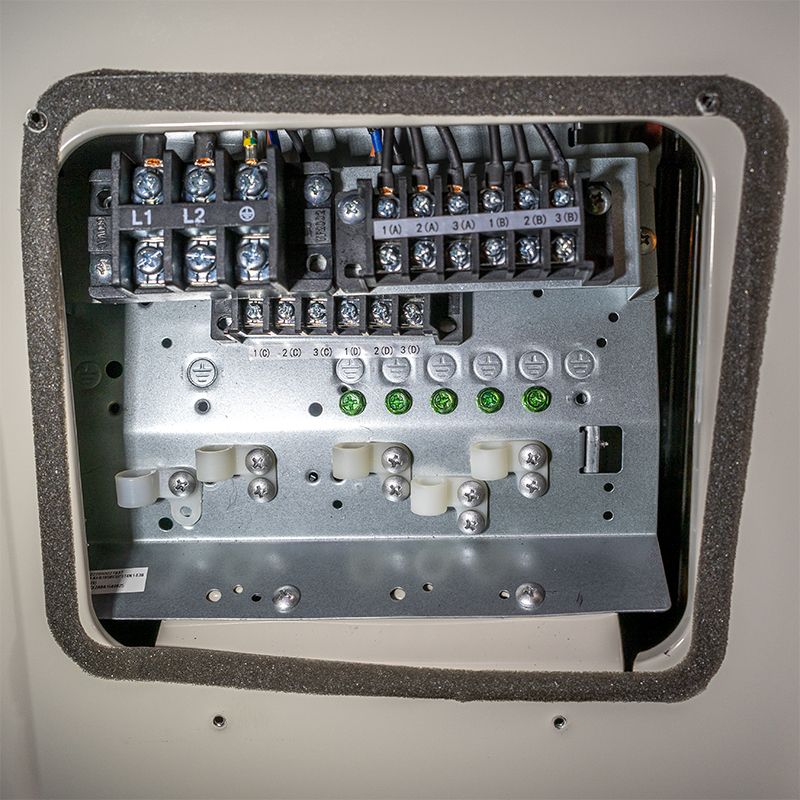

| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 35 Amps |
| Min. Breaker Size | 30 Amps |
| Tonnage | 2 Ton to 2.5 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -22 ~ 122 |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
6,000/12,000 BTU Air Handler Specifications:
| SKU | SCC-0612-HH-MB |
| Weight (in lbs) | 43.870000 |
| Brand/Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU | 6,000 / 9,000 / 12,000 |
| Heating BTU | 6,000 / 9,000 / 12,000 |
| Maximum CFM | 341.18 |
| Decibel Level (dBA) | As low as 31 |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Mini Split Type | Slim Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
