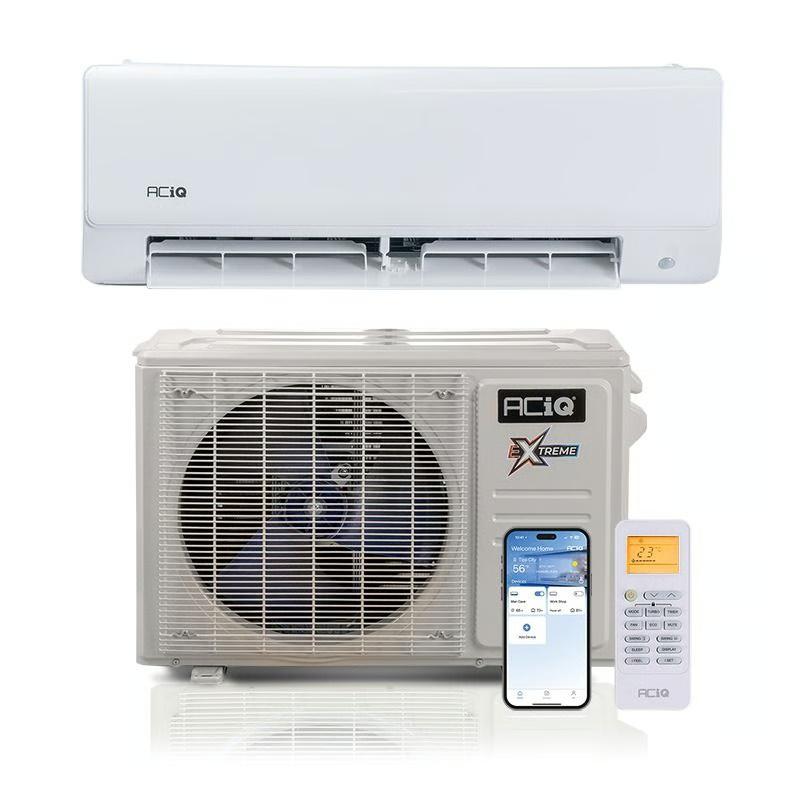

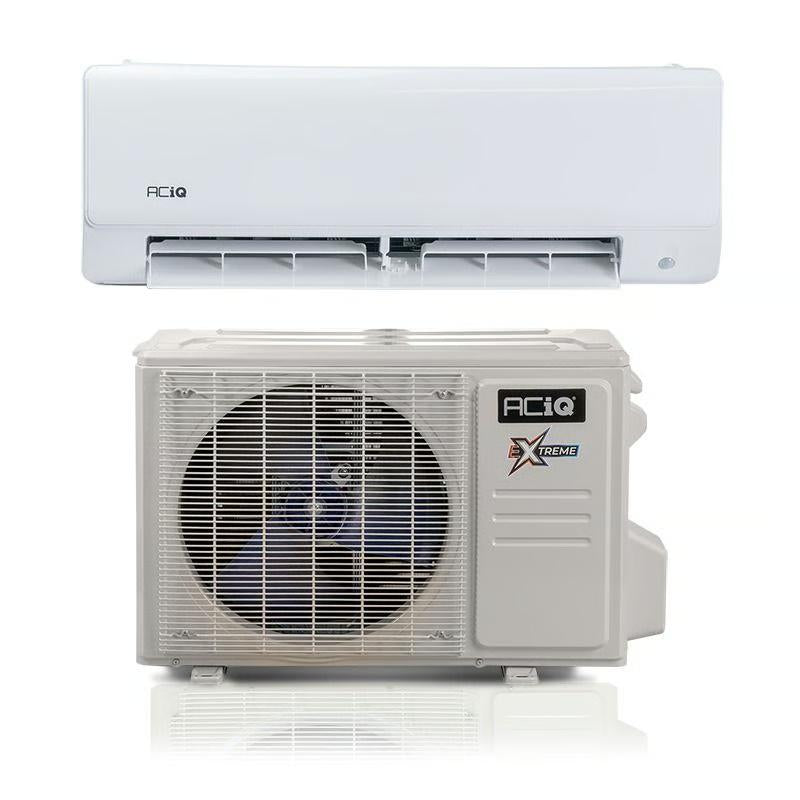

9,000 BTU 28.1 SEER ACiQ Extreme Series Single Zone Wall Mount Mini Split System - WiFi Enabled - R454B
The ACiQ Platinum series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
- Maximum Performance at an Affordable Cost
- Heating & Cooling
- Ductless Solution perfect for a 250-400 sq ft Room
- Efficient Cooling from -22°F - 122°F Outdoor Temperatures
- Efficient Heating from -22°F - 75°F Outdoor Temperatures
- Single Zone/Room Compatible

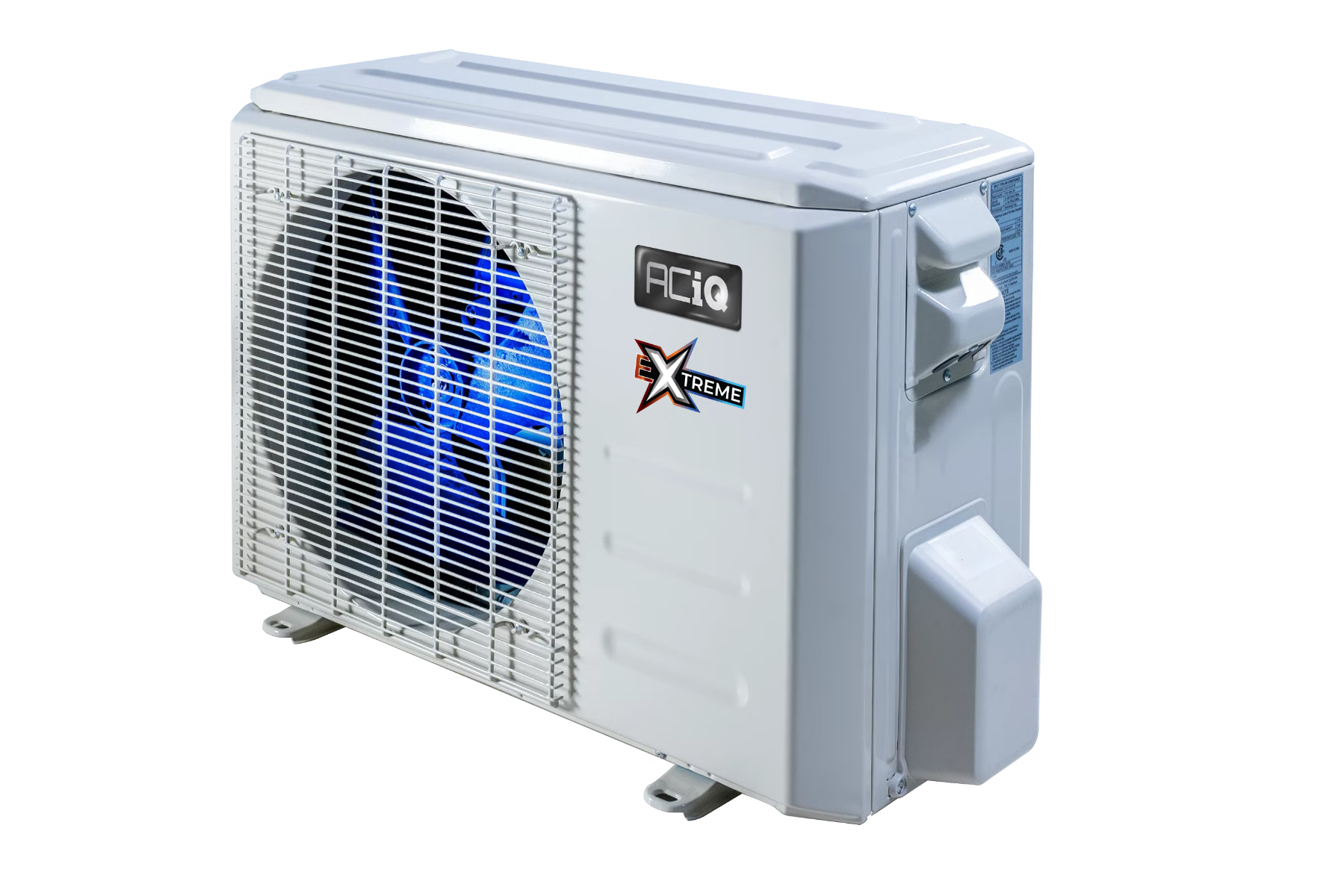

9,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B
Overview
The ACiQ Extreme series features Extreme Heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.
Quick Facts
- Maximum performance at an affordable cost
- Ideal for smaller rooms (depending on climate)
- 9,000 BTU, 27.4 SEER2 wall mounted mini split
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold fin condenser full-protection coating
- Quiet operation at even the highest workloads
9,000 BTU, 27.4 SEER2
The ACIQ-09ZPL-HP230C Condenser, when matched with the ACIQ-09W-HP230B wall mounted air handler, has enough capacity for small to medium rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

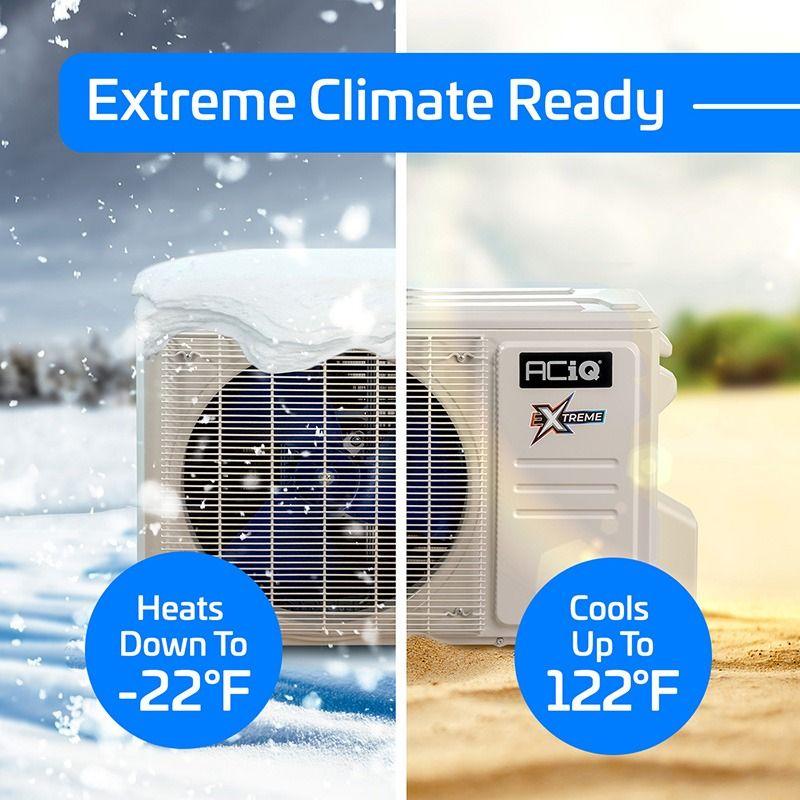

Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

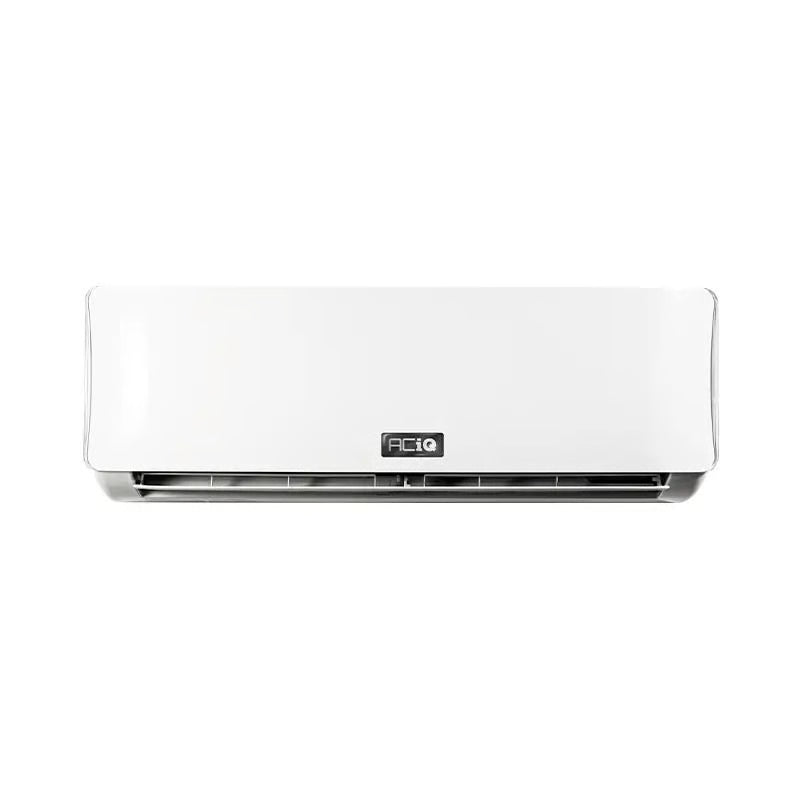

9,000 BTU ACiQ Platinum Multi Zone Air Handler w/ WiFi| R454B
Platinum Performance
ACiQ Platinum air handlers can be used with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 9,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa

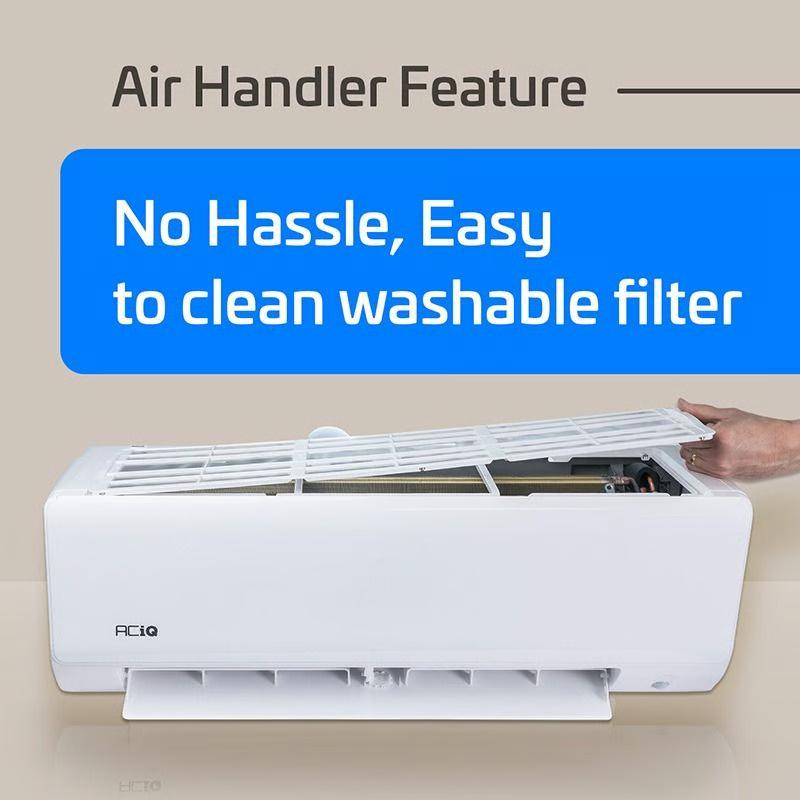

- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACiQ-09W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Wall Mounted
Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.

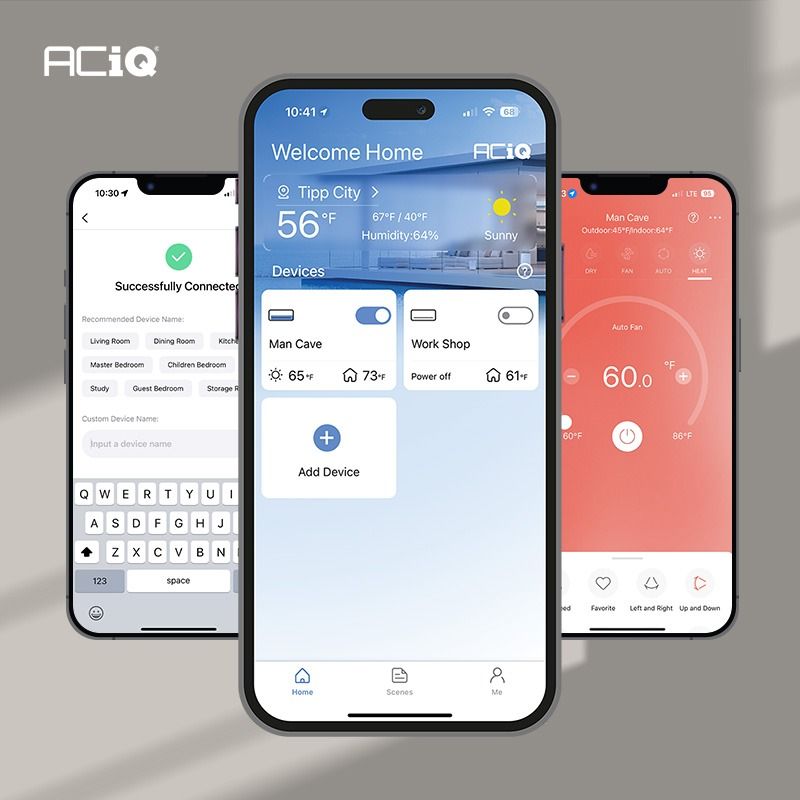

Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
What's Included:
- 1x 9,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B
- 1x 9,000 BTU ACiQ Platinum Multi Zone Air Handler w/ WiFi | R454B

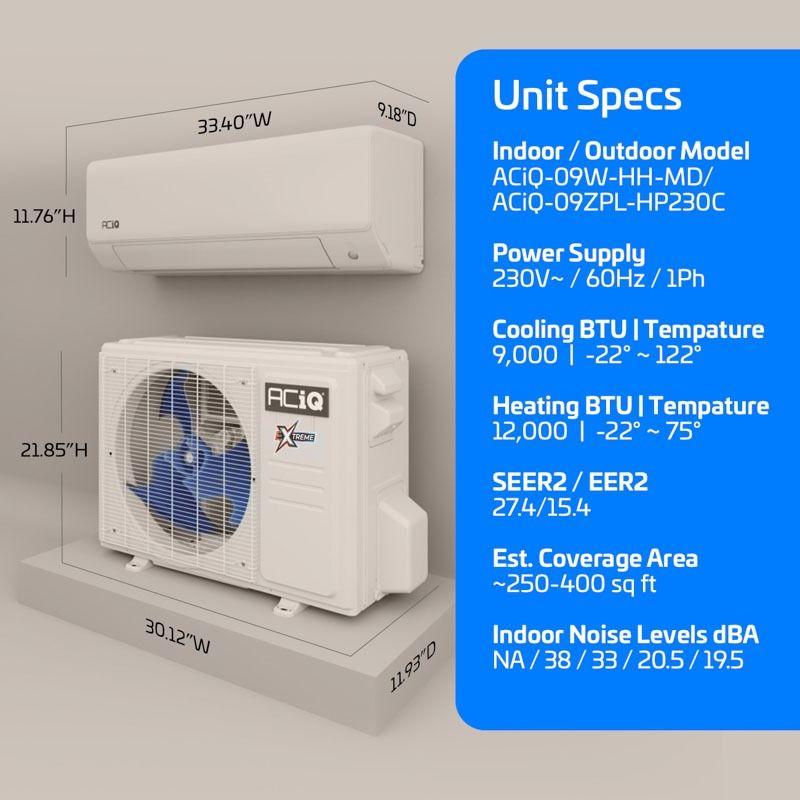

Condenser Specifications:
| SKU | ACIQ-09ZPL-HP230C |
| Weight | 78.700000 |
| AHRI Certificate Number | 210857315 |
| Manufacturer | ACiQ |
| Product Features | Low Ambient Heating |
| HSPF2 | 12.5 |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 1470.6 |
| Decibel Level (dBA) | 56 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 27.4 |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| Tonnage | 0.75 Ton |
| Min/Max Outdoor Temp for Heating | -22~75 F / -30~24 C |
| Min/Max Outdoor Temp for Cooling | -22~122 F / -30~50 C |
| Zone Compatibility | Single Zone |
| Operating Mode | Heating/Cooling |
| Certification | Energy Star, NEEP, UL AHRI |
| Height | 21.81" |
| Width | 31.69" |
| Depth | 12.99" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU | ACIQ-09W-HH-MD |
| Weight | 22.700000 |
| Manufacturer | ACiQ |
| Product Features | WiFi |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | Up to 441.4 CFM |
| Decibel Level (dBA) | Up to 47 Decibels |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.76" |
| Width | 33.4" |
| Depth | 9.18" |
| Warranty | 7 Years Parts with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
