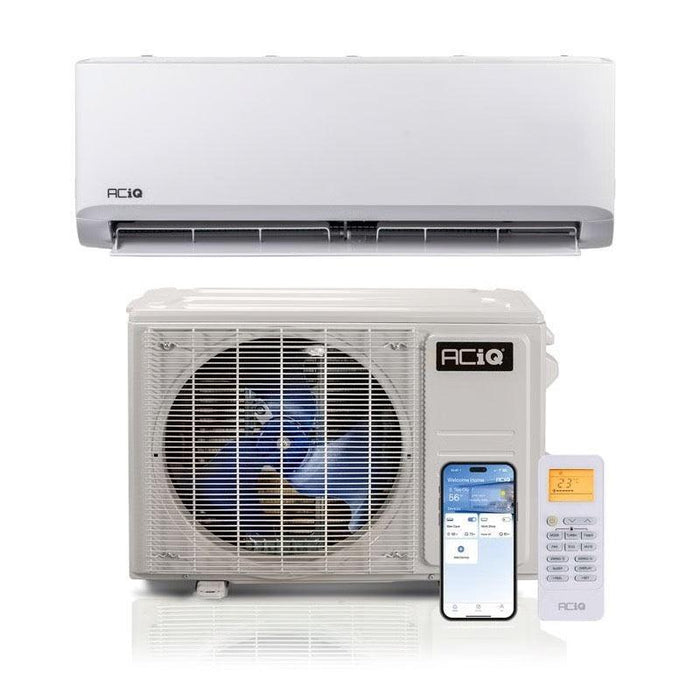

12,000 BTU ACIQ 21.3 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
ACIQ's mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
Product Features
- Intelligent Comfort at an Affordable Cost
- Heating & Cooling
- Ductless Solution
- Perfect for a 400-600 sq ft Room
- Single Zone/Room Compatible
- 12-Year Compressor & 7-Year Parts Warranty

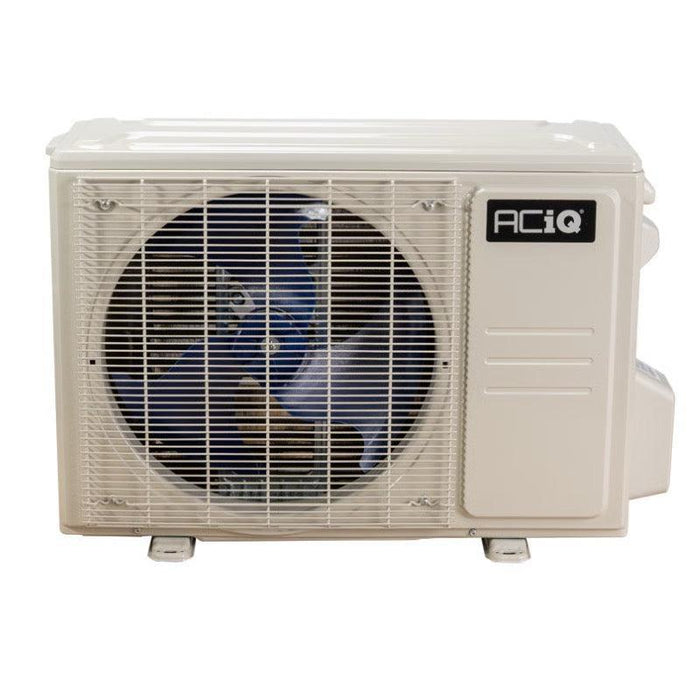

12,000 BTU ACIQ Single Zone Mini Split Heat Pump Condenser - R454B | 230V
Overview
The ACIQ Single Zone series ACIQ-12Z-HP230C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-12Z-HP230C uses as little power as possible without sacrificing comfort. That's why we say that ACIQ brings intelligence to your heating and cooling needs. NEW REFRIGERANT: R454B Model.
Quick Facts
- Intelligent comfort at an affordable cost
- Ideal for up to a small room (depending on climate)
- 12,000 BTU, 21.3 SEER2 wall mounted mini split
- Efficient cooling from 5 F to 122 F outdoor temperatures
- Efficient heating from 5 F to 86 F outdoor temperatures
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
12,000 BTU, 21.3 SEER2
At a rated capacity of 12,000 BTU, the output of the ACIQ-12Z-HP230C when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-12Z-HP230C has an efficiency of 21.3 SEER2. With this system efficiency, the unit can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Quality Construction
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

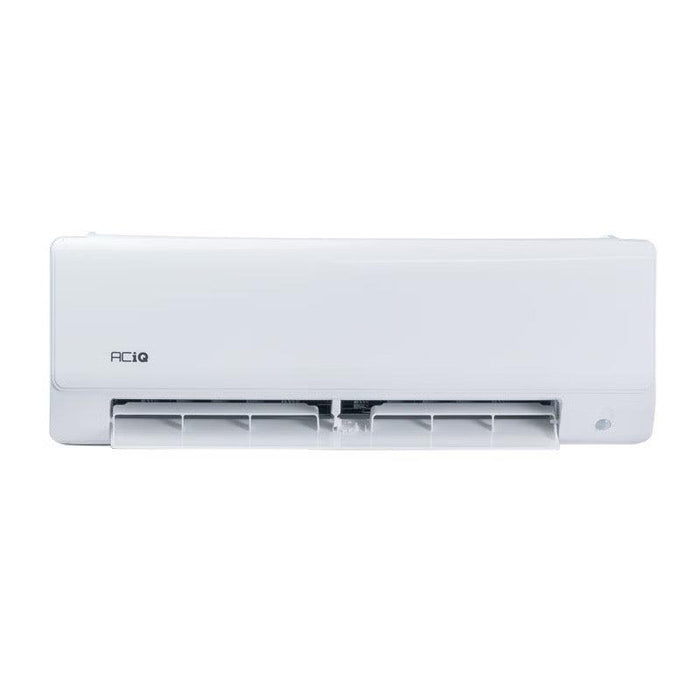

12,000 BTU ACIQ Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
Enhanced Comfort
ACIQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACIQ-12W-HP230C single zone air handler is built for small to mid-sized rooms, using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change throughout the day and night. NEW REFRIGERANT: R454B Model.
- Ideal for covering a small to mid-sized room in optimal conditions
- 12,000 BTU wall-mounted air handler with remote
- Intelligent comfort at an affordable cost
Intelligent Heating and Cooling
The ACIQ-12W-HP230C air handler comes with a soft LED display on the front of the unit, giving you information at a glance. The display shows the room temperature by default, but can also indicate setpoint changes and mode updates. For dependable operation over its lifetime, the display will also show error codes from its self-diagnosing control board. The display can be turned off if preferred, and the included smart remote features a built-in LCD display to show these updates as well.
WiFi Options
ACIQ is WiFi ready! This wall-mounted air handler includes everything you need to control your home's heating and cooling through a smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note: This air handler requires installation with a compatible condenser and additional installation equipment, available separately if not already included in your product bundle.
Wall Mounted
Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Condenser Specifications:
| SKU |
ACIQ-12Z-HP230C |
| Refrigerant Charge | 24.6 ft |
| Weight |
64.370000 |
| AHRI Certificate Number | 216980868 |
| Manufacturer | ACiQ |
| HSPF2 |
9.1 |
| Cooling BTU |
12,000 BTU |
| Heating BTU |
12,000 BTU |
| Maximum CFM |
1235.3 CFM |
| Decibel Level (dBA) |
54.0 dBA |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 |
21.3 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
13.0 Amps |
| BTU/Tonnage |
12,000 BTU/1 Ton |
| Mini Split Type |
Wall Mounted |
| Zone Compatibility | Single Zone |
| Height |
21.85" |
| Width |
30.12" |
| Depth |
11.93" |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU |
ACIQ-12W-HP230C |
| Refrigerant Charge | 24.6 ft |
| Weight |
25.130000 |
| Manufacturer | ACiQ |
| HSPF2 |
9.1 |
| Cooling BTU |
12,000 BTU |
| Heating BTU |
12,000 BTU |
| Decibel Level (dBA) |
21 dBA |
| Refrigerant | R454B |
| SEER2 | 21.3 |
| Liquid Line | 1/4" |
| Suction Line |
3/8" |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage |
12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Height |
11.69" |
| Width |
31.57" |
| Depth |
7.44" |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
