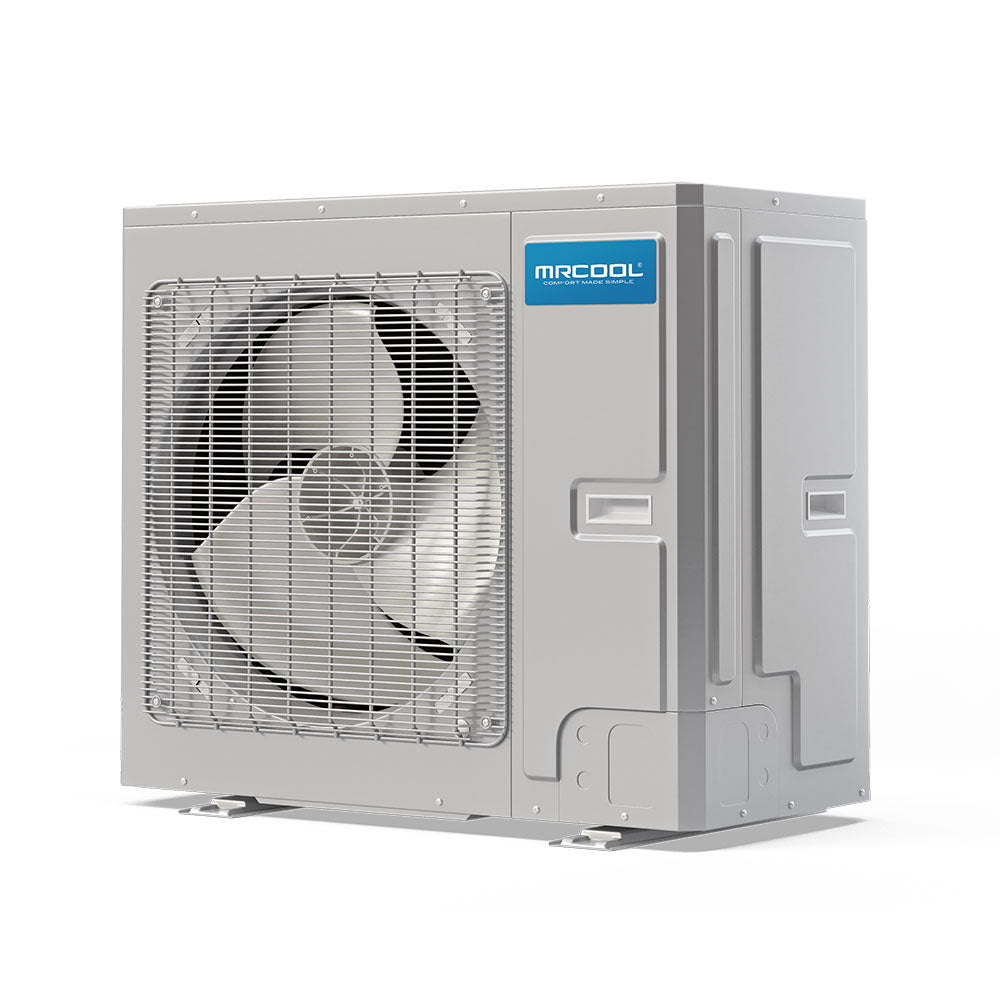

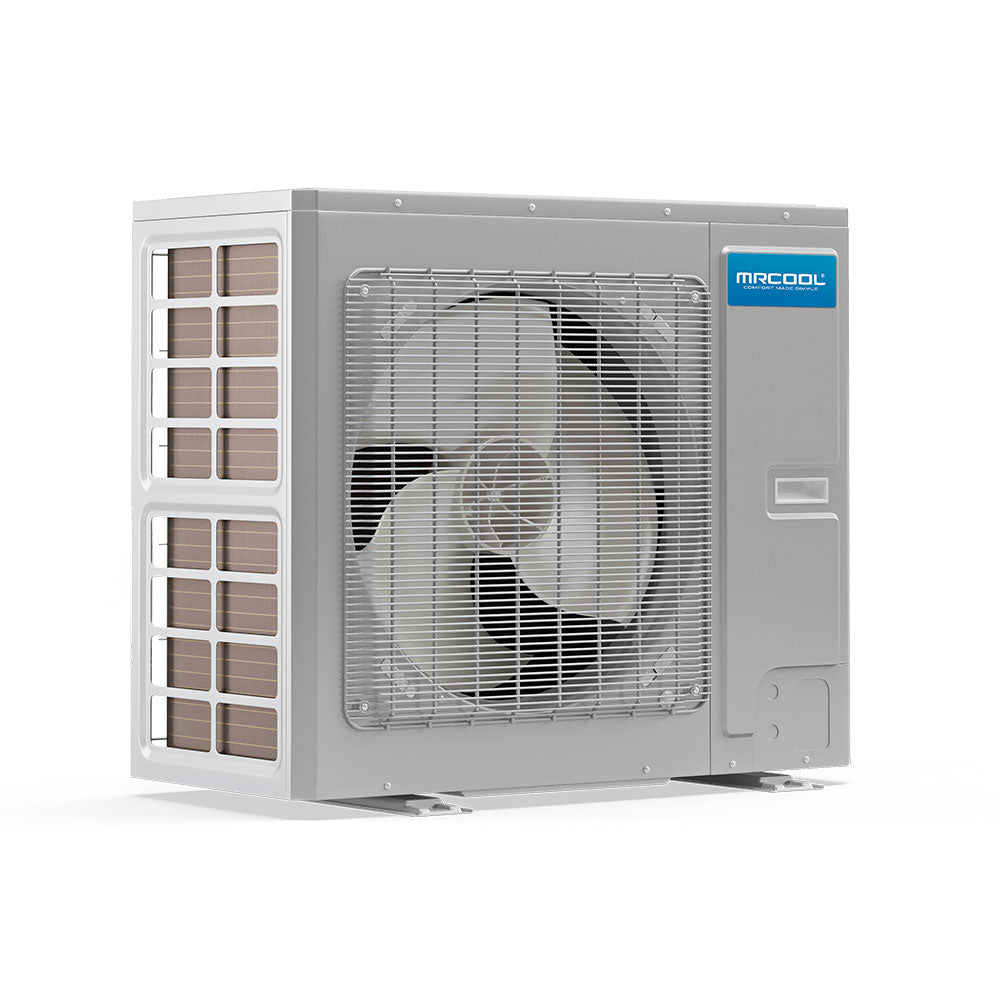

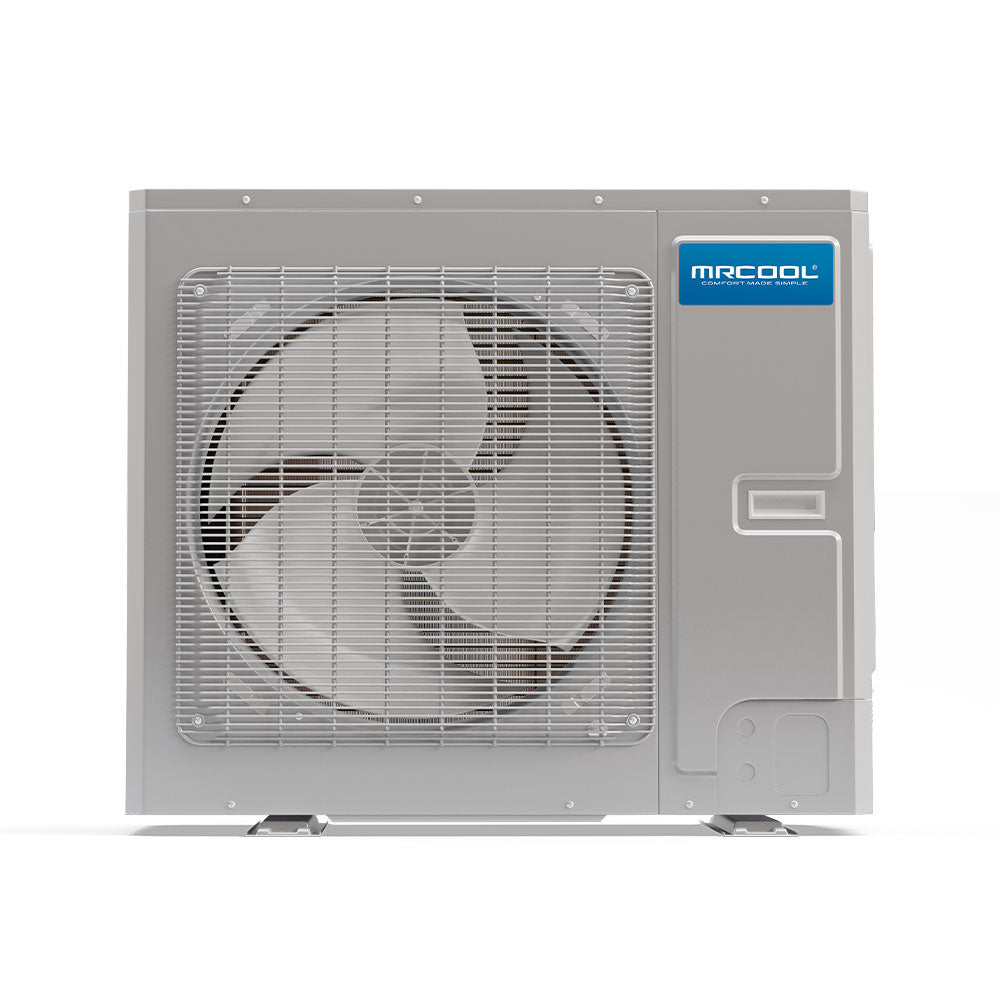

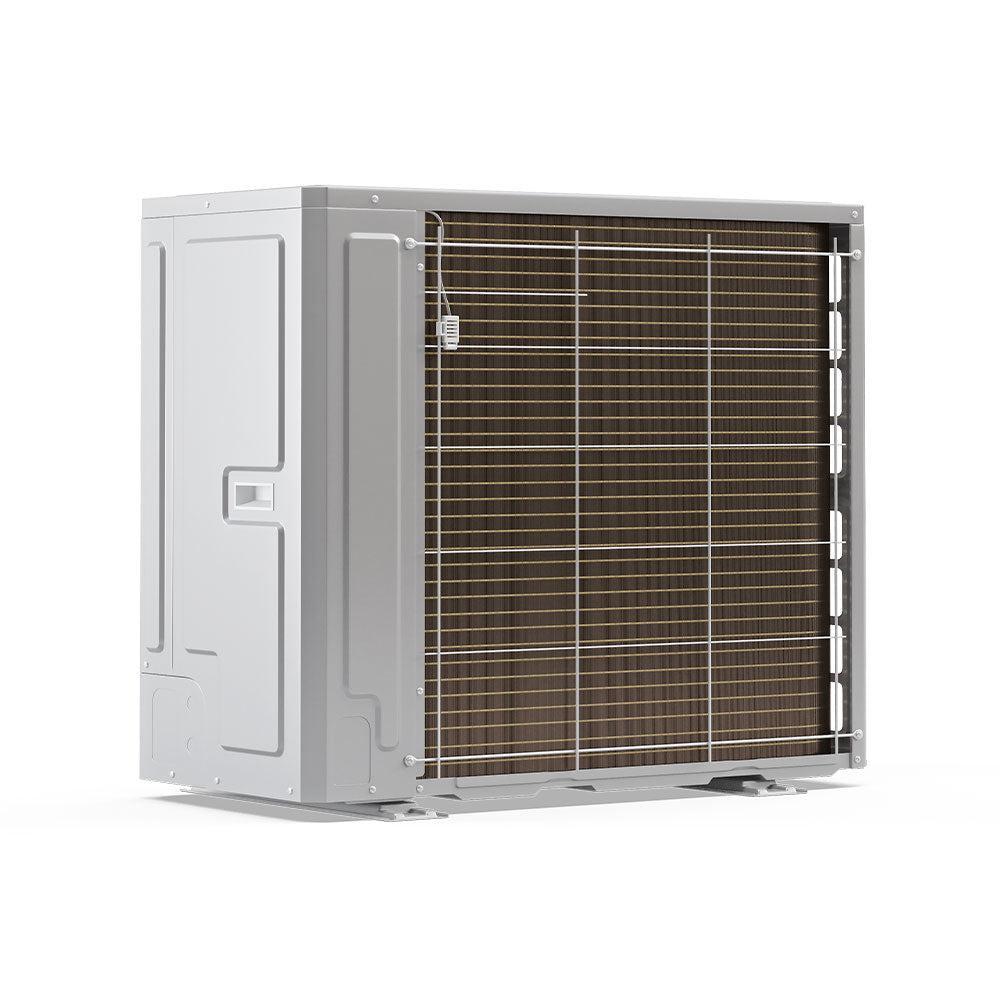

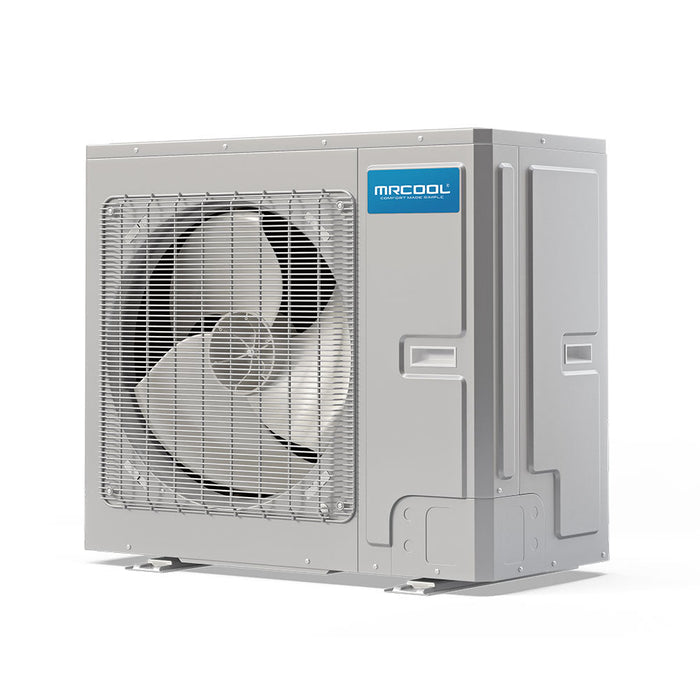

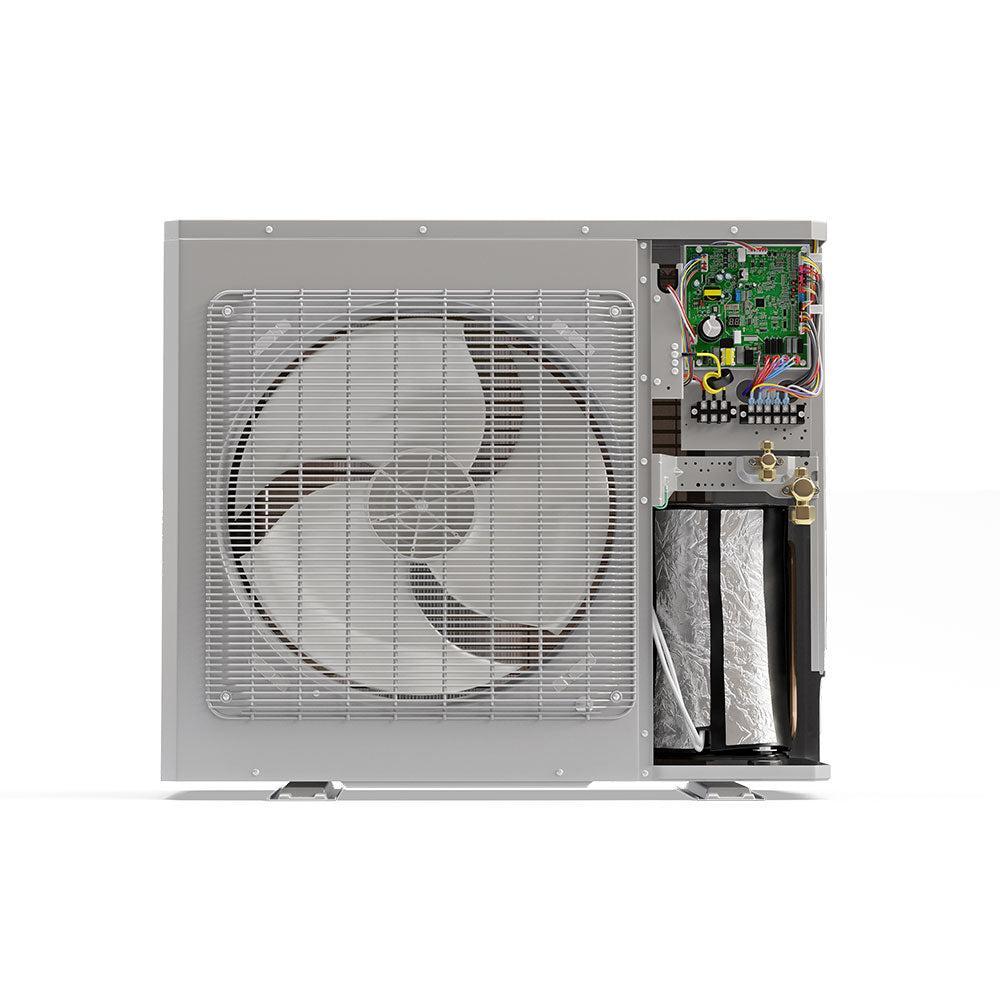

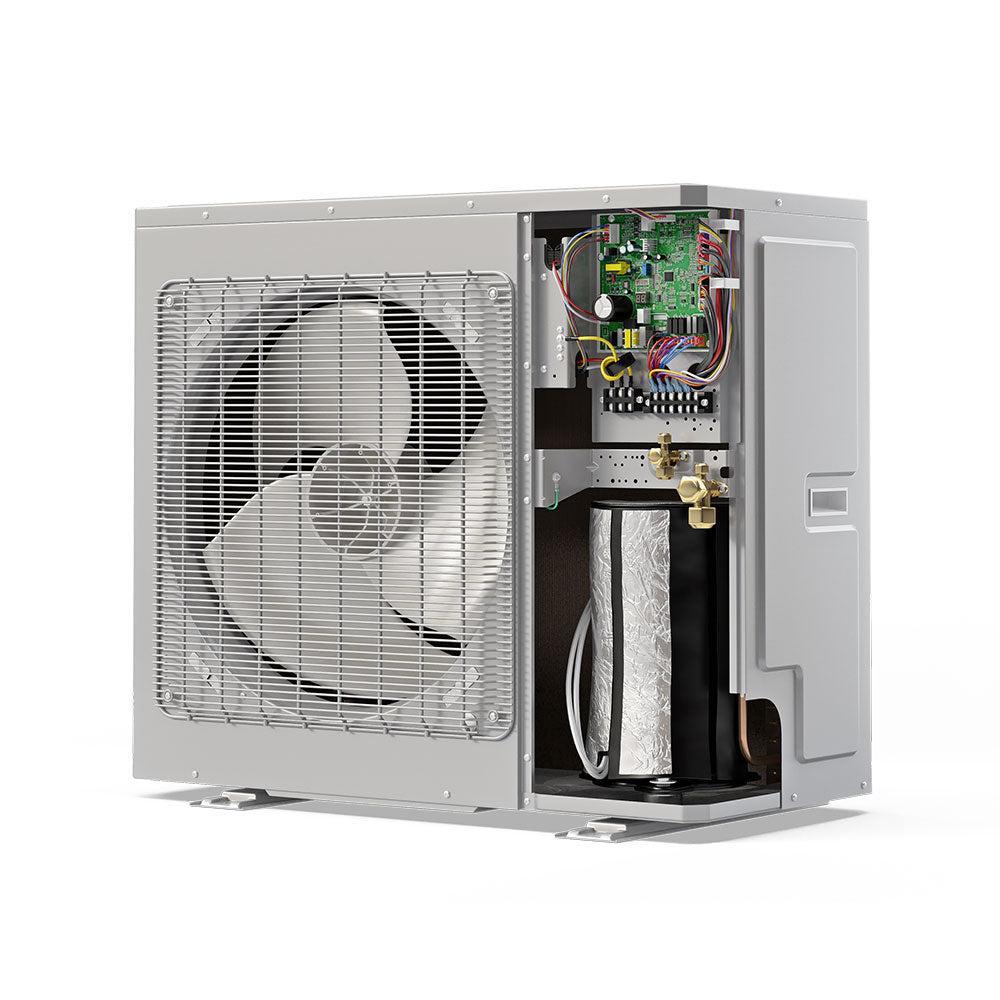

2 to 3 Ton 20 SEER MRCOOL® Universal Central Air Conditioner Condenser - MDUCO18024036
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 20 SEER rating.
Features:
- Up to 20 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Multiple Connection Types: Pre-Charged No-Vac Quick Connect Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty
Specifications:
| BRAND | MRCOOL |
| MODEL | MDUCO18024036 |
| UPC | 810063867485 |
| SERIES | Universal Series 2 / 3 Ton Cooling Only Condenser |
| UNIT TYPE | Universal Series AC |
| SEER | 2 Ton Mode: 20 SEER, 3 Ton Mode: 18 SEER |
| SEER2 |
2 Ton Mode: Up to 17 SEER, 3 Ton Mode: Up to 16 SEER |
| EER | 2 Ton Mode: 12.5, 3 Ton Mode: 12.2 |
| EER2 | 2 Ton Mode: 12, 3 Ton Mode: 10 |
| CFM | 2 Ton Mode: 3000, 3 Ton Mode: 3470 |
| TONNAGE | 2-3 |
|
COOLING CAPACITY (BTU) |
2 Ton Mode: 24000 BTU, 3 Ton Mode: 36000 BTU |
|
VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
|
MAX FUSE BREAKER (A) |
35 |
|
MIN CIRCUIT AMPACITY (A) |
24 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
118.24 |
|
DECIBEL RATING (DBA) |
2 Ton Mode: 55 DBA, 3 Ton Mode: 57 DBA |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
| ETL LISTED |
Yes |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10 Year Limited Warranty |
|
CONTAINS CHEMICALS |
Yes |
|
NET DEPTH (IN) |
18.13 |
|
NET HEIGHT (IN) |
32.25 |
|
NET WIDTH (IN) |
37.00 |
|
NET WEIGHT (LBS) |
185.20 |
|
GROSS DEPTH (IN) |
22.63 |
|
GROSS HEIGHT (IN) |
38.25 |
|
GROSS WIDTH (IN) |
42.63 |
|
GROSS WEIGHT (LBS) |
208 |
