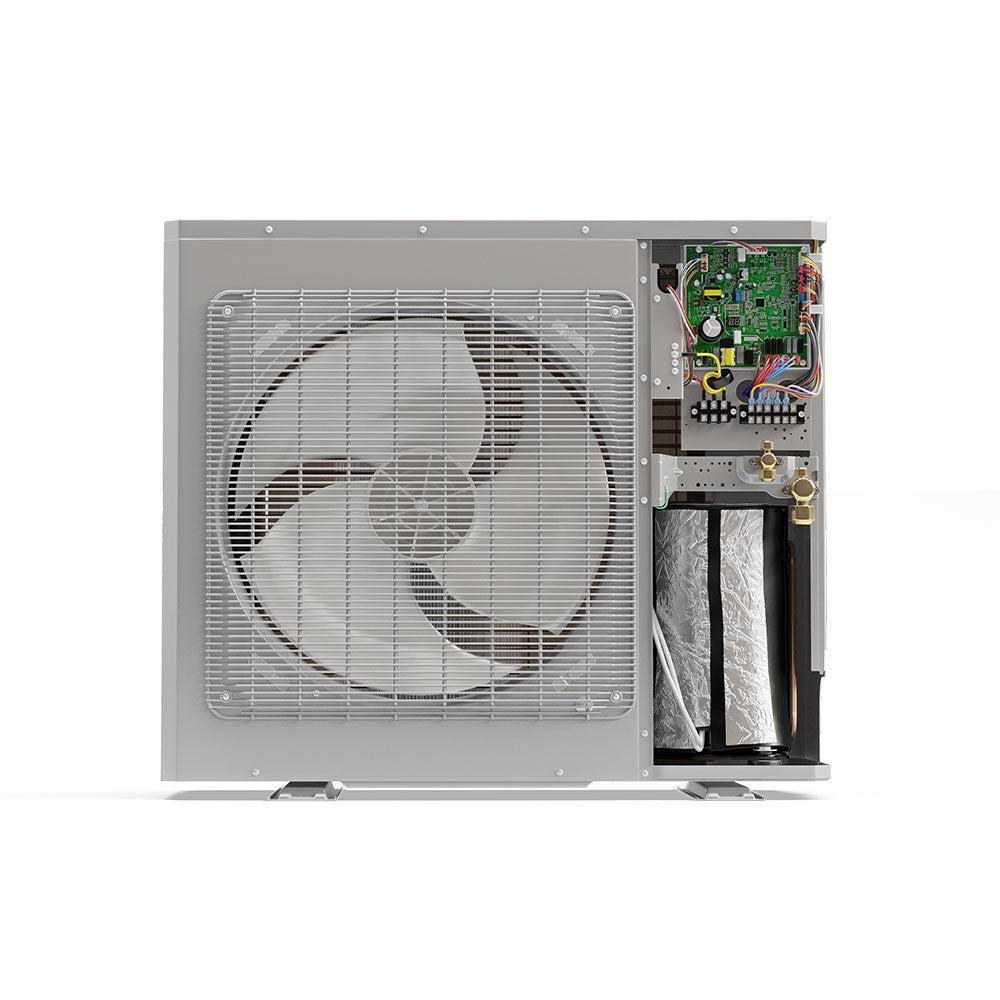

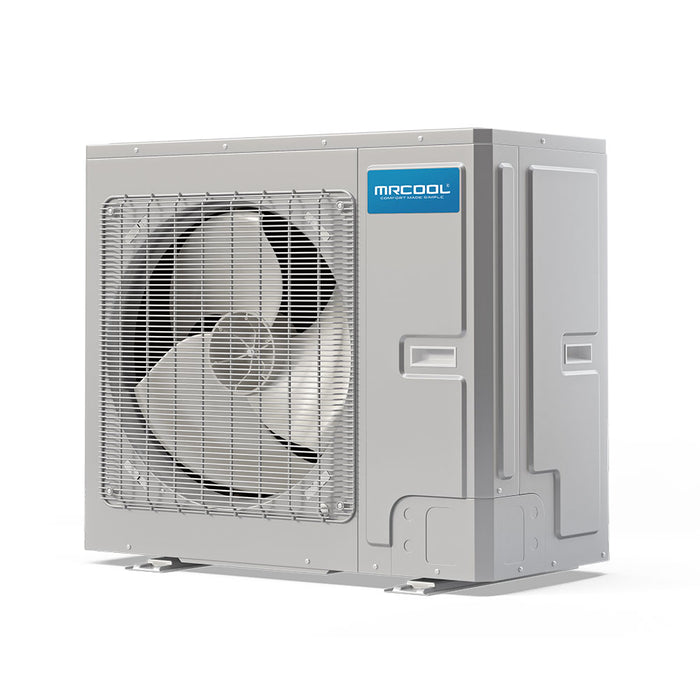

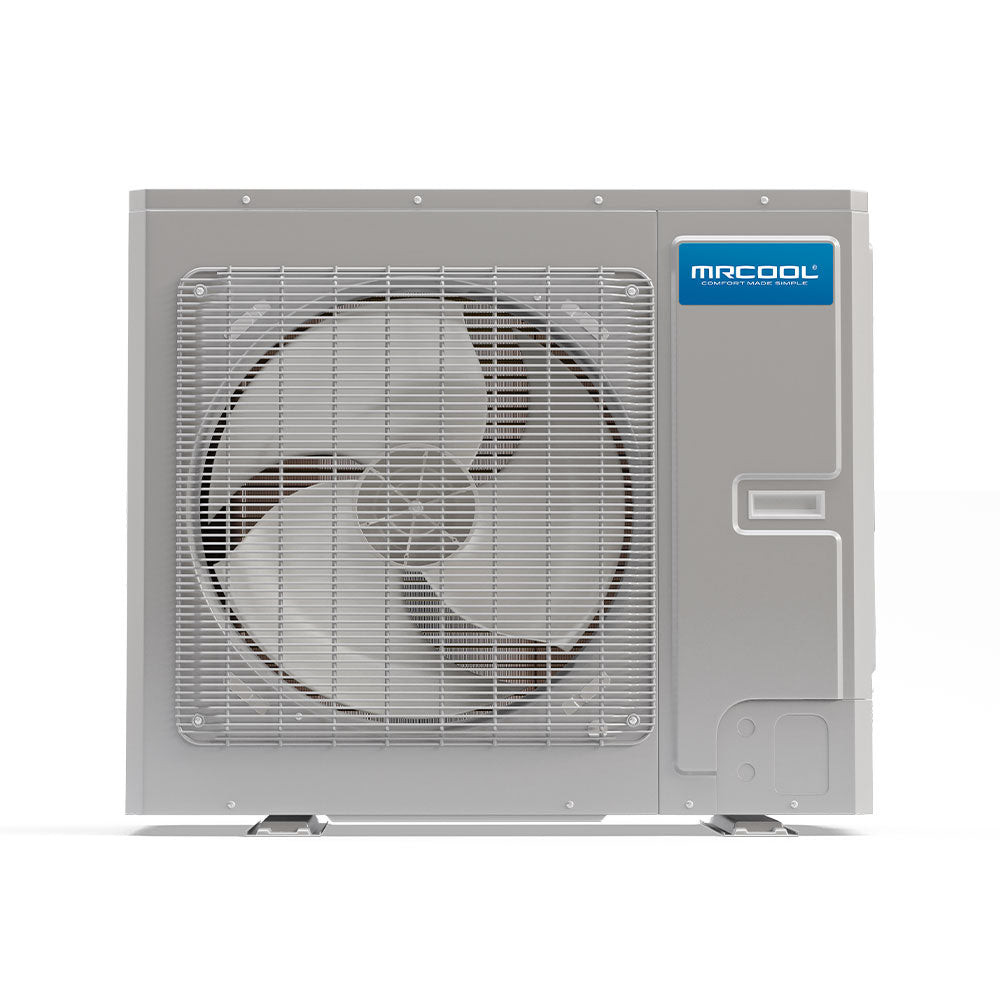

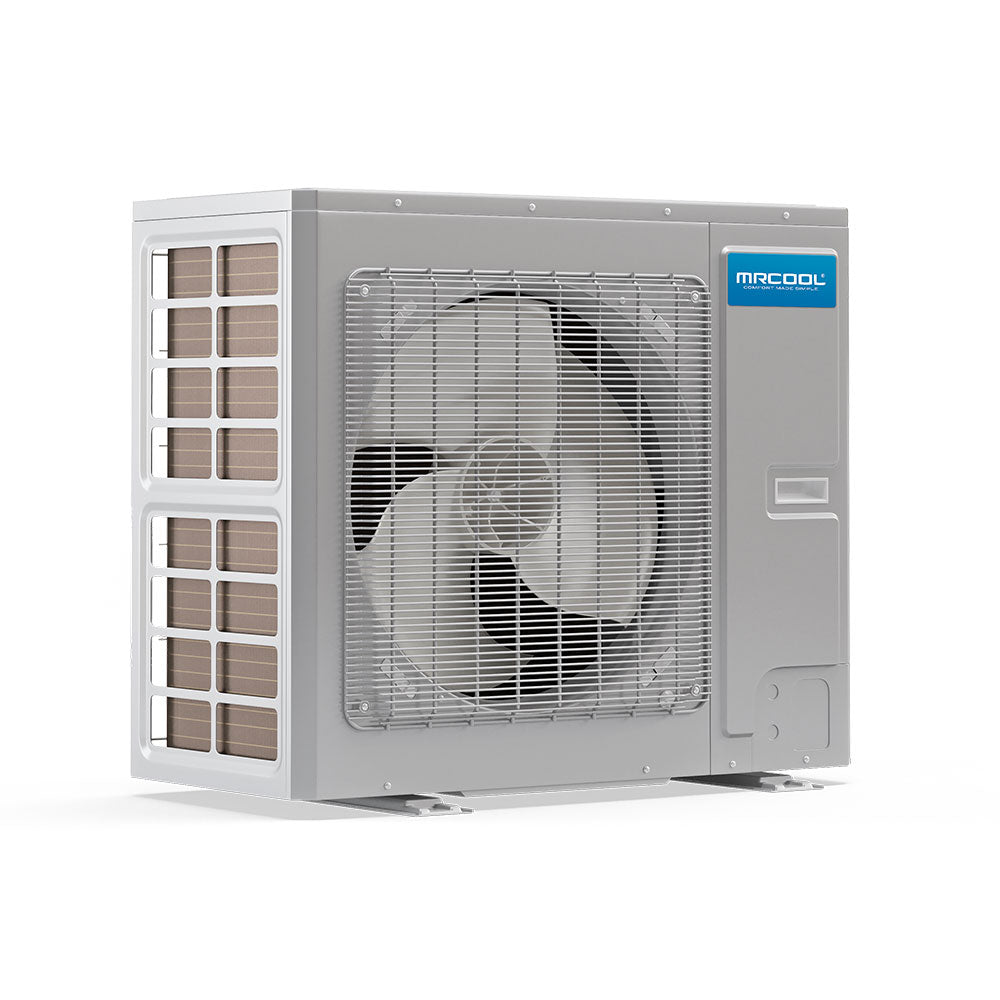

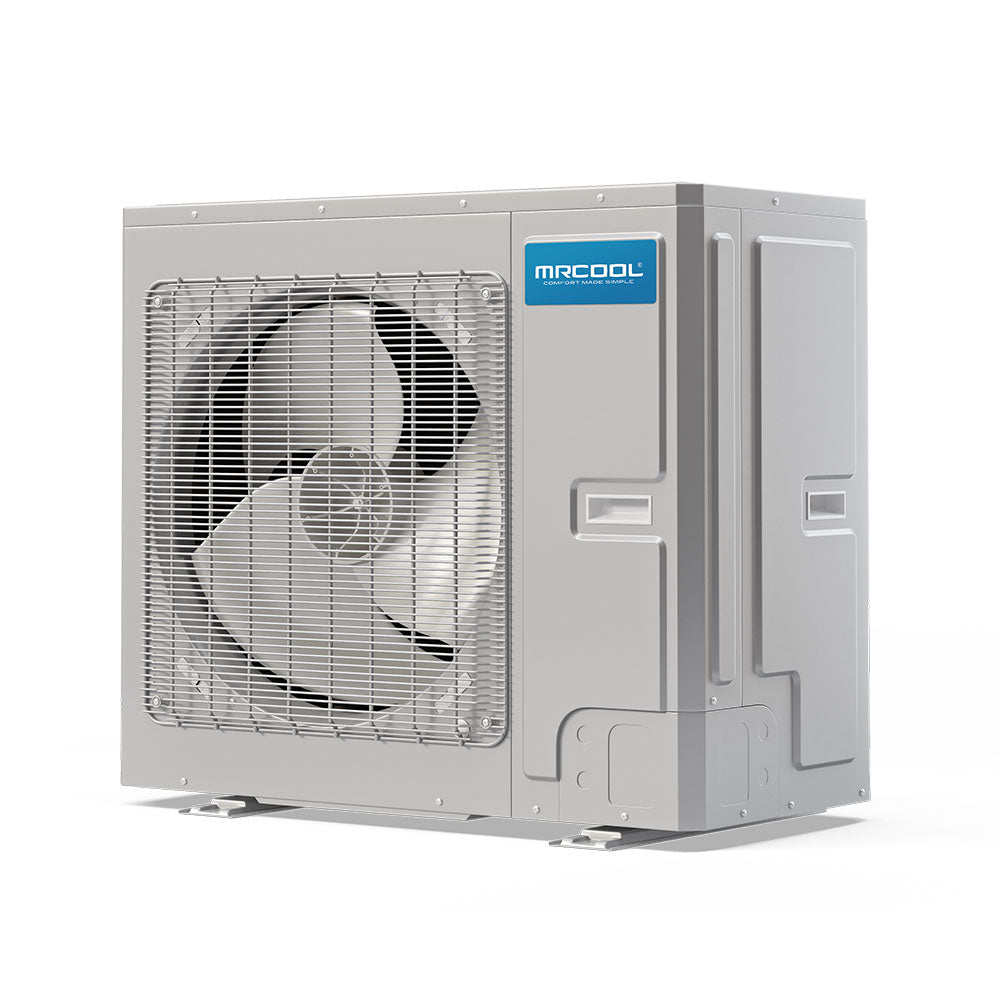

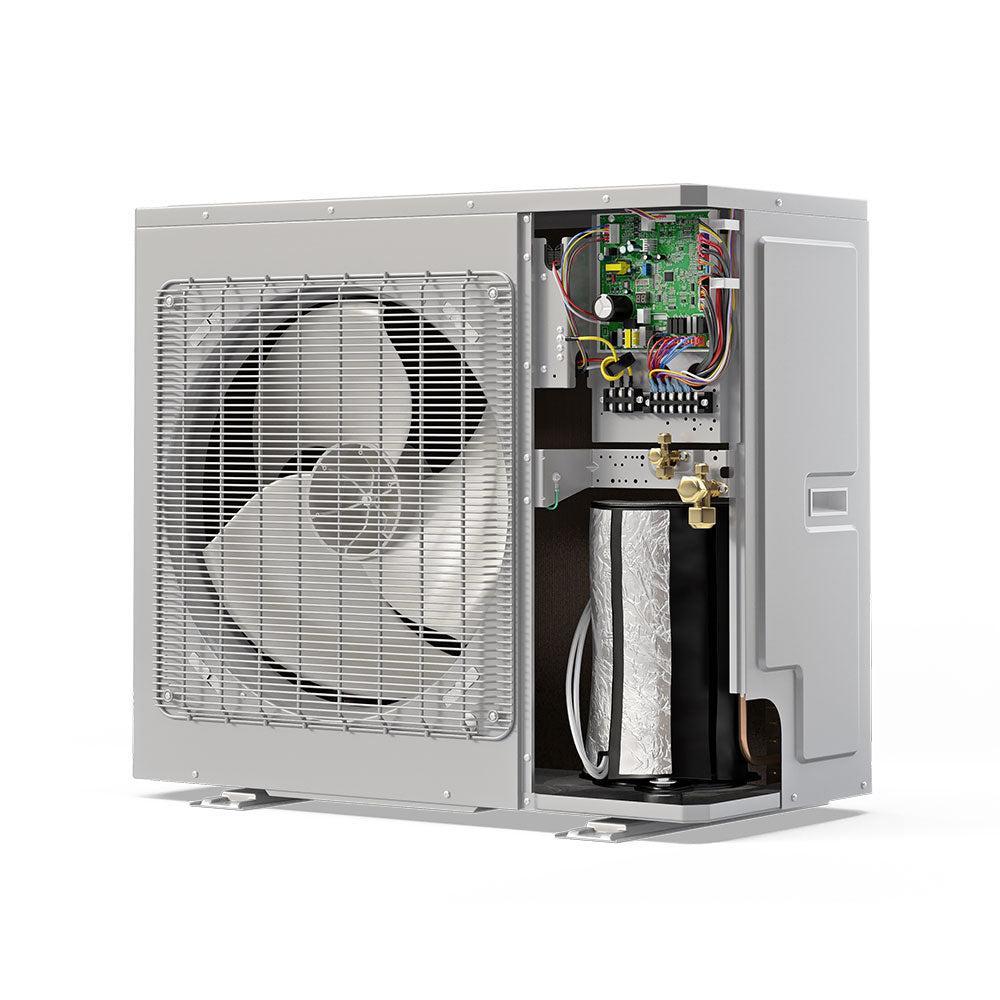

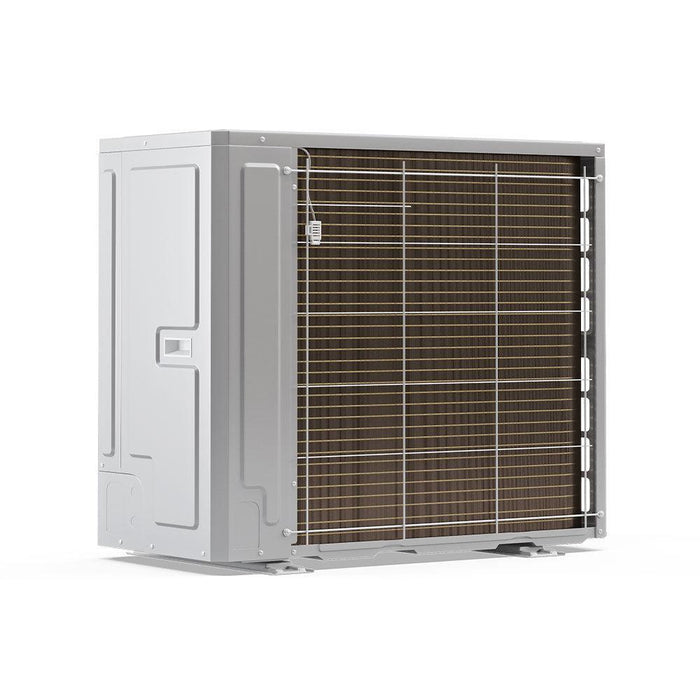

2 to 3 Ton 20 SEER MRCOOL® Universal Central Heat Pump Condenser - MDUO18024036
The MRCOOL® Universal Condenser 2 to 3 Ton 20 SEER R410A 24,000-36,000 BTU 208-230V/1Ph/60Hz (MDUO18024036) is a cutting edge HVAC technology from a leader of innovation. The MRCOOL MDUO18024036 works quietly, seamlessly fitting into your life without noisy interruptions, to provide both cooling and heating. Using a DC inverter, it has a strong heating capacity that continues to operate at low ambient temperatures. Expect stable operation and heating performance with ambient temperatures as low as -22°F! This model has a covered capacity range from 24,000 to 36,000 BTUs, has an 80 percent output at -4°F, and virtually eliminates the need for a gas furnace or an expensive auxiliary electric heat strip. This unit relies on 24V non-communication control technology between the condenser and evaporator that matches with third-party 24V air handlers and thermostats. So if what you need is a replacement condenser for your existing central air system, the MRCOOL MDUO18024036 Condenser fits the bill.
Please Note: This product only includes a condenser. Click here for our complete central HVAC systems.
Features:
- Up to 20 SEER
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Two models 36K/60K, heat pump, to cover 24K-60K capacity range
- Slim design allows more storage for warehouse inventory
- Compatible with any third party air handler and thermostat including WiFi/Nest
- Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Maximum savings while running
- Factory Charged
- ETL and AHRI certified
Specifications:
| BRAND | MRCOOL |
| MODEL | MDUO18024036 |
| SERIES | Universal Series 2 / 3 Ton Condenser |
| SEER | 2 Ton Mode: 20 SEER, 3 Ton Mode: 18 SEER |
| SEER2 |
17 |
| MAX SEER |
20 |
| EER | 12.5 |
| EER2 | 12 |
| HSPF | 10.5 |
| HSPF2 | 9 |
| CFM | 3470 |
| TONNAGE | 2 - 3 Ton |
|
COOLING CAPACITY |
24000 - 36000 BTU |
|
HEATING CAPACITY |
24000 - 36000 BTU |
|
VOLTAGE |
208/230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
35 A |
|
MIN CIRCUIT AMPACITY |
24 A |
| COLOR | Gray |
|
COLOR FAMILY |
Gray |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
148.8 oz |
|
DECIBEL RATING |
57 dBA |
| INVERTER | DC |
|
MIN AMBIENT COOL |
5F - 129.2F |
|
MIN AMBIENT HEAT |
-22 F - 75.2F |
| LINESET INCLUDED |
No |
| LINE SET LENGTH |
15ft, 25ft, 35ft, 50ft |
|
MAX LINESET LENGTH |
164 FT / 5 |
| LINESET FITTING TYPE |
Pre-Flared/Sweat & Quick Connect |
|
LIQUID LINE SIZE |
3/8 in |
|
SUCTION LINE SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Inverter Rotary |
| CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR RPM |
820 |
| METERING DEVICE |
EEV |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
Yes |
| LEED CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10 Year Registered Limited Warranty |
|
BASE WARRANTY |
5 Year Limited Parts Warranty |
|
BASE PARTS WARRANTY |
5 year limited extended parts warranty |
| HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
|
NET DEPTH |
18-1/8 in |
|
NET HEIGHT |
32-1/4 in |
|
NET WIDTH |
37 in |
|
NET WEIGHT |
217.2 lbs |
|
GROSS DEPTH |
22-5/8 in |
|
GROSS HEIGHT |
38-1/4 in |
|
GROSS WIDTH |
42-5/8 in |
|
GROSS WEIGHT |
240.3 lbs |
| FREIGHT CLASS |
92.5 |
