24,000 BTU 23 SEER ACiQ Single Zone Ceiling Cassette Mini Split System | Extreme Series
The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.
- Maximum Performance at an Affordable Cost
- Heating & Cooling
- Ductless Solution perfect for 250-400 sq ft Room
- Efficient Cooling from -22°F - 122°F Outdoor Temperatures
- Efficient Heating from -22°F - 75°F Outdoor Temperatures
- Single Zone/Room Compatible

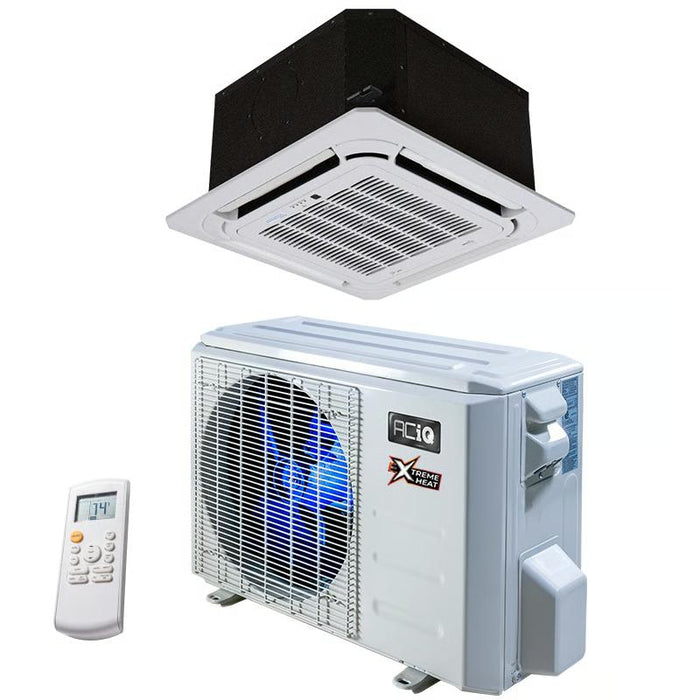

What's Included:

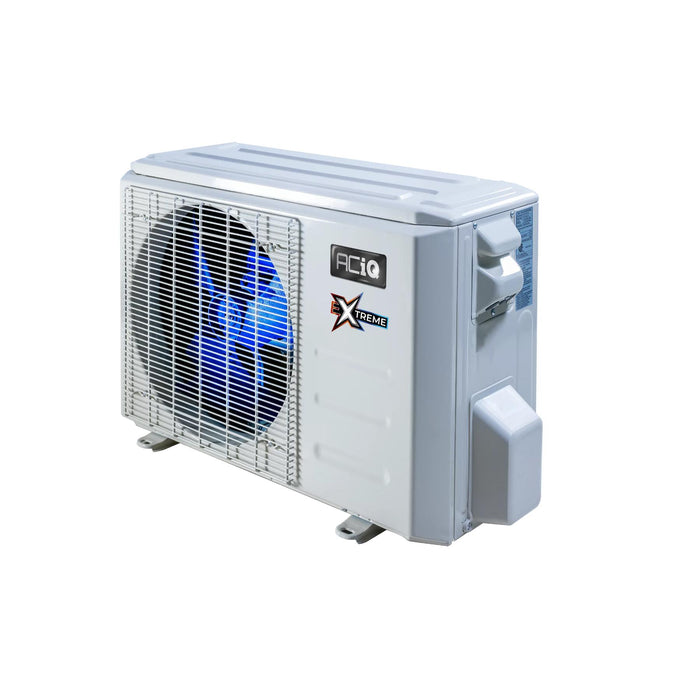

- 1x 24,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B

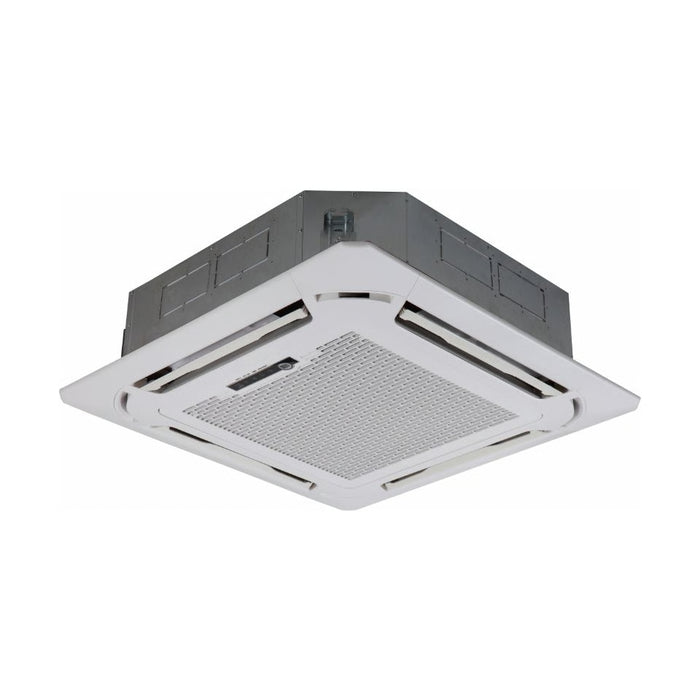

- 1x 24,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler| R454B
Condenser Specifications:
| SKU | ACIQ-24ZPL-HP230C |
| Weight |
141.310000 |
| AHRI Certificate Number | 207825544 |
| Manufacturer | ACiQ |
| Product Features | Low Ambient Heating |
| HSPF2 | 13.5 |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 29,000 BTU |
| Decibel Level (dBA) | 61.5 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 |
21 |
| Electrical | 208/230V | 1 Phase | 60 Hz |
| Max Breaker Size |
35A |
| Min. Breaker Size |
25A |
| Tonnage |
2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | -22~75 F / -30~24 C |
| Min/Max Outdoor Temp for Cooling | -22~122 F / -30~50 C |
| Zone Compatibility | Single Zone |
| Operating Mode | Heating/Cooling |
| Certification | Energy Star, NEEP, UL AHRI |
| Height |
31.89" |
| Width |
37.24" |
| Depth |
16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specifications:
| SKU | ACIQ-24CC-HH-MC |
| Weight | 59.080000 |
| Manufacturer | ACiQ |
| Controller | Wireless Included |
| Product Features | WiFi |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum CFM | 765.2 |
| Decibel Level (dBA) | As low as 33.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 | 20 |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini-Split Type | Ceiling Cassette |
| Zone Compatibility | Single Zone, Multi Zone |
| Height | 8.07" |
| Width | 32.68" |
| Depth | 32.68" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
