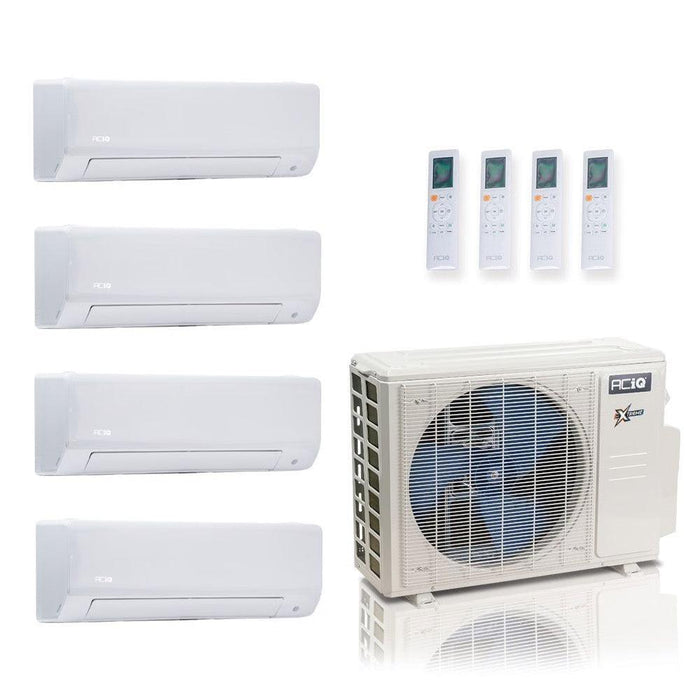

27,000 BTU ACIQ Extreme 23 SEER2 Quad Zone Wall Mount Mini Split Heat Pump System - R454B | 230V - 6 + 6 + 6 + 9
This ACIQ 4-Zone Extreme Series System offers maximum efficiency and is built for the most extreme hot or cold climates. ACiQ-27Z-HH-M4C / ACIQ-06W-HH-MD-3 / ACIQ-09W-HH-MD is the perfect solution for year-round heating and cooling in up to 4 spaces.
27,000 BTU ACIQ Extreme Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
Overview
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-27z-HH-M4C, you can have up to 4 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
Quick Facts
- 27,000 BTU, 23 SEER multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
27,000 BTU, 23 SEER
The 27,000 BTU, ACIQ-27z-HH-M4C is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 33,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 23 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Installation and Maintenance
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

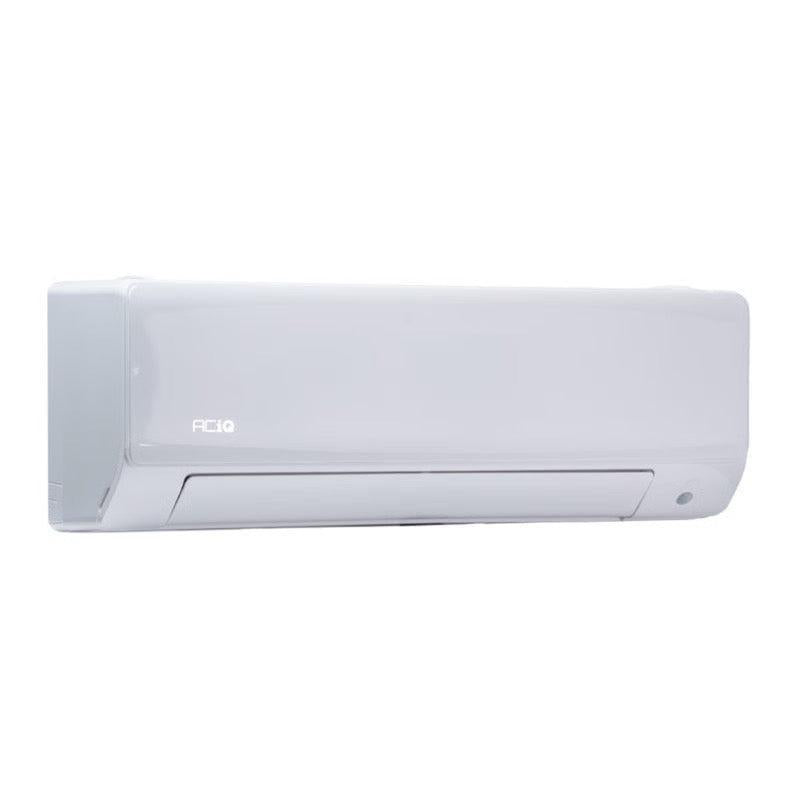

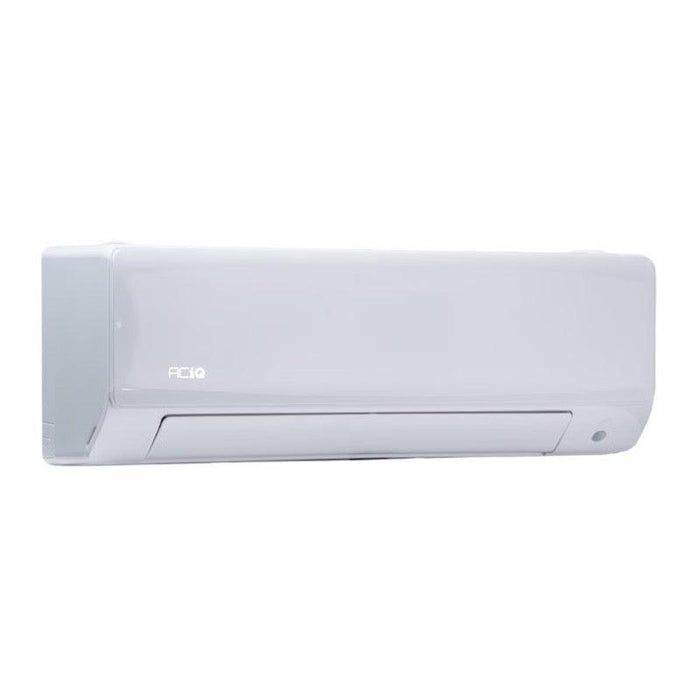

6,000 BTU ACIQ Platinum Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V
Platinum Performance
ACIQ Platinum air handlers can be used with any ACIQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 6,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-06W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Wall Mounted
Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.
Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
9,000 BTU ACIQ Platinum Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V
Platinum Performance
ACIQ Platinum air handlers can be used with any ACIQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.
Features
- 9,000 BTU wall mounted air handler with included remote control
- WiFi capable using free Net Home Plus app, Google Home, or Alexa
- Easy Maintenance and Installation
- Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
- Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode
Intelligent Heating and Cooling
The ACIQ-09W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.
WiFi Options
ACIQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACIQ is also compatible with Amazon Alexa and Google Assistant.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Wall Mounted
Traditional wall-mounted air handlers are the most popular ductless choice due to low cost and ease of installation. Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration. Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver. Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.
Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Condenser Specifications:
| SKU |
ACIQ-27Z-HH-M4C |
| Refrigerant Charge |
120.63 oz. |
| Weight |
179.670000 |
| AHRI Certificate Number |
216032364 |
| Manufacturer | ACiQ |
| Replaces |
ACIQ-27Z-HH-M3B |
| Product Features | Low Ambient Heating |
| HSPF2 | 10.5 |
| Cooling BTU | 27000 BTU |
| Heating BTU | 27000 BTU |
| Maximum CFM | 2148 |
| Decibel Level (dBA) | 61 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 23 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" (4) |
| Suction Line | 3/8" (3); 1/2" (1) |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size |
35A |
| Min. Breaker Size |
30A |
| Tonnage | 2 Ton to 2.5 Ton |
| BTU/Tonnage |
24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -22 ~ 122 |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
6,000 BTU Air Handler Specifications:
| SKU |
ACIQ-06W-HH-MD |
| Weight |
29.320000 |
| Manufacturer | ACiQ |
| Product Features | WiFi |
| Cooling BTU | 6,000 BTU |
| Heating BTU | 6,000 BTU |
| Maximum CFM | Up to 382.6 CFM |
| Decibel Level (dBA) |
As low as 19.5 Decibels |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| BTU/Tonnage | 6,000 BTU/0.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height | 11.76" |
| Width | 33.40" |
| Depth | 9.18" |
| Warranty | 7 Years Parts with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
9,000 BTU Air Handler Specifications:
| SKU |
ACIQ-09W-HH-MD |
| Weight |
29.980000 |
| Manufacturer | ACiQ |
| Product Features | WiFi |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM | Up to 441.4 CFM |
| Decibel Level (dBA) |
As low as 19.5 Decibels |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage |
9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height | 11.76" |
| Width | 33.40" |
| Depth | 9.18" |
| Warranty | 7 Years Parts with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
