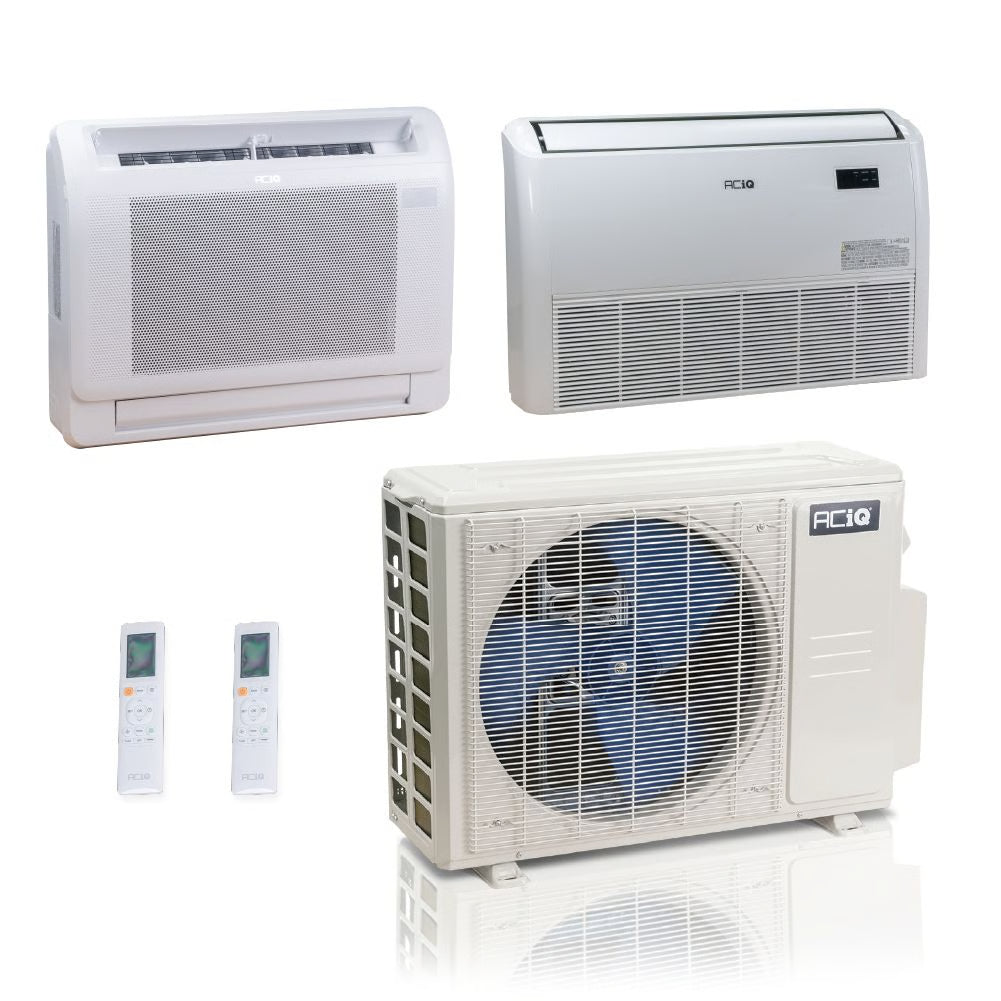

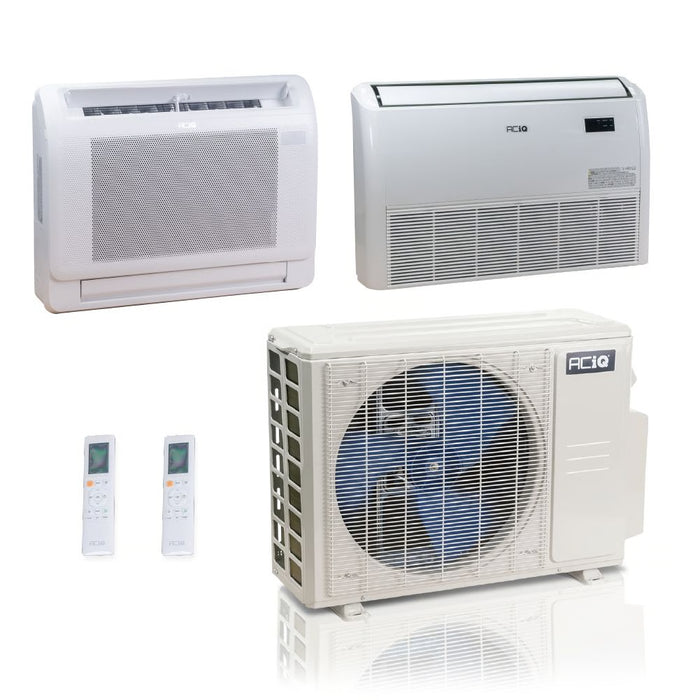

36,000 BTU ACiQ Standard 24 SEER2 Dual Zone Floor Mount Mini Split Heat Pump System - R454B | 230V - 12 + 18
This ACiQ 2-Zone Standard Series System combines high efficiency with advanced climate control. ES-36Z-M5C / ACIQ-12FM-HH-MD / ACIQ-18FM-HH-MD is the perfect solution for year-round heating and cooling in up to 2 spaces.

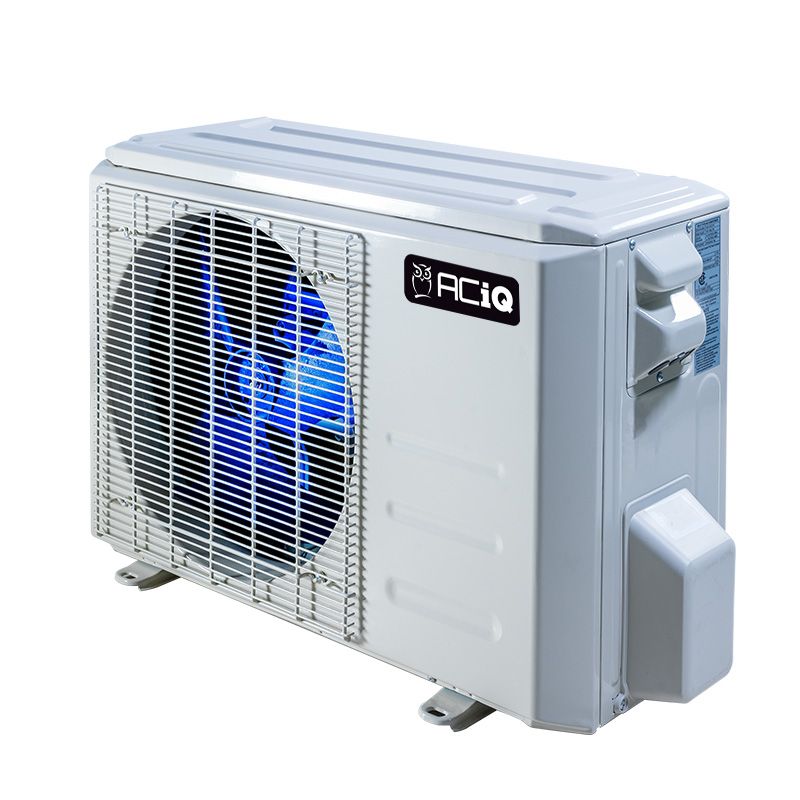

36,000 BTU ACiQ Standard Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
Overview
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-36Z-M5C, you can have up to 5 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
Quick Facts
- 36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 5 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
36,000 BTU, 24.0 SEER2
The 36,000 BTU, ES-36Z-M5C is designed to easily support up to 5 air handlers at up to 1.25 times the condenser BTU rating, or 45,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 24.0 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

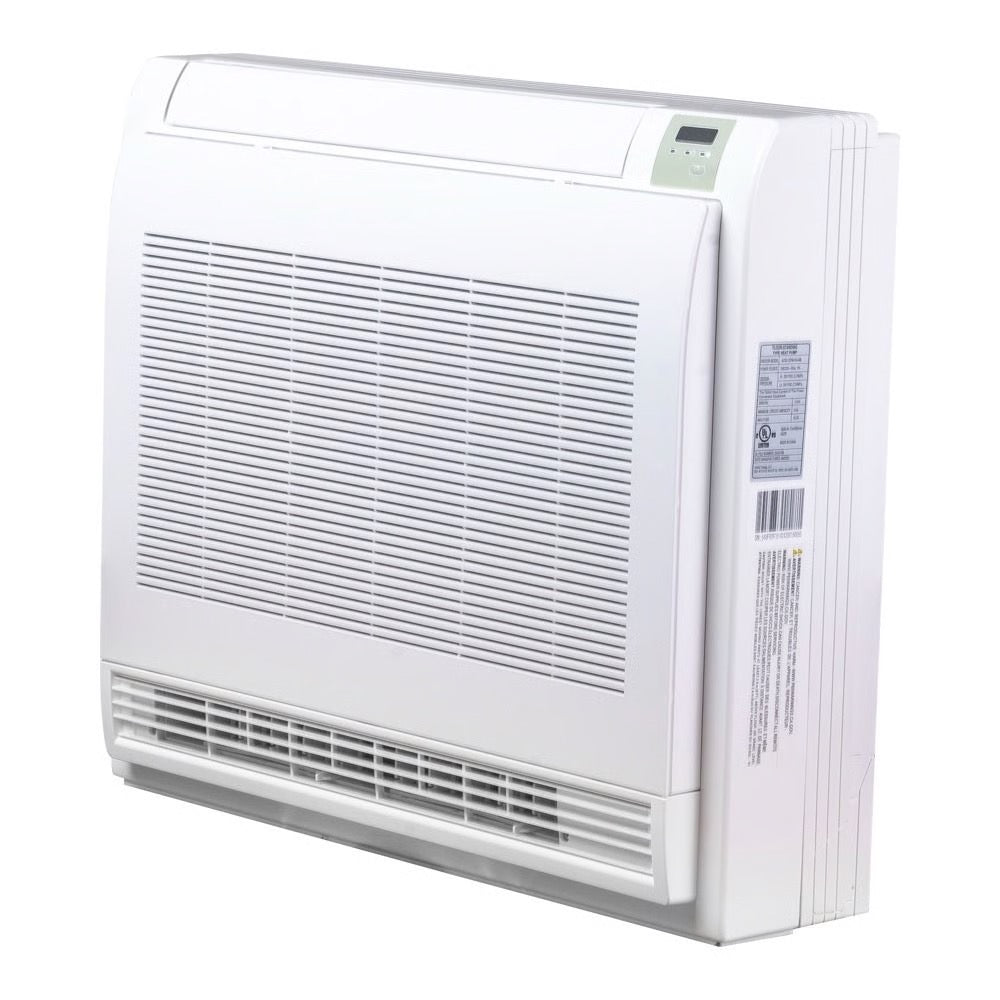

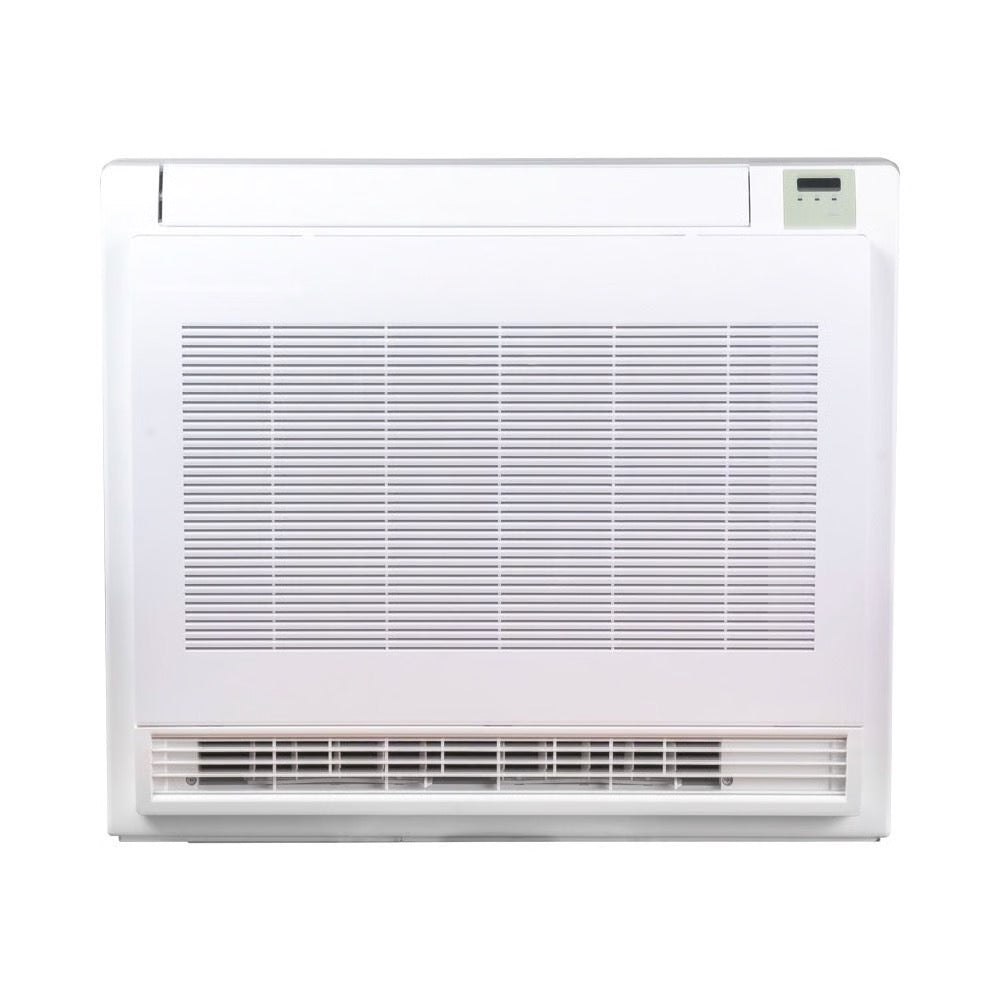

12,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
Features
- 12,000 BTU of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- Remote control thermostat included
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

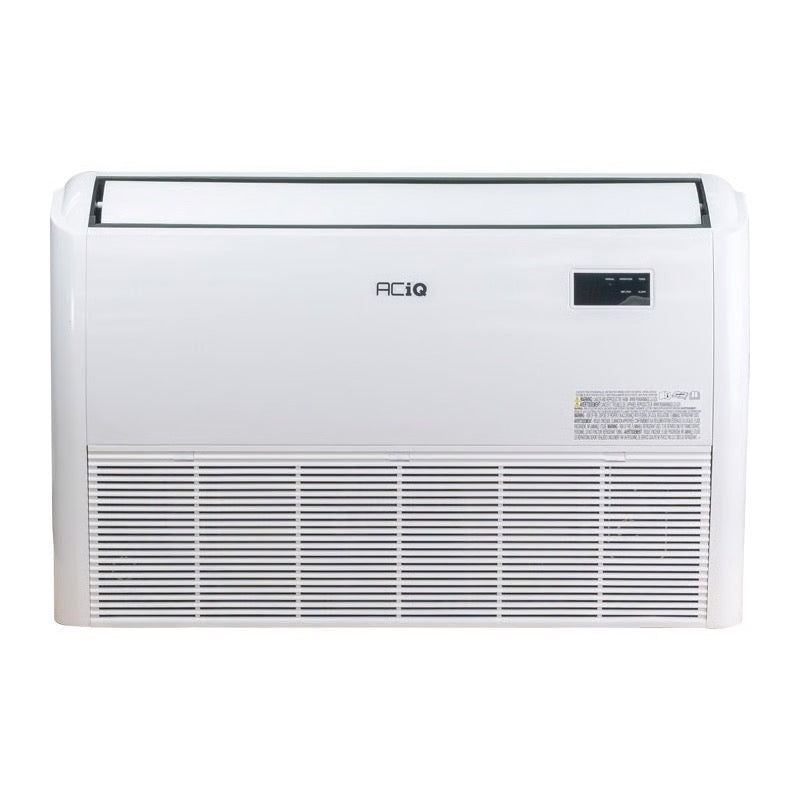

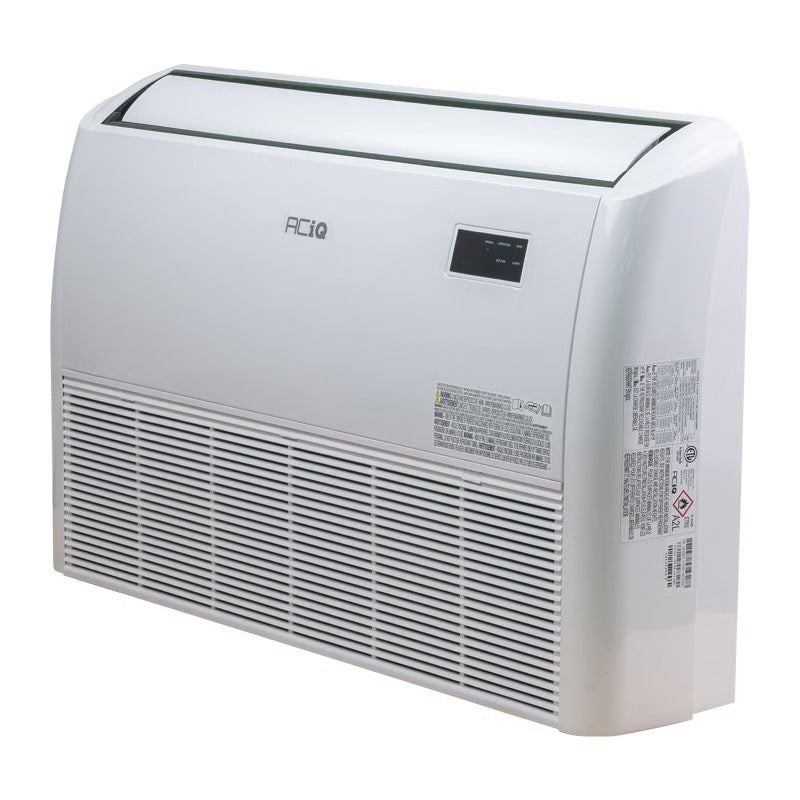

18,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
The ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB creatively solve various installation issues.
Unlevel Surfaces: The pitch of the roof is often reflected indoors as well, providing angled surfaces that make mounting traditional air handlers impossible. This system uses threaded rod to allow the air handler to be level, even when the walls are not. The threaded rod can be adjusted to accommodate all geometry angles, allowing the system to touch the ceiling or hang several feet below it
Uninsulated Roofs: The cassette and concealed duct air handler systems want at least a foot of space between the ceiling and the roof, this unit can work with a gap as small as one inch, which is what you often see with metal buildings and 3 season rooms. The air handler will be located near the edge of the room, blowing towards the opposite edge of the room, which is different than a cassette system, that blows air in all directions and is located in the center of a room. Sun Rooms: The air handler is actually mounted directly to the wall, fitting perfectly under the windowsill, elevated about 2 inches from the floor, even thou this is referred to as a floor mounted air handler, there is no need to drill or modify the floor as all connections can go thru the wall. Perfect for rooms that are mostly windows, these units pull air from the bottom and blow the air upwards, allowing heating the room in winter and automatically shutting off when the large windows are opened during the summer with the optional door-open sensor.
Floor Installation: The unit can be mounted to the floor when drilling holes into the wall is highly undesirable, as it common with brick/marble surfaces. The refrigerant/electrical/drain line can be run thru the floor and entirely hidden from view. The system is pre-wired for a 240vac condensate pump with over-flow shutoff connections.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
Condenser Specifications:
| SKU |
ES-36Z-M5C |
| Refrigerant Charge |
120.63 oz. |
| Weight (in lbs) |
180.120000 |
| AHRI Certificate Number |
216032382 |
| Brand/Manufacturer | ACiQ |
| Replaces |
ES-36Z-M4B |
| HSPF2 |
9.5 |
| Cooling BTU |
36000 BTU |
| Heating BTU |
37000 BTU |
| Maximum CFM | 2148 |
| Decibel Level (dBA) |
64.5 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 (Efficiency) |
24 |
| Compressor Type | Rotary |

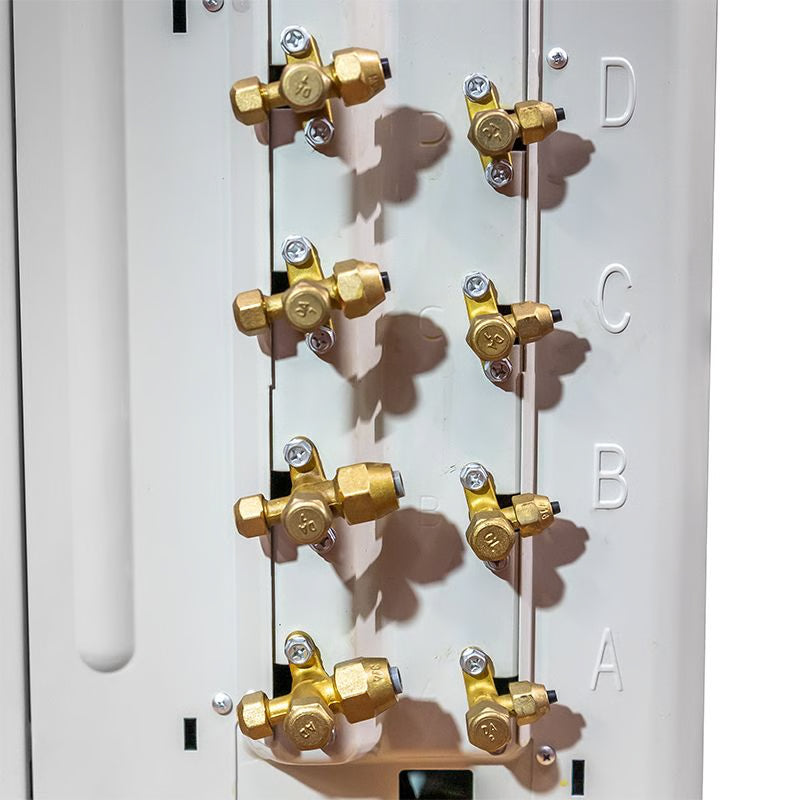

| Liquid Line |
1/4" (5) |
| Suction Line |
3/8" (4); 1/2" (1) |

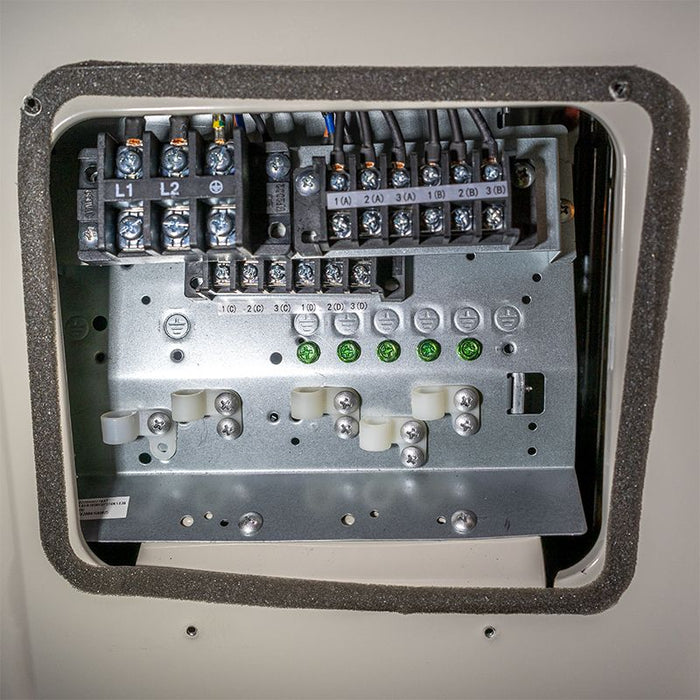

| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 35A |
| Min. Breaker Size |
30.5A |
| Tonnage |
3 Ton |
| BTU/Tonnage |
36,000 BTU/3 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range |
-13 ~ 122 |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
12,000 BTU Air Handler Specifications:
| SKU |
ACIQ-12FM-HH-MD |
| Weight (in lbs) |
41.890000 |
| Brand/Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU |
12,000 BTU |
| Heating BTU |
12,000 BTU |
| Maximum CFM |
Up to 441.4 CFM |
| Decibel Level (dBA) |
As low as 24.00 Decibels |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line |
1/2" |
| Electrical |
208/230V, 1 Phase, 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage |
12,000 BTU/1 Ton |
| Mini Split Type | Floor Mounted |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height | 24.45 |
| Width | 31.26 |
| Depth | 7.87 |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
18,000 BTU Air Handler Specifications:
| SKU |
ACIQ-18FM-HH-MD |
| Weight (in lbs) |
70.550000 |
| Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU |
18,000 BTU |
| Heating BTU |
18,000 BTU |
| Maximum CFM |
Up to 576.8 CFM |
| Decibel Level (dBA) |
As low as 29.0 Decibels |
| Energy Star | Yes |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical |
208/230V, 1 Phase, 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Floor Mounted |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height |
26.57" |
| Width |
42.05" |
| Depth |
9.25" |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
