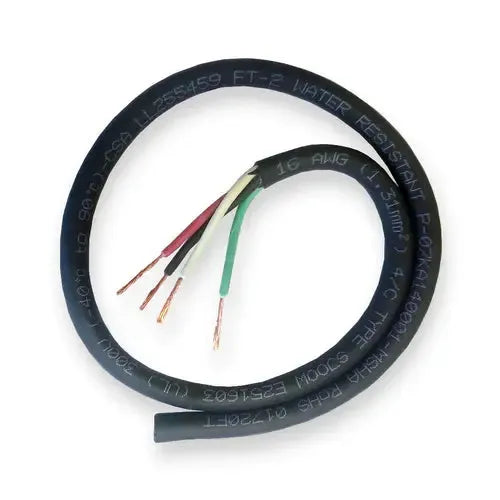

4 Lead Mini Split Connection Wire (Sold by the Foot)
Summary
- Conductor wire for mini split systems
- Sold by the foot. Any length is available. Specify the length needed.
- Price is given PER FOOT
- UL and CSA Approved for Indoor and Outdoor use
Technical Information
- AWG Size: 16
- No. of Cond.: 4
- Conductor Stranding: 26/30
- Approx LBS/MFT: 95
- Nom. Insul. Thick: 0.030 inches
- Jacket Thick: 0.030
- Nom. O.D. of Cable: 0.365 inches
- Amps: 10 A
- Color Codes: Black, White, Red, Green
- UL Style: SJOOW
- CSA Type: Approved
- Min. Temp: -40°C
- Max. Temp: 90°C
- Cond. Material: Bare Copper
- Insul. Material: Ethylene Propylene Diene Monomer Rubber (EPDM)
- Jacket Material: Chlorinated Polyethylene (CPE)
- Max. Voltage: 300
