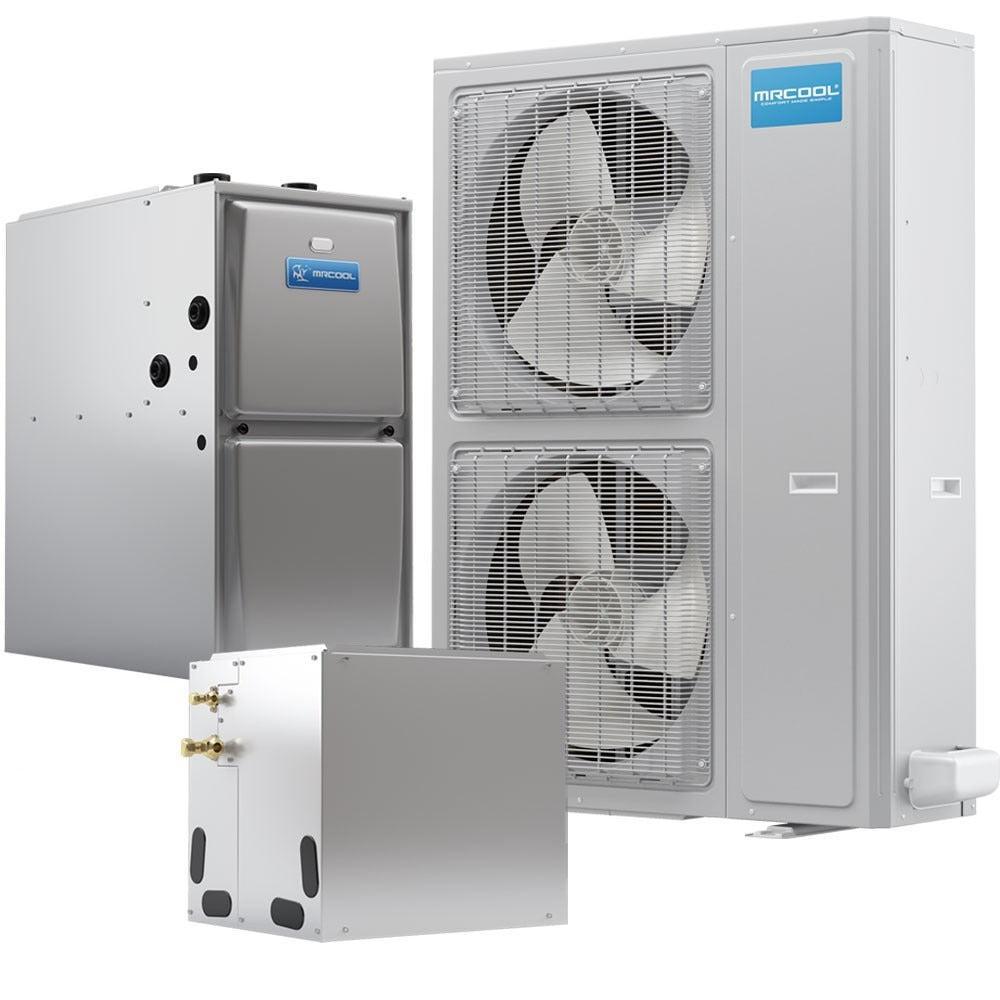

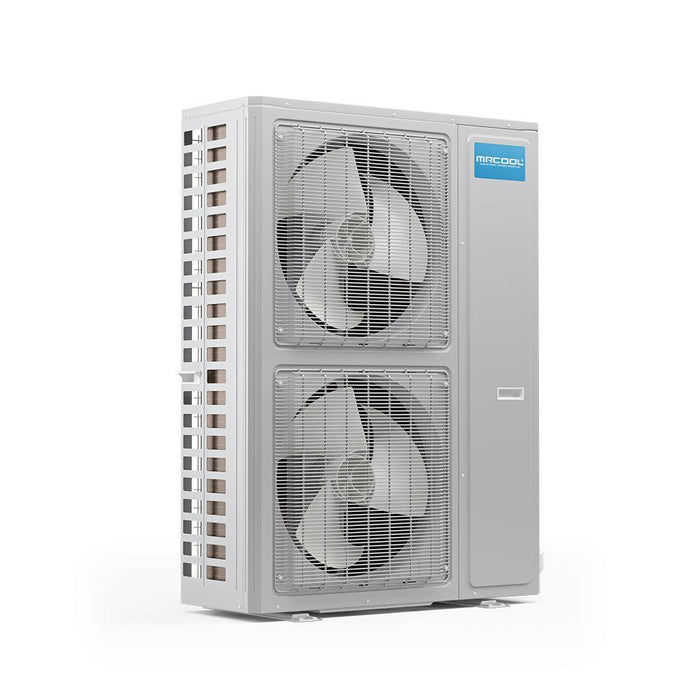

4 to 5 Ton 18 SEER 120k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal
Experience year-round comfort and savings with the 4 to 5 Ton 18 SEER 120k BTU 96% AFUE MrCool Universal Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal. This intelligently designed system from MrCool combines cutting-edge technology and high-quality components to ensure your home remains cozy in the winter and cool in the summer.
Features:
Effortless Installation: With MrCool's No-Vac Quick Connect pre-charged line sets, installation is a breeze, saving you time and money. You'll be enjoying the benefits of this system in no time.
Efficient Cooling: This 4 to 5 Ton Universal system is exceptionally efficient at removing heat from your home. The pre-charged coil with R-410A refrigerant guarantees long-lasting comfort. Plus, it's equipped with safeguards against IPM, overload, PFC, high discharge temperature, and high pressure, prolonging its lifespan.
Year-Round Performance: The 4 to 5 Ton Universal condenser is built to save you money, featuring components like the DC fan motor. It can handle extreme temperatures, ensuring your comfort in scorching heat or as low as 39.2 degrees F. This system offers flexibility with installation options, including pre-charged line sets, flare fittings, or sweat braze fittings.
Warm Winters: When faced with the fiercest and most unforgiving winters, the MRCOOL® VersaPro® 120k BTU 96% AFUE Gas Furnace rises to the challenge as a quiet, high-performance solution. You can rest assured that it not only provides warmth but also saves you money on utility bills, courtesy of its two-stage, consistent torque DC motor and impressive 96% AFUE efficiency rating. Constructed with an aluminized steel tubular heat exchanger and a stainless steel secondary heat exchanger, this furnace epitomizes durability and reliability. Installation is a breeze, even in cramped spaces, thanks to its adaptable design, capable of multi-position installation in both upflow and horizontal configurations. Its removable bottom panel accommodates side or bottom return applications, and it offers convenient left or right connections for gas or electric service. Moreover, converting it to propane is a hassle-free process with an optional LP kit. Being AHRI certified and ETL listed, this furnace has undergone rigorous testing, ensuring it meets the highest HVAC standards. Registering the furnace within 90 days unlocks added peace of mind, providing a 10-year parts warranty and a lifetime warranty on the heat exchanger. Even without registration, you're covered by a 5-year parts warranty and a 20-year heat exchanger warranty, offering long-term comfort and protection.
Warranty Peace of Mind: This ETL-listed and AHRI-certified system comes with various warranties when you register your products, giving you peace of mind when making your purchase.
Indulge in pure comfort year-round by investing in the 4 to 5 Ton 18 SEER 120k BTU 96% AFUE Universal Central Air Conditioner & Gas Furnace Split System from MrCool. Say hello to true comfort and substantial savings with this top-notch system.

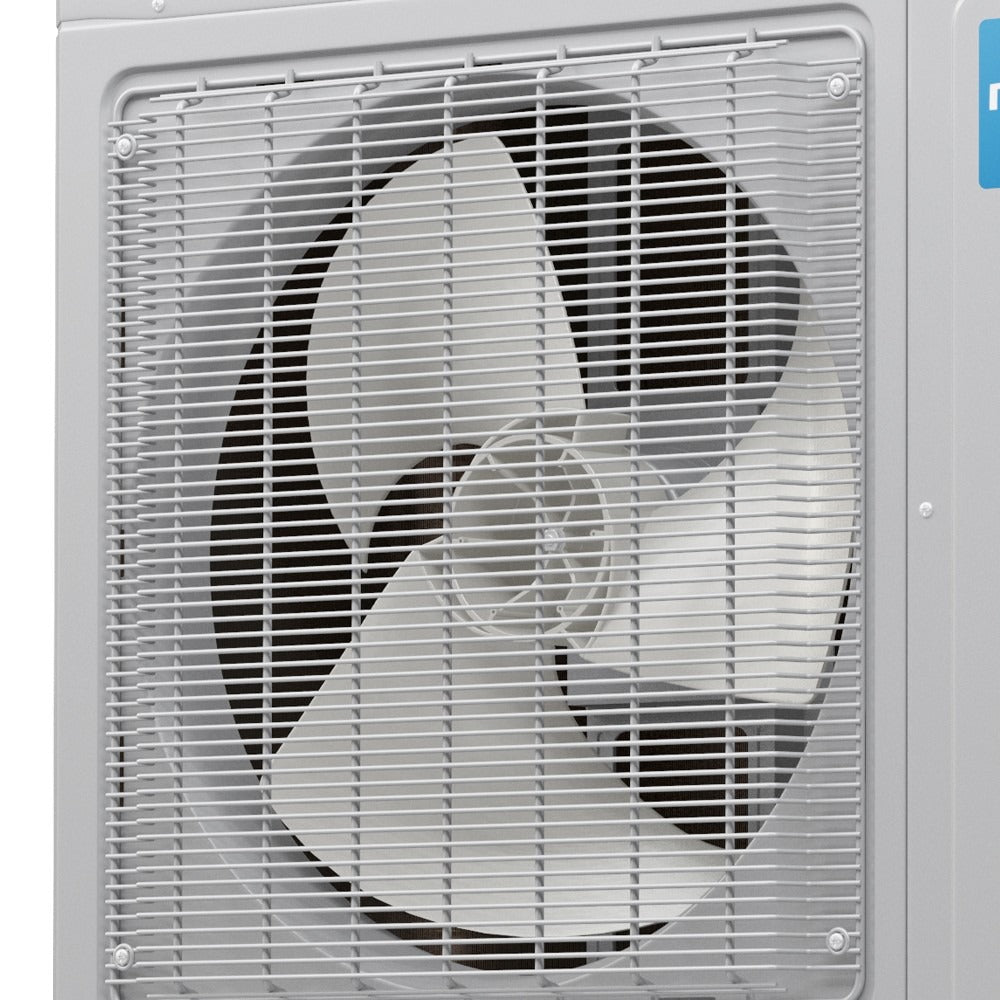

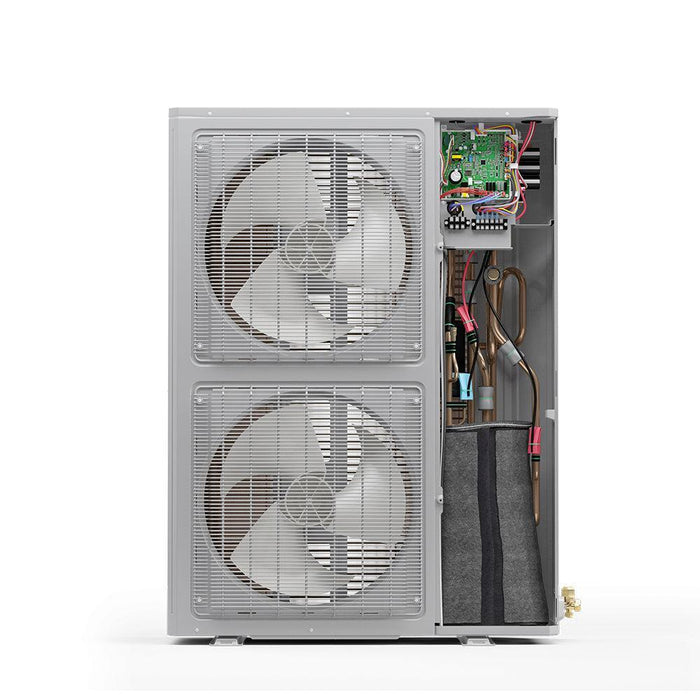

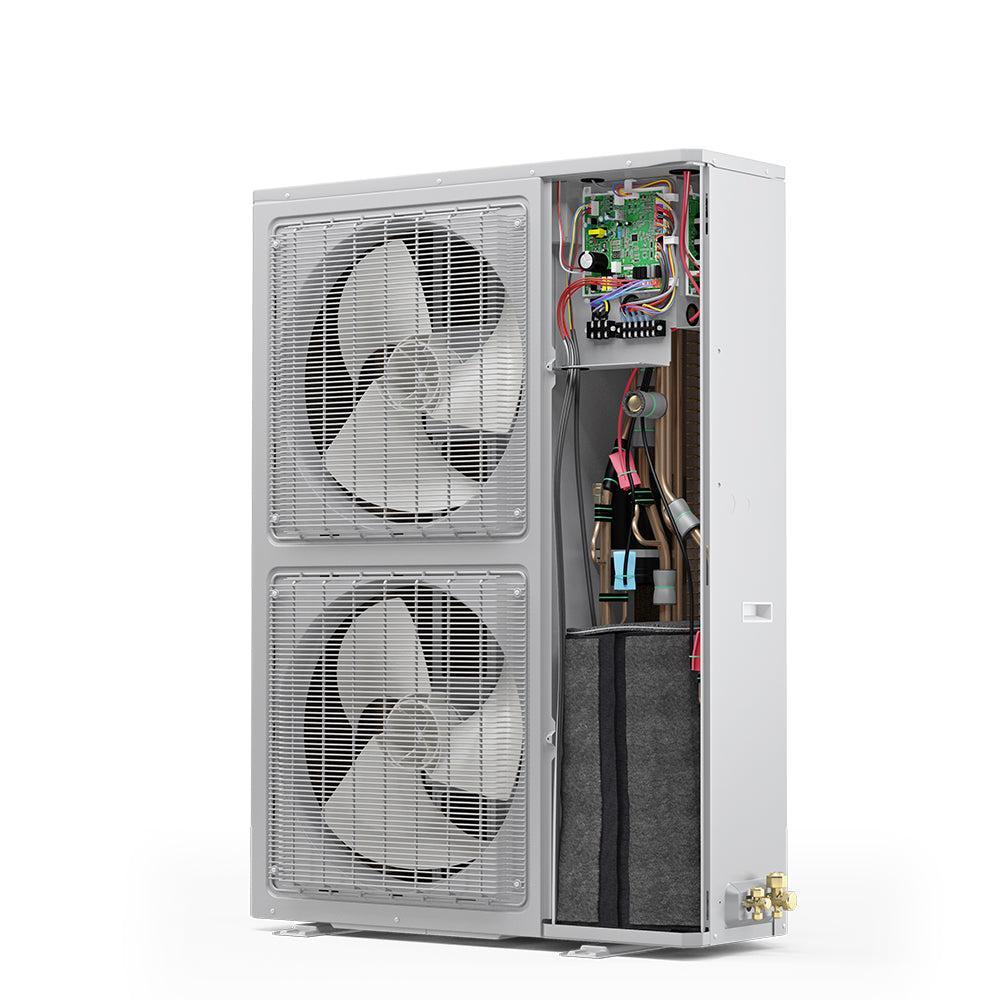

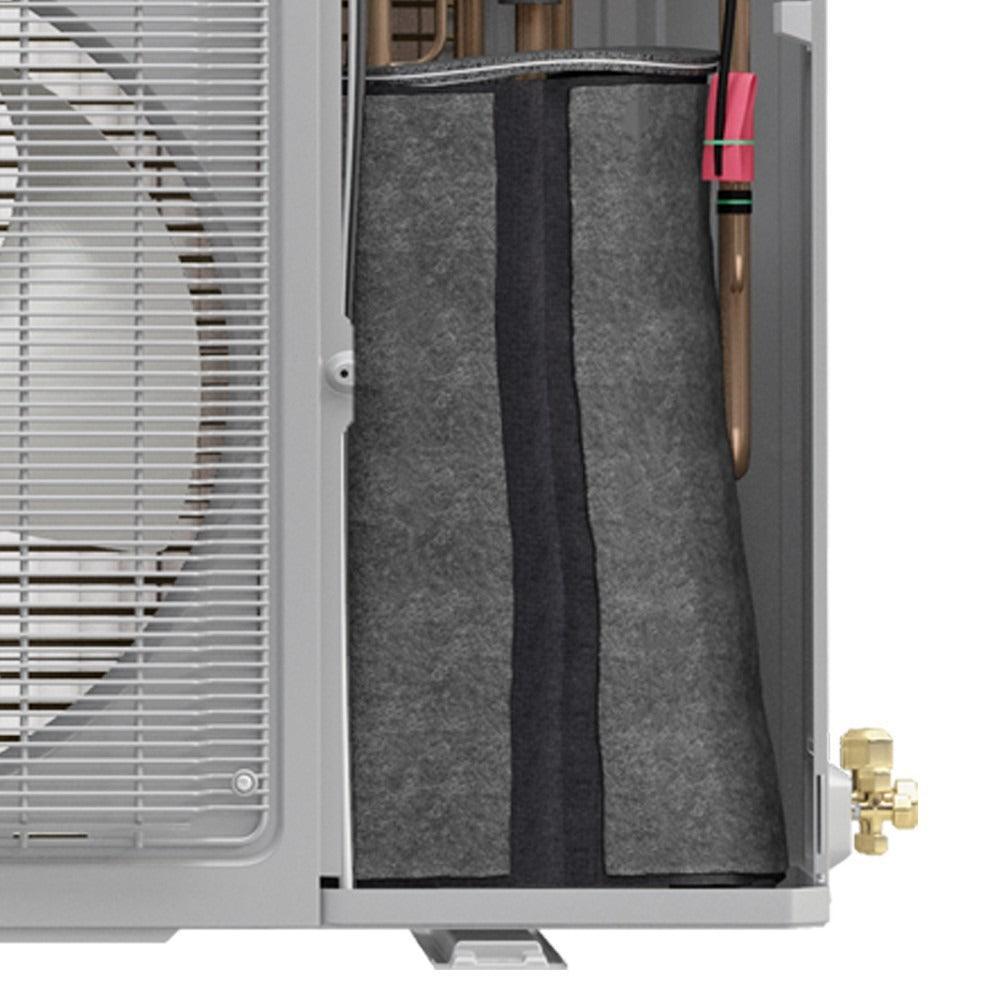

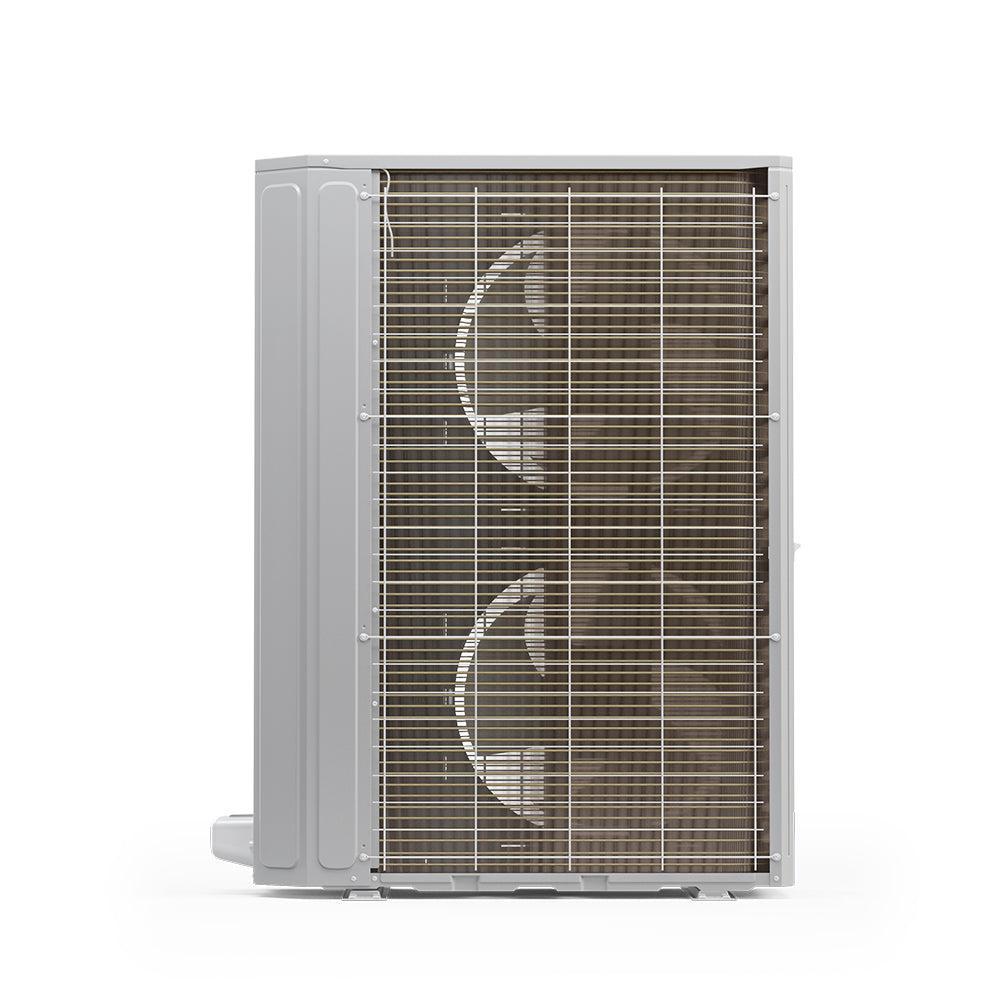

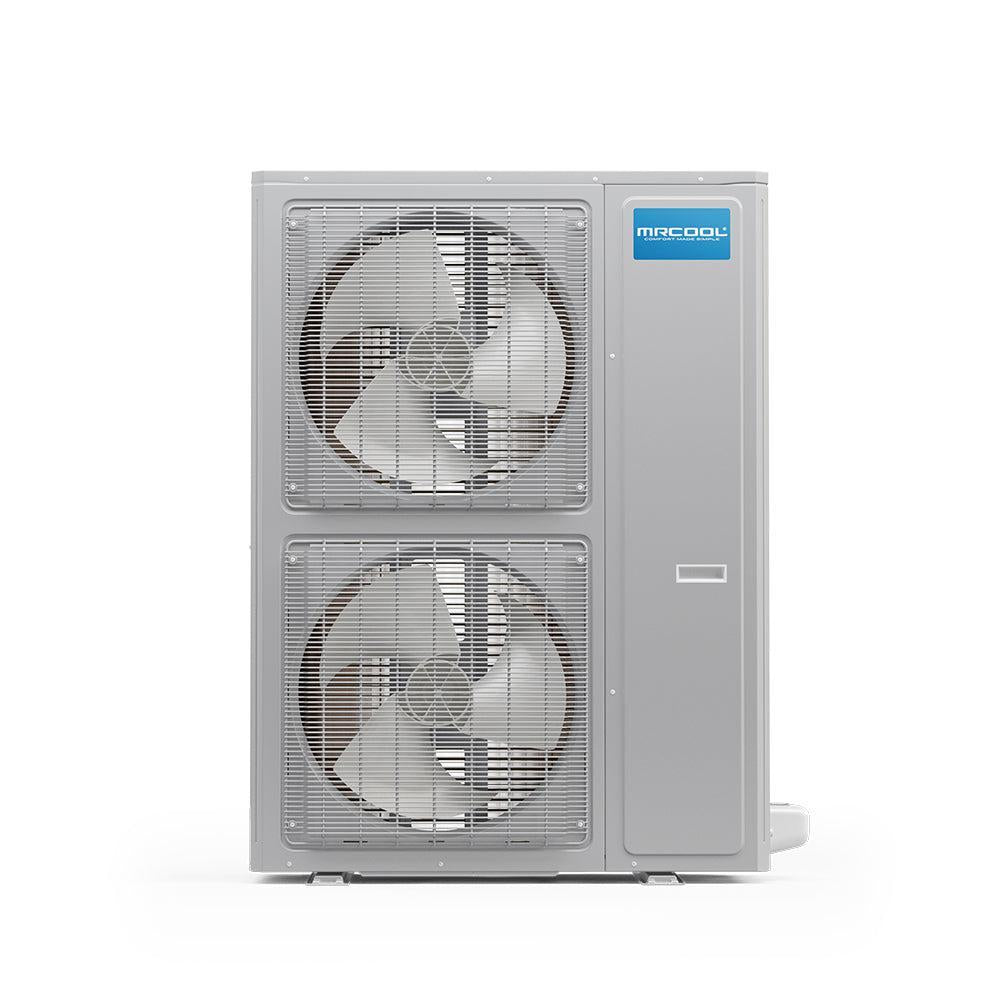

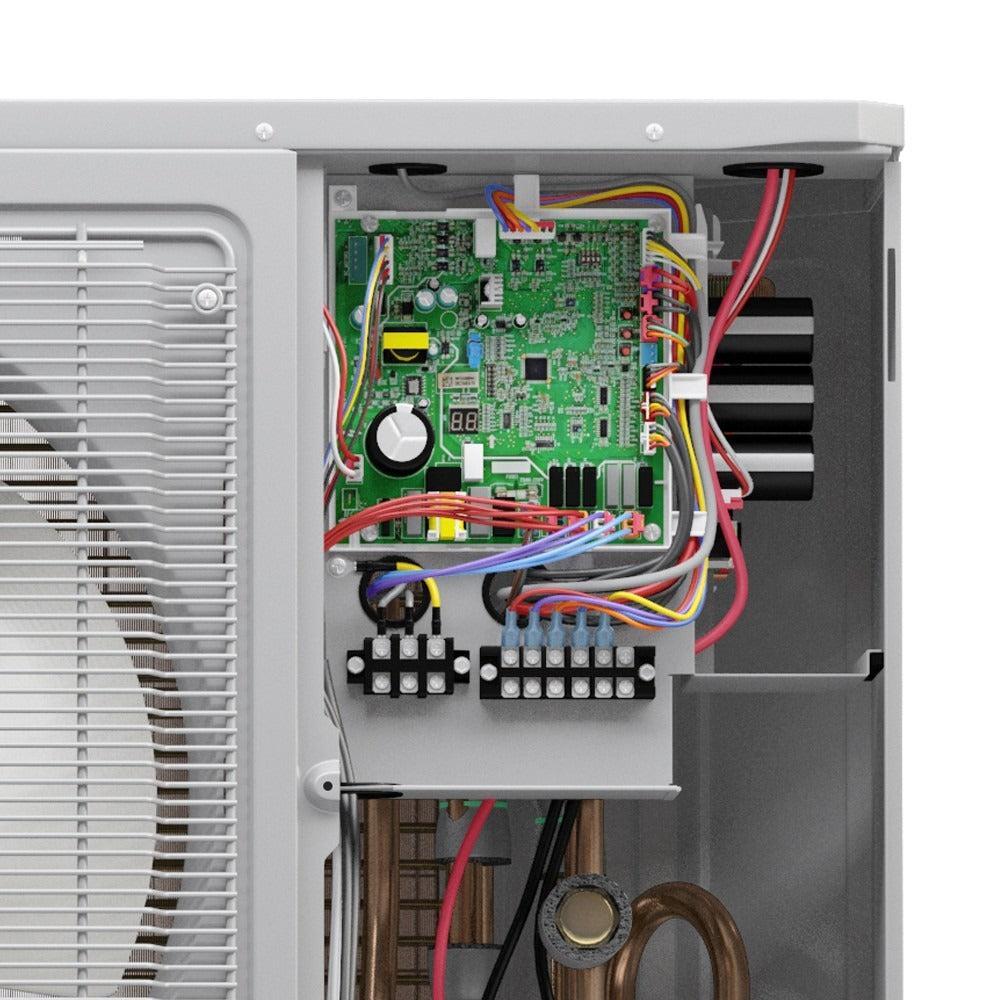

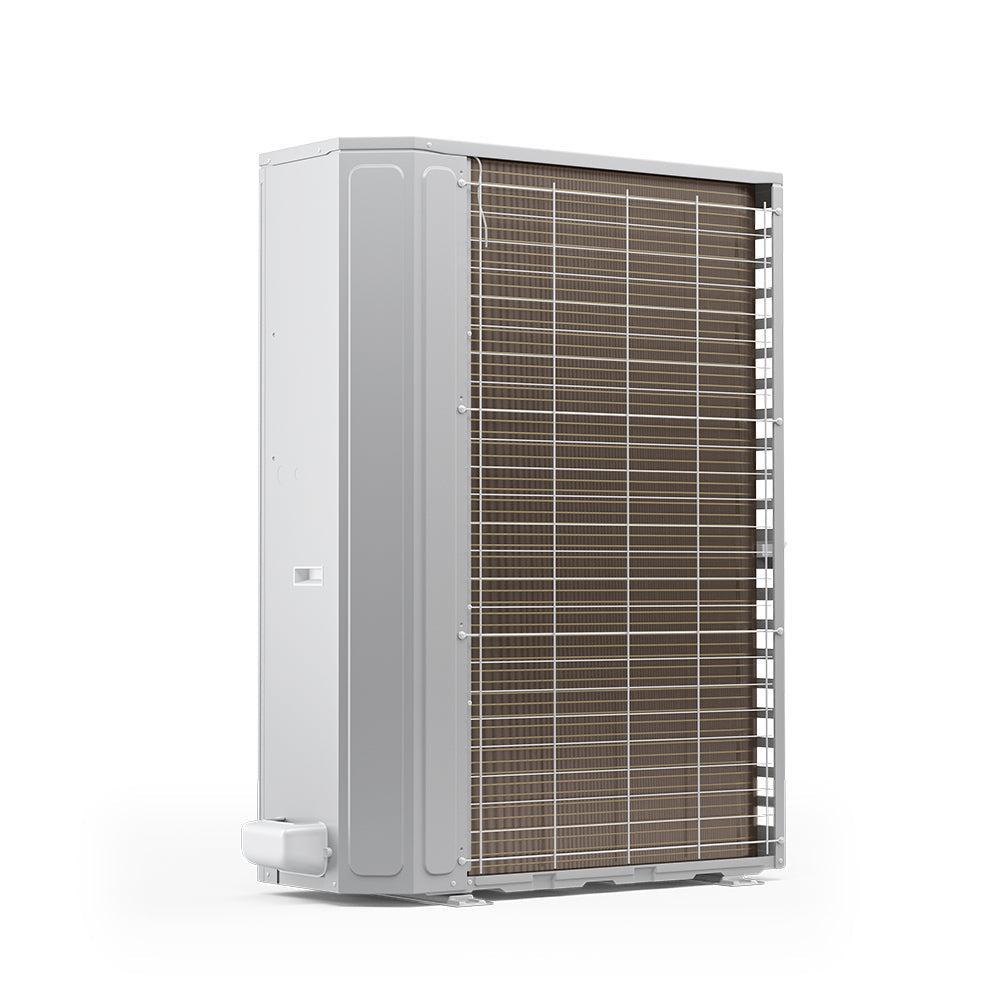

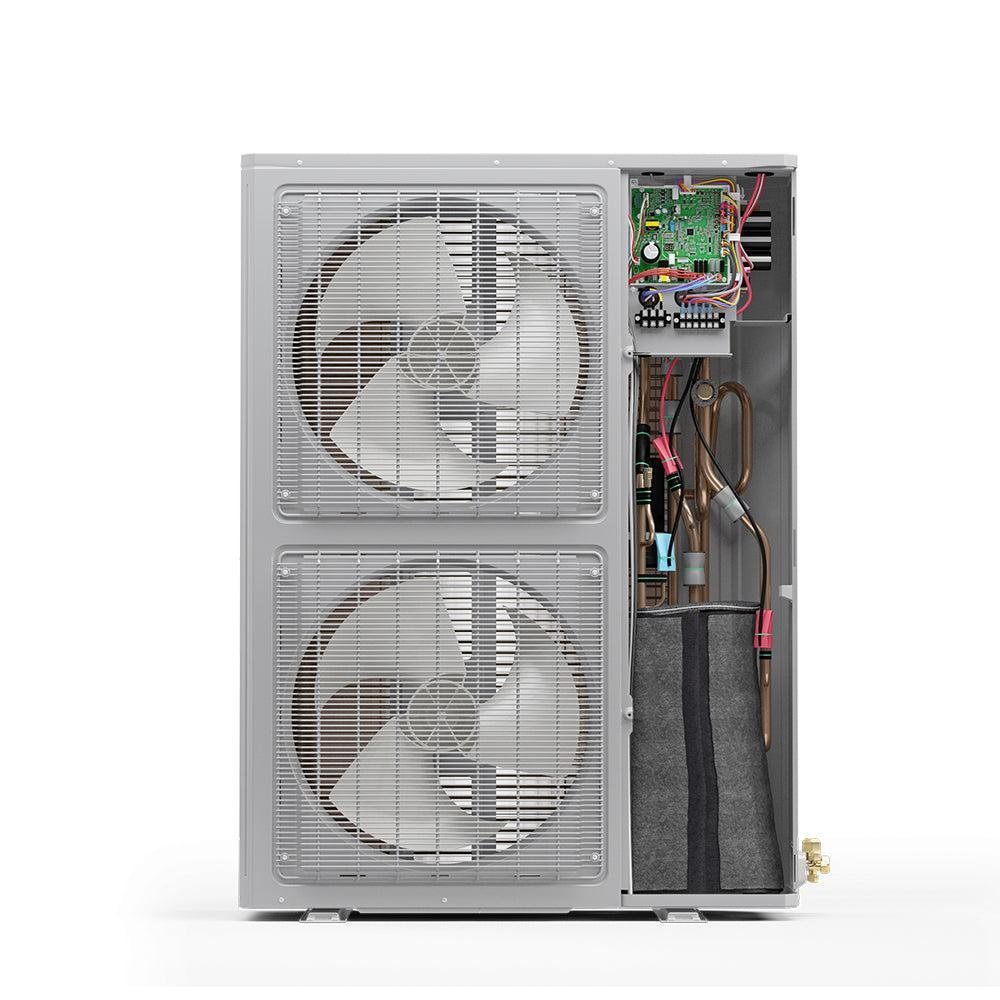

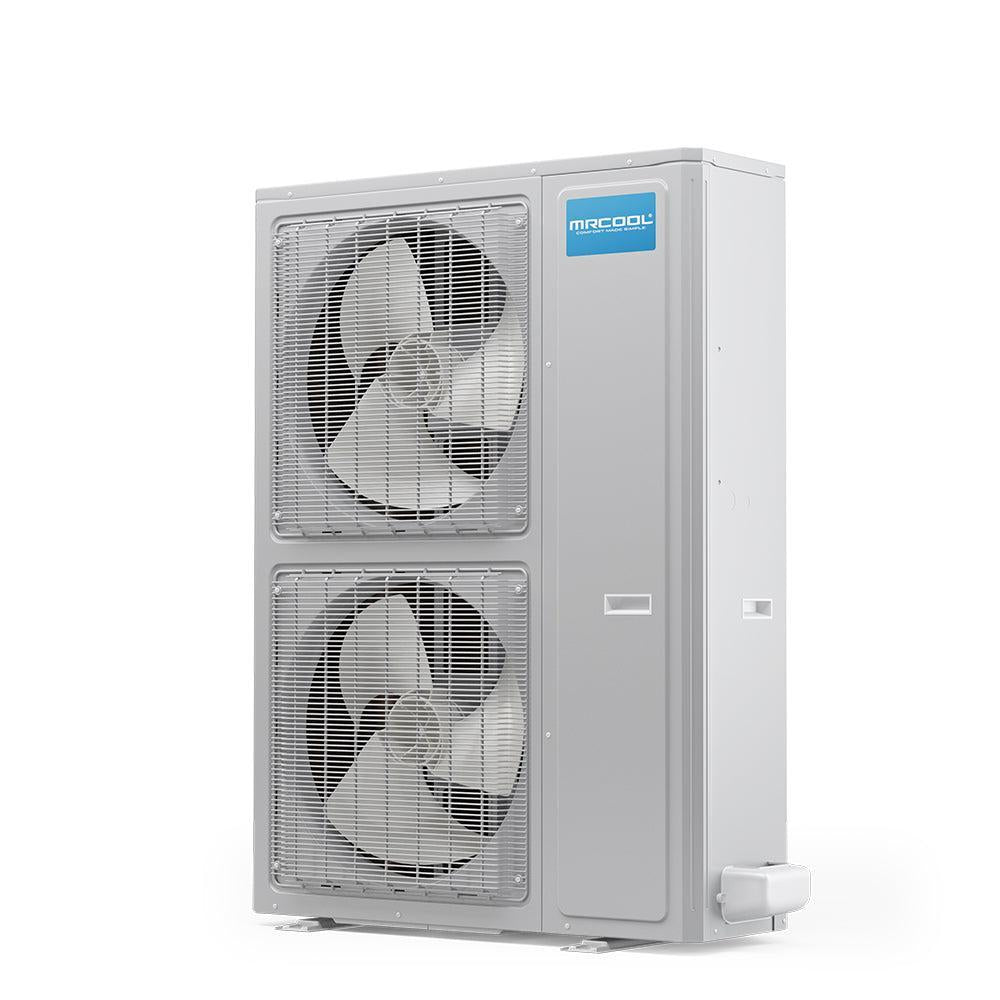

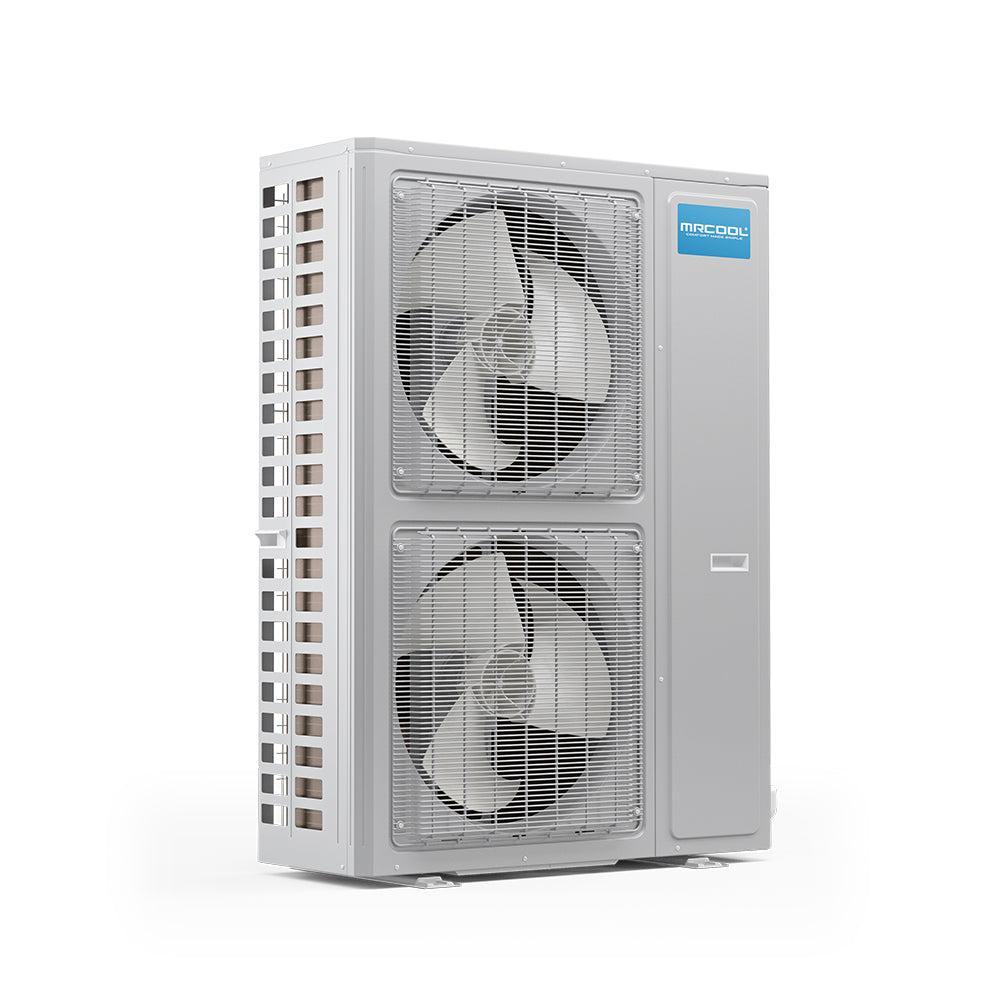

4 to 5 Ton 18 SEER MrCool Universal Central Air Conditioner Condenser - MDUCO18048060
The Universal Cooling-Only Condenser has been designed with versatility and efficiency in mind. With its compact side-discharge design, this Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. These include soldering, flared-screw connections, or the MRCOOL signature No-Vac, Quick-Connect Line Set, for DIY installers or those who want to simplify and shorten the installation process. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. All of this in a unit that is capable of a 18 SEER rating.
Features:
- 4 Ton mode 18 SEER, 5 Ton mode 17 SEER
- Compatible with any third party air handler and thermostat including the MRCOOL® Universal WiFi Thermostat or WiFi/Nest
- Low Ambient Cooling Down to 39.2 Degrees F
- Condensers Can Be Field Converted to smaller size using Dip Switch Setting
- AHRI Certified & ETL listed
- Slim Design
- Quiet 55-58dB(a) Operation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion

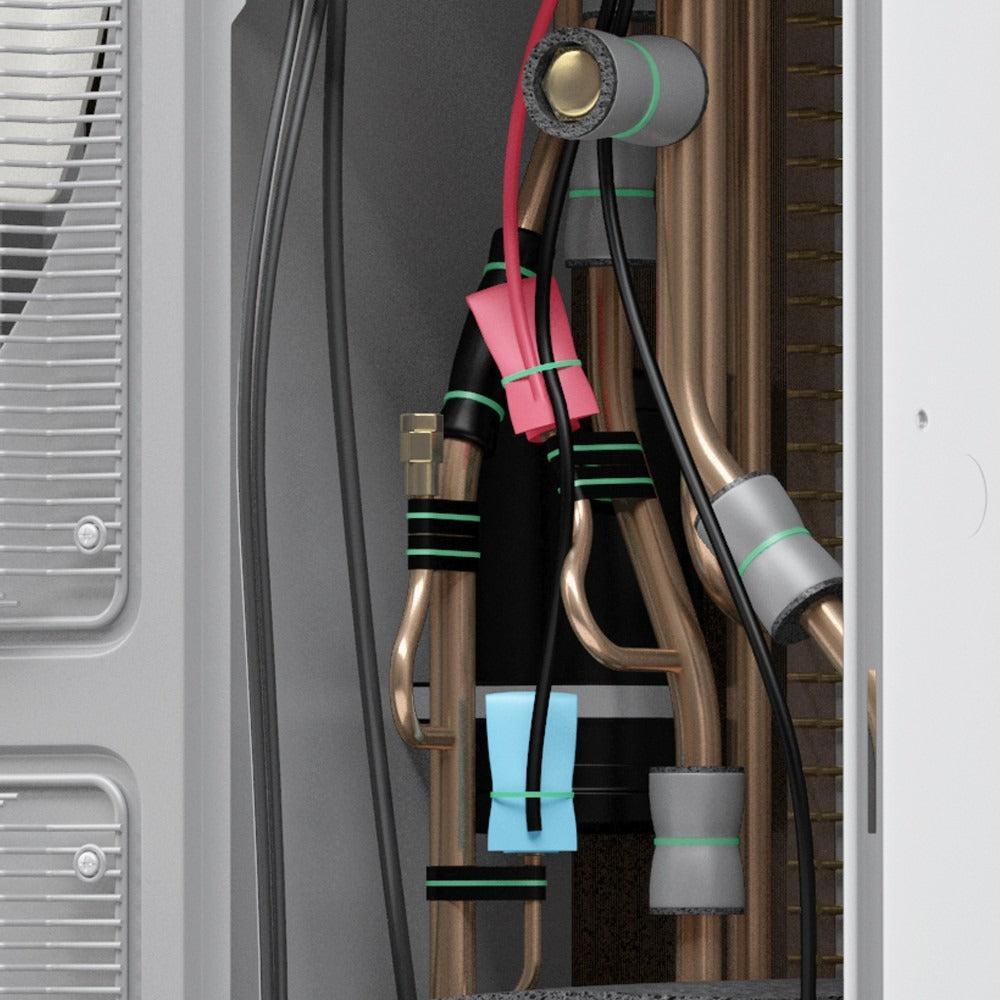

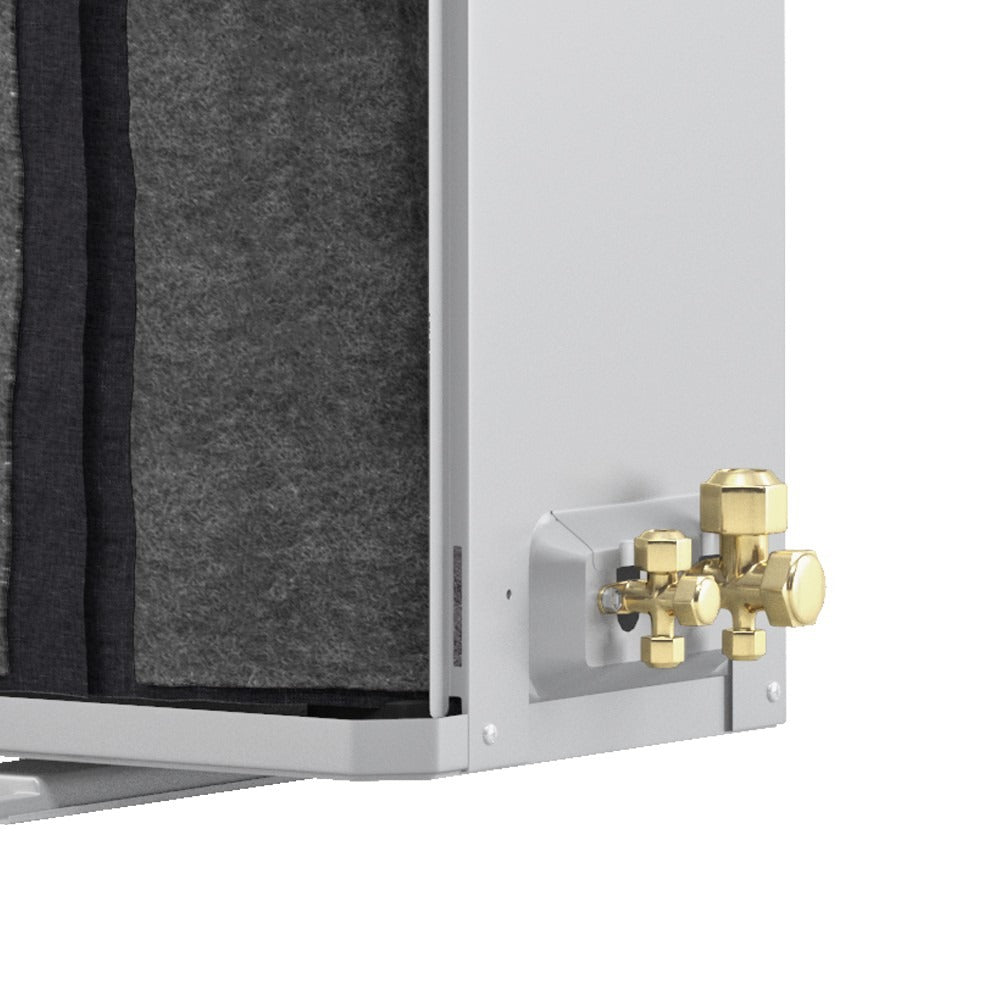

- Multiple Connection Types: Pre-Charged No-Vac® Quick Connect® Line Set, Sweat Braze Connection, or Flare Connection
- 10 Year Registered Limited Warranty

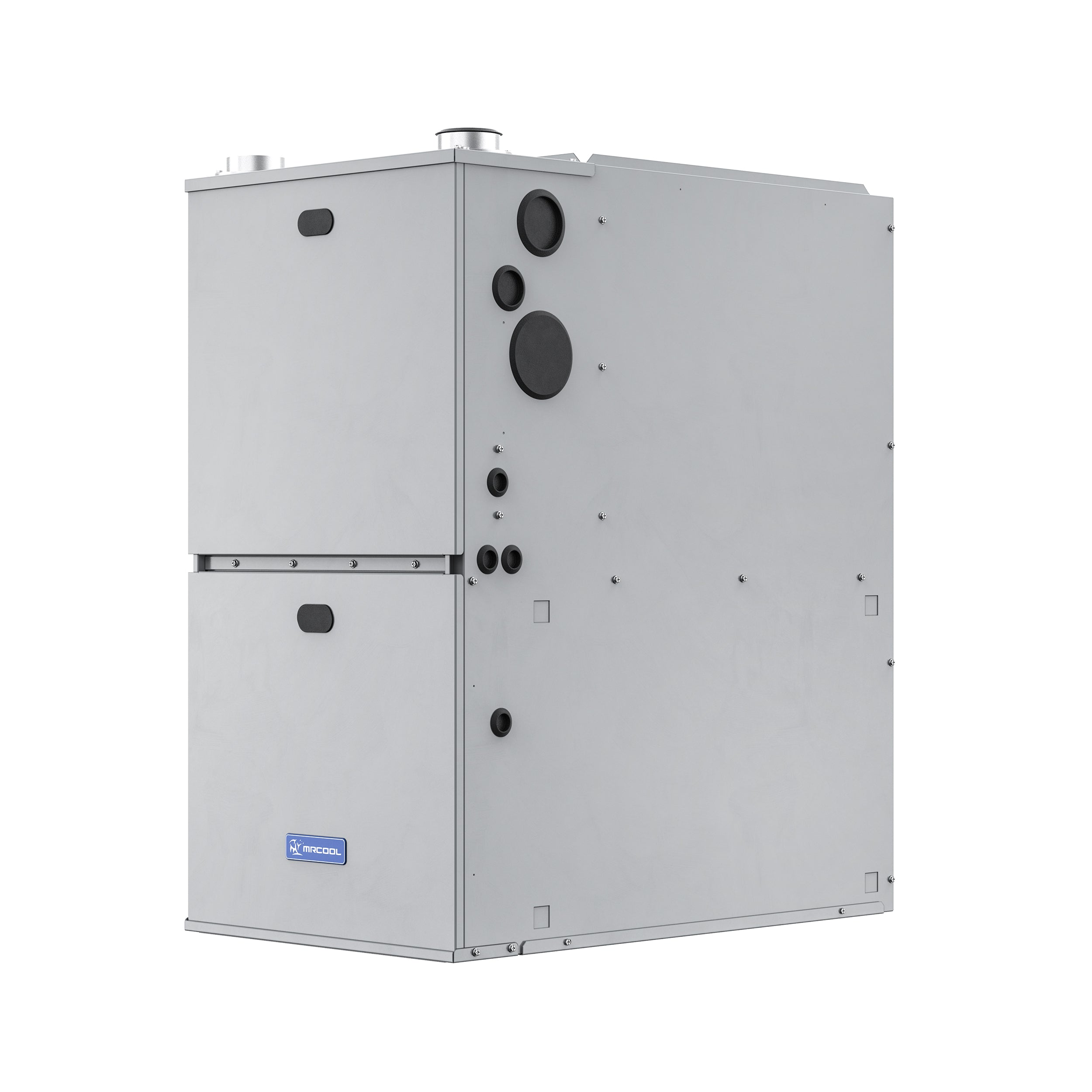

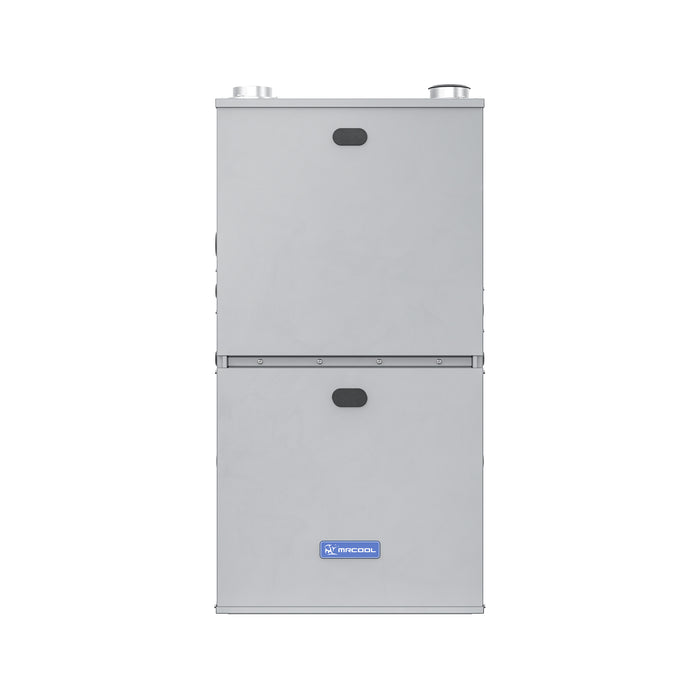

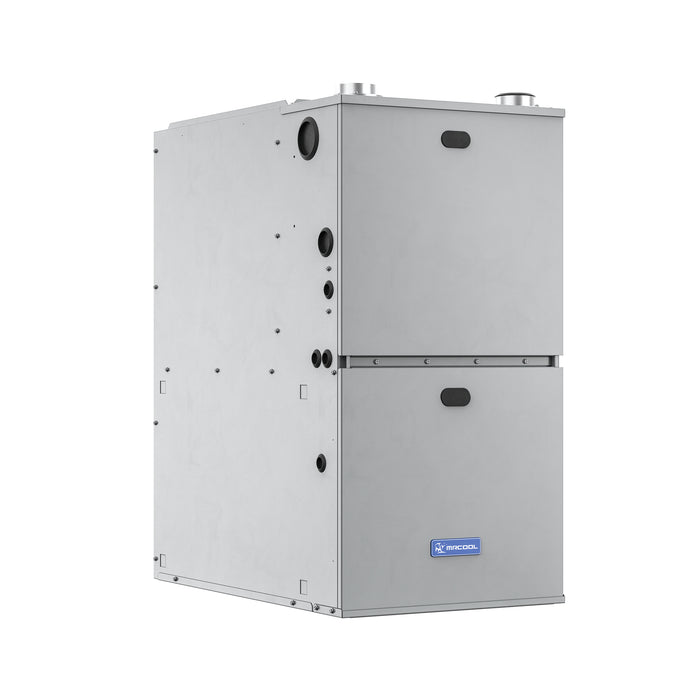

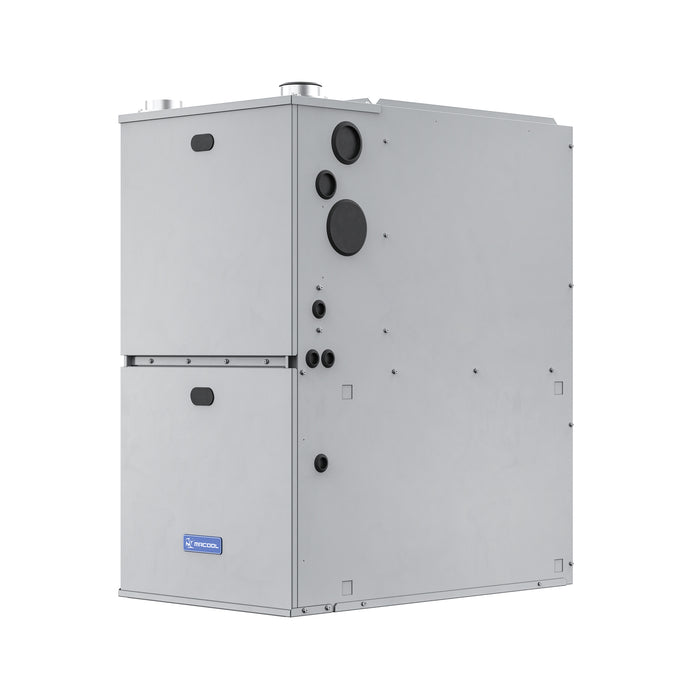

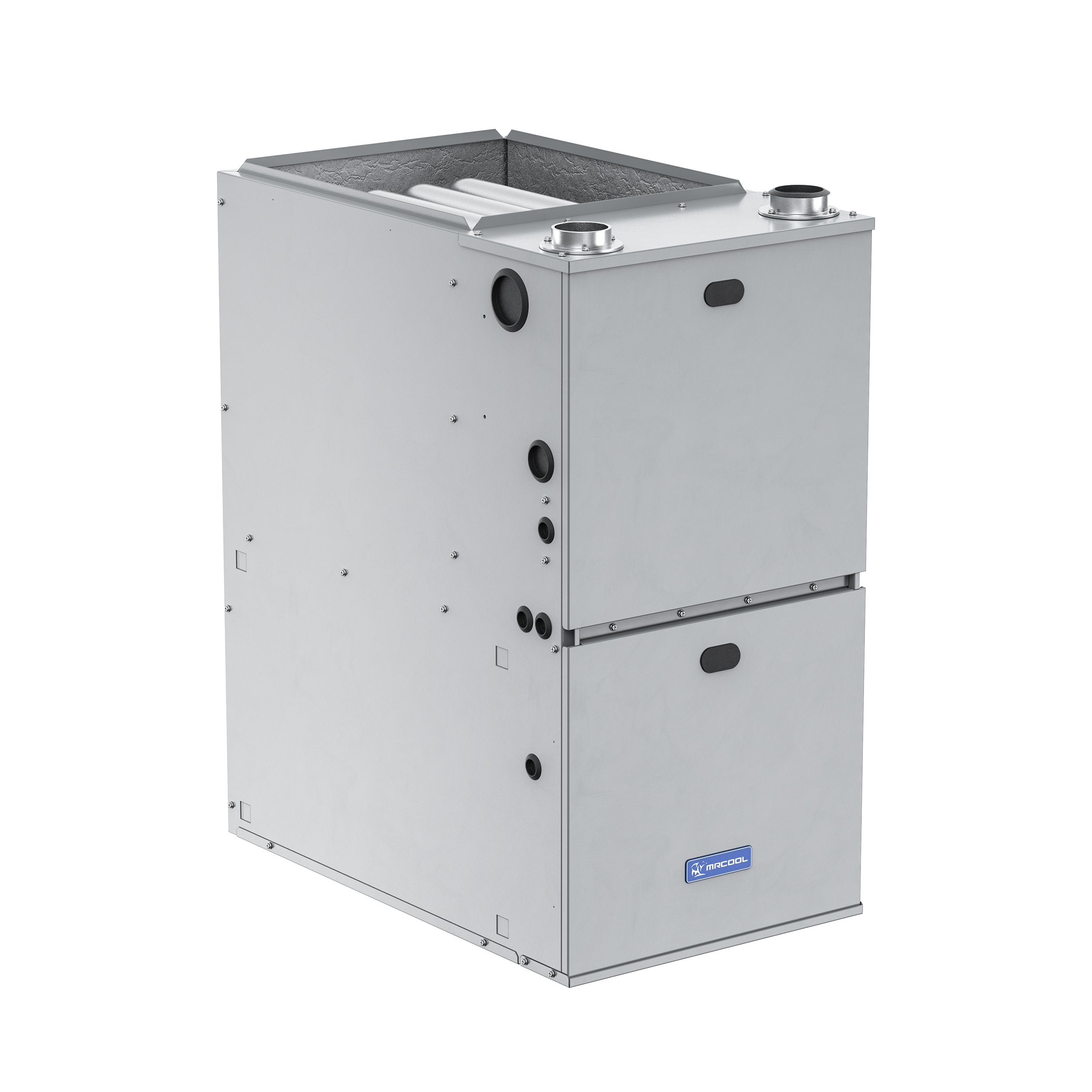

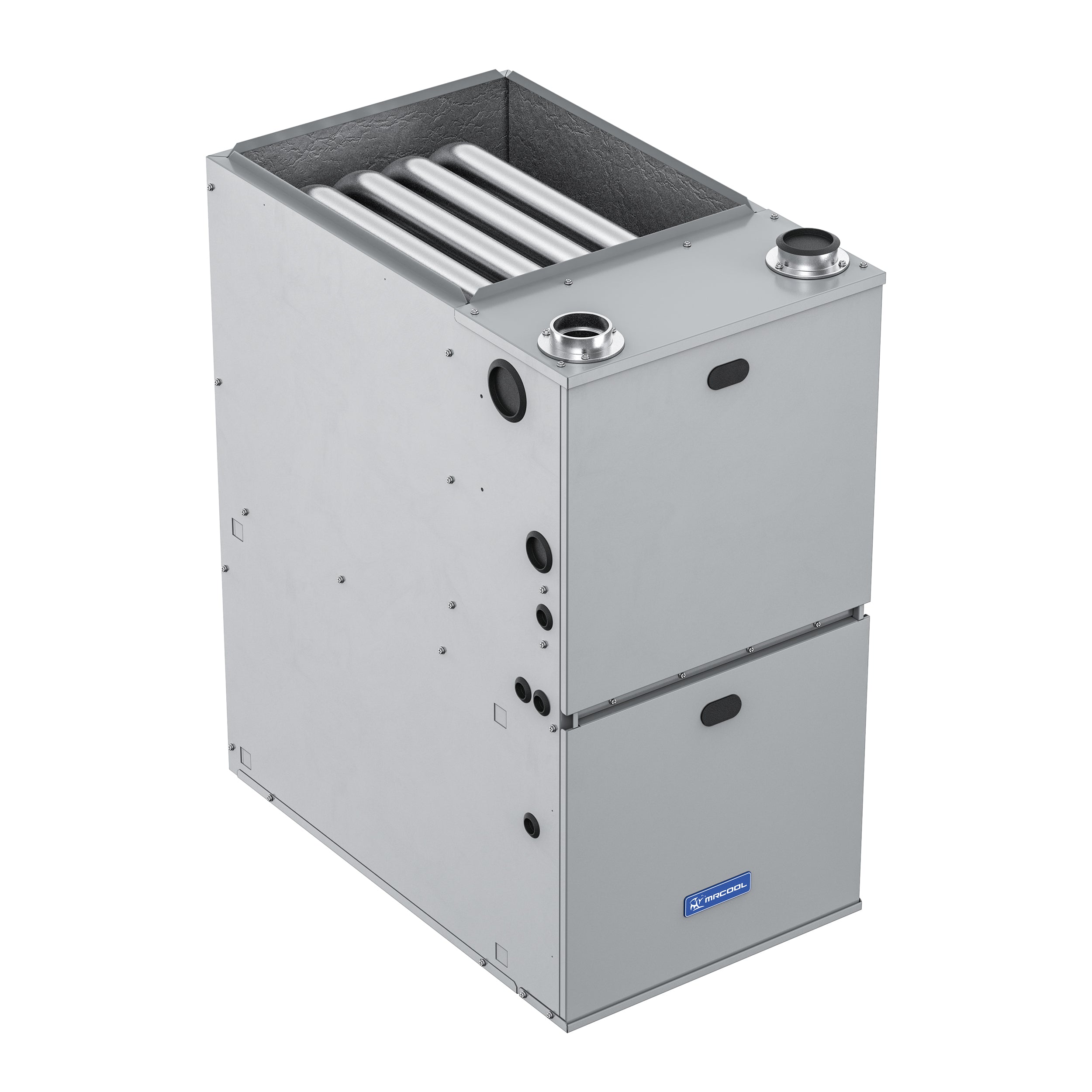

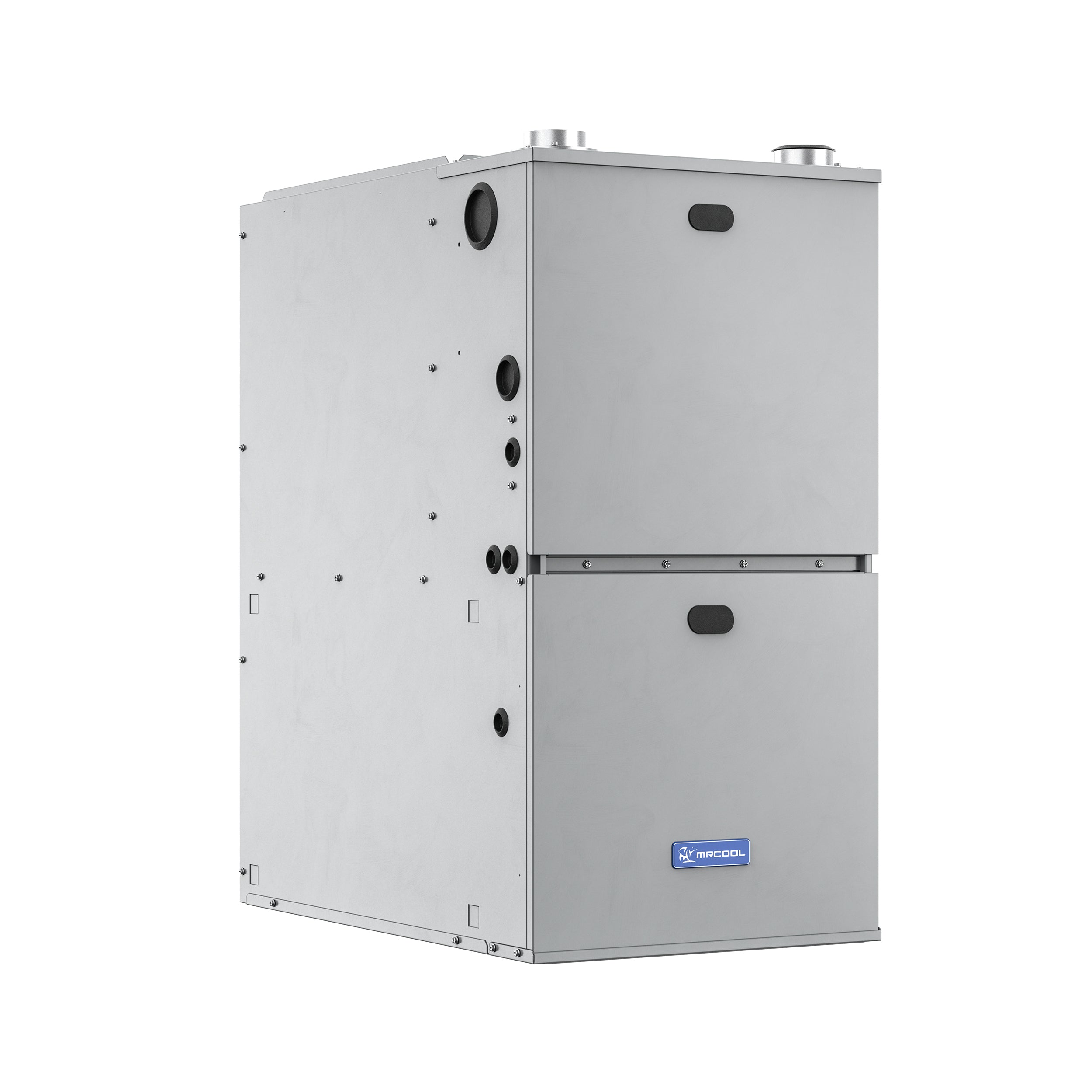

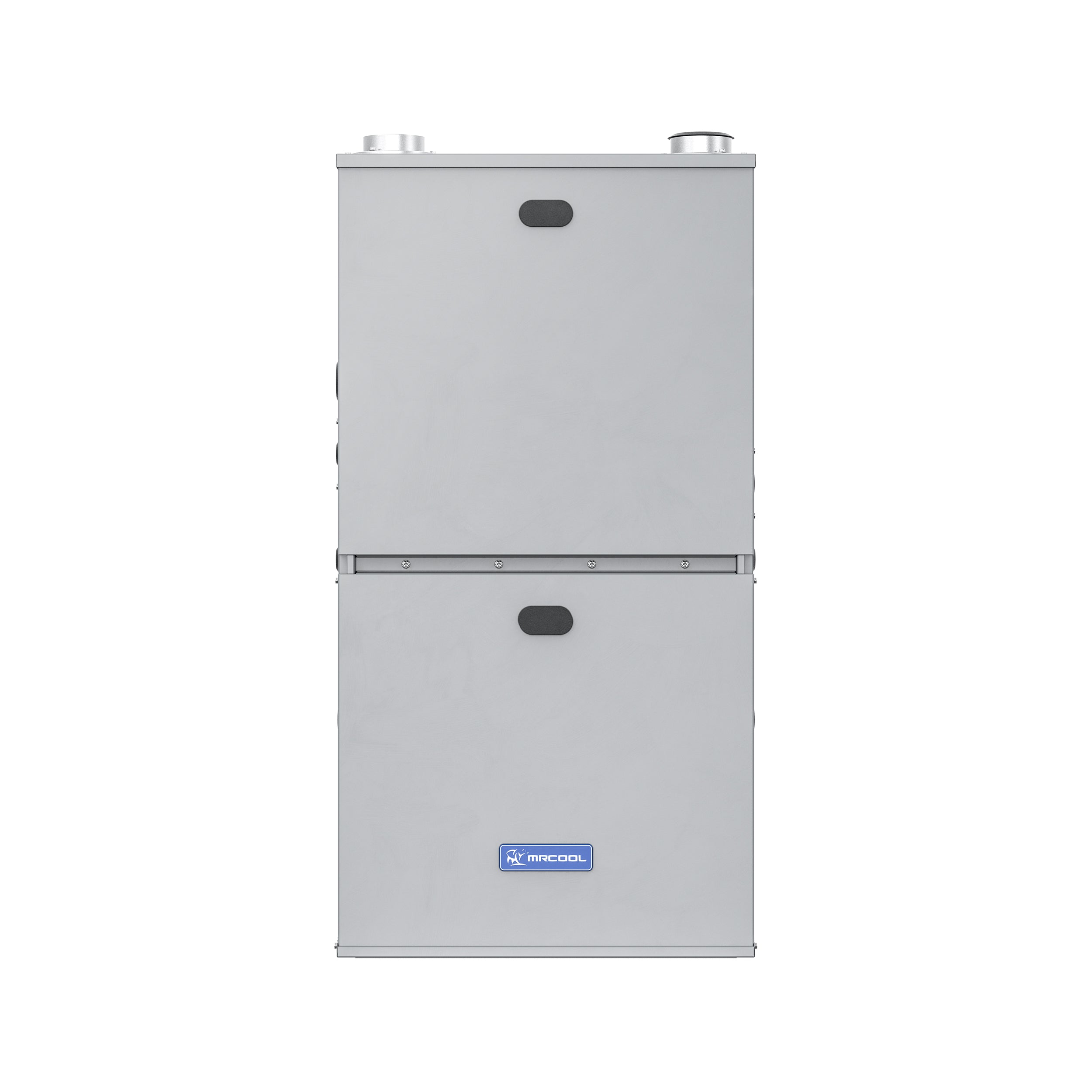

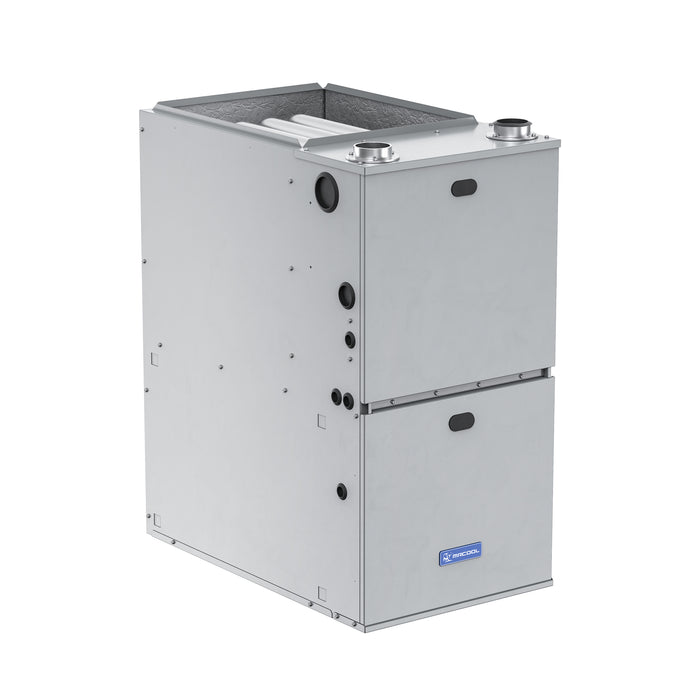

MRCOOL® VersaPro® 120,000 BTU 96% AFUE Two-Stage Multi-Position Gas Furnace 24.5" - MGM96EE120D5NB
When faced with the fiercest and most unforgiving winters, the MRCOOL® VersaPro® 120k BTU 96% AFUE Gas Furnace rises to the challenge as a quiet, high-performance solution. You can rest assured that it not only provides warmth but also saves you money on utility bills, courtesy of its two-stage, consistent torque DC motor and impressive 96% AFUE efficiency rating. Constructed with an aluminized steel tubular heat exchanger and a stainless steel secondary heat exchanger, this furnace epitomizes durability and reliability. Installation is a breeze, even in cramped spaces, thanks to its adaptable design, capable of multi-position installation in both upflow and horizontal configurations. Its removable bottom panel accommodates side or bottom return applications, and it offers convenient left or right connections for gas or electric service. Moreover, converting it to propane is a hassle-free process with an optional LP kit. Being AHRI certified and ETL listed, this furnace has undergone rigorous testing, ensuring it meets the highest HVAC standards. Registering the furnace within 90 days unlocks added peace of mind, providing a 10-year parts warranty and a lifetime warranty on the heat exchanger. Even without registration, you're covered by a 5-year parts warranty and a 20-year heat exchanger warranty, offering long-term comfort and protection.
Features:
- Intertek Cert: 3124627
- Filter Size:
- Side Return: 16x25x1
- Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 96% AFUE
- Two Stage
- Energy Efficient
- Compact Design

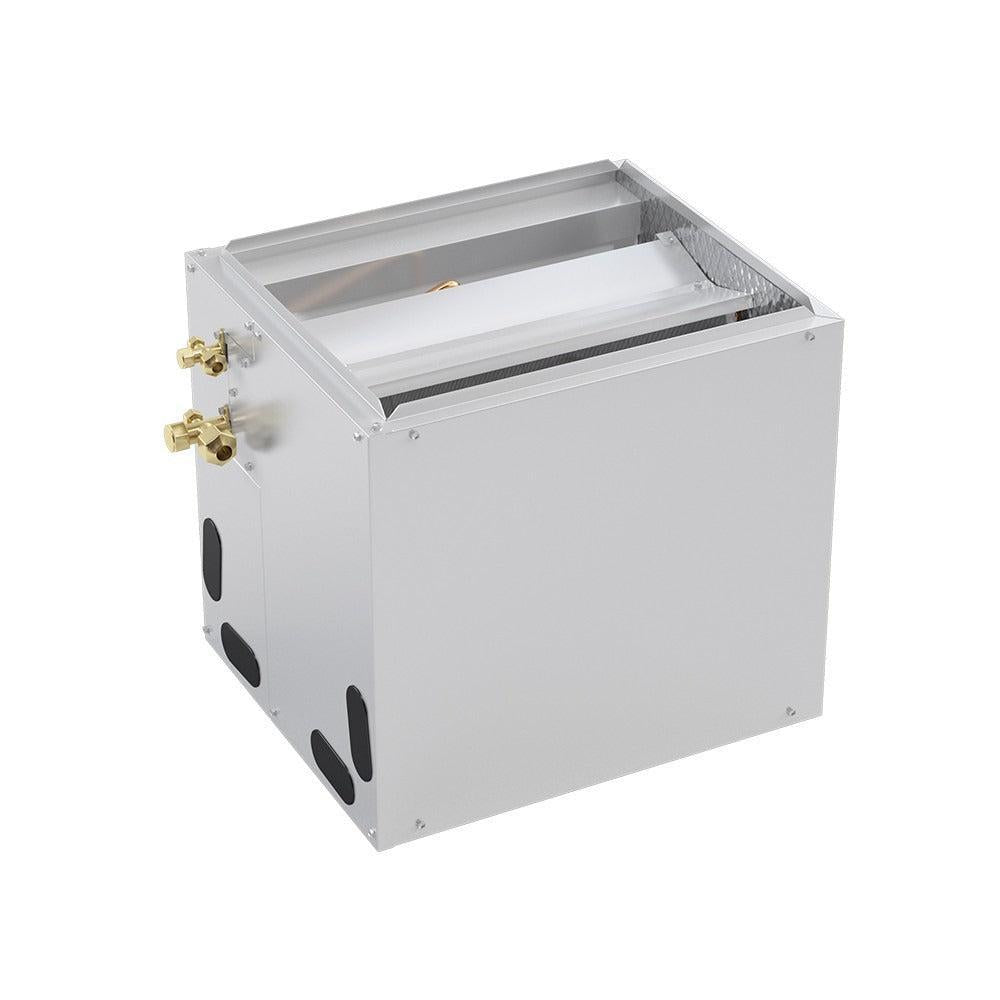

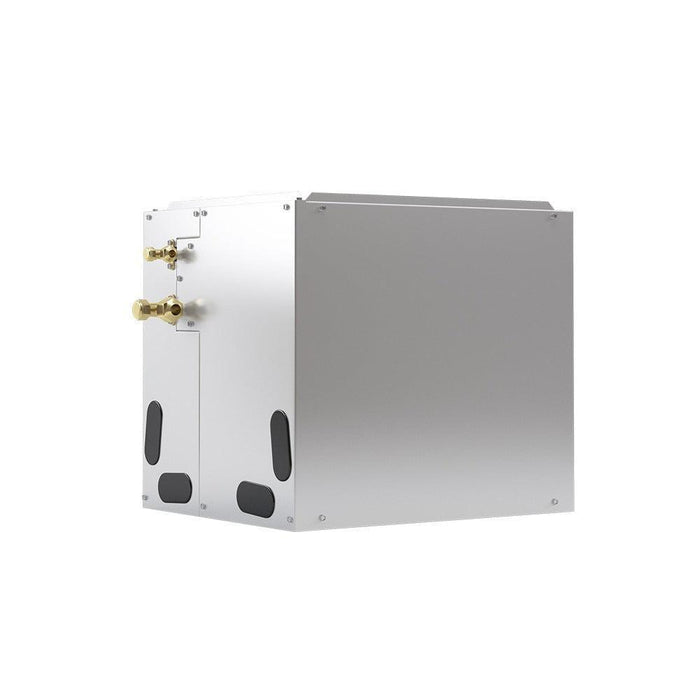

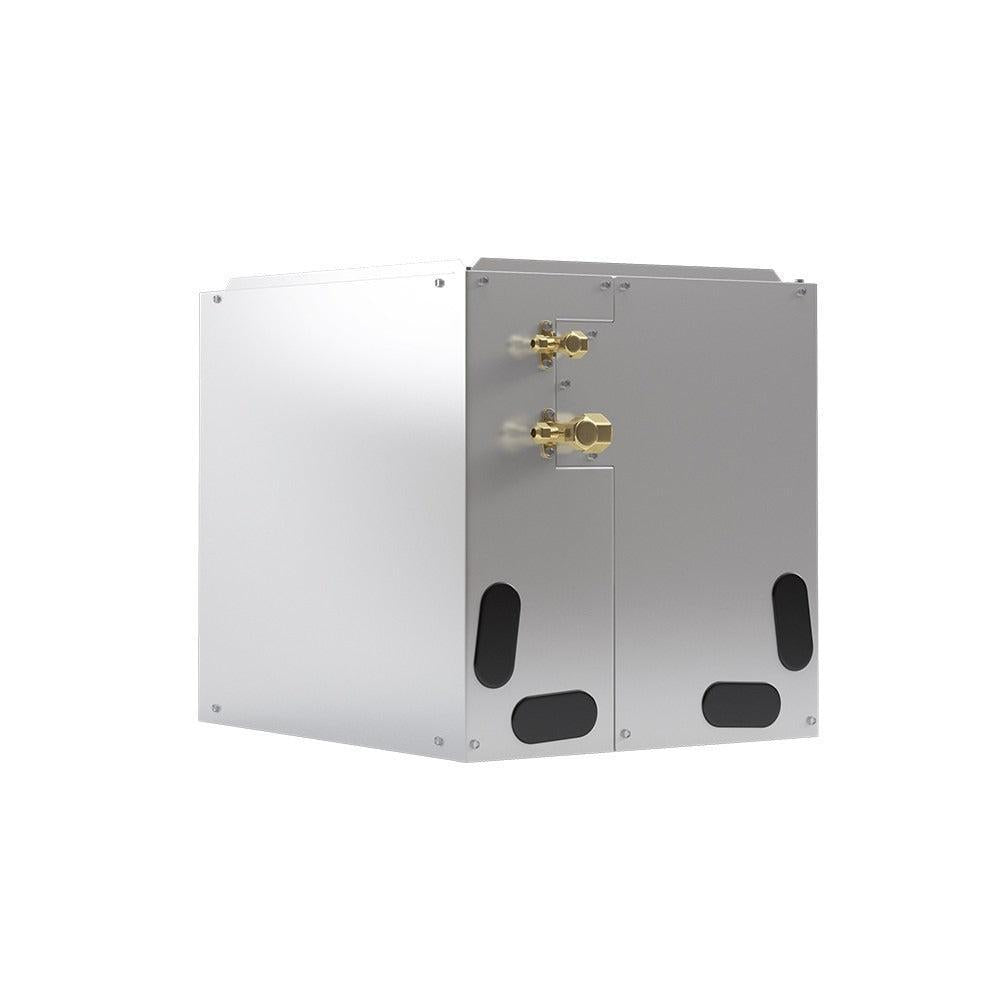

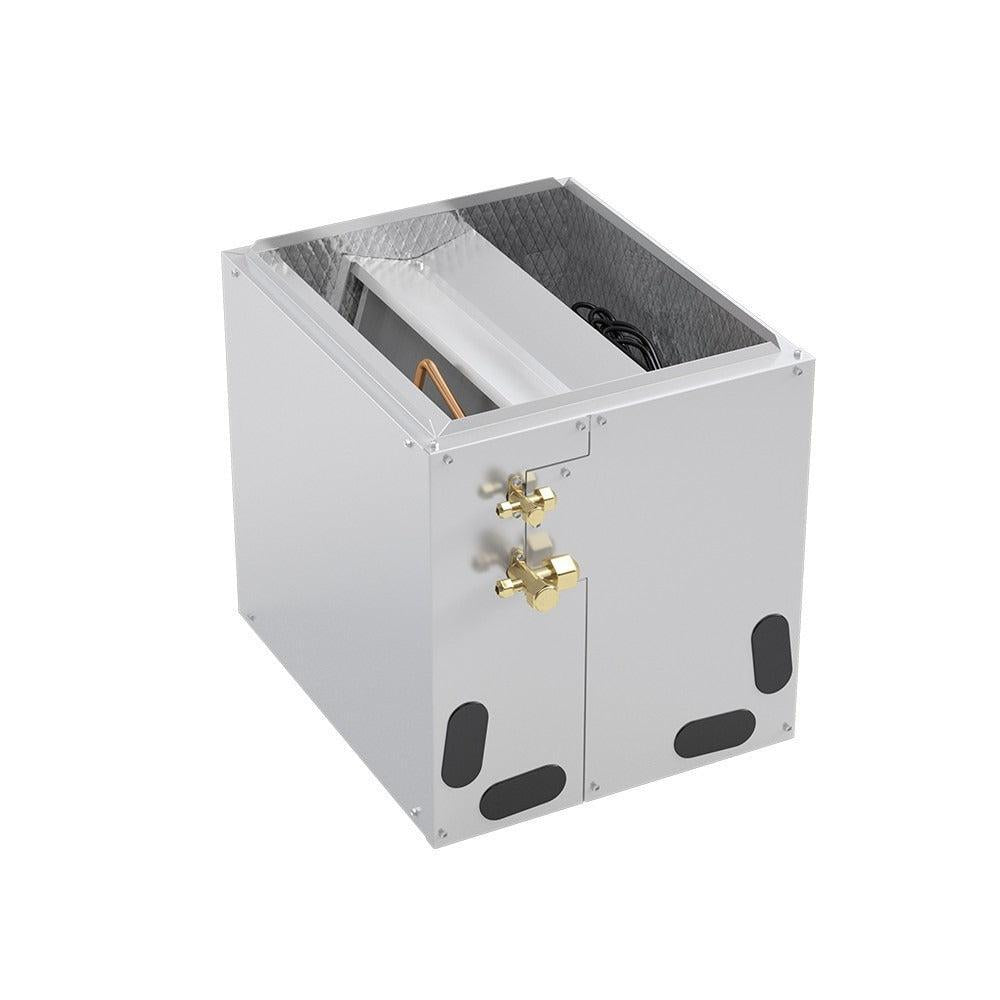

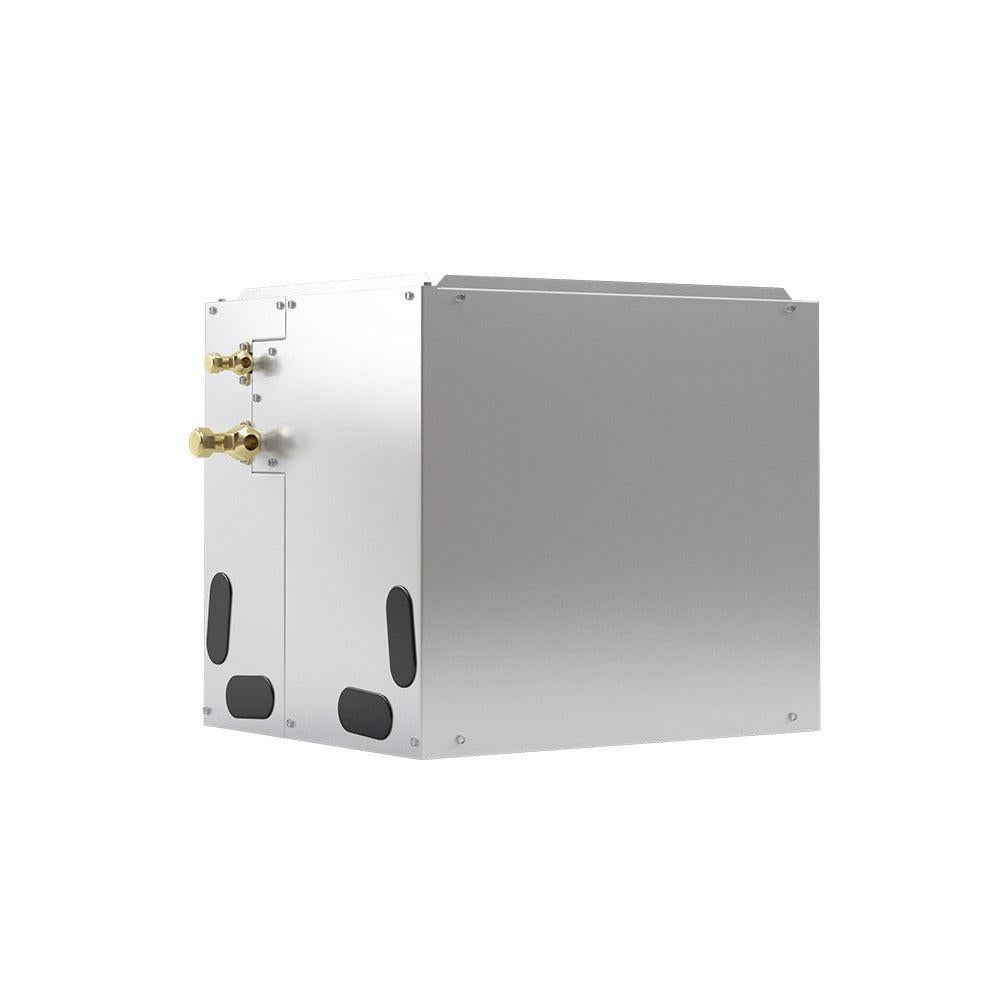

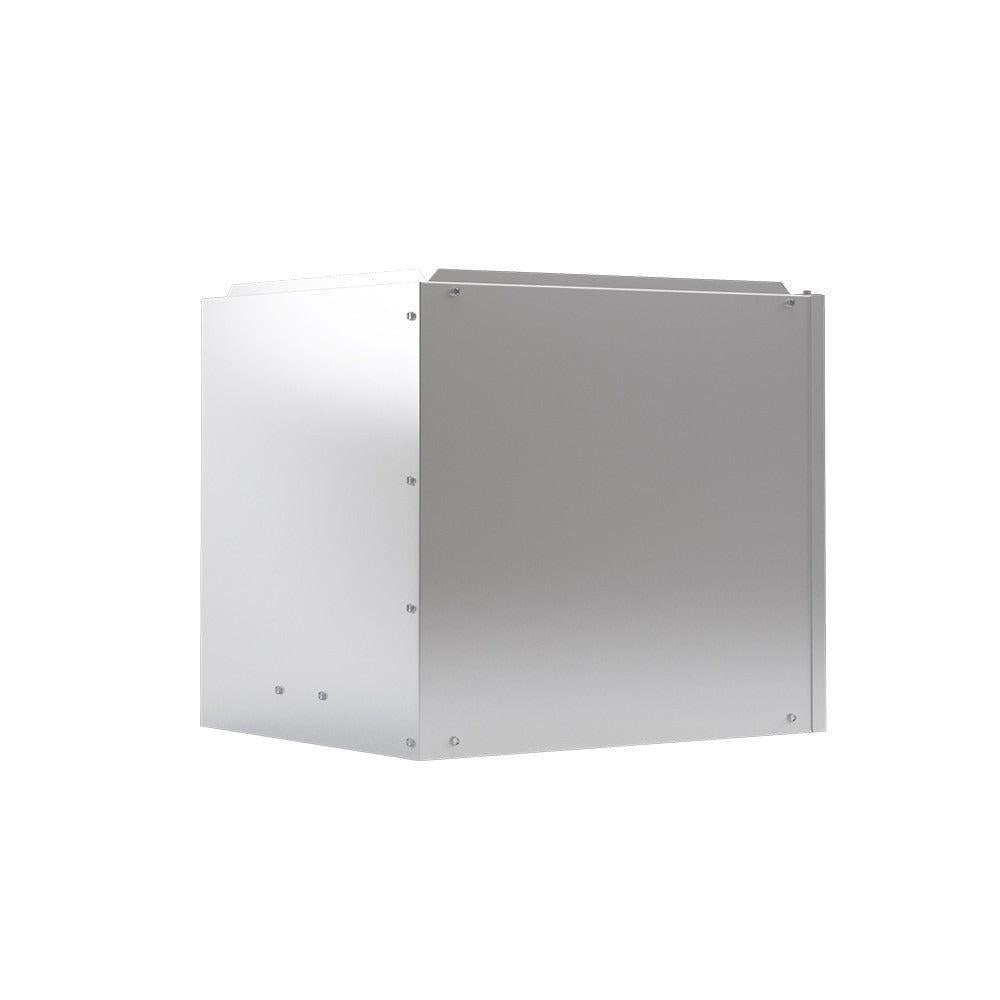

4 to 5 Ton MrCool Universal Evaporator Coil - MDUCC15048060
The Universal A-Coil is a versatile and adaptable option for your home comfort. It can be paired with other Universal units or as a replacement for an outdated, ineffective A-coil in your current system. The Universal A-Coil offers quieter operation and quick installation than many competitor models. It also features a liquid pipe designed to guard against excessive condensation. That could save you from costly property damage. It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.
Bundled System Specifications:
| Brand | MRCOOL |
| Model | MDAGM0480609535 |
| UPC | 840255512206 |
| Gas Furnace Efficiency | 96% |
| Bundle Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Bundle Cooling Efficiency | 18 SEER |
| EER | 11 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | Prop 65 WARNING |
MDUCO18048060 Specifications:
| Brand | MRCOOL |
| Model | MDUCO18048060 |
| UPC | 810063867492 |
| Avg Coverage Area | 2,000 - 2,500 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 45 amps |
| Product Height (in) | 56.375 |
| Product Length (in) | 37 |
| Product Width (in) | 12.625 |
| Refrigerant | R-410a |
| Cooling Efficiency | 18 SEER |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Weight (lbs) | 289.0000 |
| Region Compatibility | North, Southeast |
MGM96EE120D5NB Specifications:
| BRAND | MRCOOL |
| SERIES |
VersaPro 96% Gas Furnace |
| MODEL | MGM96EE120D5NB |
| GTIN | 00840255582674 |
| UPC | 840255582674 |
|
UNIT TYPE |
Gas Furnace |
|
CONFIGURATION |
Multi-Position |
| AFUE | 96 |
|
FUEL TYPE |
Natural/Propane Gas |
|
BTU INPUT |
120000 |
|
BTU OUTPUT |
115000 |
|
VOLTAGE (V) |
115 |
| PHASE | 1 |
| CYCLE | 60 |
| STAGE | Two |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
10.5 |
| COLOR | Gray |
|
FULL LOAD |
10.5 |
|
BLOWER MOTOR TYPE |
ECM |
|
BLOWER MOTOR HP |
1 |
|
BLOWER MOTOR RPM |
1050 |
|
FILTER TYPE |
Replaceable |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED PARTS WARRANTY |
10 Years |
|
BASE PARTS WARRANTY |
5 Years |
|
REGISTERED HEAT EXCHANGER WARRANTY |
Lifetime |
|
BASE HEAT EXCHANGER WARRANTY |
20 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
28.74 |
|
NET HEIGHT (IN) |
33.74 |
|
NET WIDTH (IN) |
24.49 |
|
NET WEIGHT (LBS) |
169 |
|
GROSS DEPTH (IN) |
31.02 |
|
GROSS HEIGHT (IN) |
40.35 |
|
GROSS WIDTH (IN) |
27.05 |
|
GROSS WEIGHT (LBS) |
210 |
| RESOURCES |
MDUCC15048060 Specifications:
| Brand | MRCOOL |
| Model | MDUCC15048060 |
| UPC | 810063867539 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Product Height (in) | 28.5 |
| Product Length (in) | 21.25 |
| Product Width (in) | 24.5 |
| Refrigerant | R-410a |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| Warranty | 5 Year Parts |
| Weight (lbs) | 110.0000 |
Product Information and Guides:
