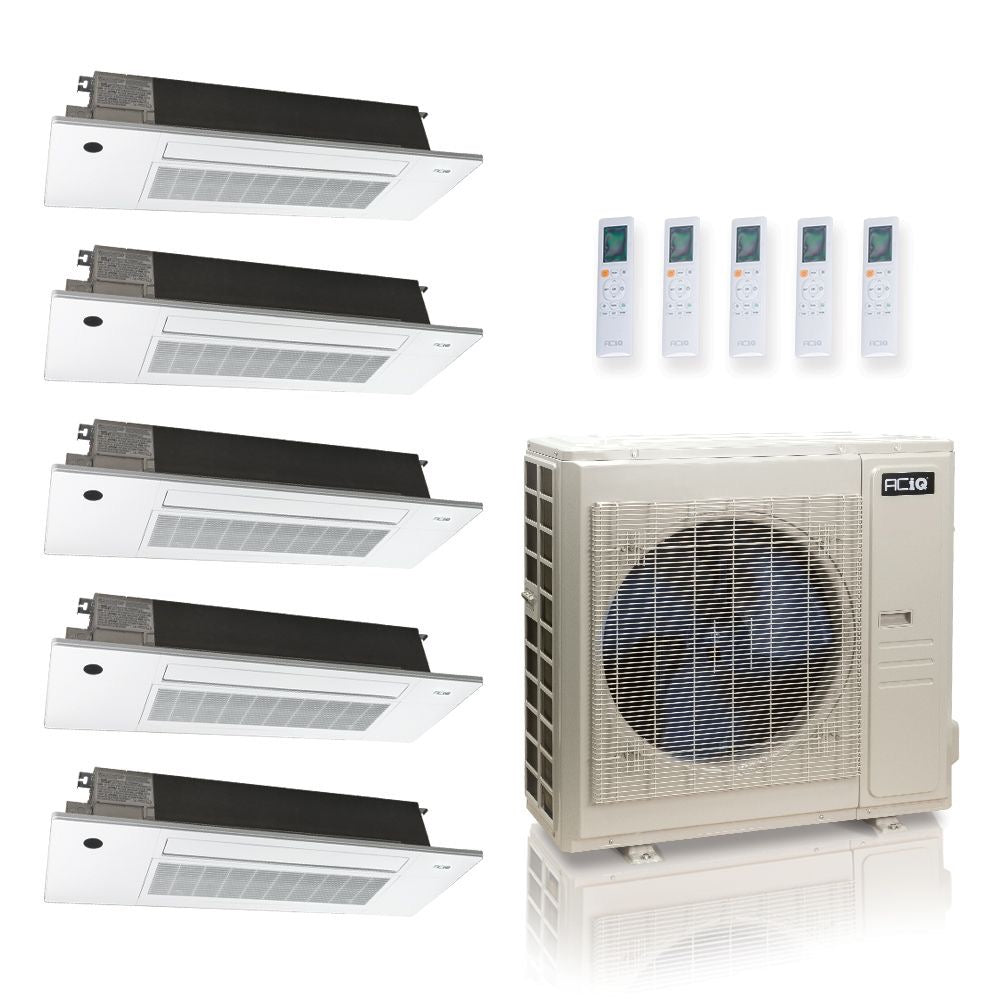

48,000 BTU ACiQ Standard 24 SEER2 5 Zone Slim Ceiling Casette Mini Split Heat Pump System - R454B | 230V - 6 + 6 + 6 + 6 + 12

SKU: ES-48Z-M6C / SCC-06-HH-MB-4 / SCC-12-HH-MB
Your Price:
$8,349.99 $12,846.12
You Save: $4,496.13 35%
Checkout Secure

Quantity Remaining:

80 of 100 Sold
Order in the next to get it by

48,000 BTU ACiQ Standard 24 SEER2 5 Zone Slim Ceiling Casette Mini Split Heat Pump System - R454B | 230V - 6 + 6 + 6 + 6 + 12

This ACIQ 5-Zone Standard Series System combines high efficiency with advanced climate control. ES-48Z-M6C / SCC-06-HH-MB-4 / SCC-12-HH-MB is the perfect solution for year-round heating and cooling in up to 5 spaces.

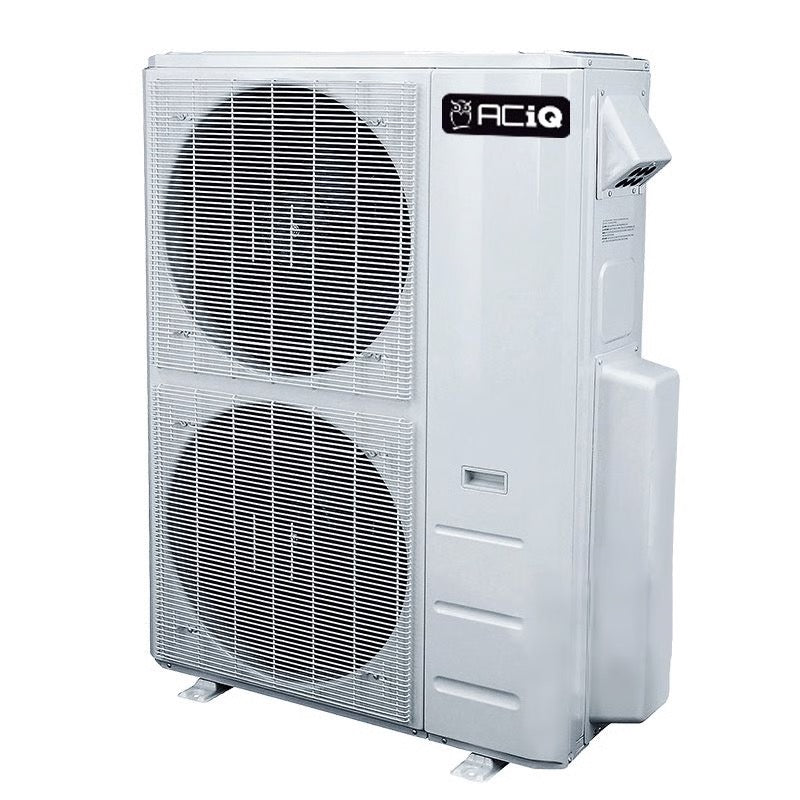

48,000 BTU ACiQ Standard Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V

48,000 BTU ACiQ Standard 24 SEER2 5 Zone Slim Ceiling Casette Mini Split Heat Pump System - R454B | 230V - 6 + 6 + 6 + 6 + 12

Overview

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-48Z-M6C, you can have up to 6 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

Quick Facts

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

48,000 BTU, 24.0 SEER2

The 48,000 BTU, ES-48Z-M6 is designed to easily support up to 6 air handlers at up to 1.25 times the condenser BTU rating, or 60,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 24.0 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.

Self Cleaning Condenser

ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.



6,000 BTU - 12,000 BTU ACiQ Platinum Single Zone Slim Ceiling Casette Mini Split Air Handler - R454B | 230V

48,000 BTU ACiQ Standard 24 SEER2 5 Zone Slim Ceiling Casette Mini Split Heat Pump System - R454B | 230V - 6 + 6 + 6 + 6 + 12

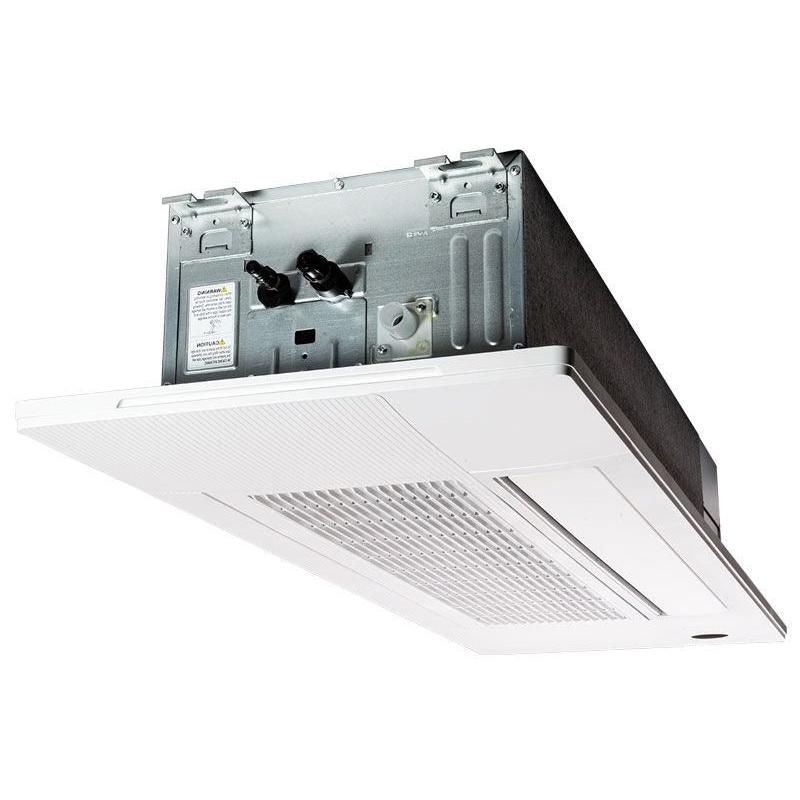

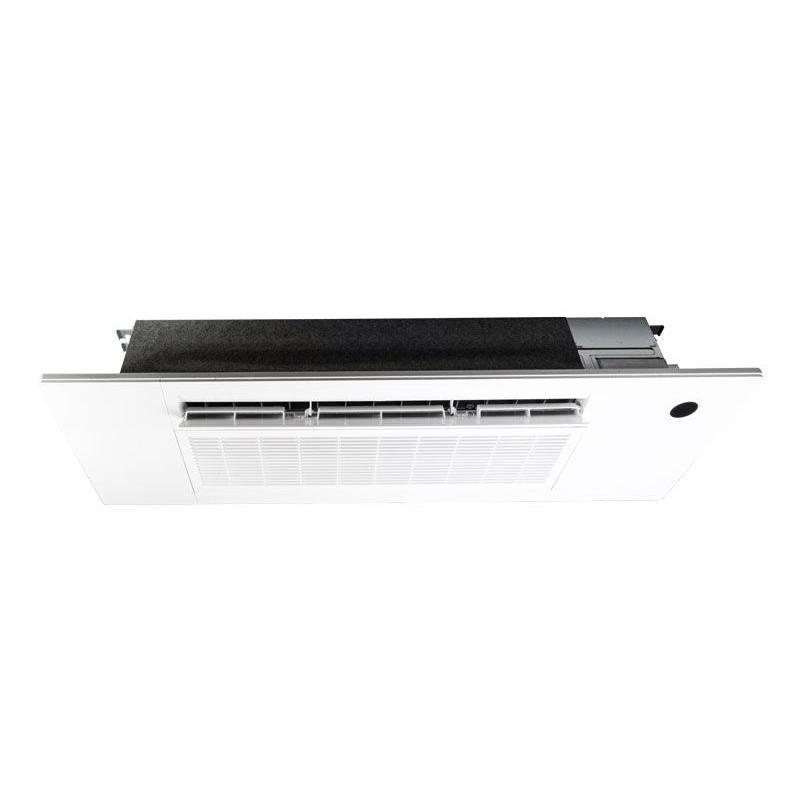

Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.

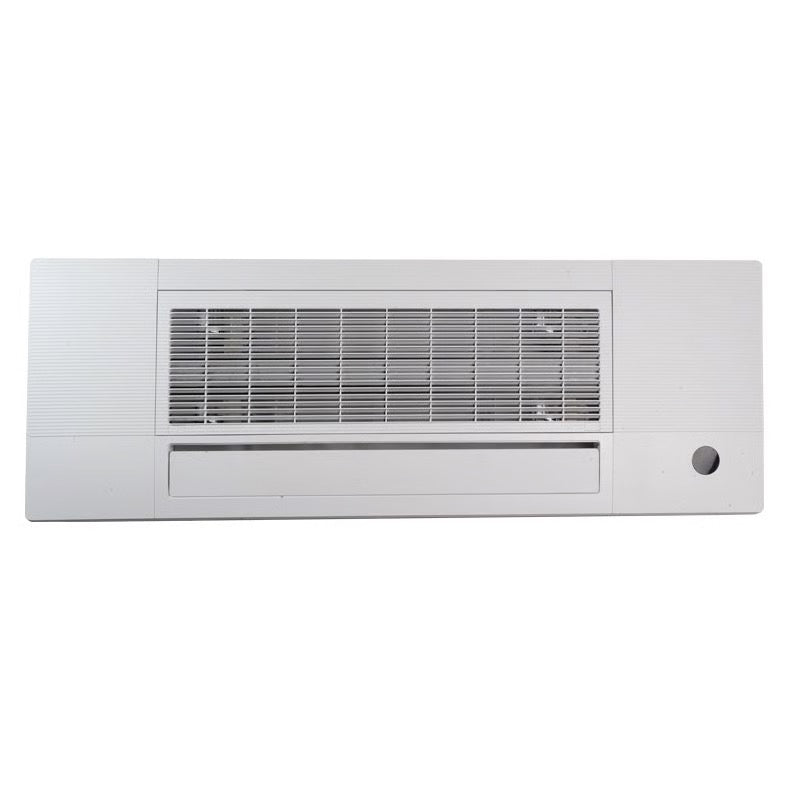

Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.

Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.

This Slim Ceiling Cassette is rated for 6K, 9K and 12K Condensers and has a switch that allows you to change between settings as needed to fit your system.

BTU Compatibility

  • Rated for 6,000, 9,000, and 12,000 BTU applications
  • R-454B refrigerant – efficient and environmentally friendly
  • Compatible with ACIQ multi-zone systems

Switchable Sizing

  • ACIQ Slim Cassette models are rated for 6,000, 9,000, and 12,000 BTU applications.

Installation Considerations

Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling Cassette is designed to fit between 16” on-center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall-mounted units.

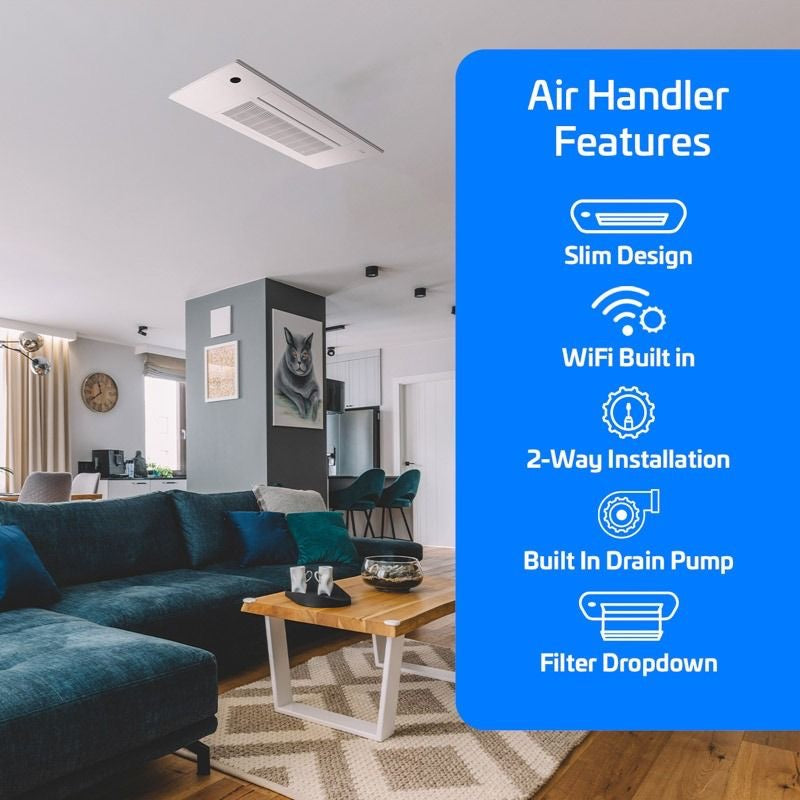

Features

  • Narrow profile fits between 16 inch-on-center joists
  • Rated for 6K, 9K, and 12K BTU – dip switch adjustable (model dependent)

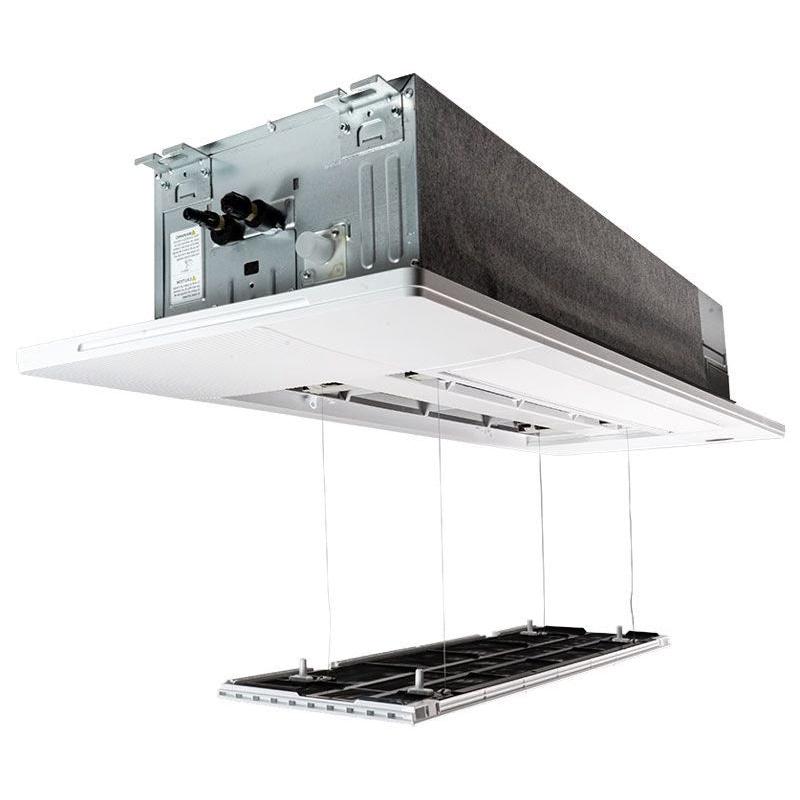

  • No-ladder filter cleaning – grille lowers on cables for easy access to filter

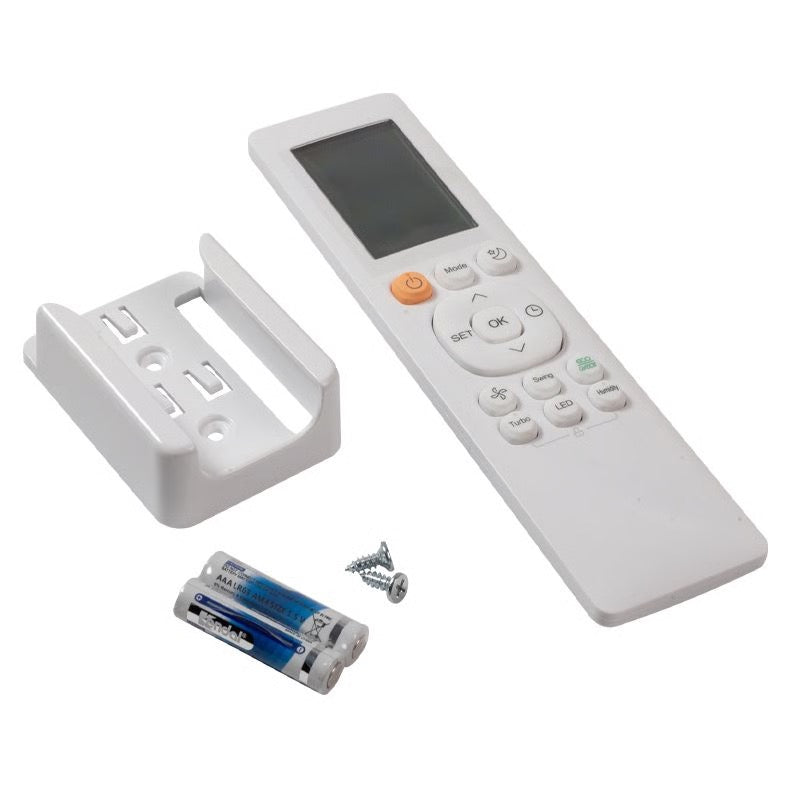

  • Handheld remote included
  • Decorative Grille included

Condenser Specifications:

SKU ES-48Z-M6C
Refrigerant Charge     148.15 oz.
Weight 254.190000
AHRI Certificate Number     216032385
Manufacturer     ACiQ
Replaces     ES-48Z-M5B
HSPF2     10.3
Cooling BTU     47000 BTU
Heating BTU     48000 BTU
Maximum CFM     4503
Decibel Level (dBA)     63
Electric Heat     Heat Pump
Energy Star     Yes
Refrigerant     R454B
SEER2  24
Compressor Type     Rotary
Liquid Line     1/4" (6)
Suction Line     3/8" (4); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz
Electric Phase Filter     Single Phase
Max Breaker Size     40A
Min. Breaker Size     45A
Tonnage 4 Ton
BTU/Tonnage     48,000 BTU/4 Ton
Mini Split Type     Wall Mounted
Zone Compatibility     Multi Zone
Height     52.48"
Width     37.48"
Depth     16.34"
Warranty 12 year compressor, 7 year parts with online registration
Resources
Safety Information PROPOSITION 65 WARNING



6,000 BTU - 12,000 BTU Air Handler Specifications:

SKU SCC-0612-HH-MB
Weight  82.450000
Manufacturer     ACiQ
Controller     Wireless Included
Cooling BTU 6,000 / 9,000 / 12,000
Heating BTU 6,000 / 9,000 / 12,000
Maximum CFM Up to 353.20 CFM
Decibel Level (dBA) As low as 24.0 Decibels
Refrigerant R454B
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V, 1 Phase, 60Hz
Phase Single Phase
Mini Split Type Slim Ceiling Cassette
Zone Compatibility Multi Zone, Single Zone
Height     8.98"
Width 50.31"
Depth 13.19"
Warranty 12 year compressor, 7 year parts with online registration
