55,000 BTU ACiQ Standard 18 SEER2 5 Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V - 9 + 12 + 12 + 12 + 12
This ACiQ 5-Zone Standard Series System combines high efficiency with advanced climate control. ES-55Z-M6C / ACIQ-09CD-HH-MC / ACIQ-12CD-HH-MC-4 is the perfect solution for year-round heating and cooling in up to 5 spaces.
55,000 BTU ACIQ Standard Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
Overview
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-55Z-M6C, you can have up to 6 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
Quick Facts
- 55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
- Designed to function with up to 6 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
55,000 BTU, 21.3 SEER2
The 55,000 BTU, ES-55Z-M6C is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22.0 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
9,000 BTU ACIQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.
The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.
Installation Considerations
Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.
Features
- 9,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a smaller room in most climates
- Wall mounted thermostat included
Concealed Duct
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

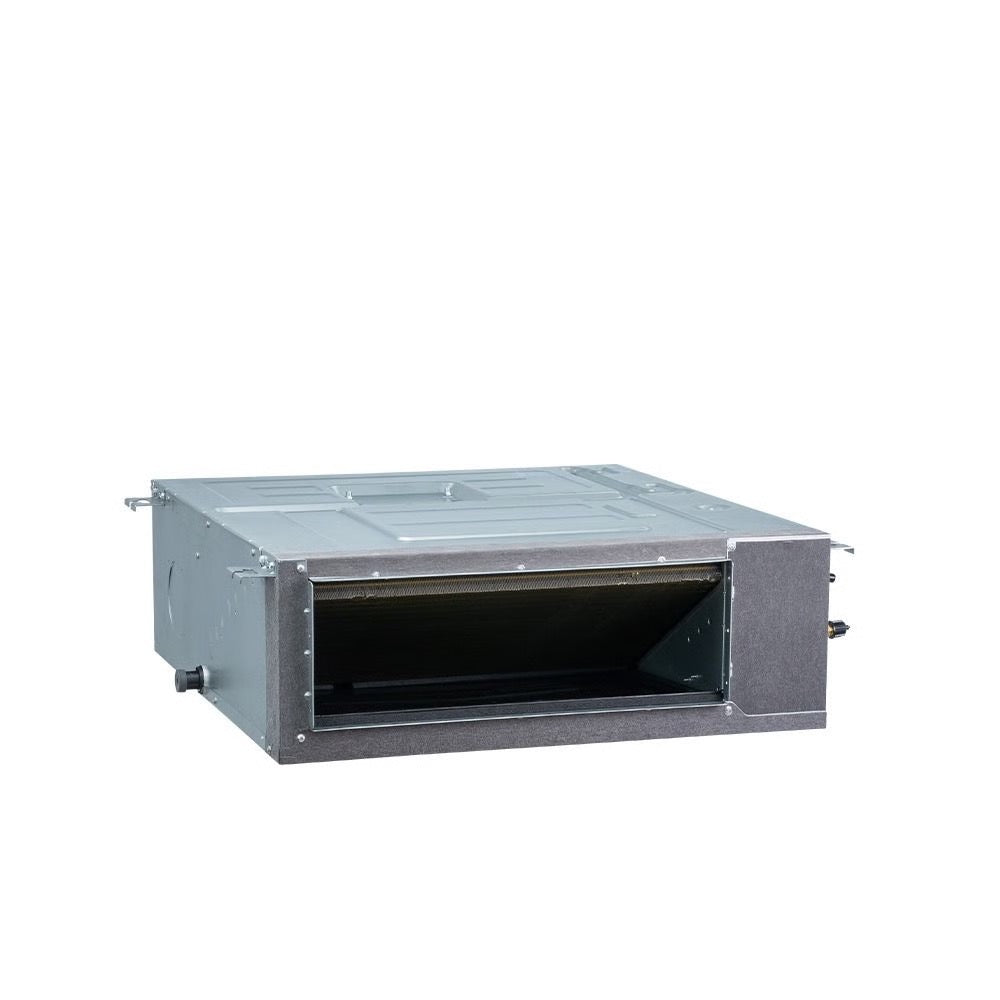

12,000 BTU ACIQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.
The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.
Installation Considerations
Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.
Features
- 12,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a smaller room in most climates
- Wall mounted thermostat included
Concealed Duct
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.
Quiet Comfort
Condenser Specifications:
| SKU |
ES-55Z-M6C |
| Refrigerant Charge |
151.68 oz. |
| Weight |
270.280000 |
| AHRI Certificate Number |
216032388 |
| Manufacturer | ACiQ |
| HSPF2 |
9.5 |
| Cooling BTU |
60000 BTU |
| Heating BTU |
60000 BTU |
| Maximum CFM | 4503 |
| Decibel Level (dBA) |
65 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 22 |
| Compressor Type | Rotary |
| Liquid Line |
1/4" (6) |
| Suction Line |
3/8" (4); 1/2" (2) |
| Electrical |
208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Max Breaker Size |
45A |
| Min. Breaker Size |
40A |
| BTU/Tonnage |
55,000 BTU/4.5 Ton |
| Zone Compatibility |
Multi Zone |
| Operating Mode |
Cooling, Heating |
| Height |
52.48" |
| Width |
37.48" |
| Depth |
16.34" |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
9,000 BTU Air Handler Specifications:
| SKU |
ACIQ-09CD-HH-MC |
| Weight |
73.850000 |
| Manufacturer | ACiQ |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum CFM |
Up to 344.30 CFM |
| Decibel Level (dBA) |
As low as 26.0 Decibels |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical |
208/230V, 1 Phase, 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Concealed Duct |
| Zone Compatibility |
Multi Zone, Single Zone |
| Height | 9.65" |
| Width | 27.56" |
| Depth | 29.53" |
| Warranty |
12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
