6,000-12,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler | R454B

SKU: SCC-0612-HH-MB
Your Price:
$1,049.99 $1,154.99
You Save: $105.00 10%
  • FLASH SALE GOING ON NOW! Save An Extra 7% OFF with Code: ACiQ7
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 20 Left in Stock.
Order in the next to get it by

Get Extra 7% Off With Code: ACiQ7 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

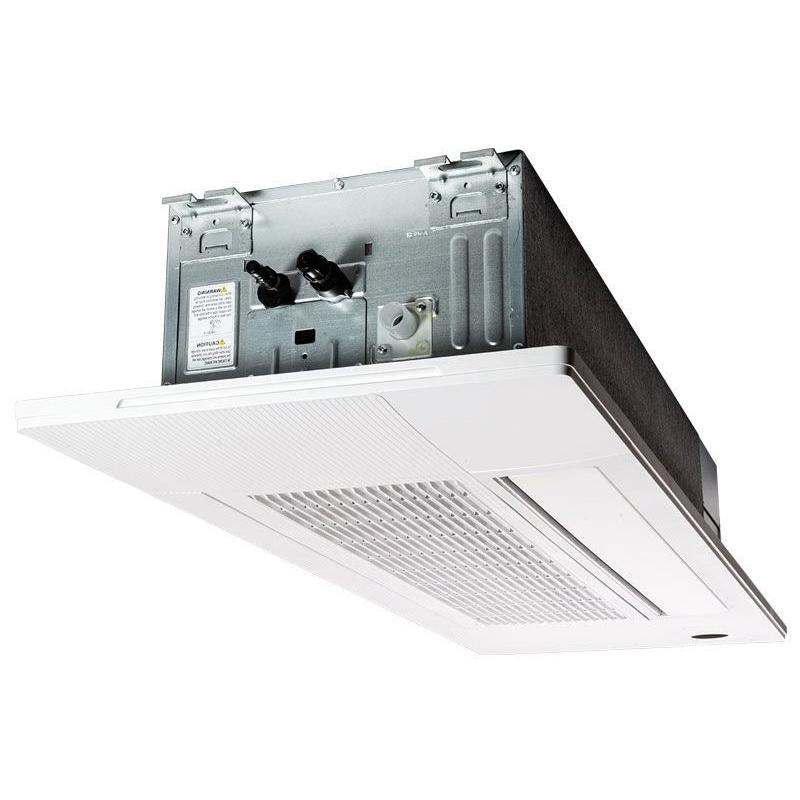

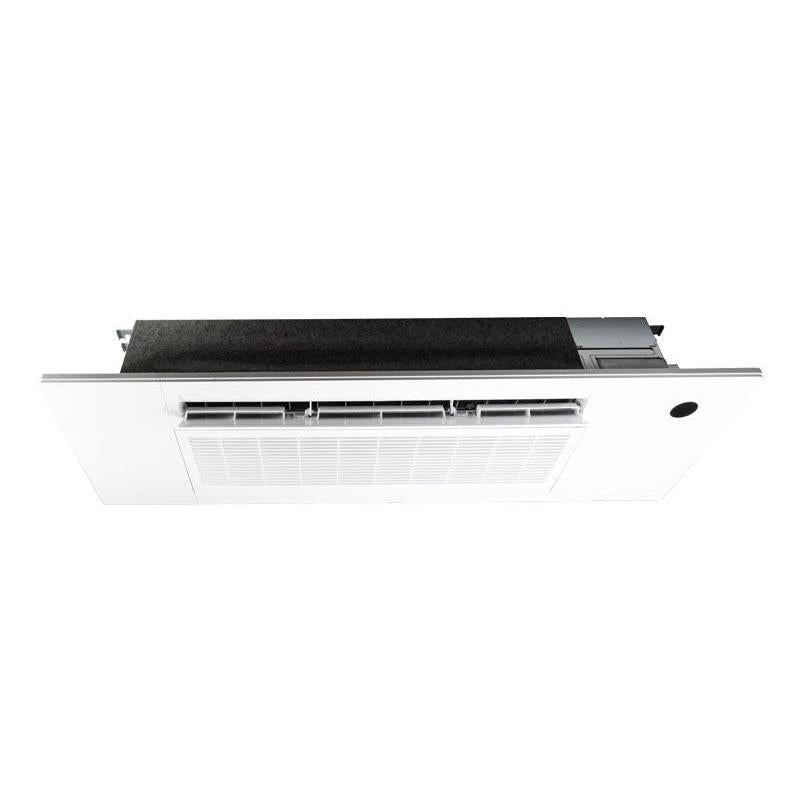

6,000-12,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler | R454B

Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.

Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.

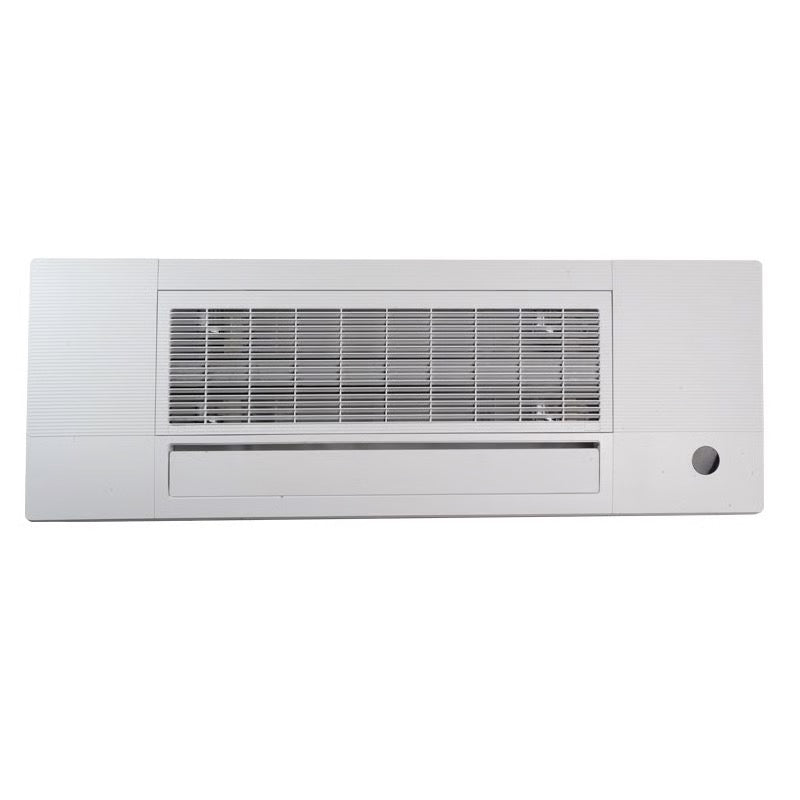

Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.

This Slim Ceiling Cassette is rated for 6K, 9K and 12K Condensers and has a switch that allows you to change between settings as needed to fit your system.

BTU Compatibility

  • Rated for 6,000, 9,000, and 12,000 BTU applications
  • R-454B refrigerant – efficient and environmentally friendly
  • Compatible with ACiQ multi-zone systems

Switchable Sizing

  • ACiQ Slim Cassette models are rated for 6,000, 9,000, and 12,000 BTU applications.

Installation Considerations

Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling Cassette is designed to fit between 16” on-center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall-mounted units.

Features

  • Narrow profile fits between 16 inch-on-center joists
  • Rated for 6K, 9K, and 12K BTU – dip switch adjustable (model dependent)

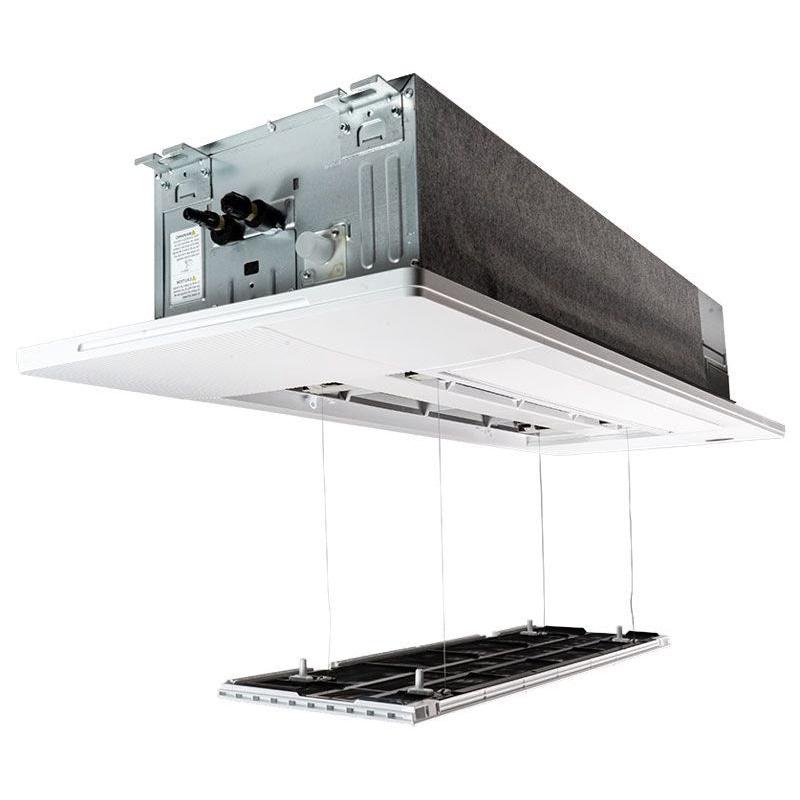

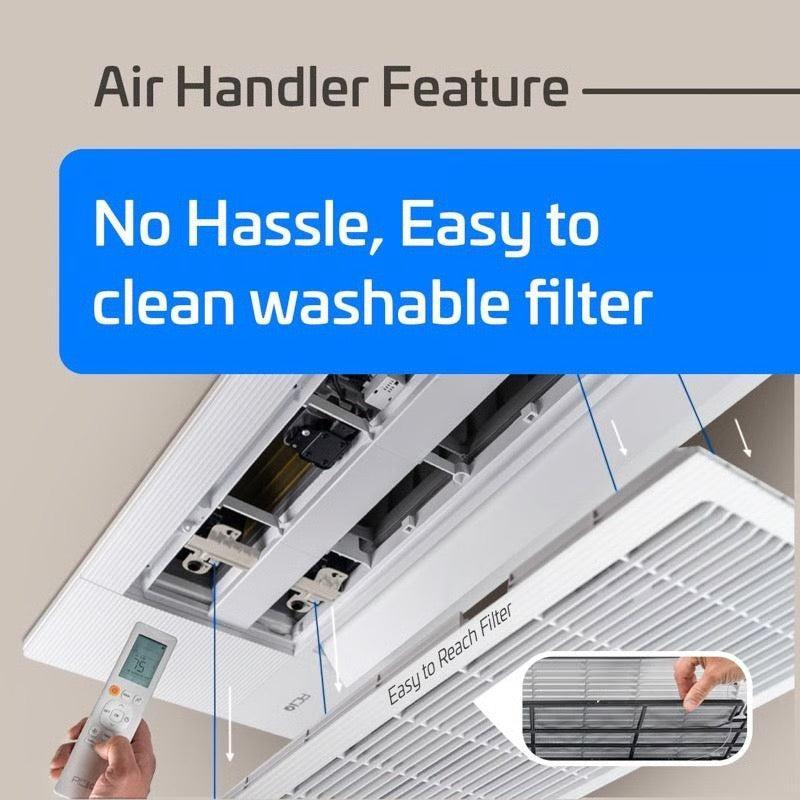

  • No-ladder filter cleaning – grille lowers on cables for easy access to filter

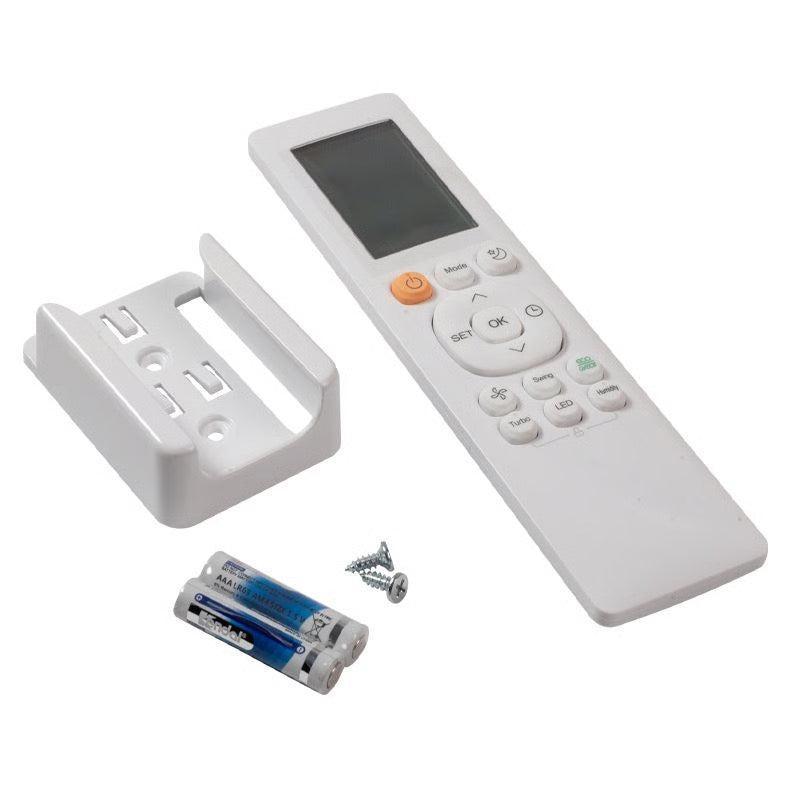

  • Handheld remote included
  • Decorative Grille included

6,000-12,000 BTU Air Handler Specifications:

SKU SCC-0612-HH-MB
Weight (in lbs)     43.870000
Brand/Manufacturer     ACiQ
Controller     Wireless Included
Cooling BTU     6,000 / 9,000 / 12,000
Heating BTU     6,000 / 9,000 / 12,000
Maximum CFM     341.18
Decibel Level (dBA)     As low as 31
Refrigerant     R454B
Liquid Line     1/4"
Suction Line     3/8"
Electrical 208/230V 1 Phase 60Hz
Electric Phase Filter     Single Phase
Mini Split Type     Slim Ceiling Cassette
Zone Compatibility     Multi Zone
Height     8.98"
Width     50.31"
Depth     13.19"
Warranty 12 year compressor, 7 year parts with online registration
