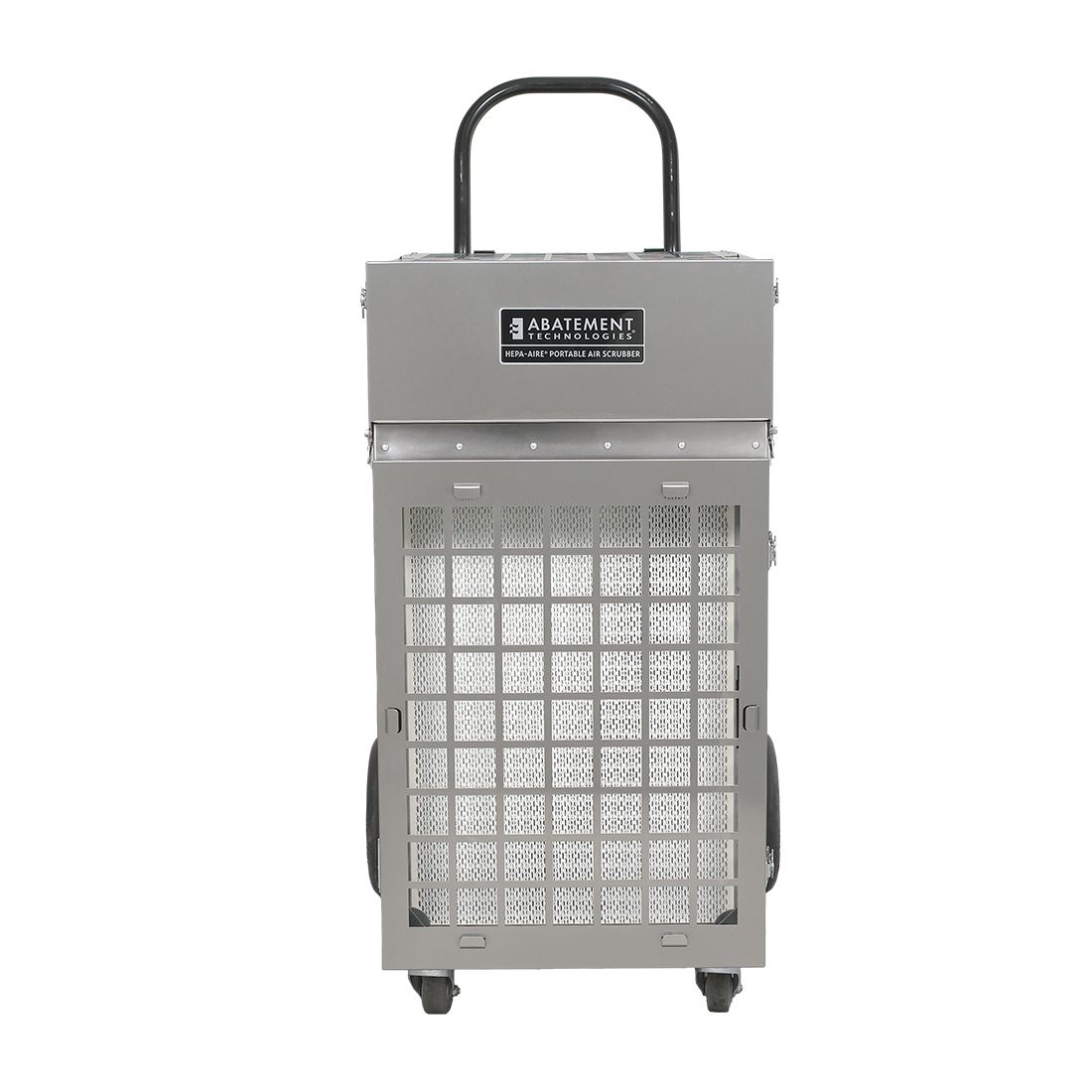

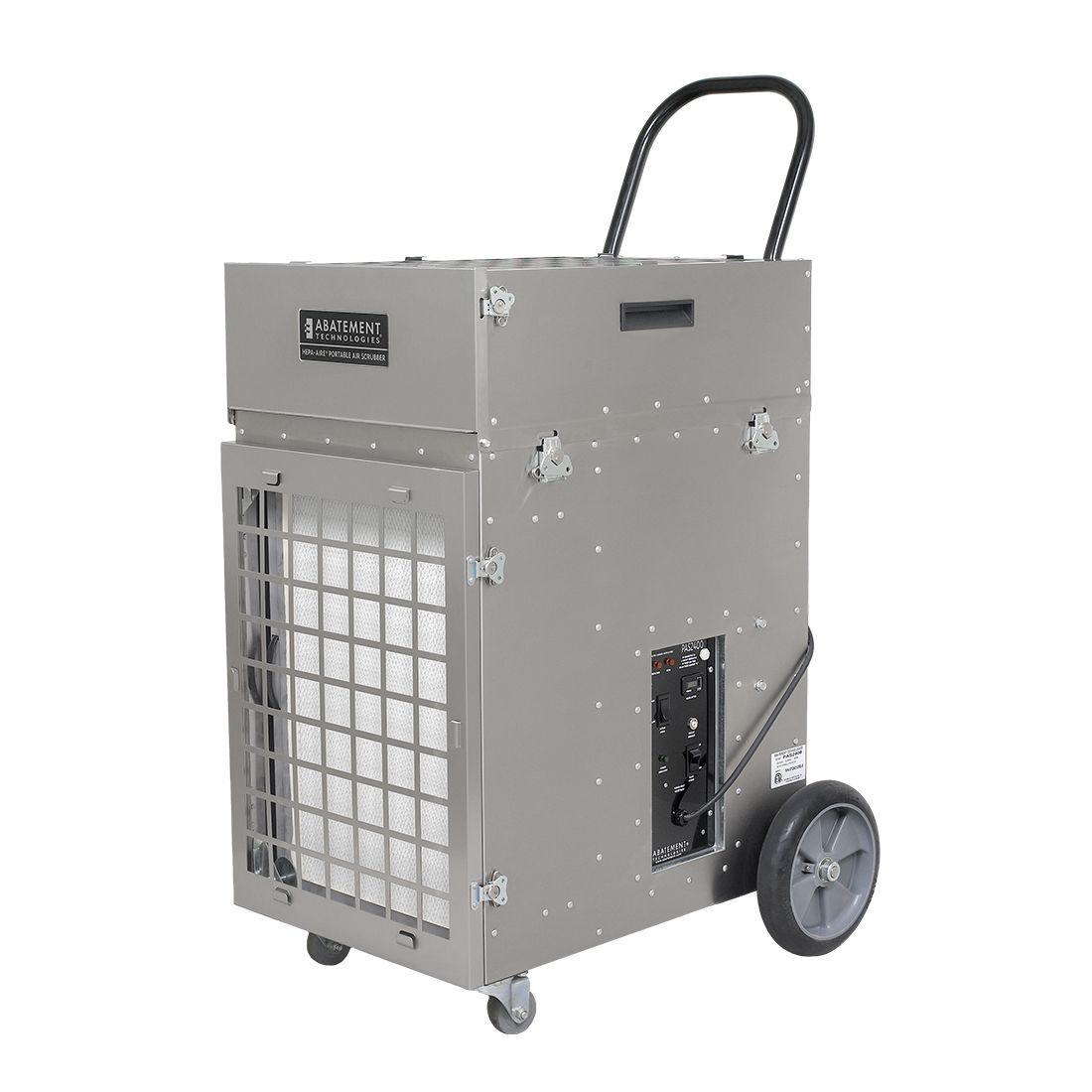

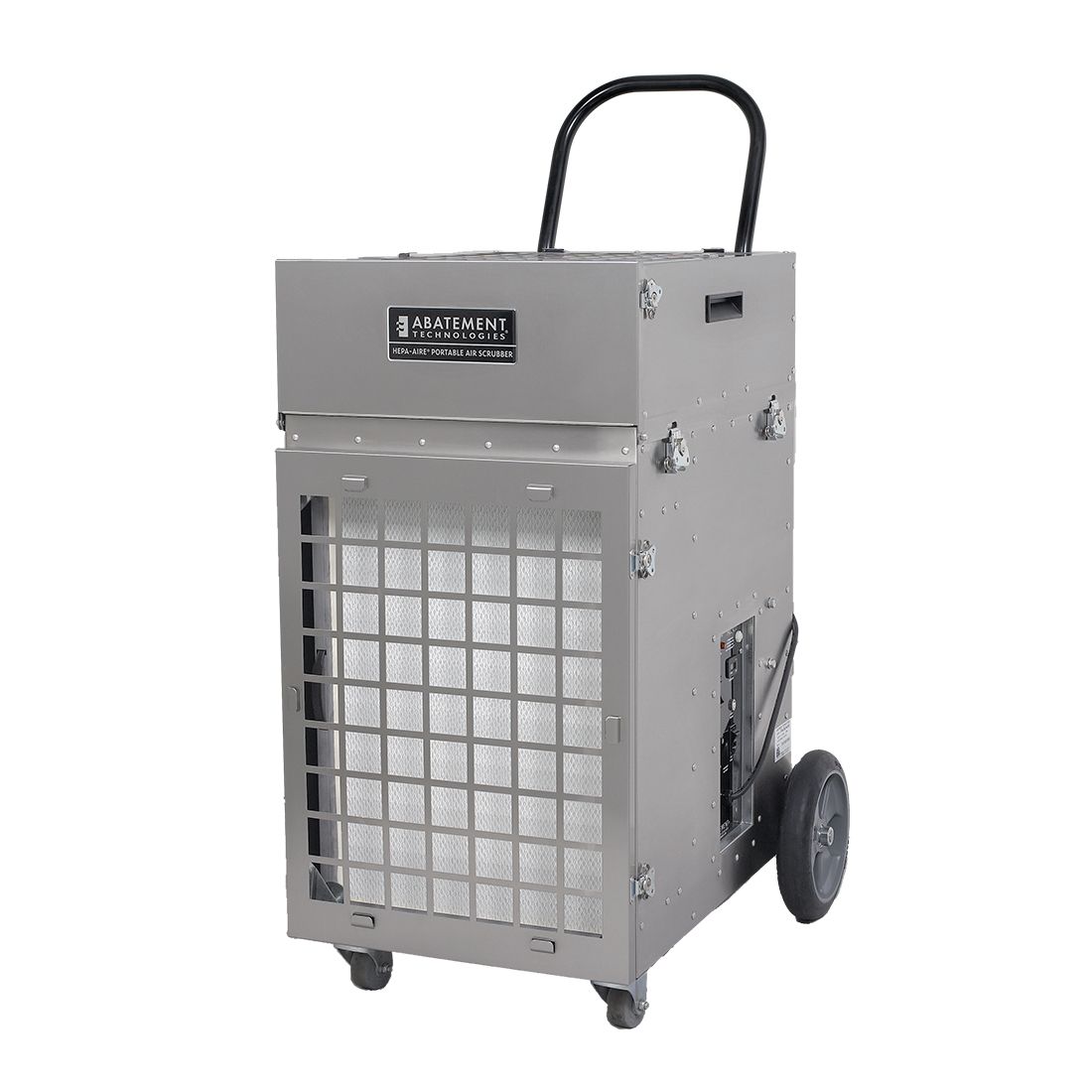

Abatement Technologies® HEPA-AIRE PAS2400 Portable Air Scrubber
The Ultimate Combination of Power & Portability
Exceptional performance and a full array of user-friendly features have made the Abatement Technologies® PAS2400 Portable Air Scrubber* a popular choice for capturing airborne particles during facility construction and renovation. With peak tested airflow of up to 2,100 cfm, and a maximum static lift of 5.5”, it’s the highest output Portable Air Scrubber that is NRTL-certified to operate safely on a 120V/15 amp electrical supply.
The PAS2400 Portable Air Scrubber has several filter stages with exceptional dirt-holding capacity, and optional gas and odor removal capabilities:
- Stage 1 - Inexpensive 1" FIBER-TRAPPER® 1.0 pre-filter
- Stage 2 - 2" Pleated particulate pre-filter
- Stage 3 (optional) - 2" high-capacity VAPOR-LOCK® carbon filter for odors (not included)
- HEPA filter - Tested and certified to 99.97% minimum efficiency @ 0.3 microns
‘Zero Bypass’ Design and True HEPA Filter
A unique cabinet design and a true high-capacity, IEST-compliant HEPA filter help ensure that the PAS2400 exhausts 99.97%+ efficiency air out of the work area, job after job, month after month."
The PAS2400 comes equipped with many outstanding features including:

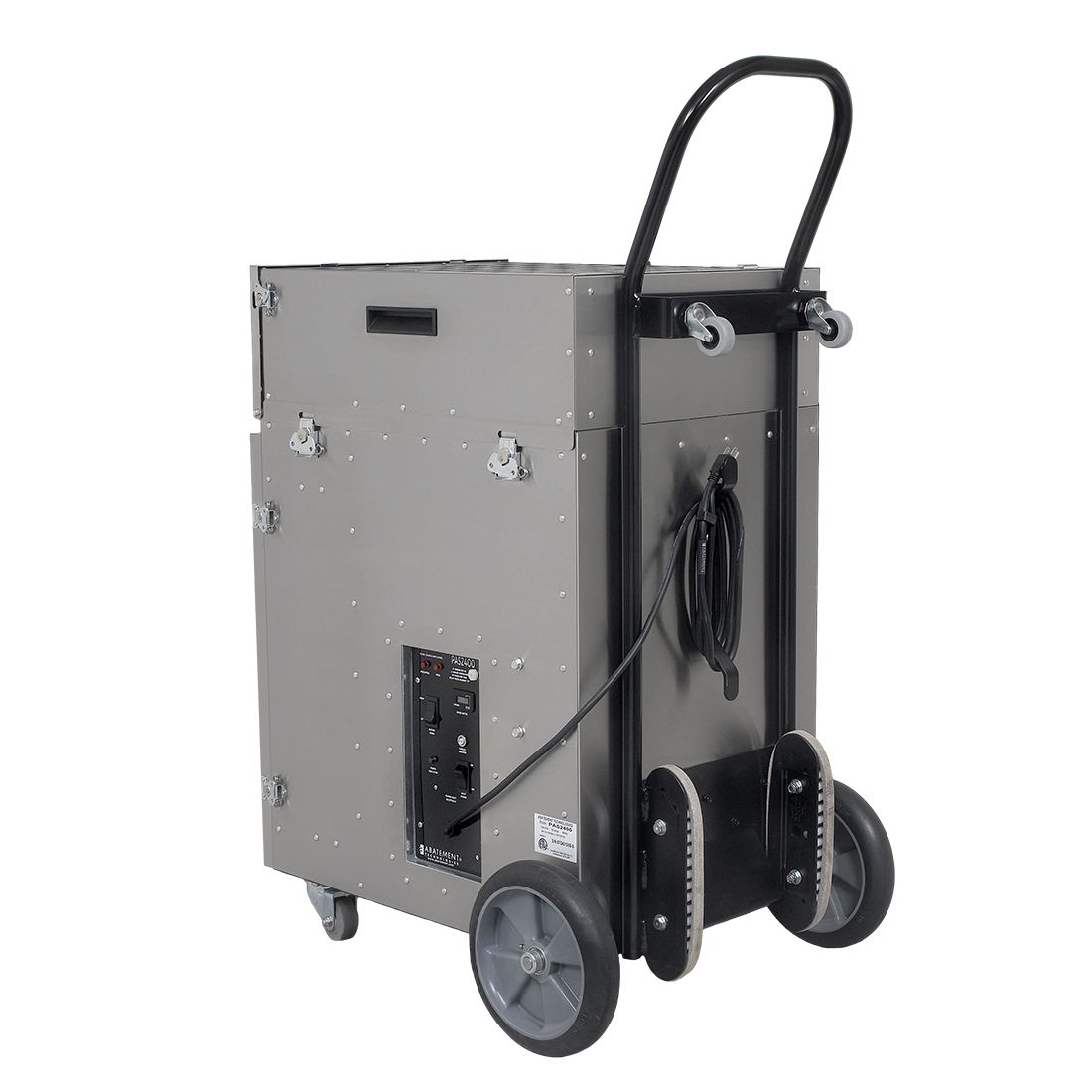

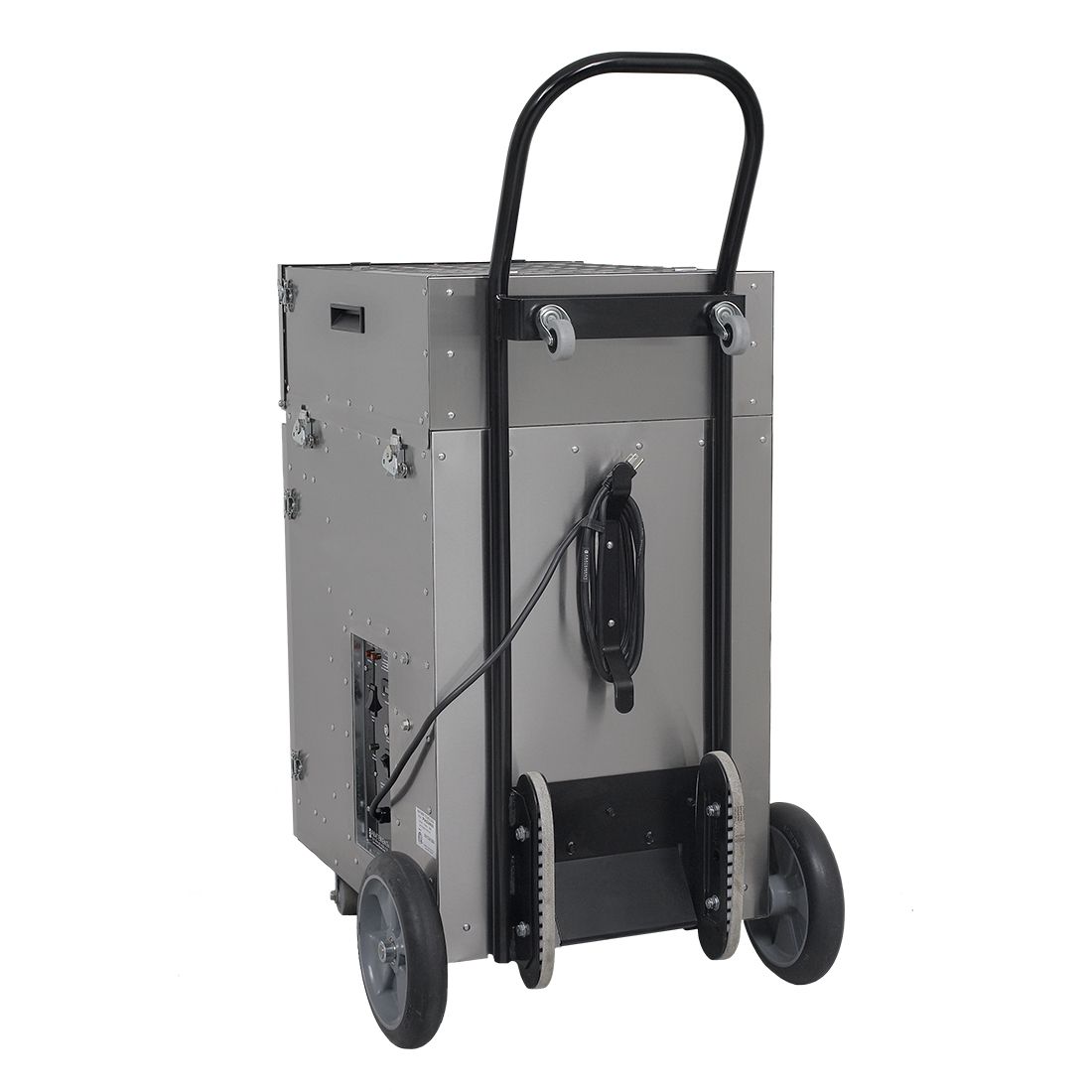

- Portability - The upright, two-module design with built-in transport dolly enhance the mobility and maneuverability of the PAS2400 and its ability to operate in tight spaces

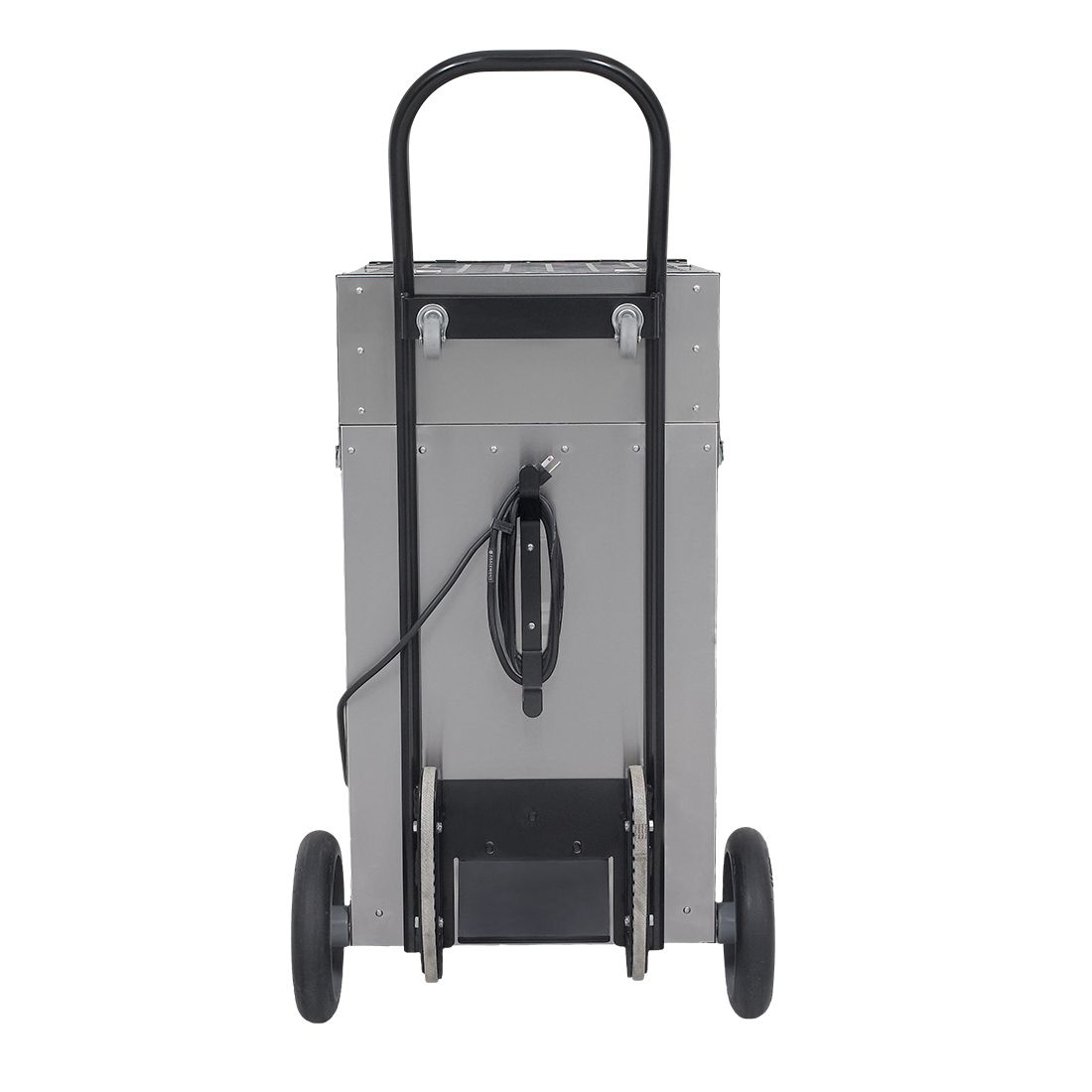

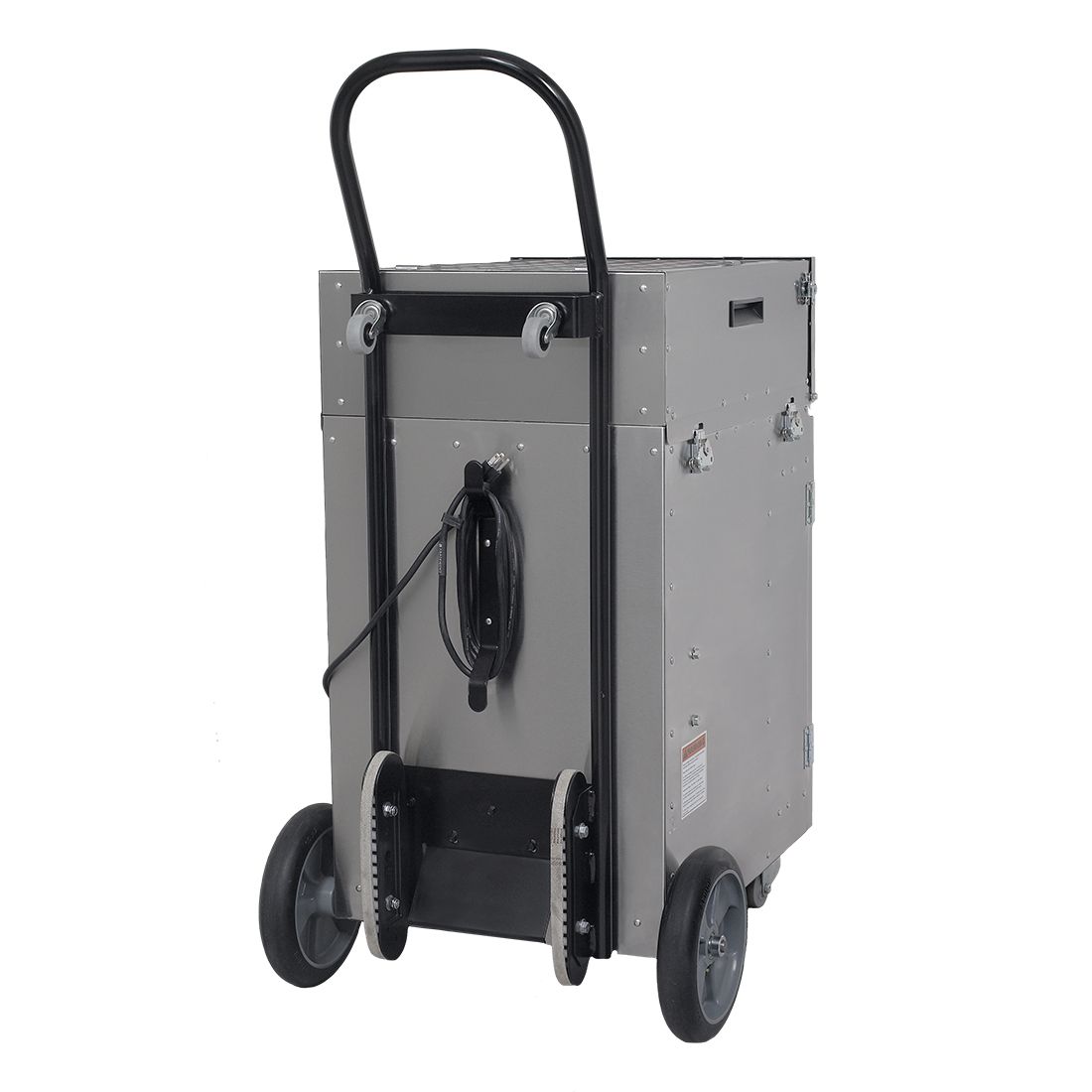

- Built-in Stair Climber - The built-in stair climber further enhances portability by making it easier to go up or down stairs. The upper pre-filter module can also be detached and hand-carried to further lighten the load.

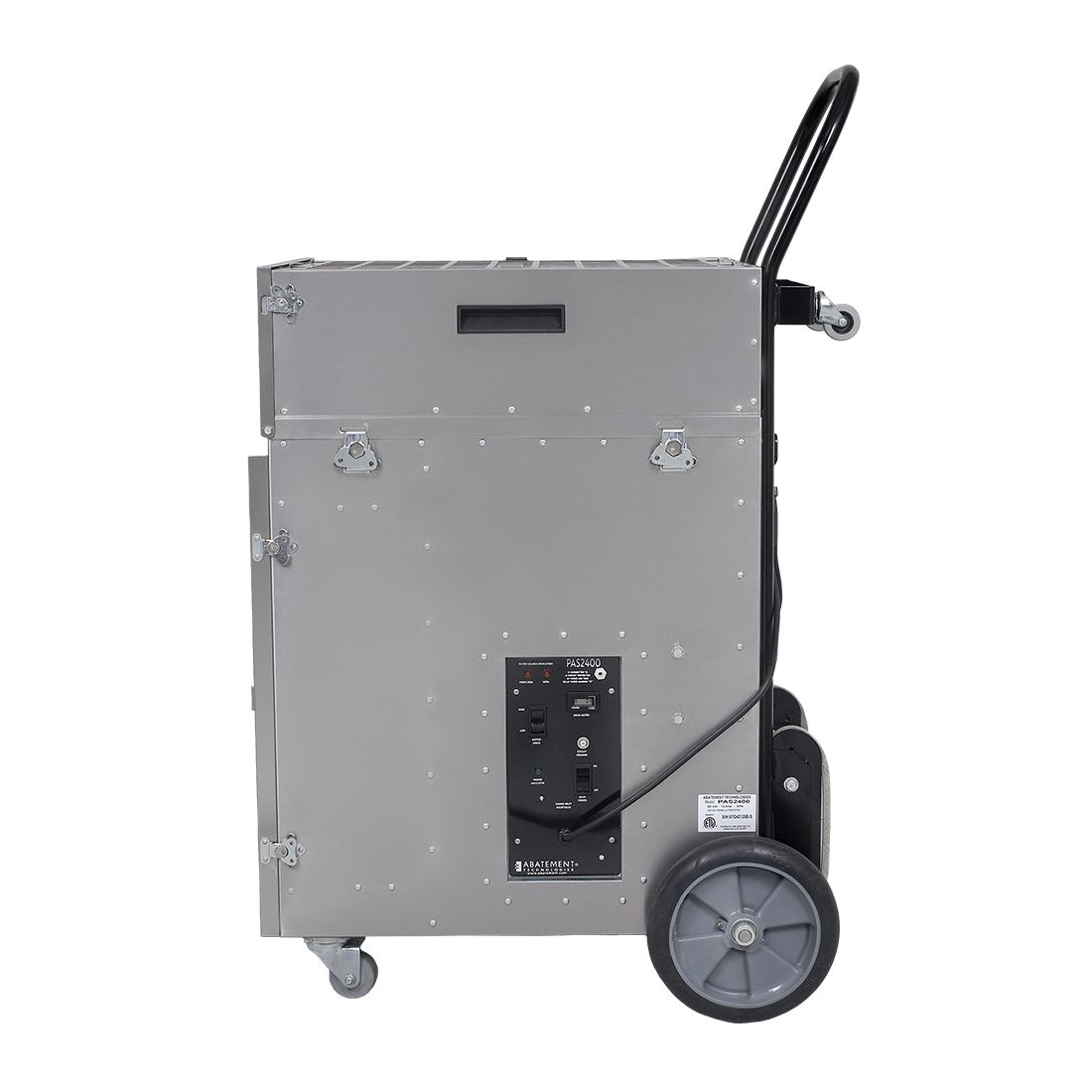

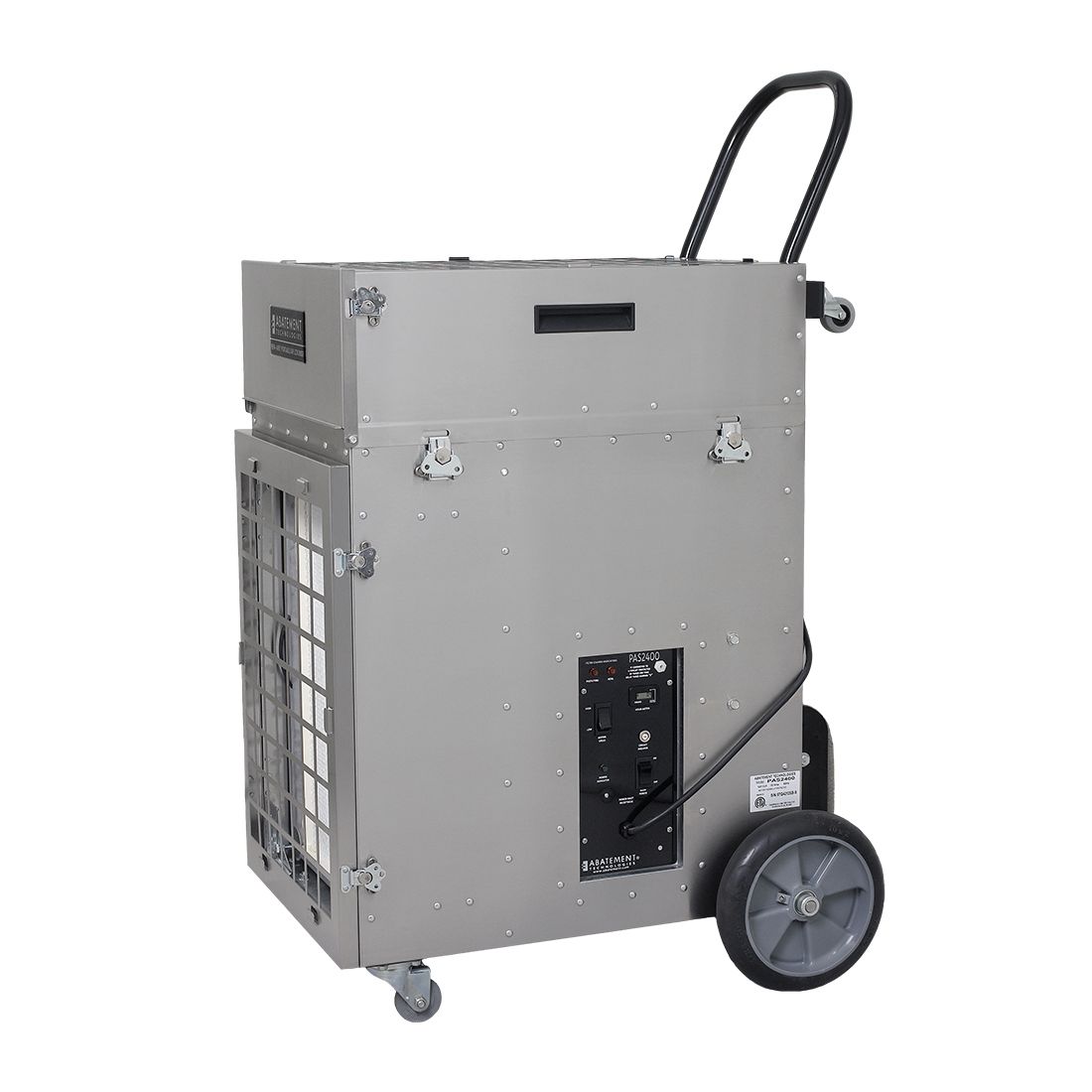

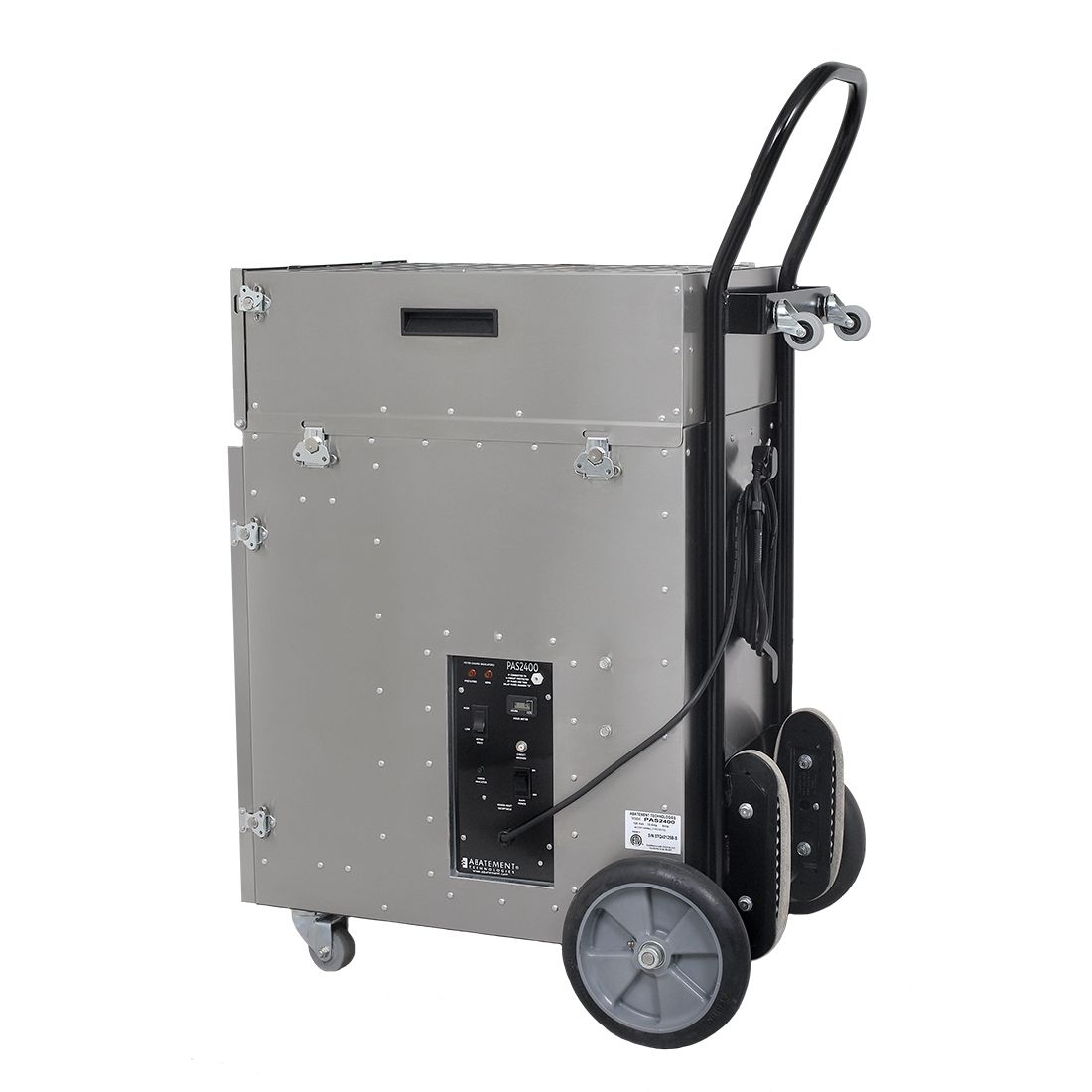

- Modular Control Panel: Everything you need to operate the PAS2400 is conveniently located in one location. The Control Panel features a speed control switch, a green "unit on" indicator lamp, a ‘replace Pre-filter’ indicator lamp, a ‘Replace HEPA’ indicator lamp, an Hour meter, and is GFCI-protected.
- Power - The custom-designed, high-speed motor and exemplary backward curved blower allow the PAS2400 to produce up to 60% more vacuum power than other 120 VAC systems
- Economy - The high dirt-holding capacity of the PAS2400 pre-filters and long life non-electrostatic HEPA filter extend the useful life of the filters and reduce replacement filter costs
- Efficiency - True 99.97%-certified HEPA filter retains its original 99.97%+ efficiency, even after hundreds of hours of operation
- User-Friendly Controls - A complete array of convenient controls enables users to continuously monitor the operating status of the PAS2400
- Safety First - NRTL certified to conform to UL507 and CSA 22.2 safety standards
- Export Model Available - The 230V/50-60Hz PAS2400TF model is designed specifically for overseas users
All Abatement HEPA-CARE units have been tested by a Nationally Recognized Testing Laboratory (NRTL) and carry the marks certifying that they comply with applicable OSHA, UL and CSA electrical safety standards. Filters meet UL900 flammability standards.
Specifications:
| Brand | Abatement Technologies® |
| Model | HEPA-AIRE PAS2400 |
| SKU | PAS2400 |
| Dimensions (L x W x H) |
31.50" x 25.25" x 49.75" |
| Air Changes per Hour |
6 ACH in areas up to 18,000-21,000 ft |
| Airflow | 700-2,100 cfm |
| Net Weight With Filters |
170 lb |
| Power Supply Requirements |
120 VAC, 60 Hz, 15 A |
| Electrical Safety |
Safety: NRTL-certified to comply with UL Std. 507 & CAN/CSA Std. #C22.2 No. 113-M1984 for electrical safety |
| Cabinet Material |
20 gauge stainless steel construction with solid, aircraft-type rivets |
| Pre Filter Access |
Hinged and latched pre-filter access door with a full perimeter gasket |
| Stage 1 Pre-filter |
Inexpensive, 1" deep FIBER-TRAPPER 1.0 pre-filter for larger particulates (100+ microns); can be washed & reused, or treated as a disposable |
| Stage 2 Pre-Filter |
Pleated, 2" deep filter for medium-sized particulates (10-100 microns) |
| Stage 3 Optional Pre-Filter |
Stage 3 pre-filter (not included) - High-capacity 2" deep VAPOR-LOCK carbon filter for gases & odors |
| Final Stage HEPA Filter |
High-capacity, for 0.1-10 micron particles, certified test efficiency of 99.97% or higher at 0.3 microns, metal-frame |
| Motor Blower |
Motor: High-efficiency type, 3,450 RPM, 1.5 HP Backward Curved Blower: Anodized-Aluminum, 5.5 peak static lift |
| Inlet Outlet Manifold |
Molded slide-in plastic manifold for attaching 12 inlet or outlet ducting (one included) |
| Pre Filter Mounting |
Separate slide-in compartments for up to 3 pre-filter stages |
| Amperage | 12 amps or less (safe for 15A circuits) |
| Control Panel |
Off/High/Low-speed selector switch, green power indicator lamp, separate amber ‘Replace Pre-filter and ‘replace HEPA lamps, hour meter, resettable pop-out 12A circuit breaker |
| Built-in Dolly |
Two-wheel dolly with 10" solid, non-marking rubber rear wheels |
| Casters | 360 dgree swivel front casters |
| Filter change indicator |
Yes |
