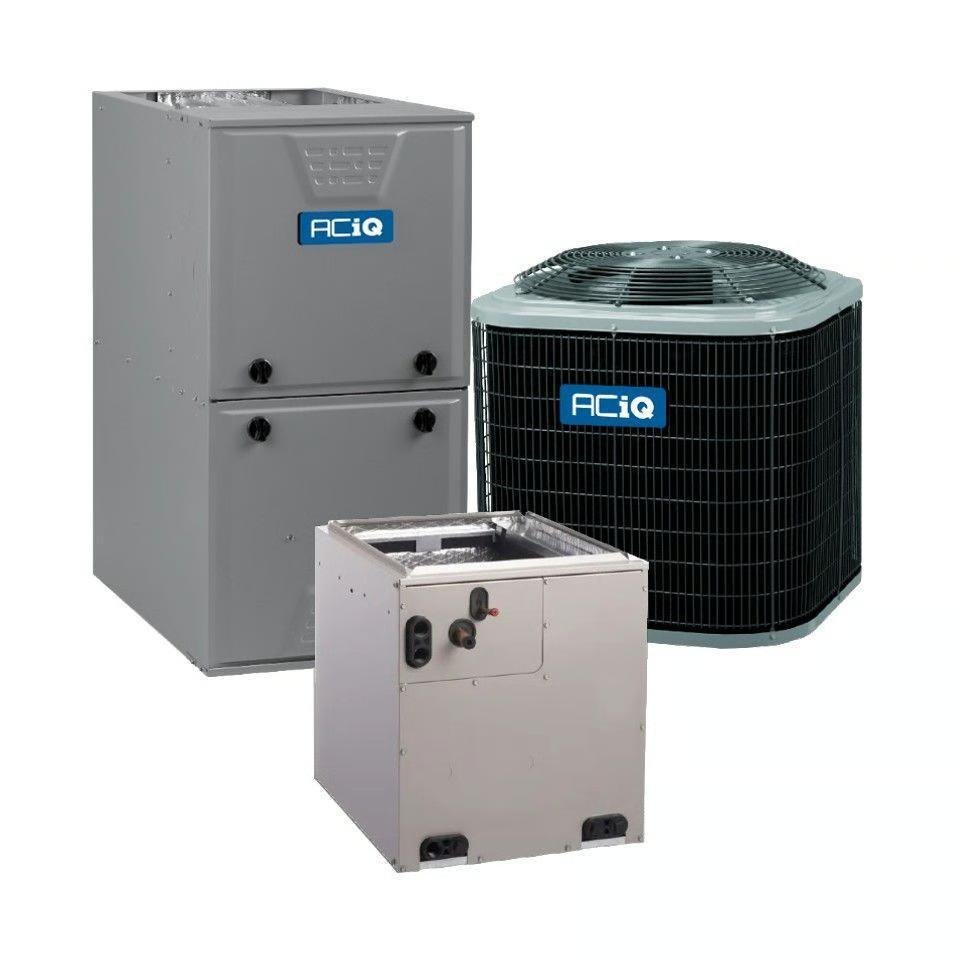

ACiQ 3.5 Ton 15.2 SEER2 96% 100,000 BTU Furnace & AC System - R454B Multi-Positional
With tons of extra features and a great price, an ACiQ furnace and air conditioning system is the perfect choice for all of your heating and cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.

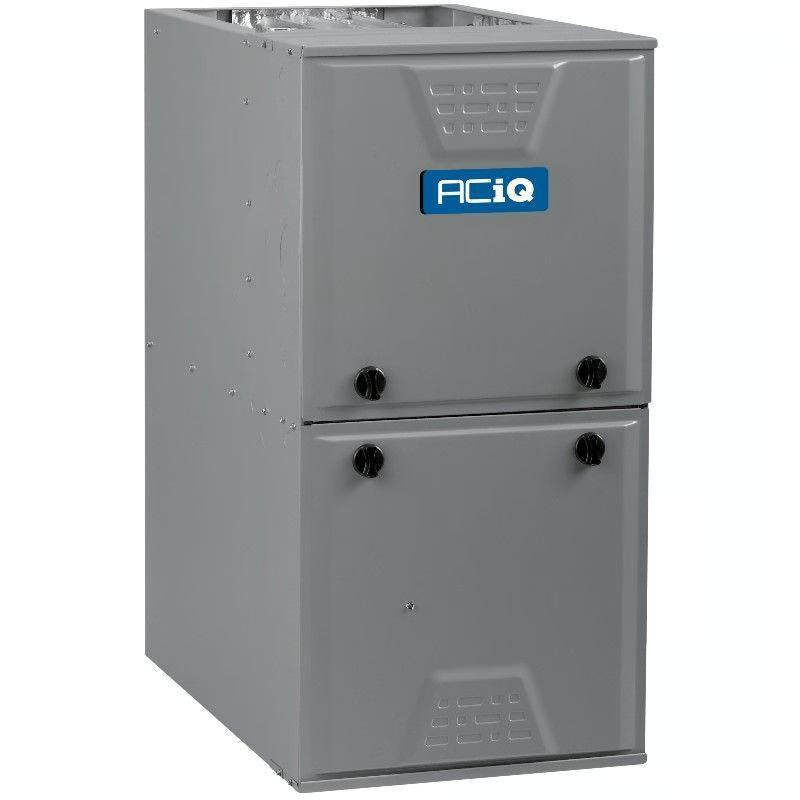

ACiQ 96% 100,000 BTU Two Stage Gas Furnace - 21" Width - Multi-Positional
The ACiQ G96CTN1002122A two-stage gas furnace is a great choice to keep your home warm all season long. With tons of extra features and a great price, the ACiQ G96CTN series is a perfect choice. All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.
Features
- 96% AFUE
- Operates as a natural gas furnace out of the box, and can be easily converted to a propane furnace with optional propane conversion kit
- Direct vent (2-pipe), single-pipe venting or ventilated combustion air
- 24 VAC and 115 VAC humidifier terminal
- Electronic air cleaner terminal
- ESC blower motor
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ aluminized steel heat exchanger
- Two-stage heating operation
- Variable speed, constant torque ECM blower motor
- Fully insulated steel cabinet for quieter operation
- Multi-positional installation/li>
- Through the casing flue pipe for counterflow applications
- Common venting with other Category I appliances
- Self diagnostics
- Slide out blower assembly
- 20 year heat exchanger limited warranty
- 5 year parts limited warranty - With timely registration, an additional 5 year parts limited warranty
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

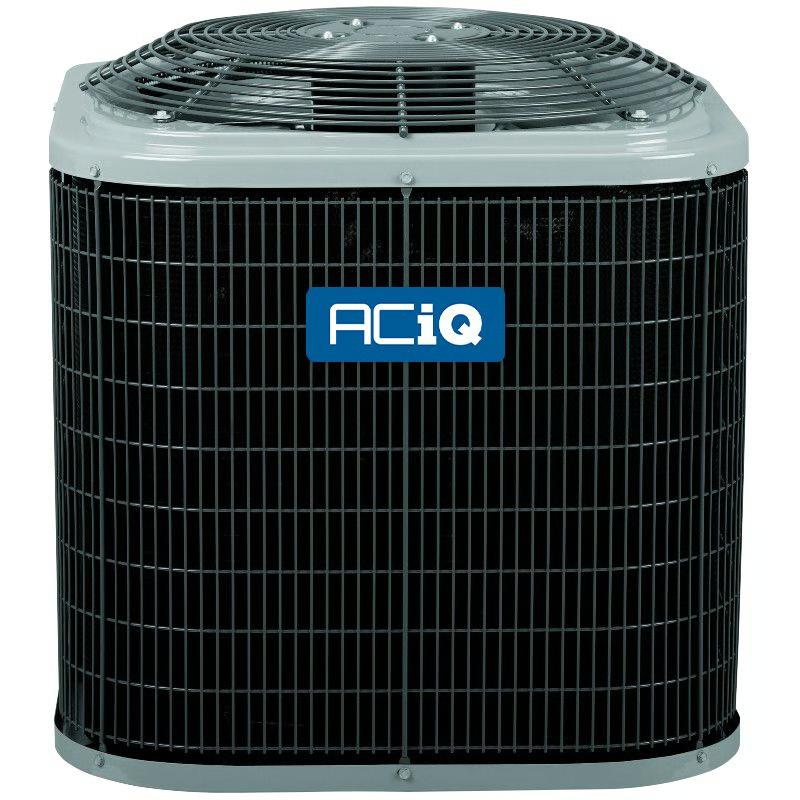

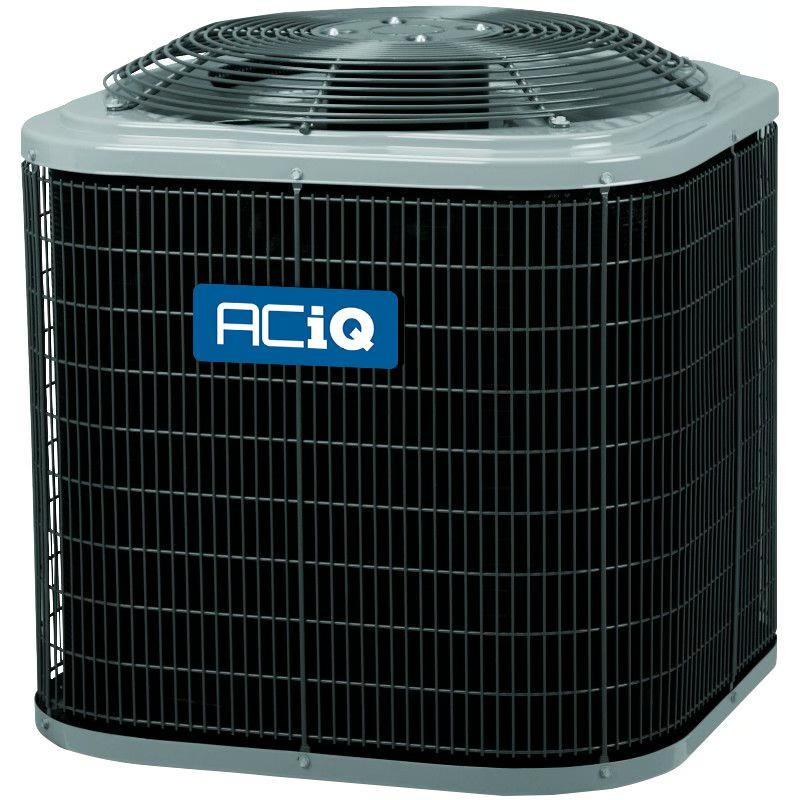

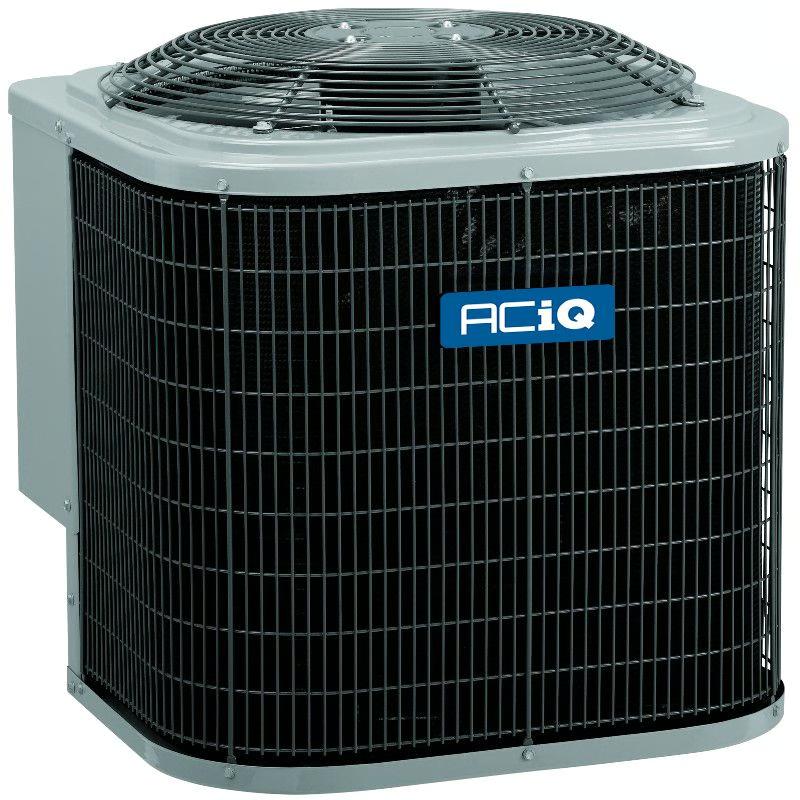

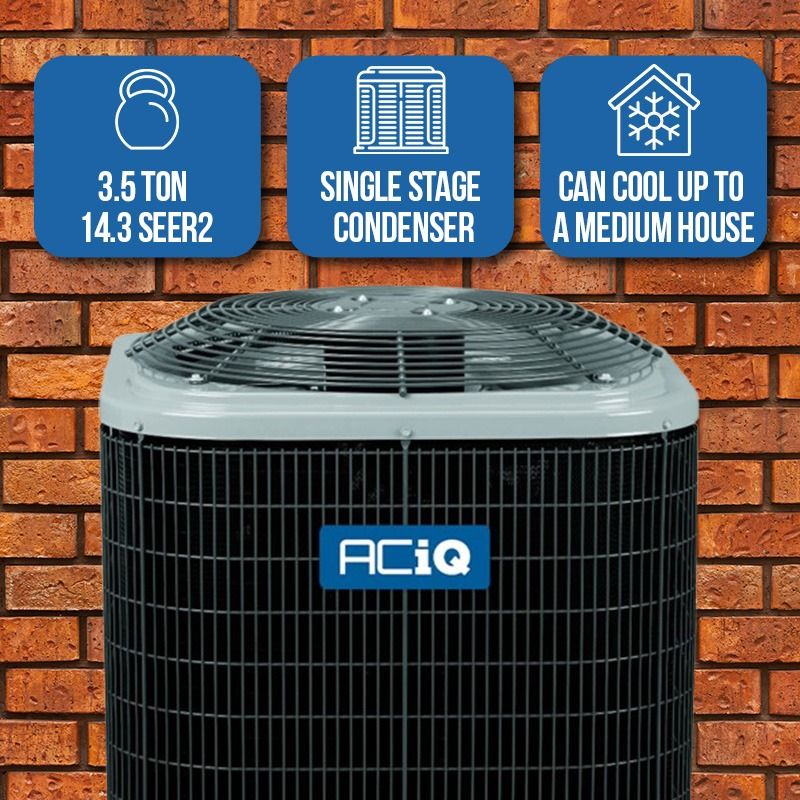

ACiQ 3.5 Ton 14.3 SEER2 Central Air Conditioner Condenser - R454B Single Stage
Overview
The ACiQ R5A5S42AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
Quick Facts
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
- 3.5 Ton 14.3 SEER2 ACiQ Air Conditioner Condenser
- Can cool up to a medium size house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed
3.5 Tons
The ACiQ R5A5S42AKAWA air conditioner condenser has an output of 3.5 tons, generally enough to cool up to a medium size house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
14.3 SEER2
The ACiQ R5A5S42AKAWA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACiQ units are extremely durable. On the R5A5S42AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

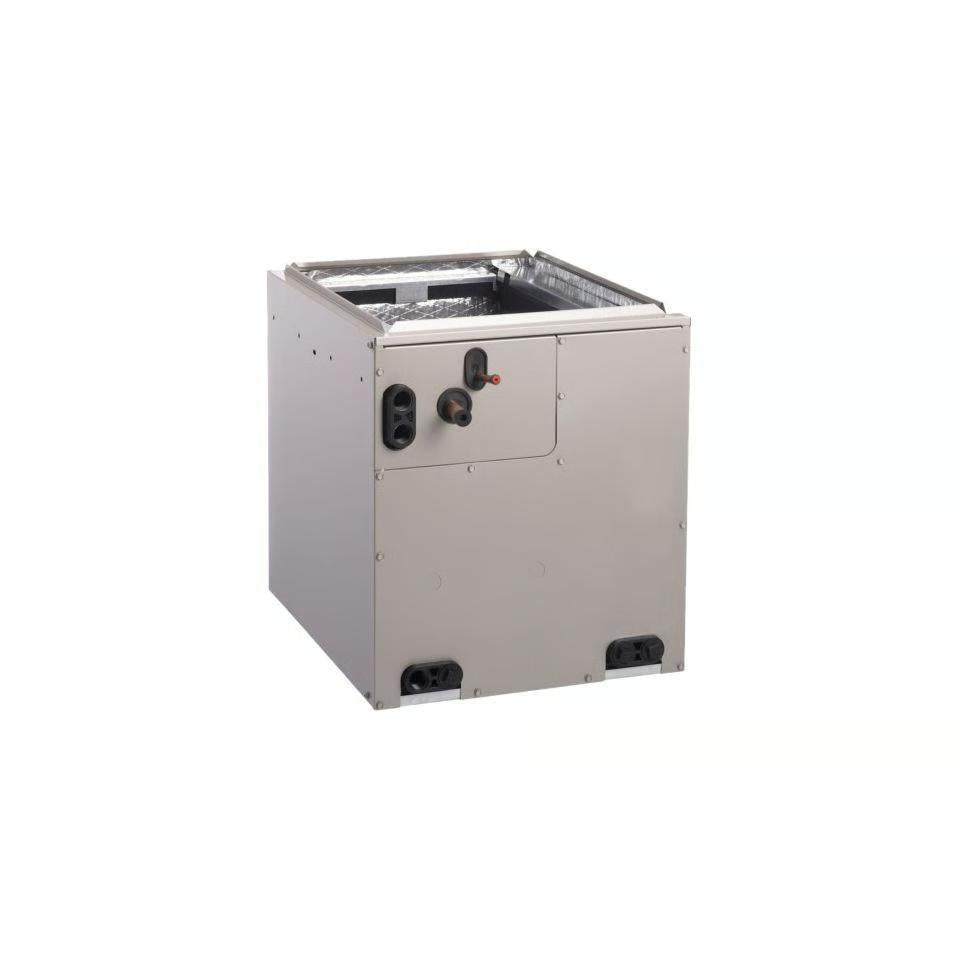

ACiQ 3.5 Ton 21" Width Multi-Positional Cased Evaporator Coil - R454B
ACiQ patent-pending multipoise evaporator coil with Power-V technology features a V-shape coil design provides excellent heat transfer over the coil needed to keep your system operating at peak energy efficiency and delivering consistent comfort.
Features
- Cased V coil design for efficient heat transfer in a compact size.
- Efficiency-optimizing Thermostatic Expansion Valve(TXV) metering device.
- Corrosion-resistant all-aluminum coil.
- Fully insulated cabinet.
- 10-year parts limited warranty upon registration.
- Corrosion-resistant drain pan is designed in a Polybutylene Terephthalate (PBT) material that offers unsurpassed pan strength.
The V-coil design has a lighter, corrosion-resistant aluminum construction that increases system efficiency and durability. The all-aluminum recyclable coils supports our respect for the environment while providing durable and lasting resistance to multiple sources of corrosion.
The multipoise design allows the flexibility for the coil to be installed in multiple orientations, including upflow, downflow and horizontal applications.
ACiQ's V-coils with Power-V Technology features a variety of design improvements that allow for improved installation and serviceability by your HVAC technician.
Furnace Specifications:
| SKU | G96CTN1002122 |
| Weight | 179.000000 |
| AHRI Certificate Number | 213148727 |
| Exhaust Flue Requirement | Plastic / PVC |
| Manufacturer | ACiQ |
| Equivalent |
|
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 100,000 |
| Blower Motor | Variable Speed |
| Maximum CFM | 2160 |
| Configuration | Upflow/Downflow/Horizontal |
| Energy Star | Yes |
| Electrical | 120 V. 1 Phase 60 Hz |
| Burner Stages | Two |
| Fuel Type | Propane, Natural Gas |
| Height | 35" |
| Width | 21" |
| Depth | 29-1/2" |
| Warranty | 10 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
| Resources | |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. PROPOSITION 65 WARNING |
Condenser Specifications:
| SKU | R5A5S42AKAWA |
| Refrigerant Charge | 15' |
| Weight (in lbs) | 215.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces |
R4A5S, R5A5S42AKAAA |
| Product Features | New Refrigerant Compliant |
| Cooling BTU | 42000 |
| Maximum CFM | 4900 |
| Decibel Level (dBA) | 75 |
| Motor RPM | 1100 |
| Horsepower |
1/5 HP |
| Refrigerant |
R454B |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 7/8" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Tonnage | 3.5 Ton |
| Height | 38 7/16" |
| Width | 31 3/16" |
| Depth |
31 3/16" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
Coil Specifications:
| SKU |
EVM5X42M21A |
| Weight (in lbs) | 42.900000 |
| Brand/Manufacturer | ACiQ |
| Replaces | EVM4X |
| Additional Information | Metering Device: TXV |
| Additional Information | Coil Type: Aluminum V-Coil |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Tonnage | 3.5 Ton |
| Style | V-Coil |
| Connection | Sweat |
| Certification | UL and c-UL Listed |
| Height |
19 1/16" |
| Width |
21" |
| Depth |
20 5/8" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
