Multi-Split 24,000 BTU Ductless AC & Heat Pump - 22 SEER efficiency

SKU: AMSCI4H4S24 / ABXEM4H4S12 / ABXEM4H4S12
Your Price:
$2,755.00 $3,584.25
You Save: $829.25 24%
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 10 Left in Stock.
Order in the next to get it by

Get Extra 5% Off With Code: FLASH5 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

Air-Con International Multi Split Series 24,000 BTU 22 SEER 2 Zone Ductless Mini Split Air Conditioner and Heat Pump with 25 Ft. Pre-Charged Line Sets 12K + 12K

Year-Round Comfort. This powerful mini split AC is an air conditioner and heater all in one. Highly efficient, incredibly quiet, and made from the highest quality materials. This high SEER two-zone mini split will cover up to 600 square feet per air handler. The Air-Con International Multi Split Series offers extraordinary features such as low ambient heating and cooling down to -13°F, customizable infrared remote-control settings. Anti-corrosive Golden Fin and an ultra-quiet low noise design indoor unit that operates as low as 30 dB(A).

Independent Zone Control. Say goodbye to dirty, leaky ducts. This split AC unit delivers conditioned air directly to each room. No need for noisy fans. The temperature in every room is independently controlled.

Serious Money Saver. No ducts mean no leaks. Add in the inverter that eliminates high amp starts & stops and independent zone control and you can save up to 60%.

Awesome Warranty. You are protected by a seven-year warranty on the compressor, a five-year parts warranty (with professional installation), and unlimited US-Based Free Tech Support.

The Air-Con International Mini Split System is packed with premium features:

  • Inverter technology to lower operating costs
  • Ultimate in energy savings
  • WIFI ready with optional remote
  • Maximum Efficiency: 22 SEER
  • Low Ambient for cold areas
  • Auto Restart
  • INVERTER technology
  • Pre-charged with Eco-friendly R410A refrigerant
  • Anti-corrosive treatment in equipment components

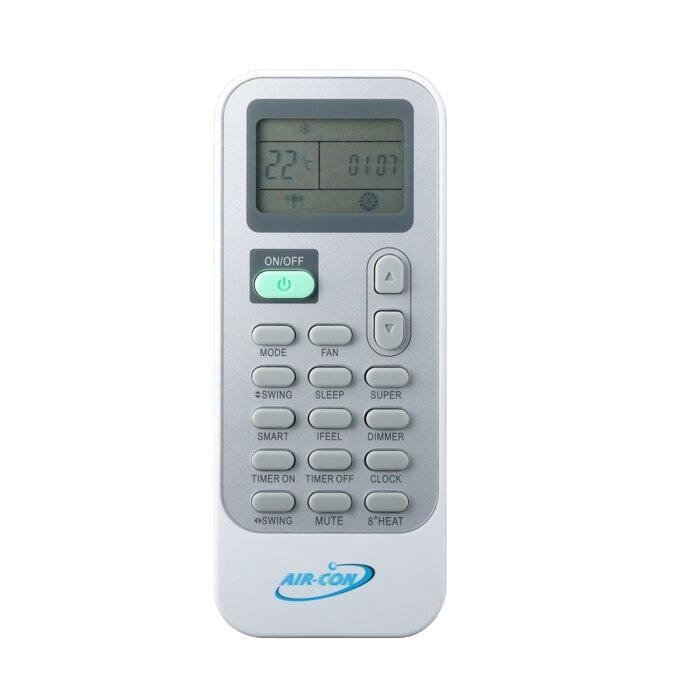

  • Multi-function LCD wireless remote controls
  • Removable washable grille
  • 24 hour on/off timer
  • Sleep mode cooling operation
  • Auto and 3 speeds fan control + Vertical auto-swing
  • Signal reception indicator
Multi-Split 24,000 BTU Ductless AC & Heat Pump - 22 SEER efficiency

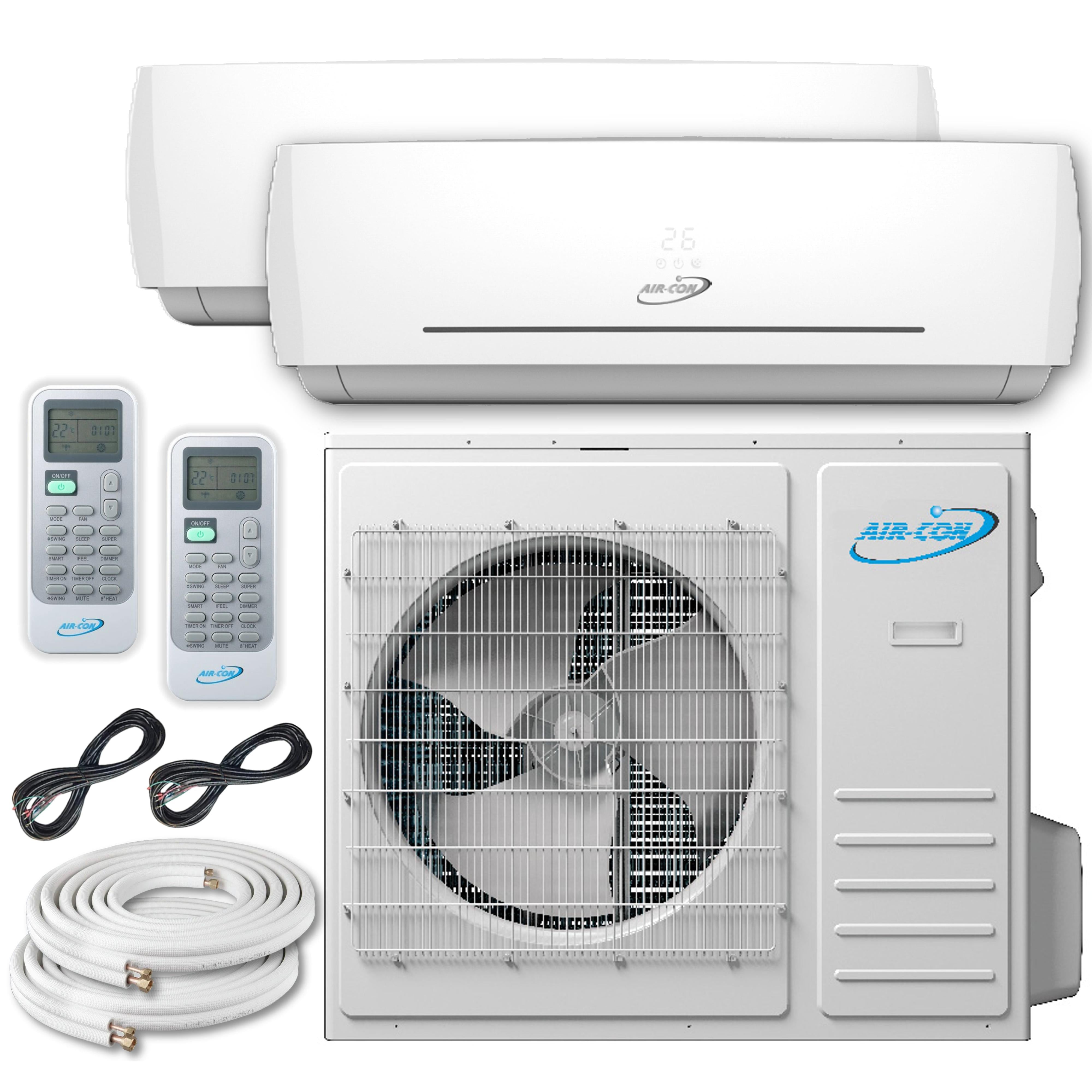

What’s included:

  • 1x Outdoor Unit
  • 2x Indoor Units
  • 2x Digital Remote Controls
  • 2x 1/4" x 3/8" Pre-Charged Copper Linesets 25'
  • 25 ft Signal and Power Cables
  • Installation instruction
  • Warranty Includes 7-years on the compressor and 5-year on parts

Condenser Specification

Brand
Air-Con International
Model
AMSCI4H4S24
Voltage, Frequency, Phase
208/230V, 60Hz, 1P
Max. connected indoor units
3
Cooling Capacity
24000(8000~30200)
Heating Capacity
24000(5200~37000)
Watts
1920
Cooling Power Input (W)
1920(420~2640)
Heating Power Input (W)
1920(420~4020)
Cooling Current Input (A)
8.7
Heating Current Input (A)
8.7
Air Flow Volume (H/M/L)
2350
EER (Btu/Wh)
12.5
COP (Btu/Wh)
12.49
SEER (Btu/Wh)
22
HSPF (Btu/Wh)
11
Sound Pressure Level dB(A)

Cooling Operating Range
14~114.8 °F
Heating Operating Range
-13~75.2 °F
Net Dimensions (WxHxD)
37-3/8x33x13-3/8 inches
Gross Dimensions (WxHxD)
43-3/4X18-1/8X36-1/4 inches
Net Weight
158.7 lbs
Gross Weight
169.5 lbs
Refrigerant Charge
81.13 oz
Additional refrigerant (oz/ft)
0.161 over 74ft
Outer Diameter Liquid Pipe
1/4
Outer Diameter Gas Pipe
3/8
Max. Length Each
66 ft
Max. Length Total
197 ft
Max. Height
49 ft


12K BTU Air Handler Specifications

Brand
Air-Con International
Model
ABXEM4H4S12
Voltage, Frequency, Phase
208/230V, 60Hz, 1P
Cooling Capacity
12000 Btu/h
Heating Capacity
13000 Btu/h
Watts
2638
Output Power
25 W
Cooling Current Input
0.11 A
Air Flow Volume (H/M/L)
365 CFM
Sound Pressure Level (H/M/L)
39/35/30 dB(A)
Net Dimensions (WxHxD)
37-3/8x10-3/4x8-1/8 inches
Gross Dimensions (WxHxD)
39-3/8x13-3/16x6-3/8 inches
Net Weight
19.84 lbs
Gross Weight
24.25 lbs
Outer Diameter Liquid Pipe
1/4
Outer Diameter Gas Pipe
3/8


Product Information and Guides:
