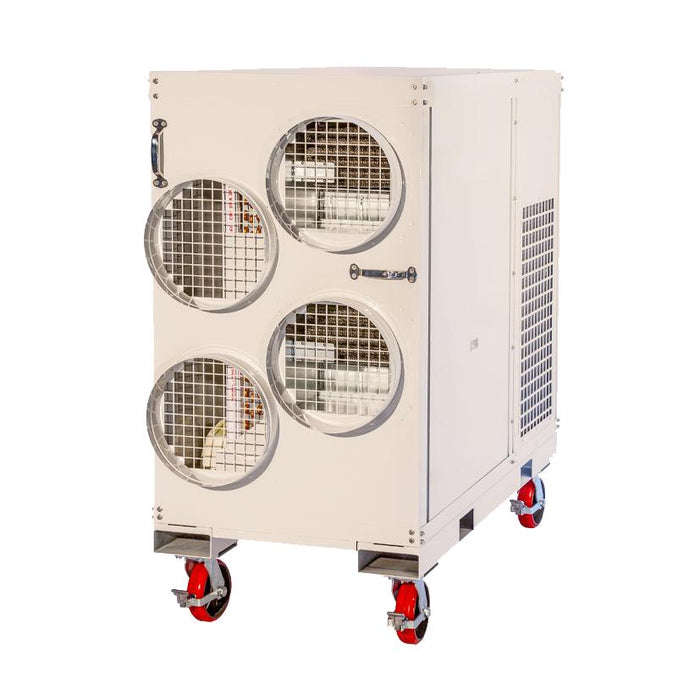

Airrex AHSC-140P-480-3 12 Ton AC (480V/3) with Electric Heat
Airrex AHSC-140P portable air conditioner with two 15kw electric heaters, operates in air temperatures from 65°to 113°F for cool mode. This portable air conditioner with electric heat utilizes eco-friendly R410A refrigerant and may require a fresh air supply for proper operation. Includes two pleated filters that are 20”x24”x2” located behind a quick access panel for easy maintenance. Thermostatically protected compressor includes high and low-pressure warnings has 145,000 BTU cooling feature and 100,000 BTU heating feature. Two 16" supply flanges, two 16" return flanges, and a 20" exhaust flange. The AHSC-140P has a built-in condensate pump. 1 Year Warranty. 3 Year compressor warranty. Two electrical options, 220V 3 phase or 486V 3 phase.
Specifications:
| BRAND | Airrex |
| MODEL | AHSC-140 480/3 |
| REFRIGERANT | R410A |
| TONS | 12 |
| COOLING CAPACITY |
145,000 BTU |
| HEATING CAPACITY |
100,000 BTU |
| APPROX SQUARE FEET COVERAGE | 4800 |
| VOLTAGE | 480V |
| POWER SUPPLY |
460V 60Hz 3Ph |
| W x D x H |
33.9 x72.8 x 65.2 (inches) |
| WEIGHT | 1,236 lbs |
| CURRENT CONSUMPTION (AMPS) |
31 (Cool) 43 (Heat) |
| CIRCUIT BREAKER SIZE (AMPS) |
50 |
| RATED POWER CONSUMPTION |
23 kW |
| AMP RATING |
23 |
| COMPRESSOR INPUT |
12.3 kW |
| AIR FLOW (CFM, HIGH/LOW) EVAPORATOR |
3,530 |
| STATIC PRESSURE |
0.071 (psi) |
| POWER CORD | Power Plug Socket |
| POWER CORD LENGTH | Designed for Hardwire |
| OPERATING CONDITIONS |
Cool: 65°F 60%RH - 113°F 40%RH Heat: 50°F 70%RH - 81°F 50%RH Dehumidifier: 59°F 60%RH - 113°F 40%RH |
| NEMA PLUG | Designed for Hardwire |
| ELECTRIC HEAT(OPTIONAL) |
N/A |
| NOISE LEVEL (DECIBEL 1M) |
80 |
| MOISTURE REMOVAL MAX (GAL/H) |
5.2 |
