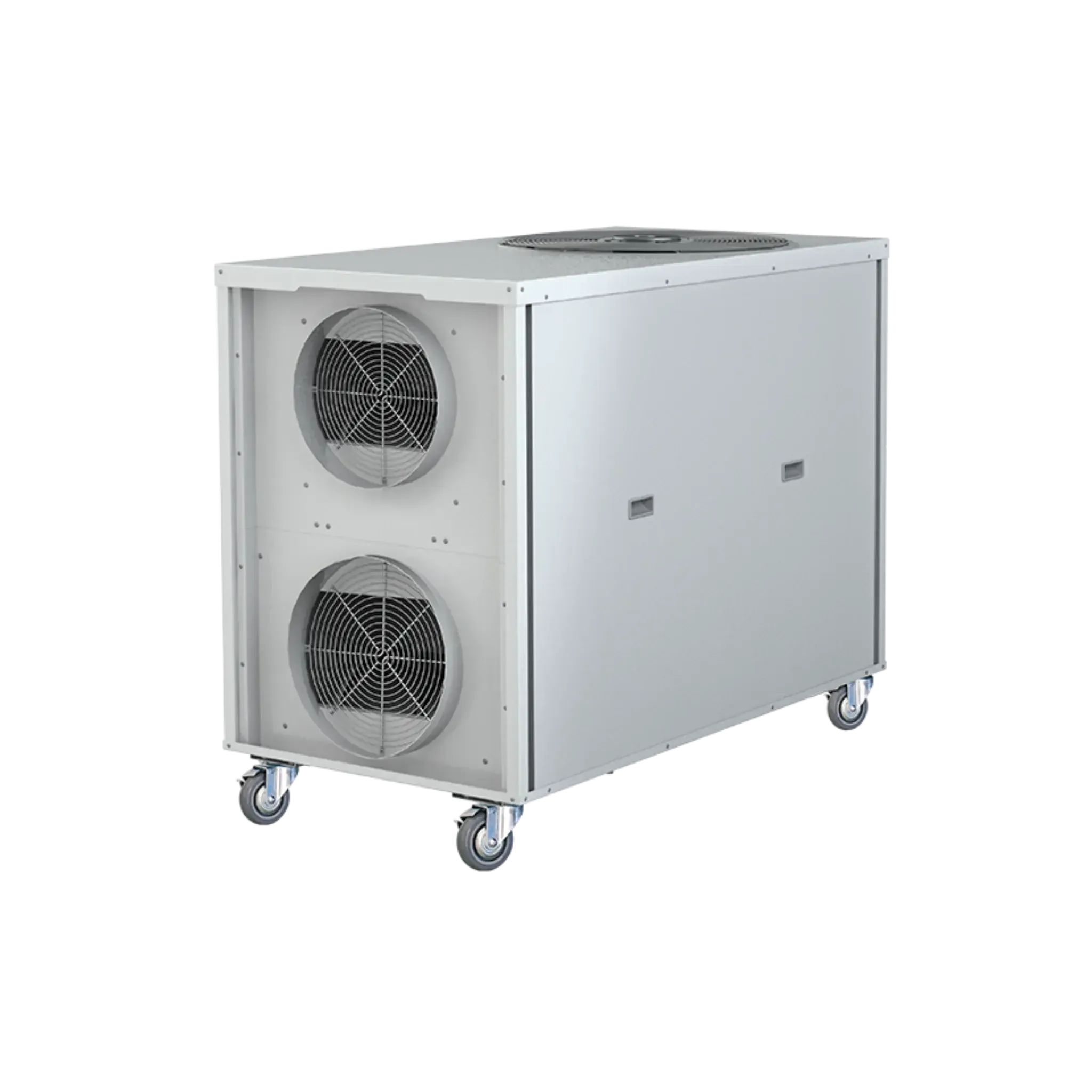

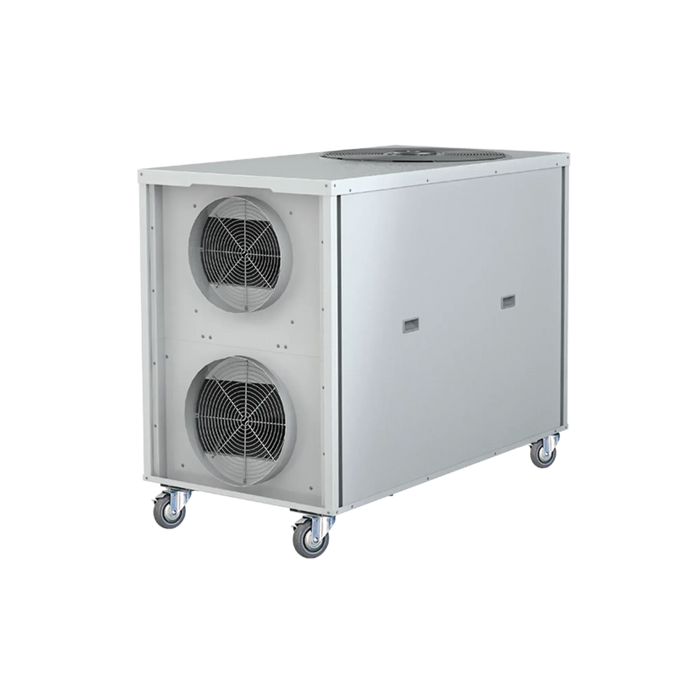

Airrex AHSC-60-220-1 5 Ton (220/1) Heat Pump
Airrex AHSC-60 portable heat pump operates in air temperatures from 65°to 113°F for cool mode and 50°to 81°F for heat mode. This heat pump utilizes eco-friendly 410A refrigerant. Our heat pumps may require a fresh air supply for proper operation. Includes removable, washable air filters for easy maintenance. Thermostatically protected compressor includes high and low-pressure warnings has 60,000 BTU cooling feature and a 60,000 BTU heating feature. 12" supply flange and 16" return flange and 26" diameter top exhaust. Optional condensate pump that plugs directly into a quick connect port inside the unit. 1 Year Warranty. 3 Year compressor warranty. Two electrical options, 220V 1 phase or 480V 3 phase
Specifications:
| BRAND | Airrex |
| MODEL | AHSC-60 |
| REFRIGERANT | R410A |
| TONS | 5 |
| COOLING CAPACITY |
60,000 BTU |
| HEATING CAPACITY |
60,000 BTU |
| APPROX SQUARE FEET COVERAGE | 2000 |
| VOLTAGE | 220V |
| POWER SUPPLY |
220V 60Hz 1Ph |
| W x D x H |
29.1 x 57.1 x 47.7 (inches) |
| WEIGHT | 567 lbs |
| CURRENT CONSUMPTION (AMPS) |
33.7 (Cool) 33.2 (Heat) |
| CIRCUIT BREAKER SIZE (AMPS) |
50 |
| RATED POWER CONSUMPTION |
7.12 (Cool) 6.96 (Heat) |
| AMP RATING |
50 |
| COMPRESSOR INPUT |
5.7 |
| AIR FLOW (CFM, HIGH/LOW) EVAPORATOR |
1,620 |
| STATIC PRESSURE |
0.071 (psi) |
| POWER CORD | Terminal Type |
| POWER CORD LENGTH | Terminal Type |
| OPERATING CONDITIONS |
Cool: 65°F DB 60%RH - 113°F DB 40%RH Heat: 50°F DB 70%RH - 81°F 50%RH |
| NEMA PLUG |
Designed for hardwire |
| ELECTRIC HEAT(OPTIONAL) |
N/A |
| NOISE LEVEL (DECIBEL 1M) |
75 |
| MOISTURE REMOVAL MAX (GAL/H) |
3.19 |
